SR01010013

Knife gate valve DN 150 SR01 NBR handwheel

€399.60*

€475.52 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FD01000113

flange seal DN150 PN10/16 169x218x2 Klingersil C 4400

€7.80*

€9.28 VAT included.

FL01020113

Flange DN150 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€65.20*

€77.59 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Downloads

3D model

Datasheet

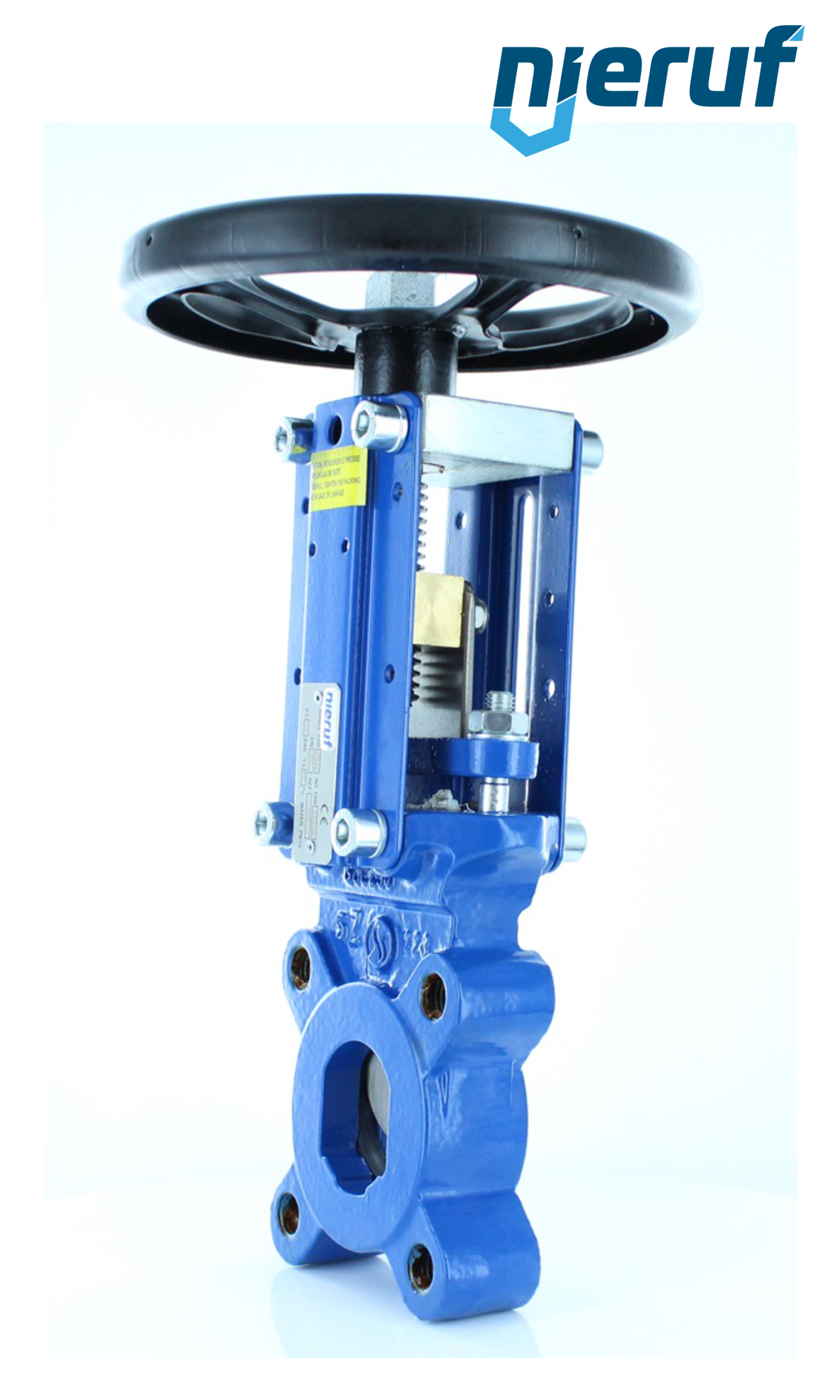

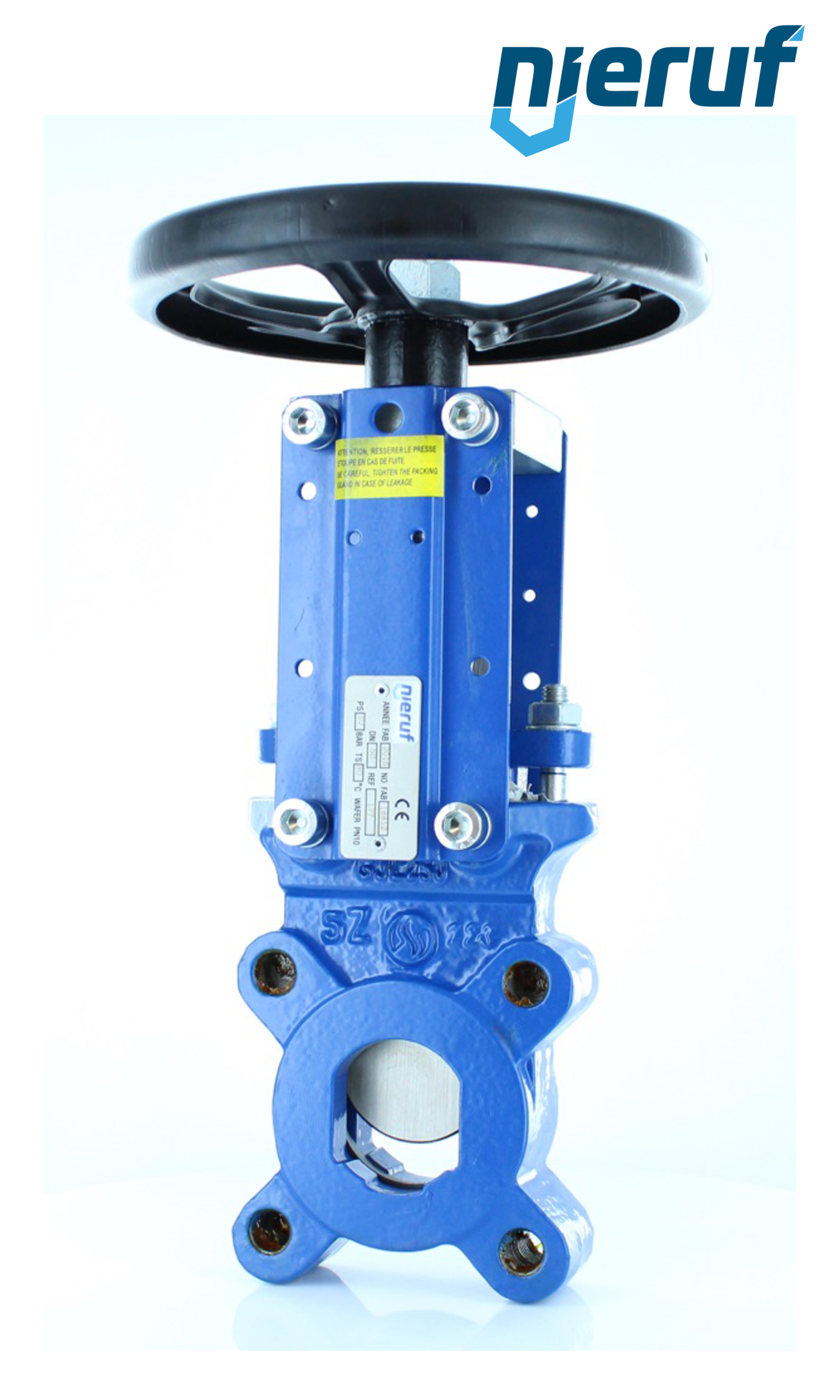

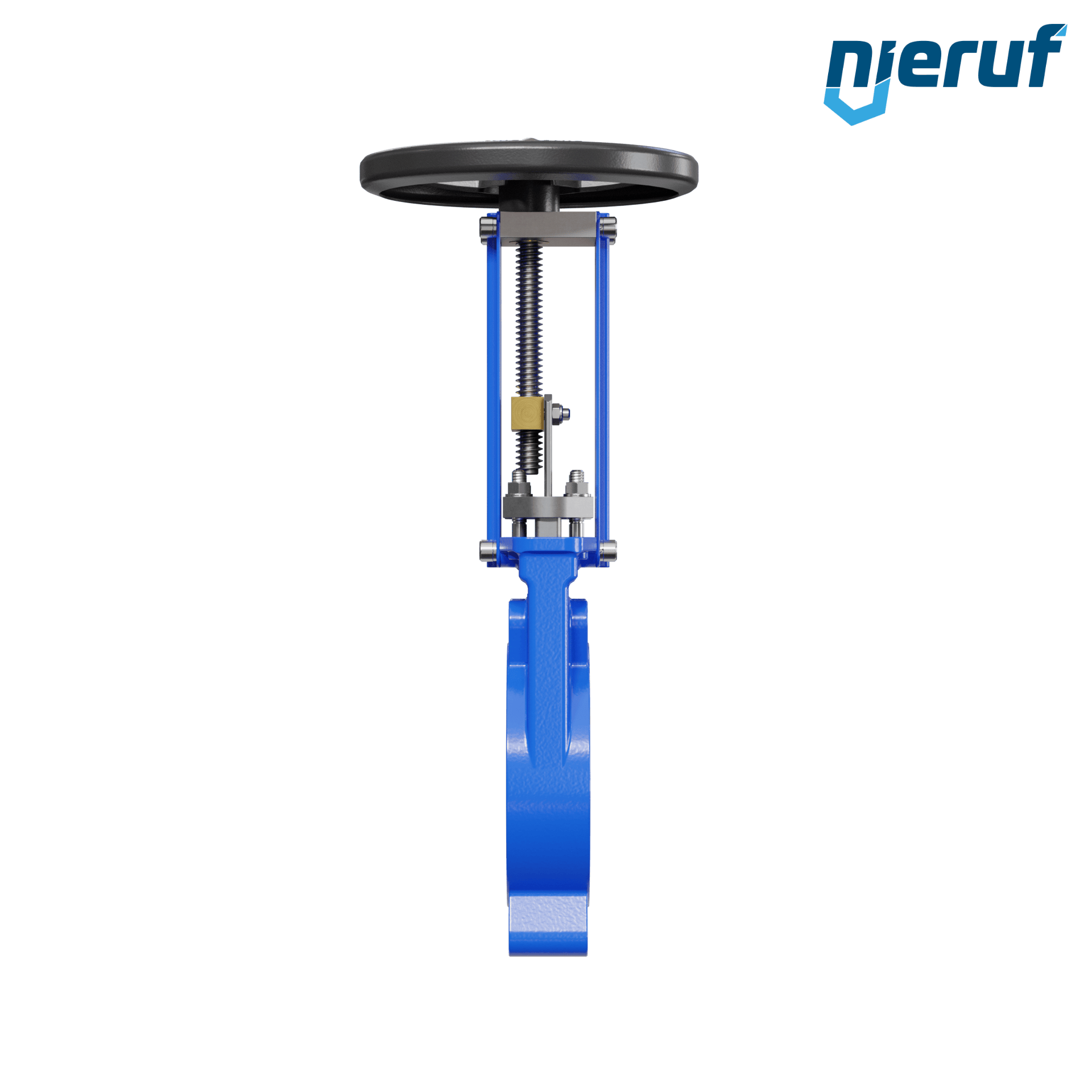

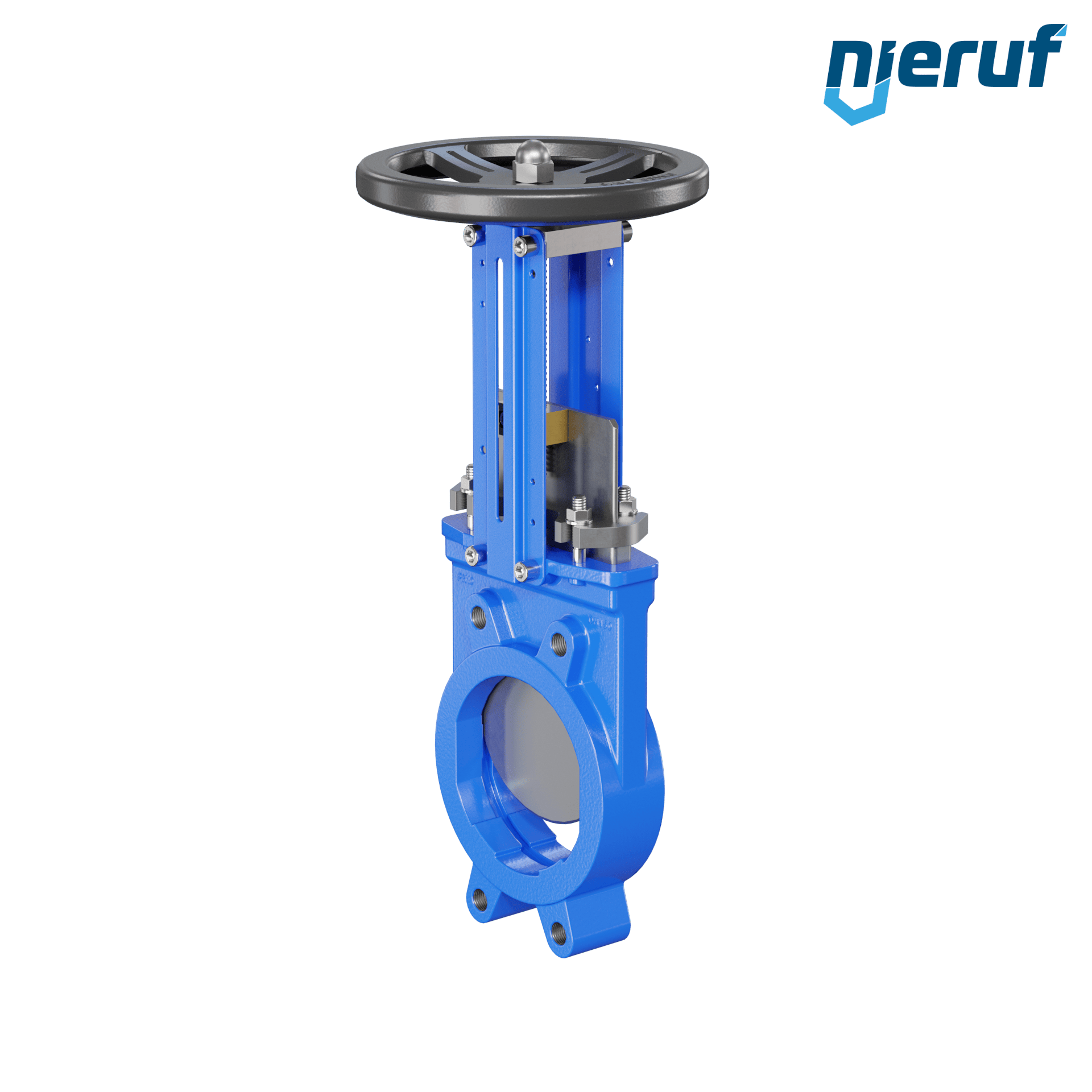

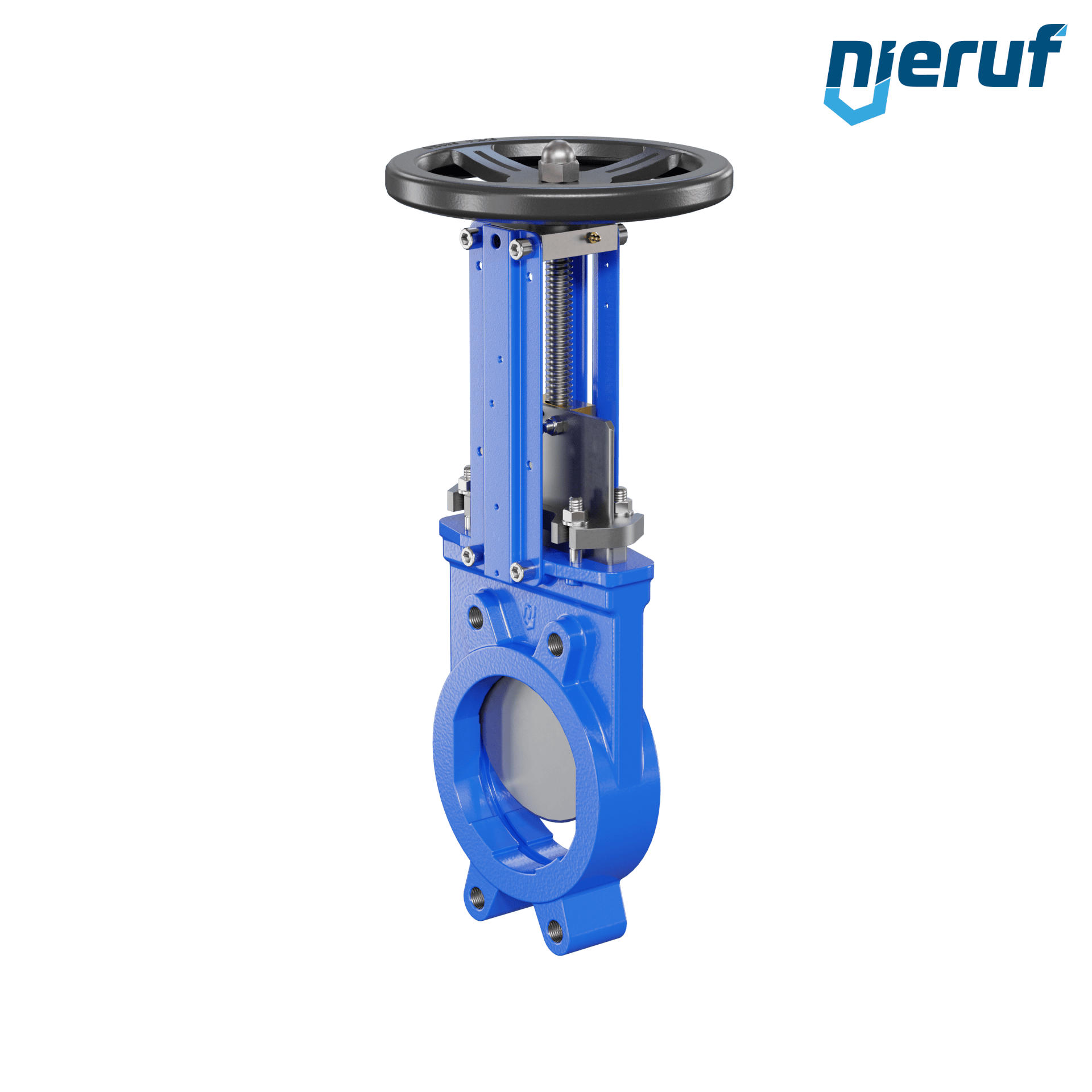

Knife gate valve DN 150 SR01 NBR handwheel

Knife gate valve DN 150 DIN EN 1092-2 PN10 NBR made of cast iron EN GJL-250 bidirectional tightness for liquid and gaseous media

product	Knife gate valve
type	SR01
manufacturer	NieRuf
diameter	DN 150
nominal pressure	PN10
max pressure	10 bar
flange	DIN EN 1092-2 PN10
seal	NBR
media	liquid and gaseous media
temperature	-10°C up to +90°C
design	bidirectional tightness
body material	cast iron EN GJL-250
disc	stainless steel AISI 304
packing	PTFE
actuation	handwheel
application	not rising stem & handwheel
installation position	preferably standing
product feature	Cast iron slurry gate valve with tight shut-off in both directions, especially suited for applications in which the flow and/or pressure direction can change within the system.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Knife gate valve DN 150 SR01 NBR handwheel

Article no. : SR01010013
product: Knife gate valve
type: SR01
manufacturer: NieRuf
diameter: DN 150
nominal pressure: PN10
max pressure: 10 bar
flange: DIN EN 1092-2 PN10
seal: NBR
media: liquid and gaseous media
temperature: -10°C up to +90°C
design: bidirectional tightness
body material: cast iron EN GJL-250
disc: stainless steel AISI 304
packing: PTFE
actuation: handwheel
application: not rising stem & handwheel
installation position: preferably standing
product feature: Cast iron slurry gate valve with tight shut-off in both directions, especially suited for applications in which the flow and/or pressure direction can change within the system.
