FK05070004

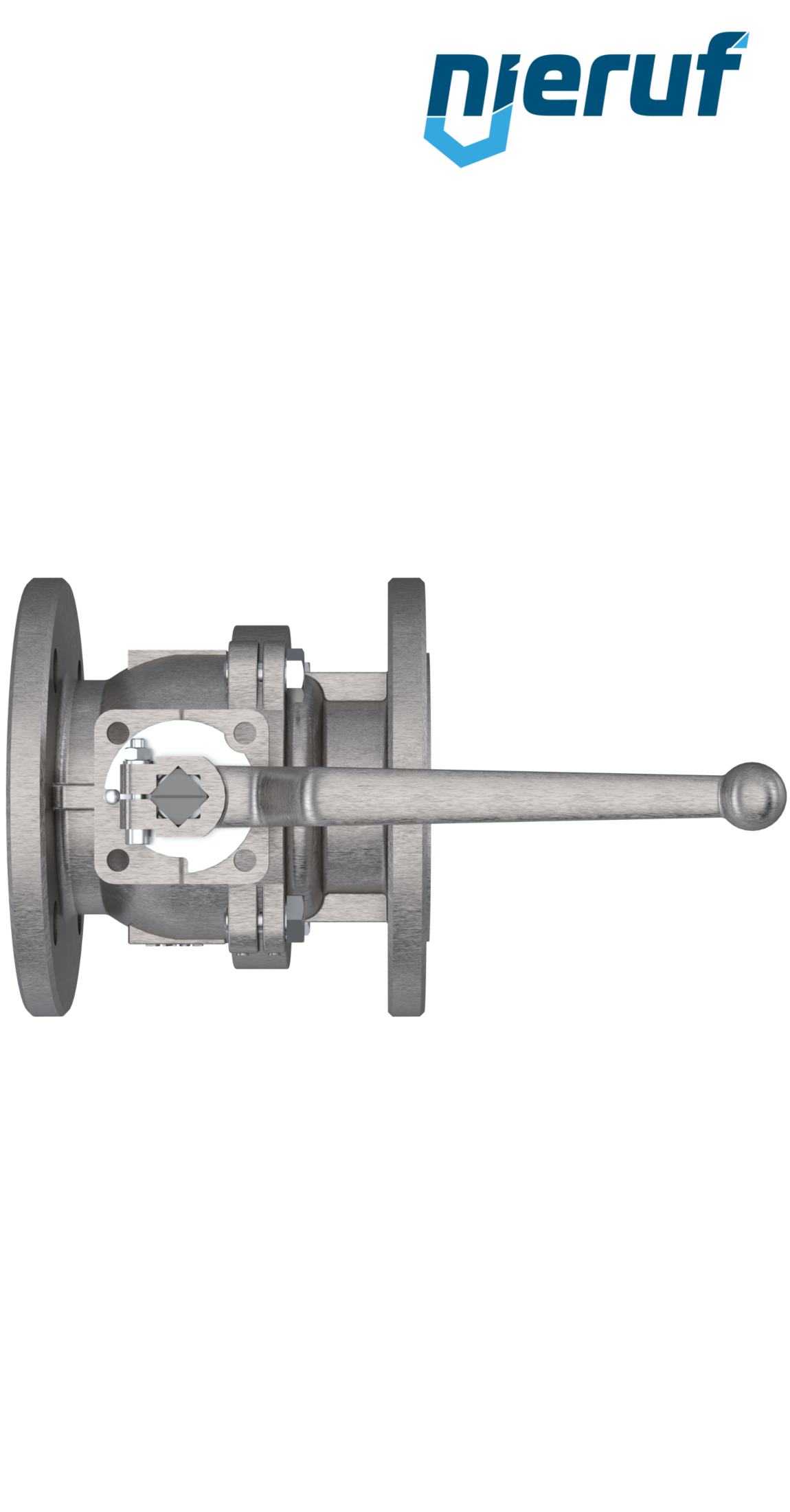

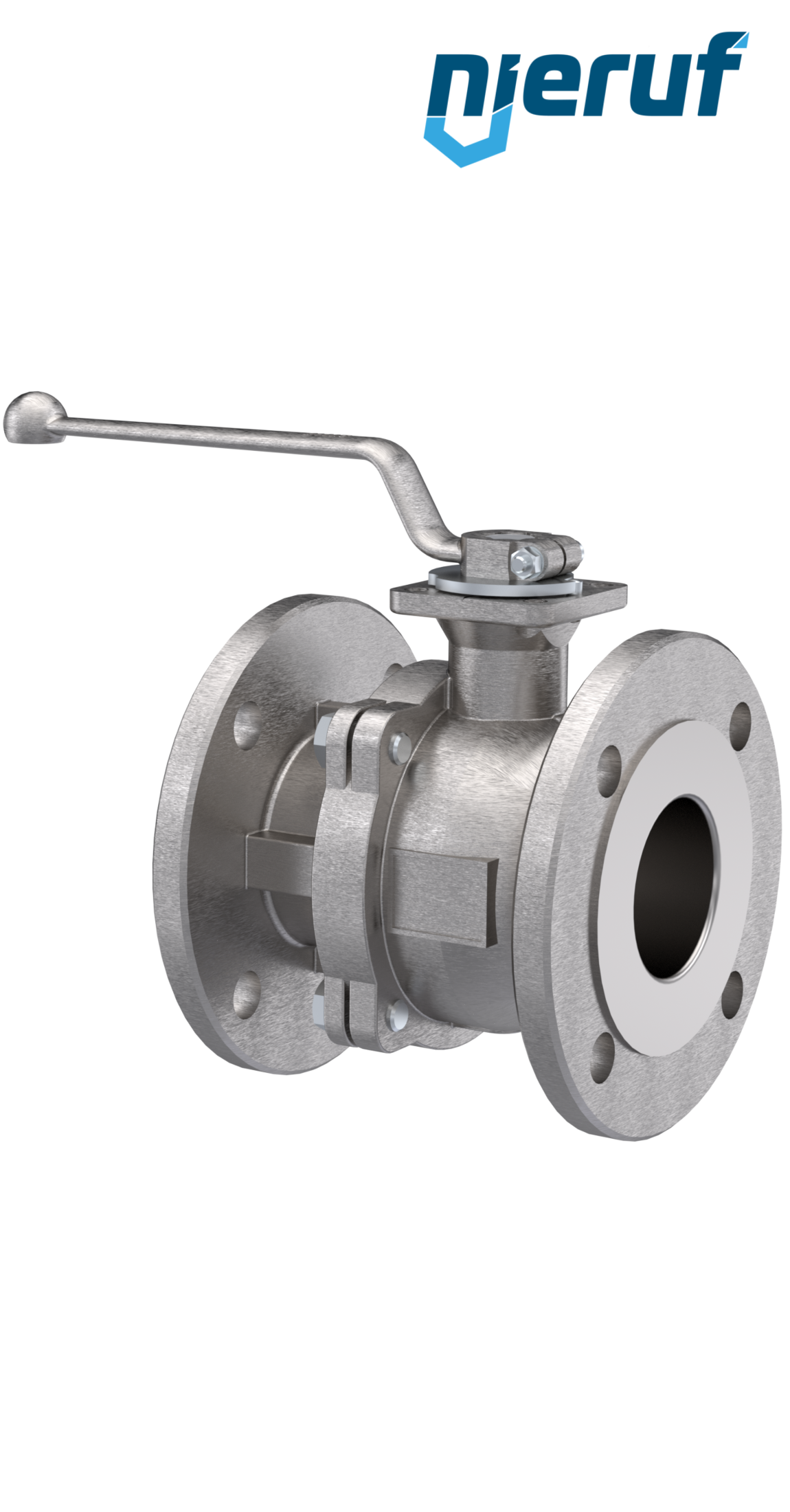

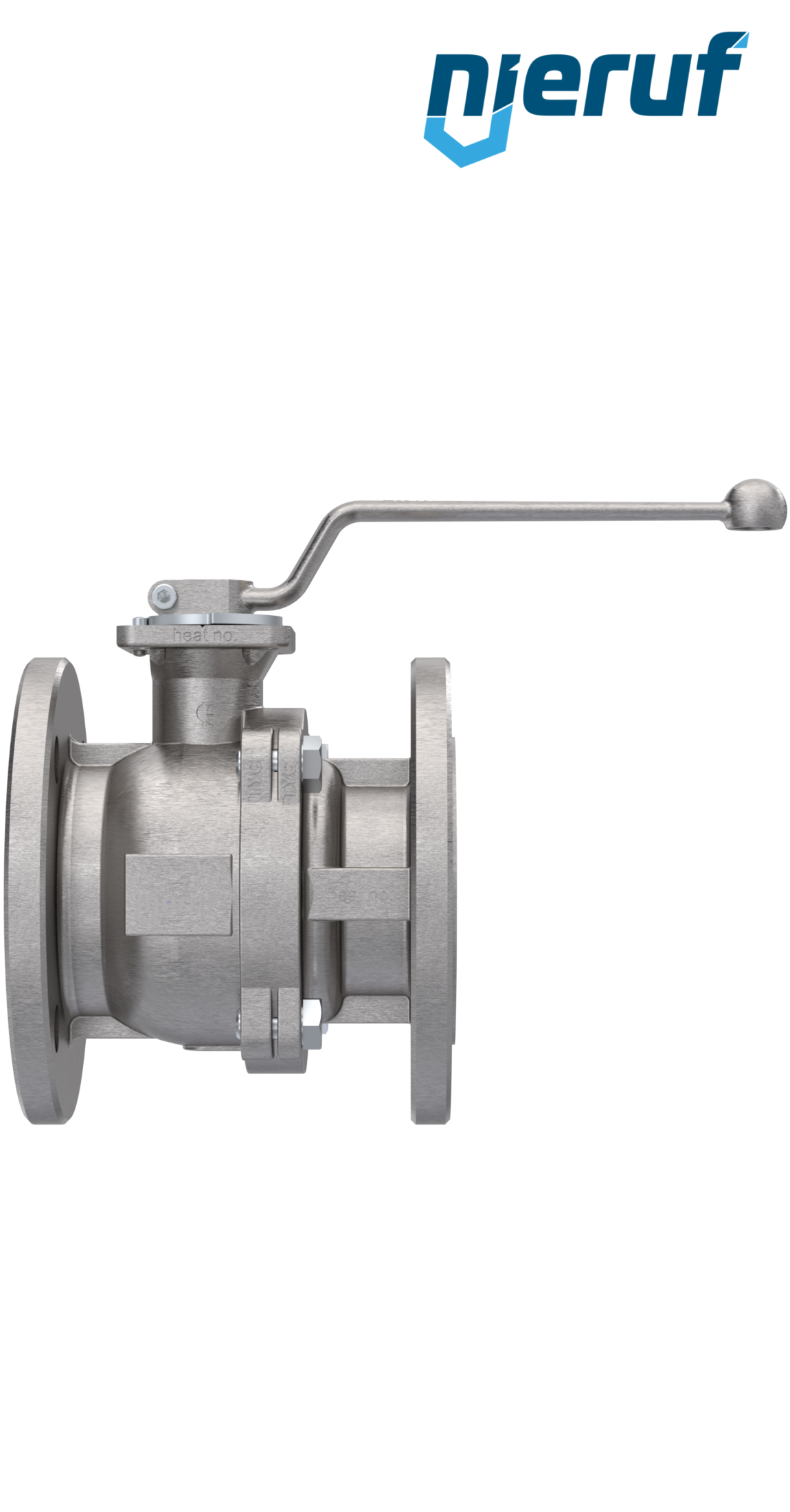

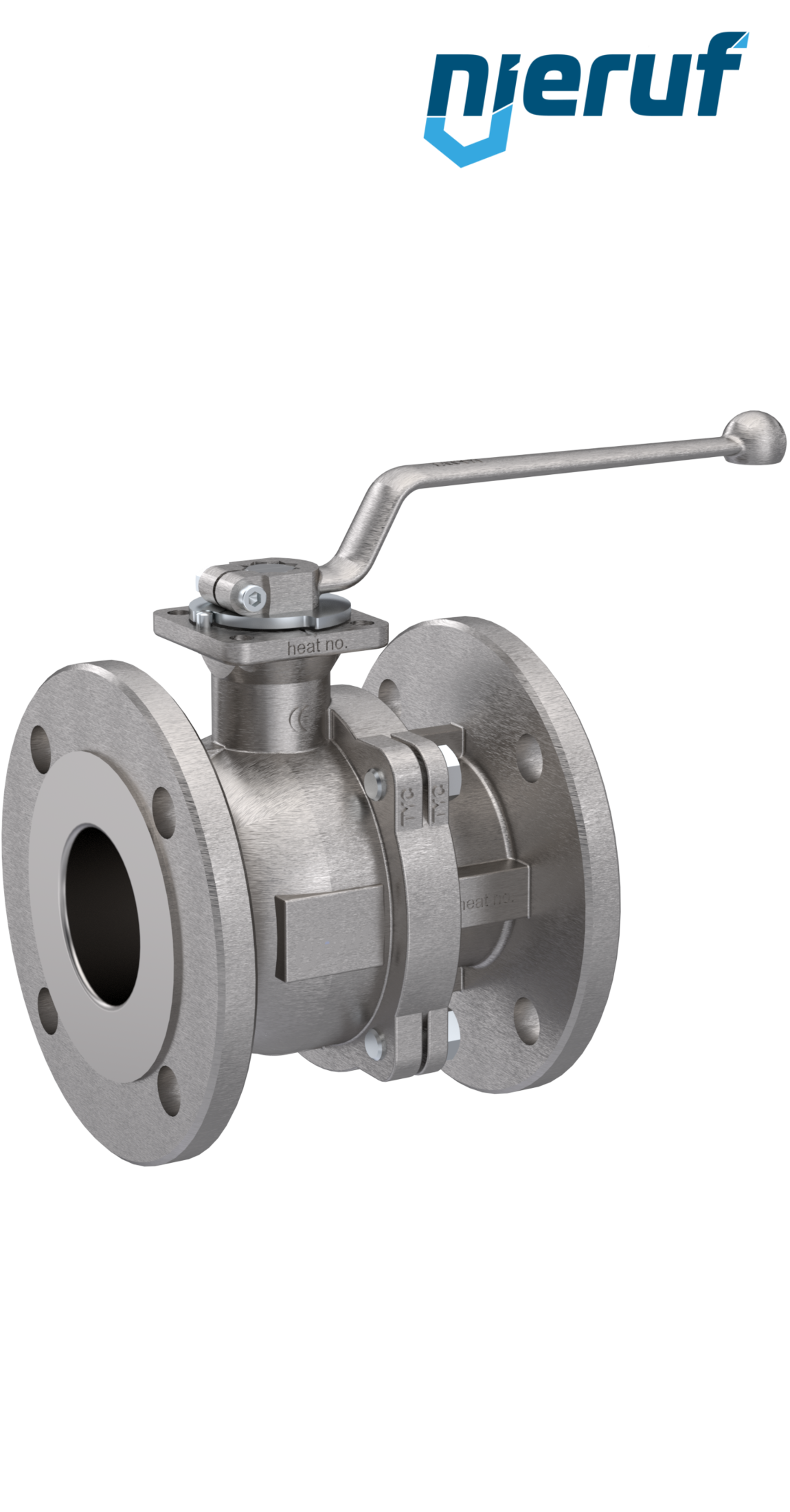

FDA flange ball valve FK05 DN20 PN16 made of stainless steel 1.4408
- Lead time
- 1 - 2 weeks
Equipment
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€18.92 VAT included.
lever with spring return F03-F04 9x9 shaft torque value max. 15Nm
€112.10 VAT included.
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.28 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
FDA flange ball valve FK05 DN20 PN16 made of stainless steel 1.4408
FDA flange ball valve FK05 DN20 PN16 body stainless steel 1.4408 ball stainless steel 1.4408 seal TFM for neutral liquid and gaseous media
| product | FDA flange ball valve |
|---|---|
| type | FK05 |
| manufacturer | NieRuf |
| diameter | DN20 |
| connection | flange dimensions acc. to EN 1092-1 PN16 |
| Seal steam | EPDM/PTFE |
| body seal | TFM |
| ball seal | TFM |
| media | neutral liquid and gaseous media |
| Leakage rate | A |
| temperature | -20°C up to +180°C - depending on media and dimension |
| max. pressure | PN16 |
| design | full port design |
| body material | stainless steel 1.4408 / CF8M |
| ball material | stainless steel 1.4408 / CF8M |
| length | DIN EN 558 R 27 |
| actuator | lever handle made of stainless steel |
| installation position | any position |
| authorized for | TA Luft |
| product description | This high quality, FDA compliant ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal and is suitable for for neutral liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
FDA flange ball valve FK05 DN20 PN16 made of stainless steel 1.4408
Article no.
: FK05070004
product:
FDA flange ball valve
type:
FK05
manufacturer:
NieRuf
diameter:
DN20
connection:
flange dimensions acc. to EN 1092-1 PN16
Seal steam:
EPDM/PTFE
body seal:
TFM
ball seal:
TFM
media:
neutral liquid and gaseous media
Leakage rate:
A
temperature:
-20°C up to +180°C - depending on media and dimension
max. pressure:
PN16
design:
full port design
body material:
stainless steel 1.4408 / CF8M
ball material:
stainless steel 1.4408 / CF8M
length:
DIN EN 558 R 27
actuator:
lever handle made of stainless steel
installation position:
any position
authorized for:
TA Luft
product description:
This high quality, FDA compliant ball valve is made of stainless steel and has a blow-out proof stem with EPDM/PTFE seal and is suitable for for neutral liquid and gaseous media. The body is two-piece with mounting flange according to DIN ISO 5211 and lever handle made of stainless steel.
Equipment
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
Lead time: in stock
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
Lead time: in stock
