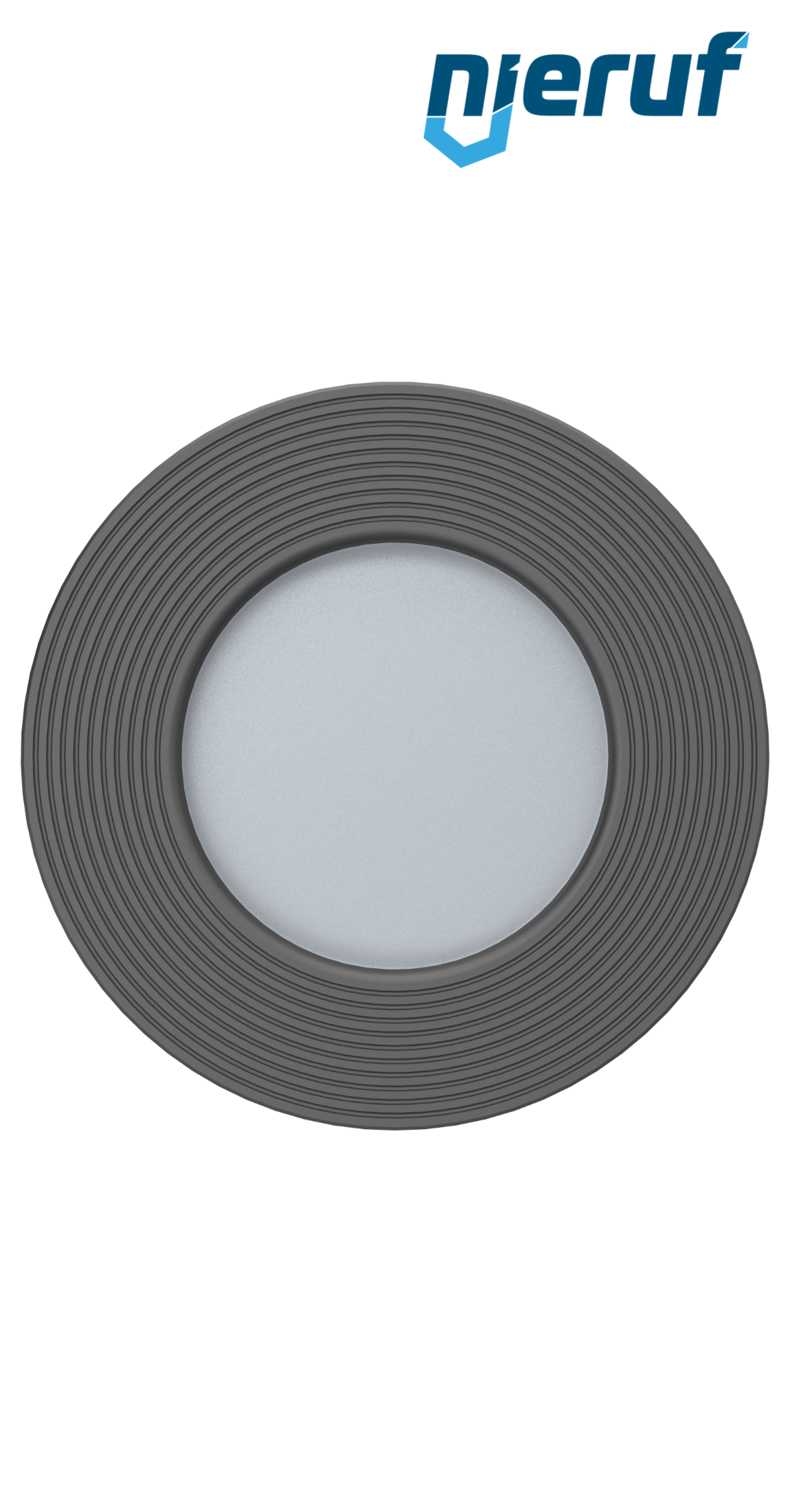

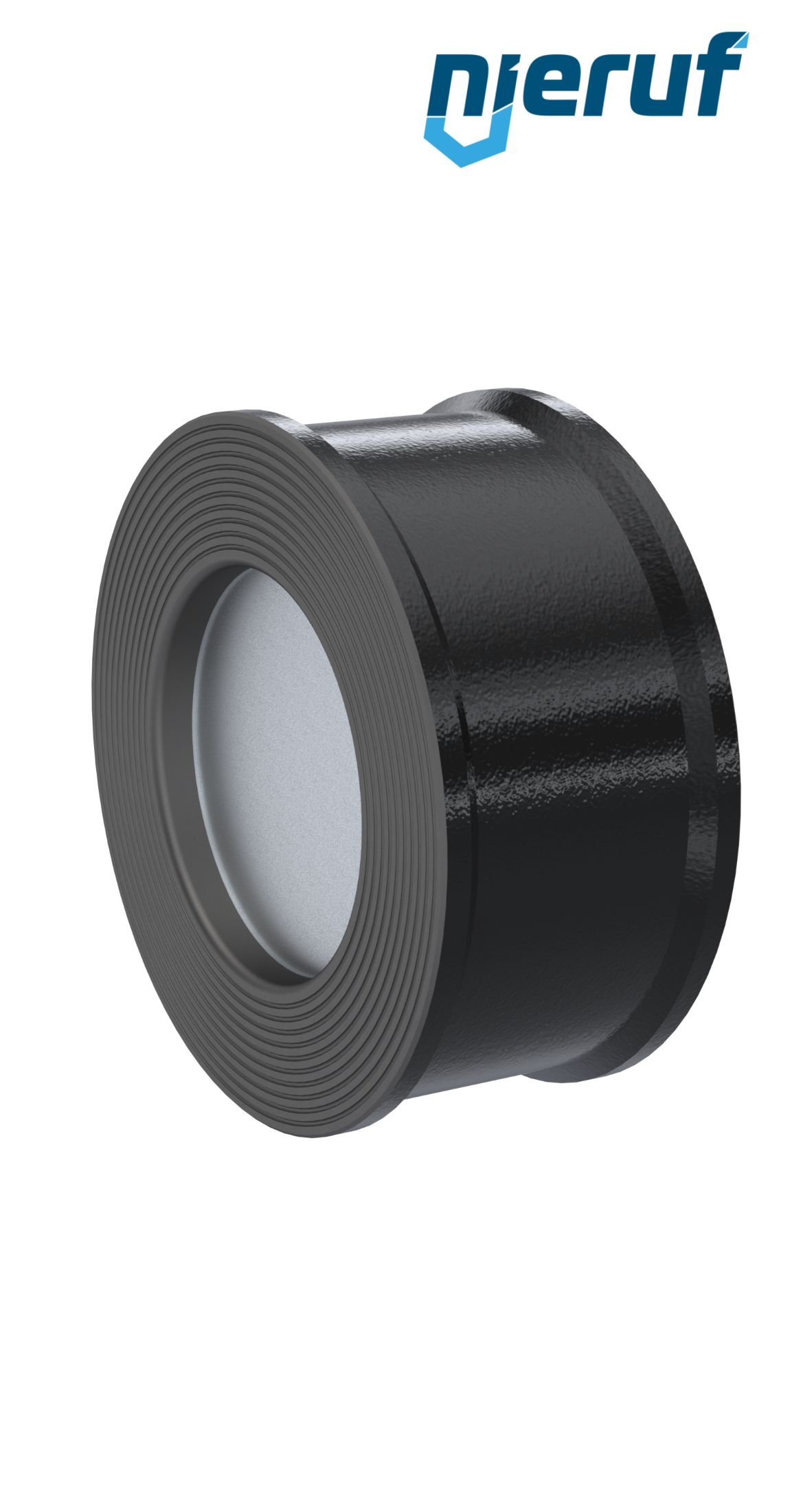

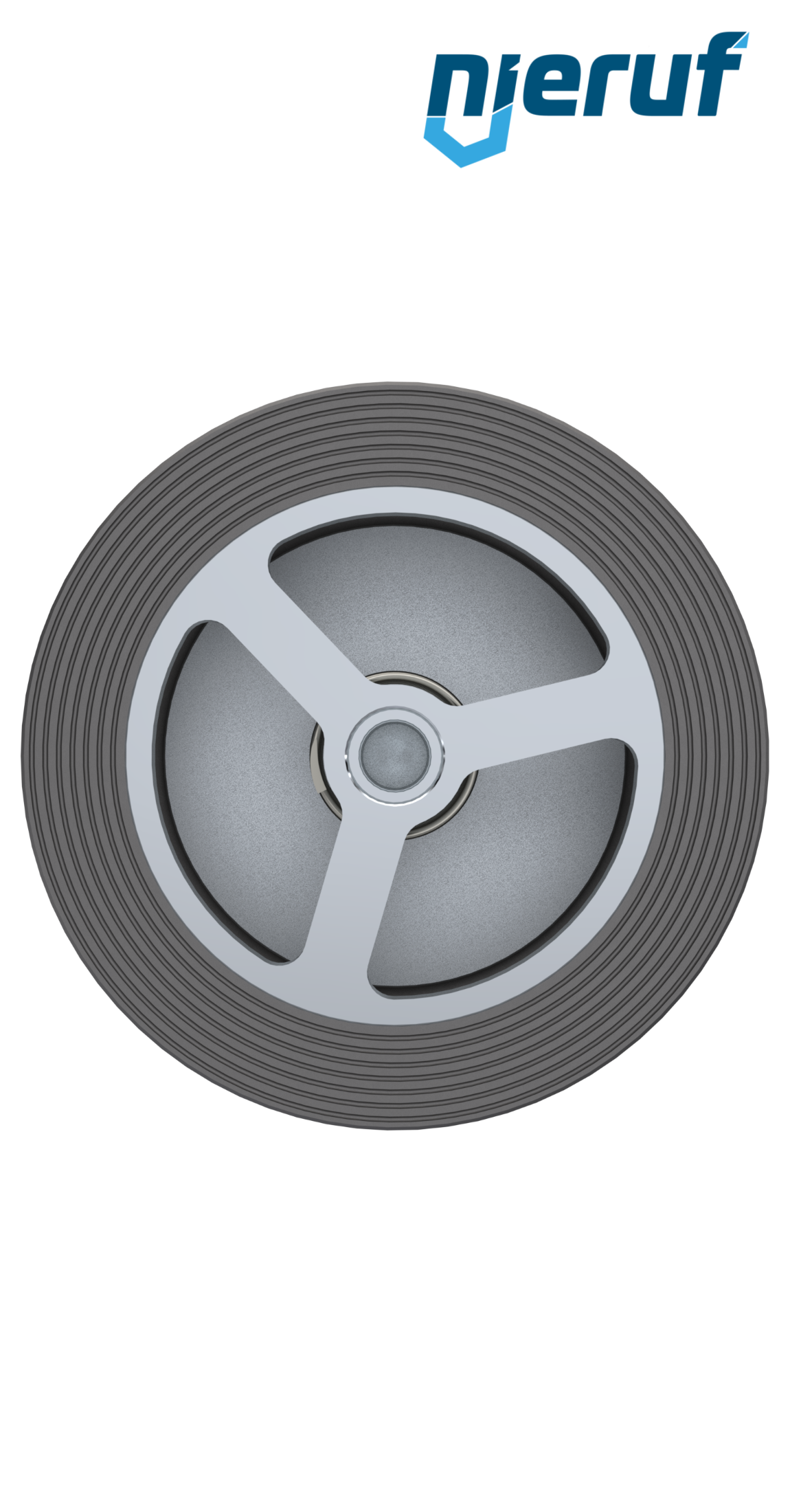

RV07000412

check valve DN 125 spheroidal graphite cast iron NBR PN 10-16 (+ASME B16.5 ANSI 150)

€284.20*

€338.20 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

FD01000112

flange seal DN125 PN10/16 141x192x2 Klingersil C 4400

€5.50*

€6.55 VAT included.

Certificates

ZEU31APZ00

Certificate of conformity EN 10204-3.1

€60.00*

€71.40 VAT included.

ZEU31MAT00

Material test certificate 3.1

€60.00*

€71.40 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

check valve DN 125 spheroidal graphite cast iron NBR PN 10-16 (+ASME B16.5 ANSI 150)

disco check valve DN 125 made of spheroidal graphite cast iron 5.3103/GGG40.3 seal NBR for liquid & gaseous media PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150

product	check valve
type	RV07
manufacturer	NieRuf
design	disco check valve
diameter	DN 125
body material	spheroidal graphite cast iron 5.3103/GGG40.3
disc material	stainless steel 1.4308 / CF8
seal	NBR
tightness acc. to DIN EN 12266	leak rate A
temperature	-10°C up to +100°C
flange	PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150
pressure range	0 - 16 bar
Kv-value in m3/h	222,00
spring material	stainless steel 1.4571 / AISI 316Ti
media	liquid & gaseous media
installation position	any position
product feature	Length according DIN EN 558 row 49

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

check valve DN 125 spheroidal graphite cast iron NBR PN 10-16 (+ASME B16.5 ANSI 150)

Article no. : RV07000412
product: check valve
type: RV07
manufacturer: NieRuf
design: disco check valve
diameter: DN 125
body material: spheroidal graphite cast iron 5.3103/GGG40.3
disc material: stainless steel 1.4308 / CF8
seal: NBR
tightness acc. to DIN EN 12266: leak rate A
temperature: -10°C up to +100°C
flange: PN 10-16 DIN EN 1092-1 B1, ASME B16.5 ANSI 150
pressure range: 0 - 16 bar
Kv-value in m3/h: 222,00
spring material: stainless steel 1.4571 / AISI 316Ti
media: liquid & gaseous media
installation position: any position
product feature: Length according DIN EN 558 row 49
