AK02160714
Butterfly valve DN 200 PN16 AK02 EPDM high temperature & FDA pneumatic actuator single acting normally open
- Lead time
- 2 - 3 weeks
Equipment
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
€1,088.49 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

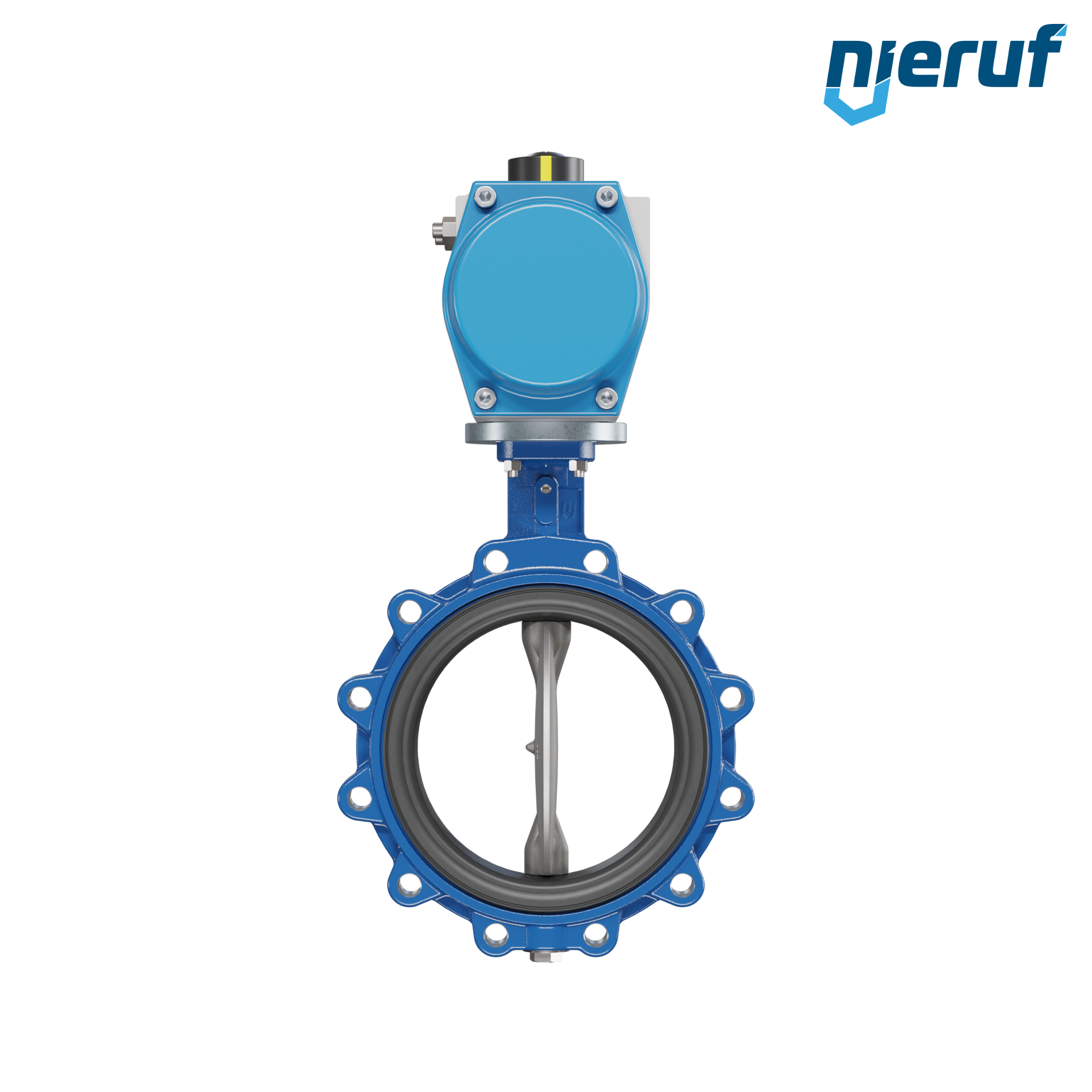

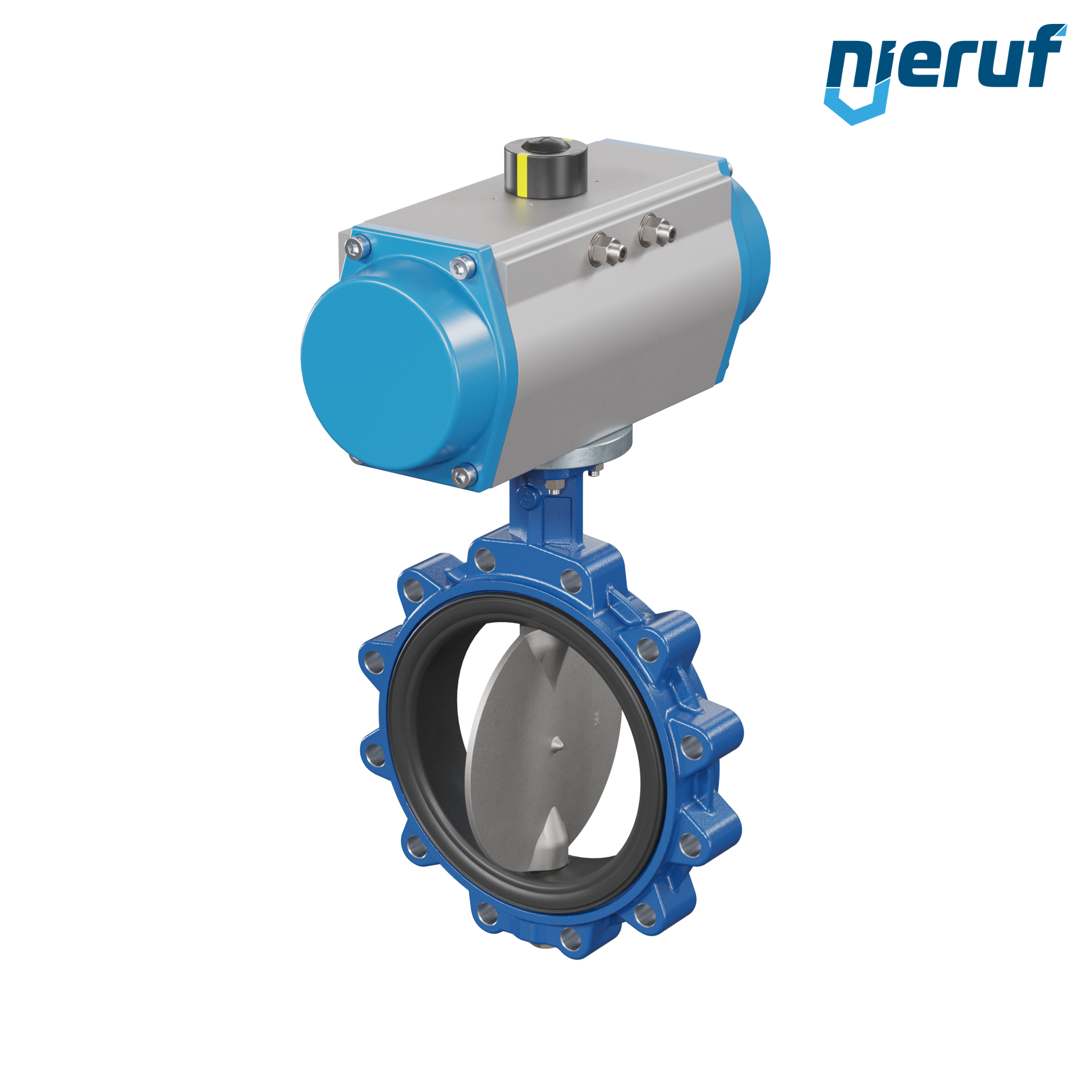

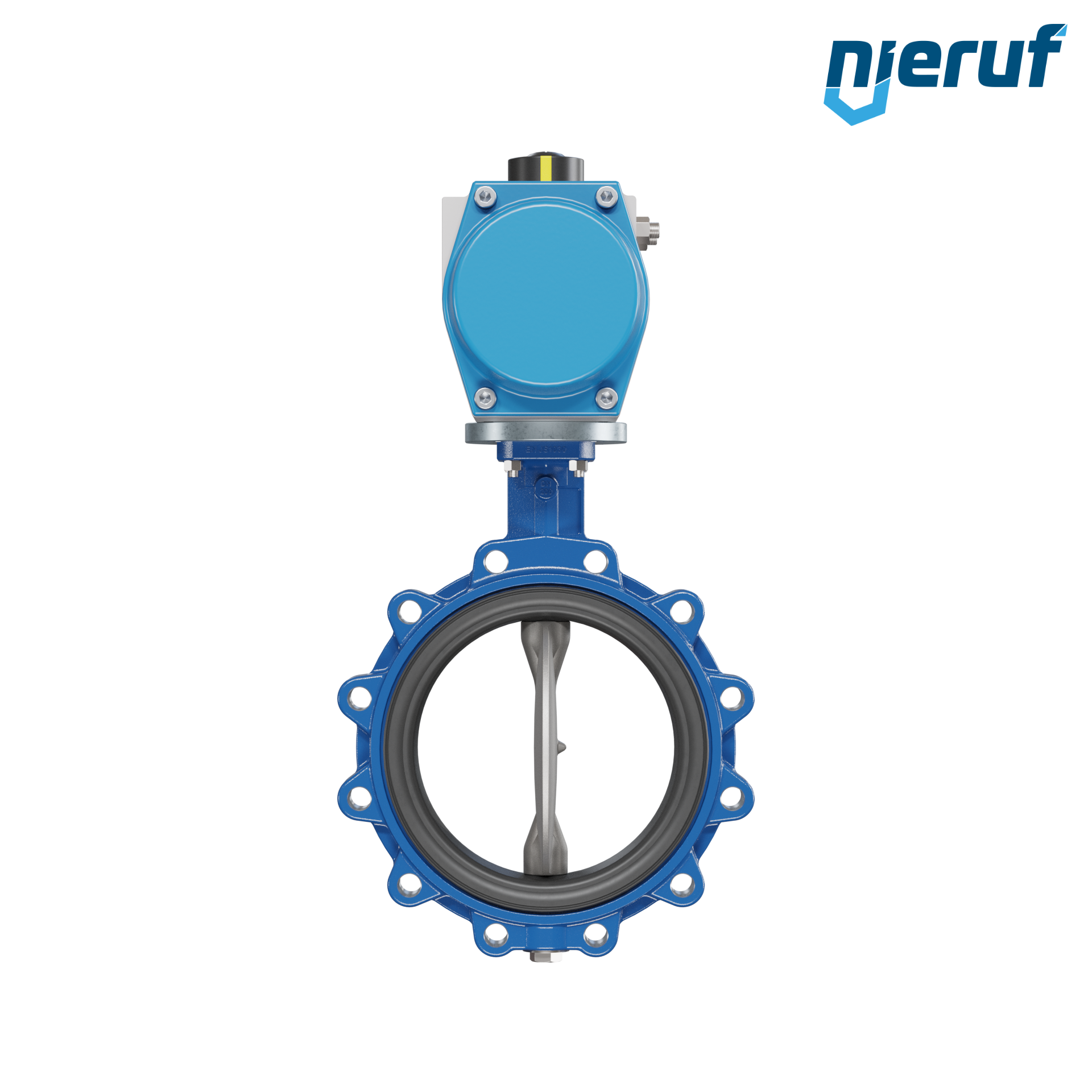

Butterfly valve DN 200 PN16 AK02 EPDM high temperature & FDA pneumatic actuator single acting normally open
Butterfly valve DN 200 PN16 Lug type body made of GGG40 with pneumatic actuator single acting normally open seal EPDM high temperature & FDA industry design
| product | Butterfly valve |
|---|---|
| type | AK02 |
| manufacturer | NieRuf |
| diameter | DN 200 |
| nominal pressure | PN16 |
| max. working pressure | 16 bar |
| sleeves | EPDM high temperature & FDA |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C |
| design | Lug type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator single acting normally open |
| actuator | Pneumatic actuator AN02 GS-160 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring opens) |
| approval | EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 200 PN16 AK02 EPDM high temperature & FDA pneumatic actuator single acting normally open
Article no.
: AK02160714
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 200
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
EPDM high temperature & FDA
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator single acting normally open
actuator:
Pneumatic actuator AN02 GS-160 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring opens)
approval:
EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Equipment
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
Complete single swivel banjo EF06 brass FKM G1/4" D6mm
Lead time: in stock
rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm
Lead time: 3 - 5 working days
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Lead time: 2 - 3 weeks
