AK02000718
Butterfly valve DN 400 AK02 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator single acting normally open
- Lead time
- 2 - 3 weeks
Equipment
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
€1,088.49 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

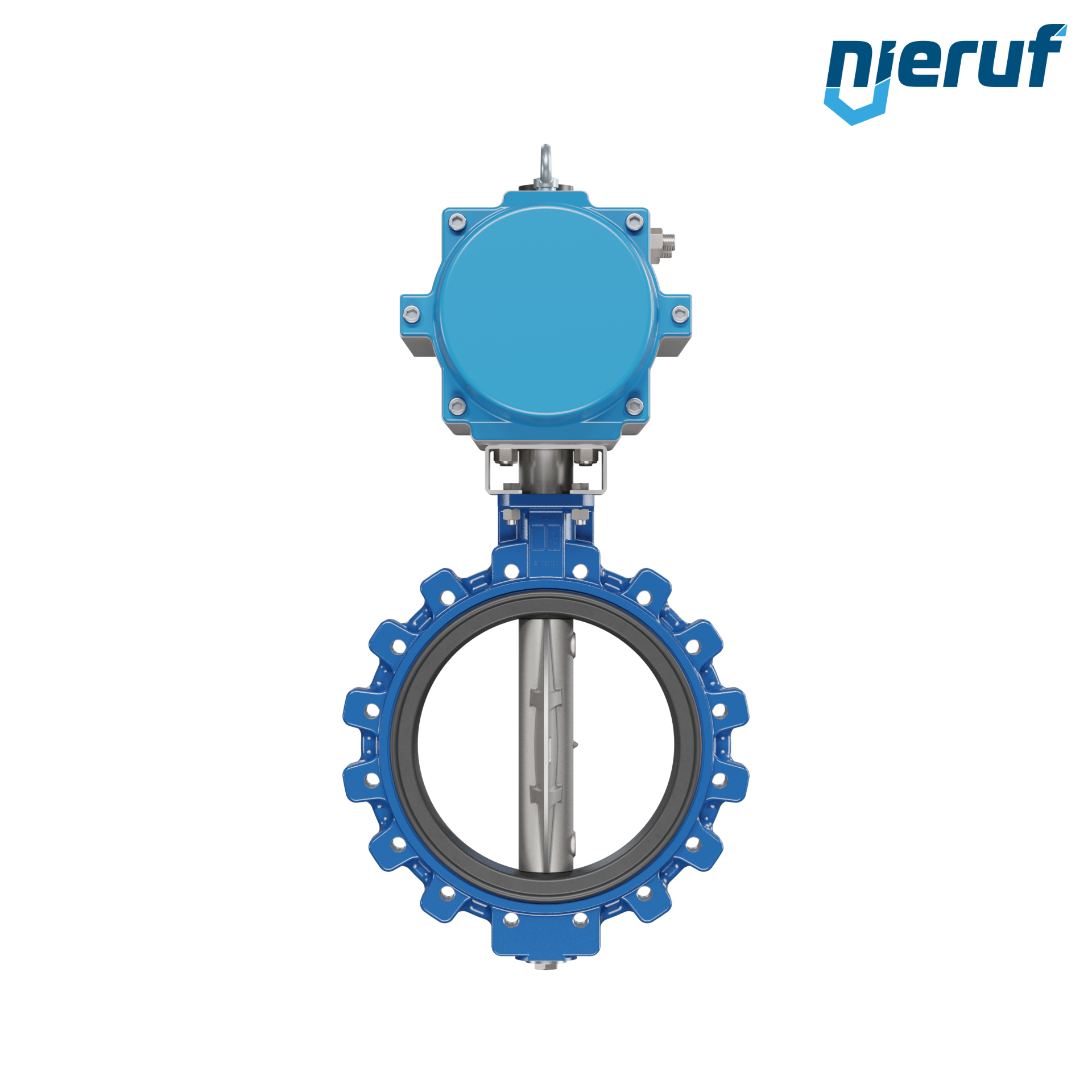

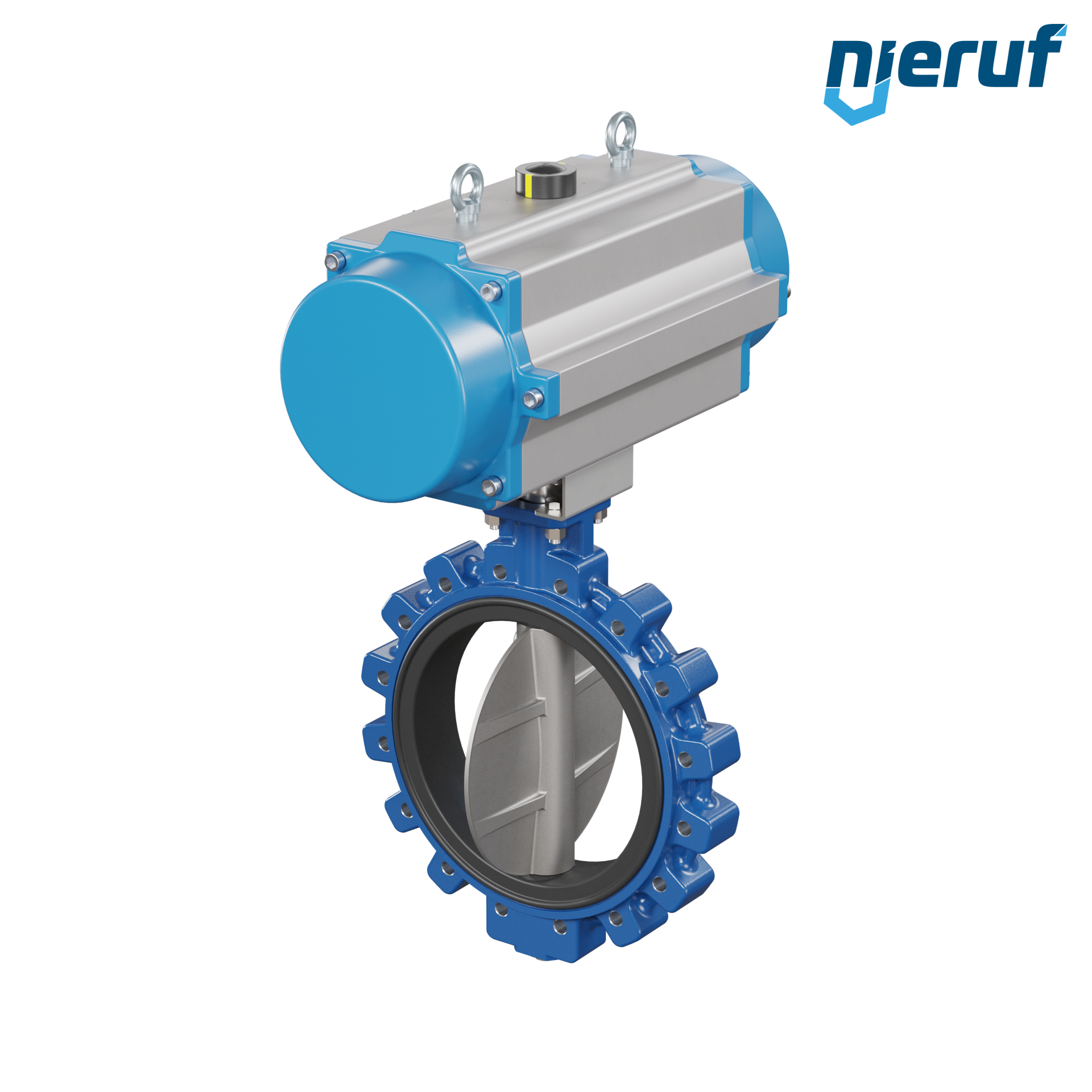

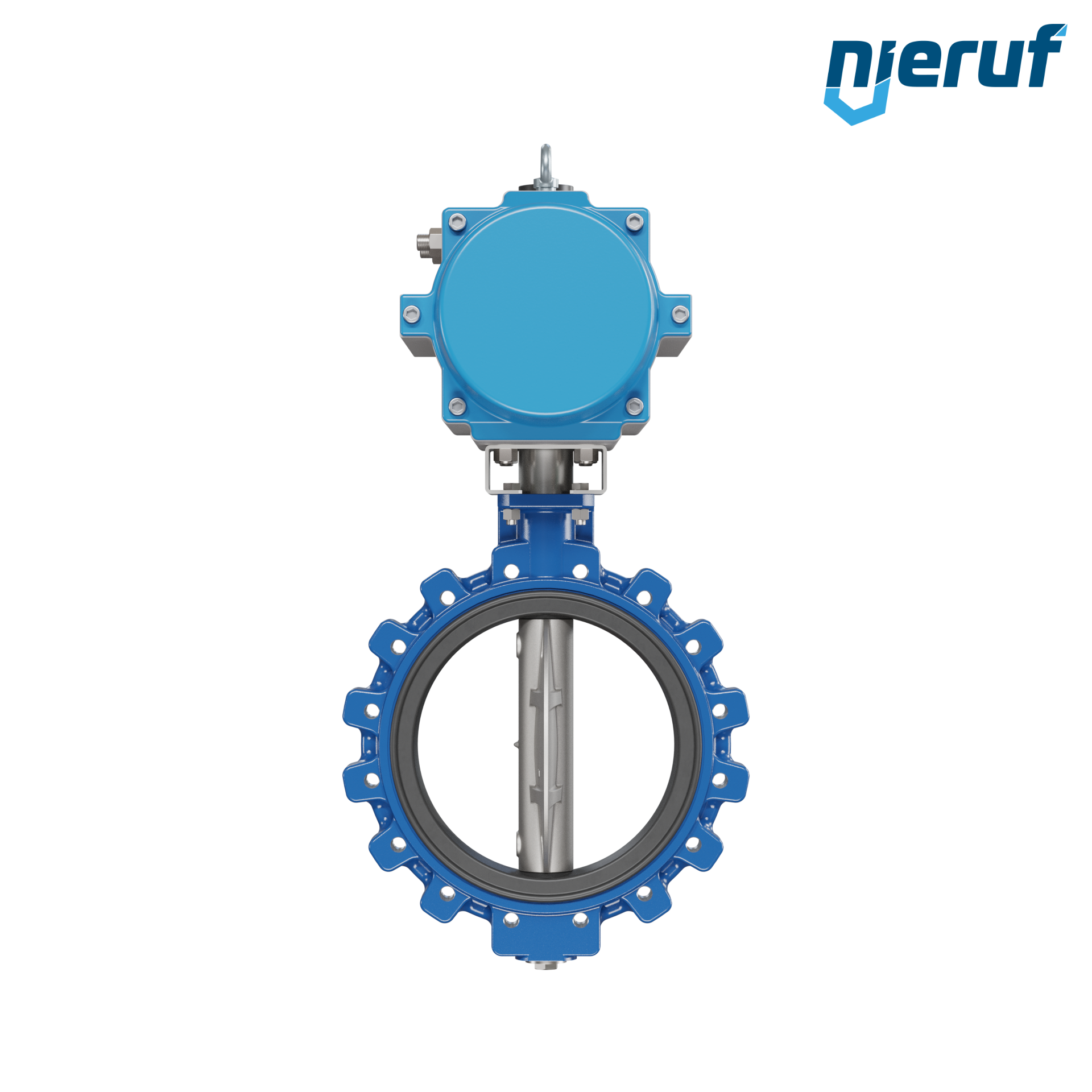

Butterfly valve DN 400 AK02 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator single acting normally open
Butterfly valve DN 400 Lug type body made of GGG40 with pneumatic actuator single acting normally open seal EPDM DVGW drinking water, WRAS, ACS, W270 industry design
| product | Butterfly valve |
|---|---|
| type | AK02 |
| manufacturer | NieRuf |
| diameter | DN 400 |
| nominal pressure | PN10 |
| max. working pressure | 10 bar |
| sleeves | EPDM DVGW drinking water, WRAS, ACS, W270 |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - with DVGW-drinking water max. 40°C - pneumatic actuator: - 20°C up to + 80°C |
| design | Lug type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator single acting normally open |
| actuator | Pneumatic actuator AN02 GS-300 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring opens) |
| approval | EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +40 °C) |
| application | industry design |
| installation position | shaft preferably horizontal |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 400 AK02 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator single acting normally open
Article no.
: AK02000718
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 400
nominal pressure:
PN10
max. working pressure:
10 bar
sleeves:
EPDM DVGW drinking water, WRAS, ACS, W270
media:
liquid and gaseous media
temperature:
Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - with DVGW-drinking water max. 40°C - pneumatic actuator: - 20°C up to + 80°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator single acting normally open
actuator:
Pneumatic actuator AN02 GS-300 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring opens)
approval:
EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +40 °C)
application:
industry design
installation position:
shaft preferably horizontal
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Equipment
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
Straight male adaptor EF01 stainless steel FKM G1/4" D6mm
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Lead time: 2 - 3 weeks
