AK01160516

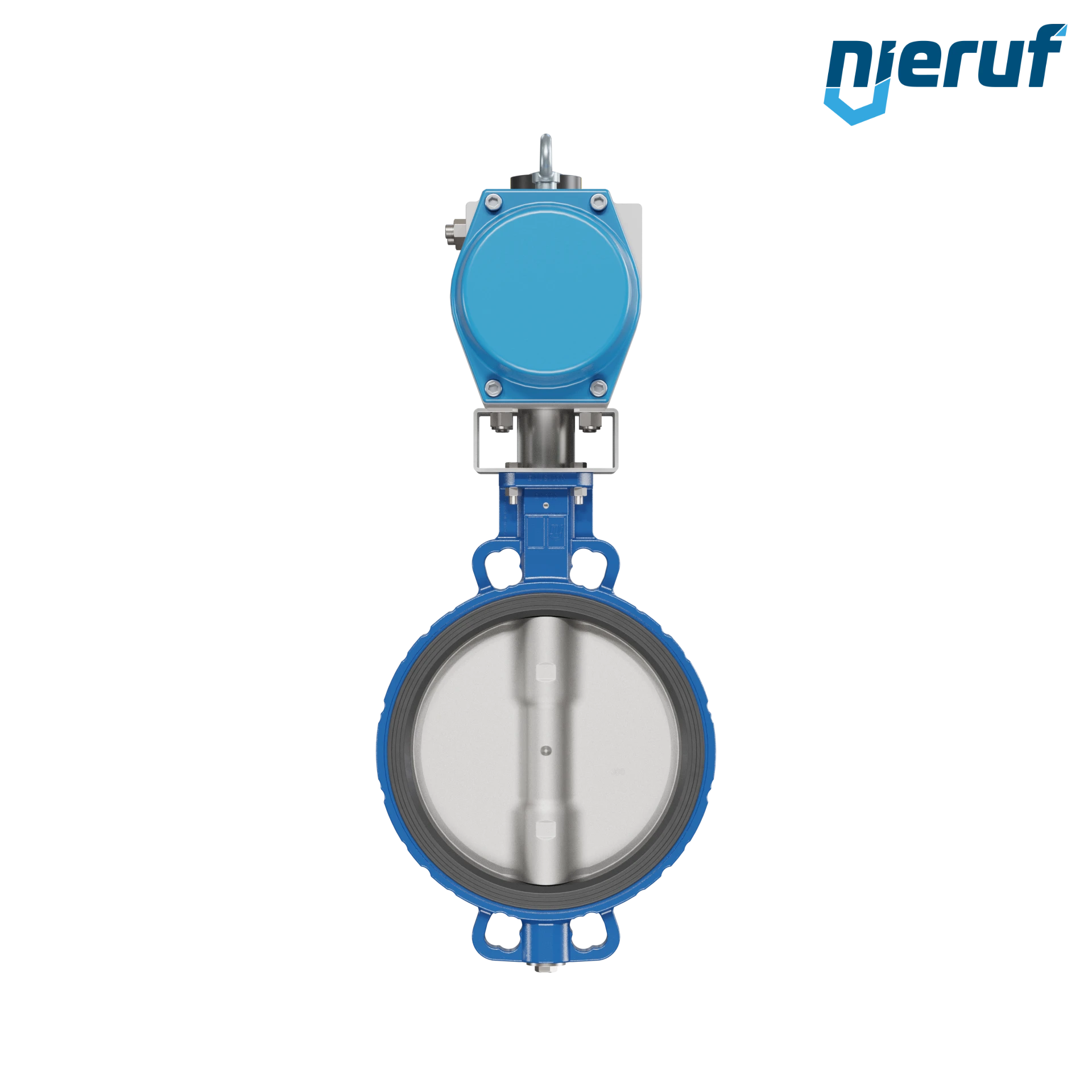

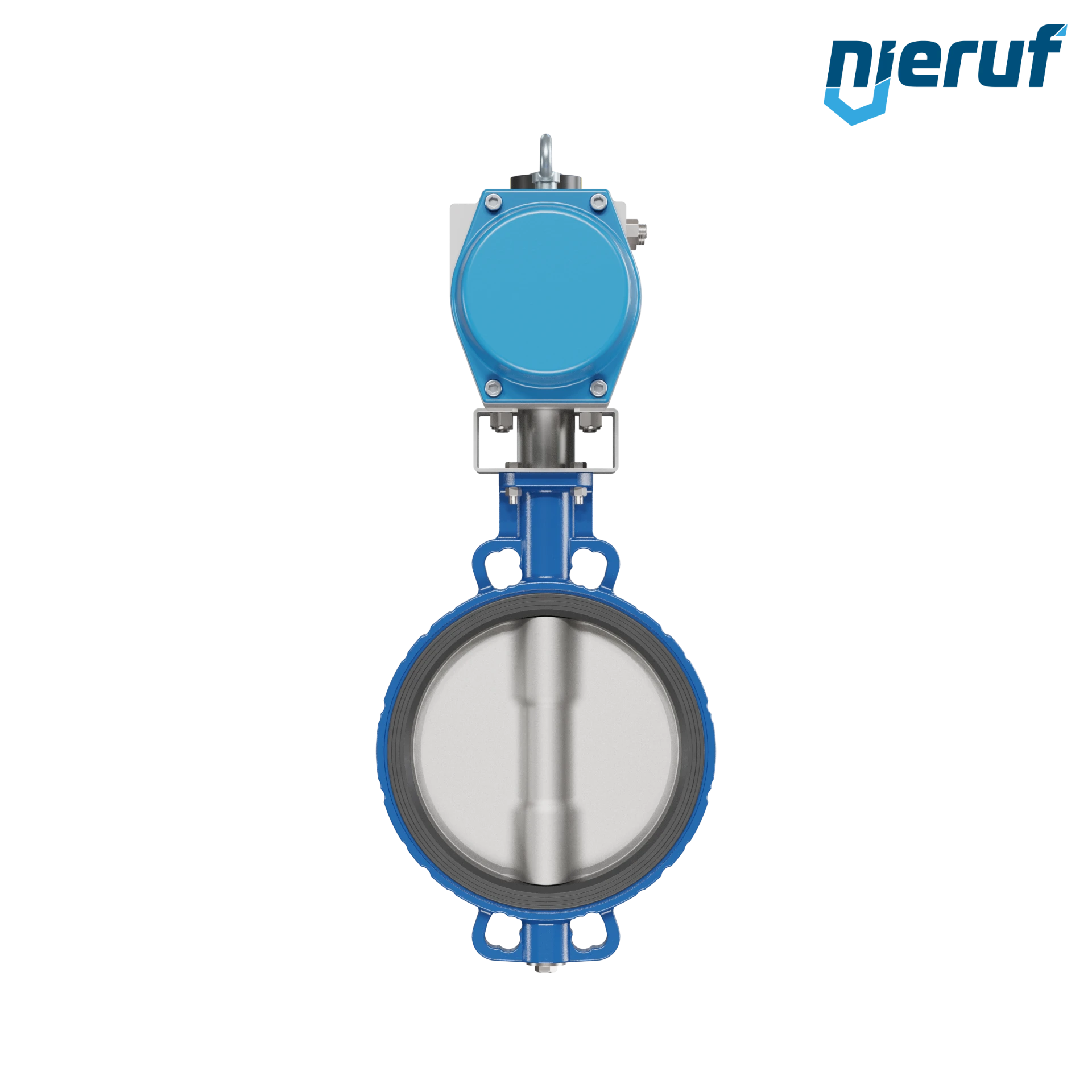

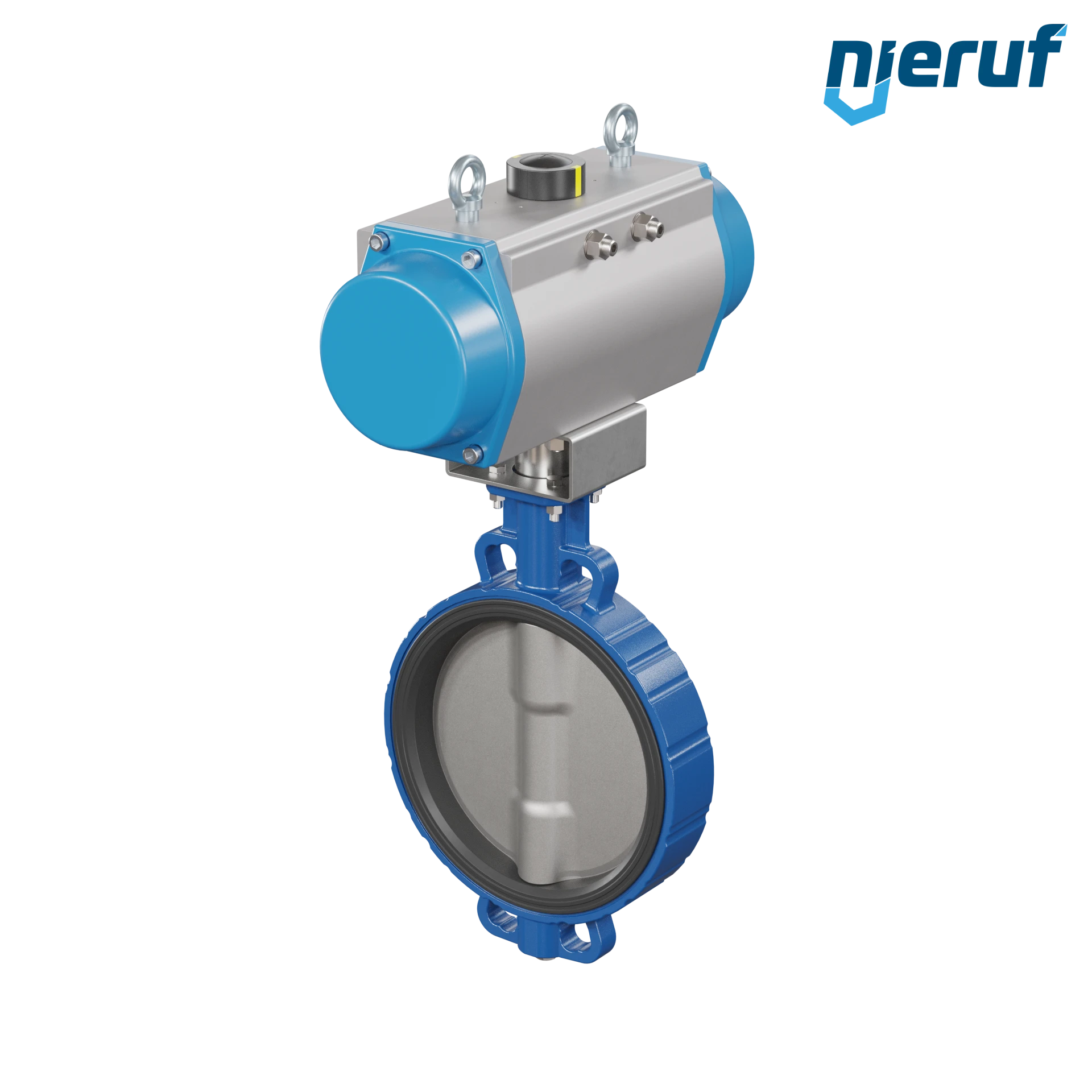

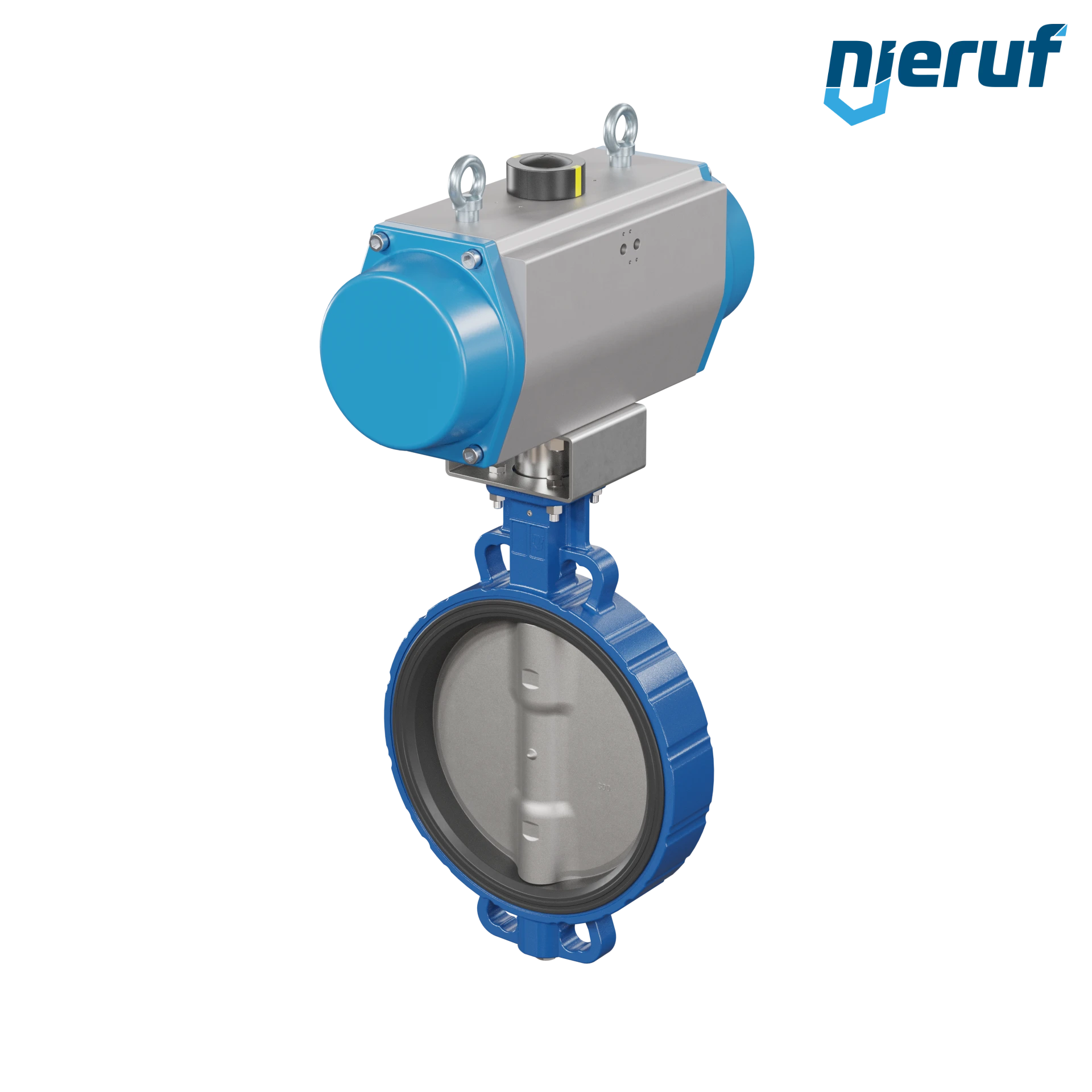

Butterfly valve DN 300 AK01 EPDM high temperature & FDA pneumatic actuator single acting normally closed
- Lead time
- 2 - 3 weeks
Equipment
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
€1,088.49 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€86.99 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Butterfly valve DN 300 AK01 EPDM high temperature & FDA pneumatic actuator single acting normally closed
Butterfly valve DN 300 Wafer type body made of GGG40 with pneumatic actuator single acting normally closed seal EPDM high temperature & FDA industry design
| product | Butterfly valve |
|---|---|
| type | AK01 |
| manufacturer | NieRuf |
| diameter | DN 300 |
| nominal pressure | PN6-PN10-PN16 & ANSI150 |
| max. working pressure | 16 bar |
| sleeves | EPDM high temperature & FDA |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C |
| design | Wafer type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator single acting normally closed |
| actuator | Pneumatic actuator AN02 GS-190 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes) |
| approval | EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C) |
| application | industry design |
| installation position | shaft preferably horizontal |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 300 AK01 EPDM high temperature & FDA pneumatic actuator single acting normally closed
Article no.
: AK01160516
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 300
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
EPDM high temperature & FDA
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - pneumatic actuator: - 20°C up to + 80°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator single acting normally closed
actuator:
Pneumatic actuator AN02 GS-190 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval:
EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C)
application:
industry design
installation position:
shaft preferably horizontal
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
Equipment
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
Straight male adaptor EF01 stainless steel FKM G1/4" D6mm
Lead time: in stock
rotary elbow male adaptor parallel EF07 brass NBR G1/4" D6mm
Lead time: in stock
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Lead time: 2 - 3 weeks
