AK02110511

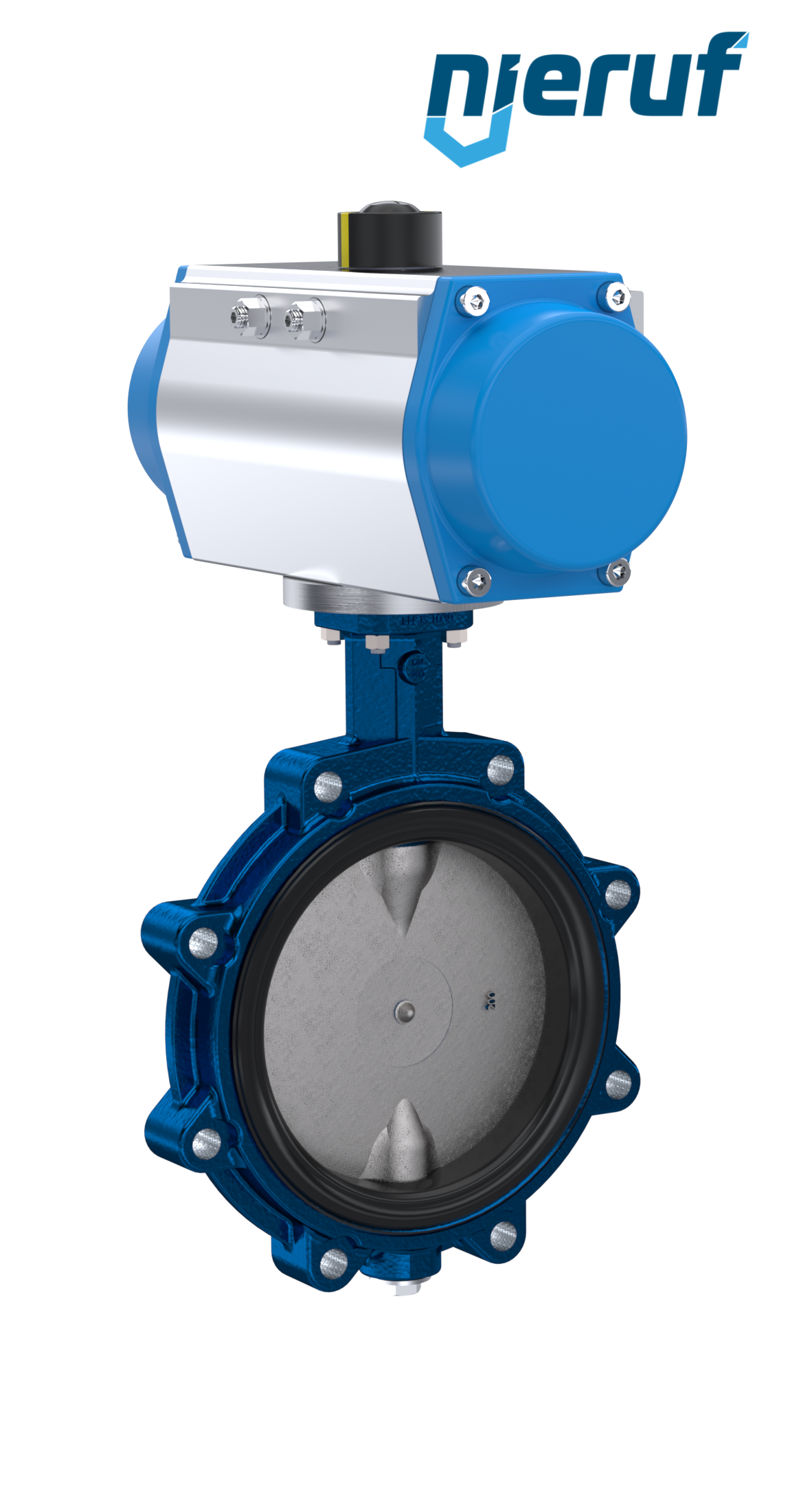

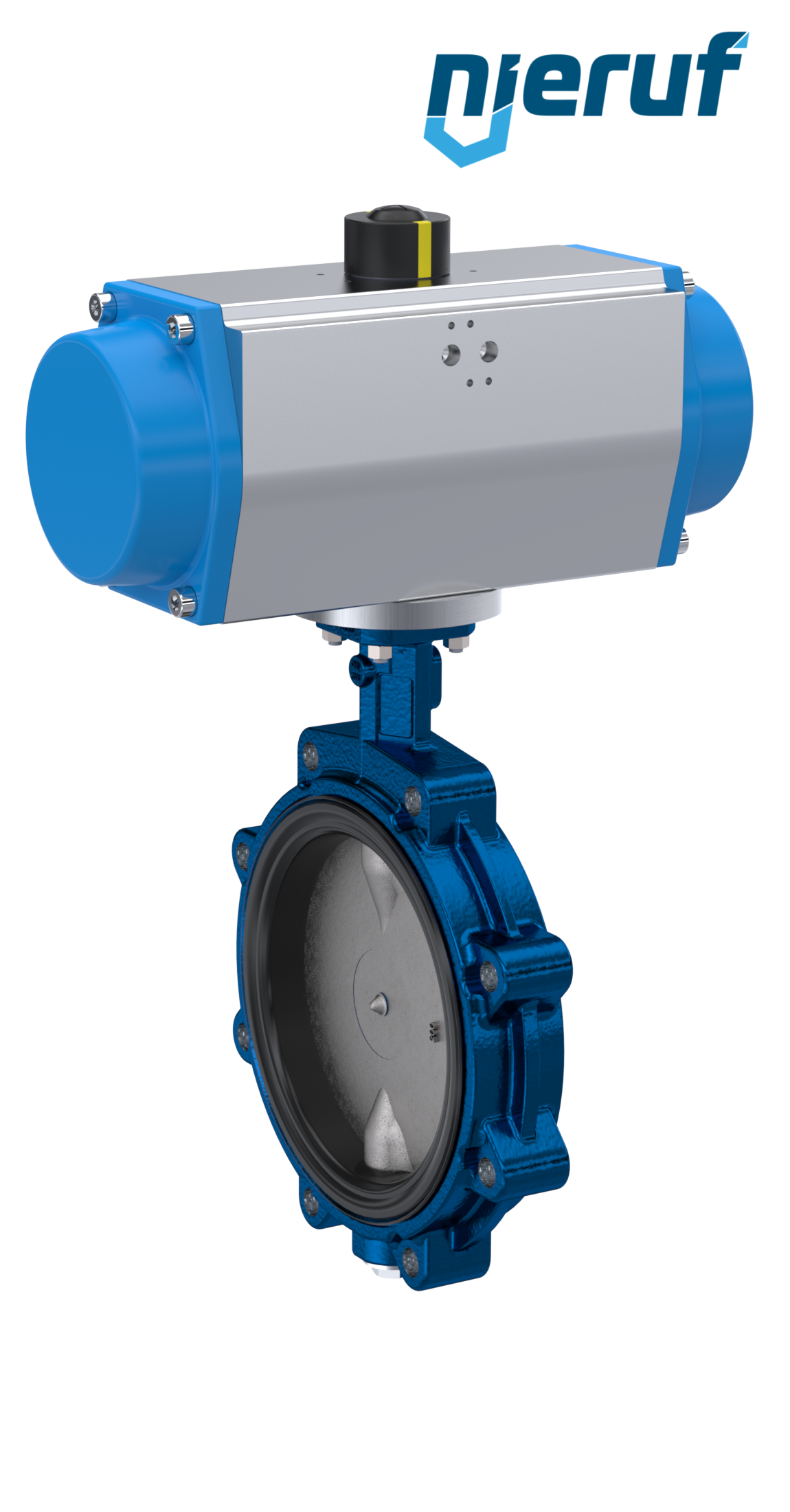

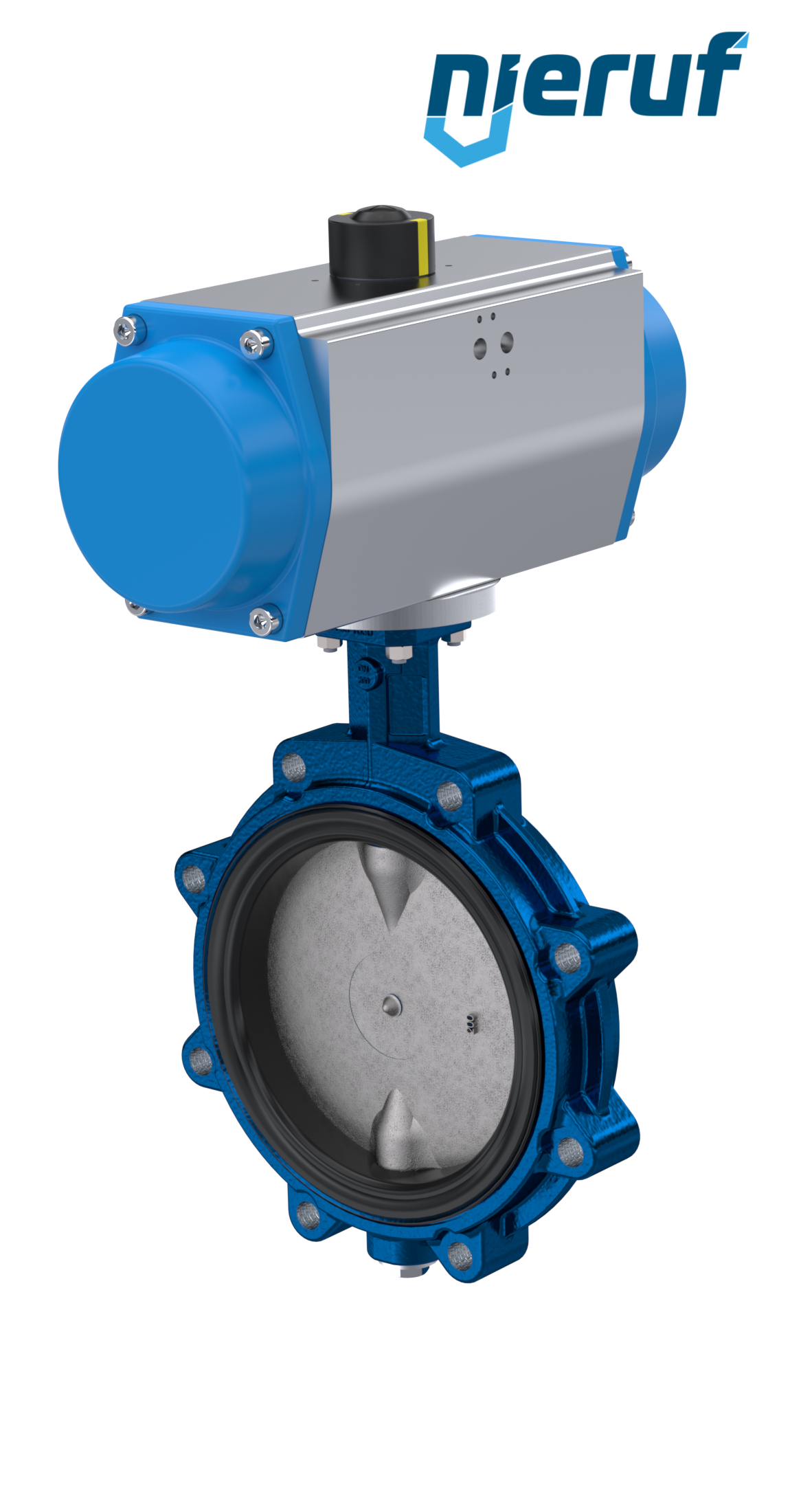

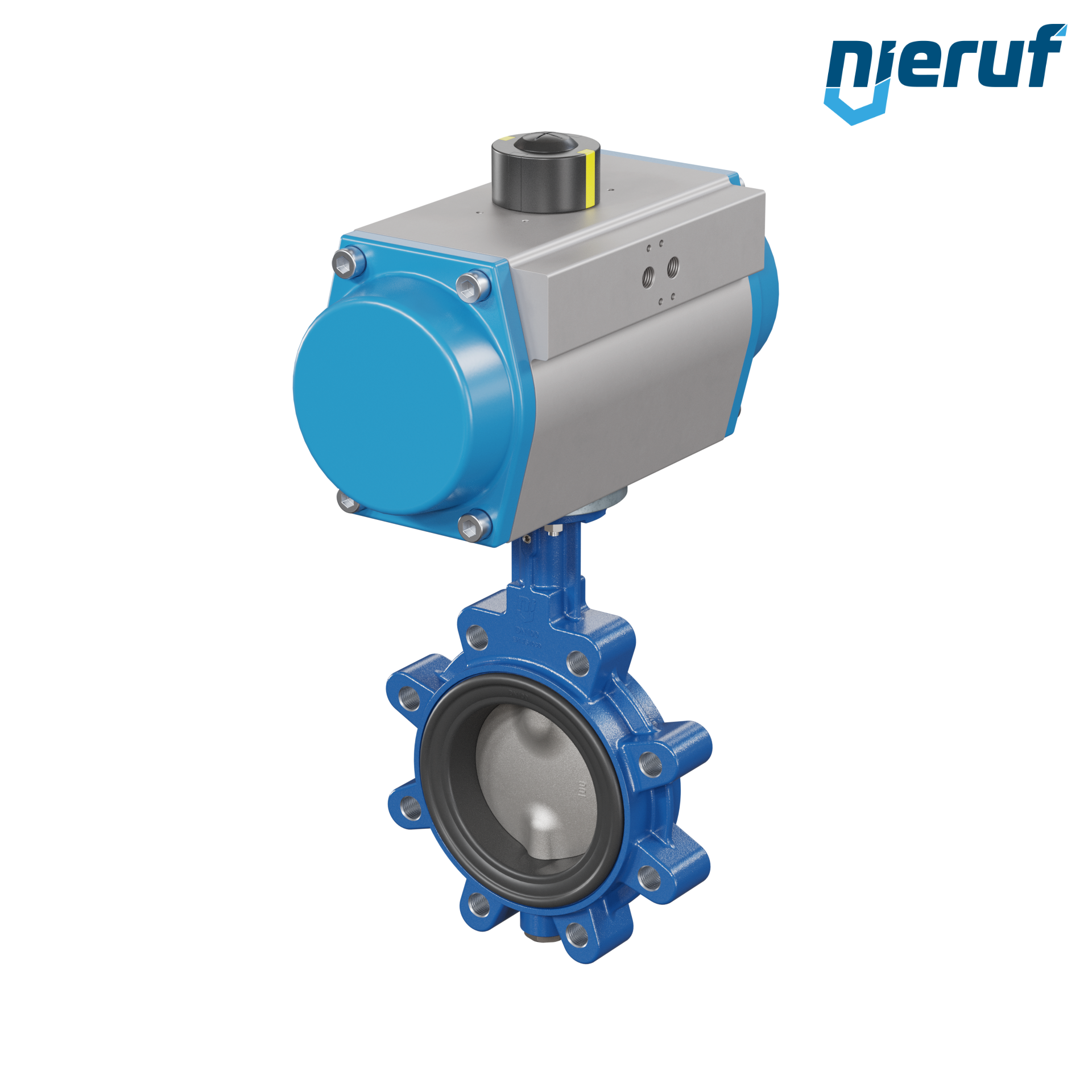

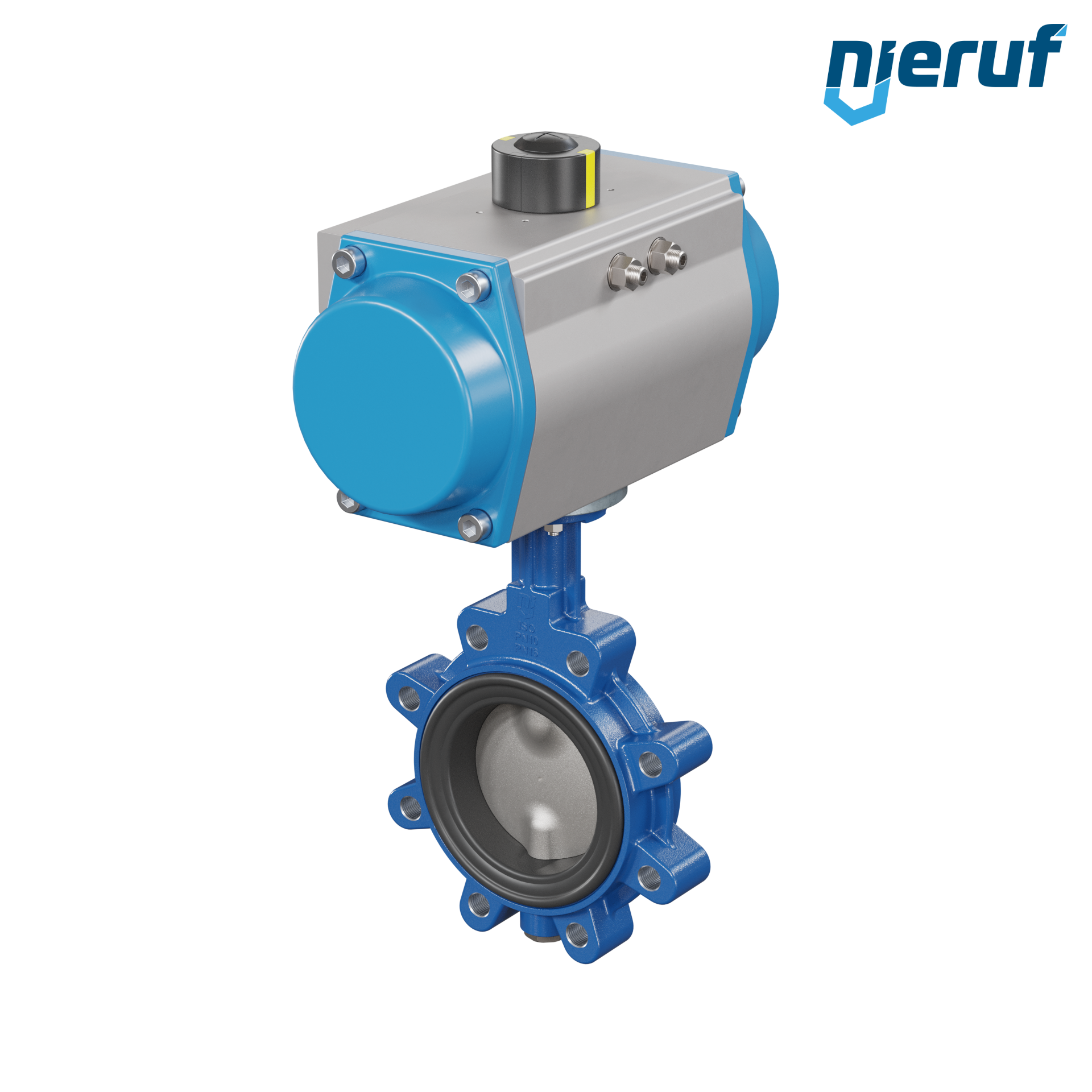

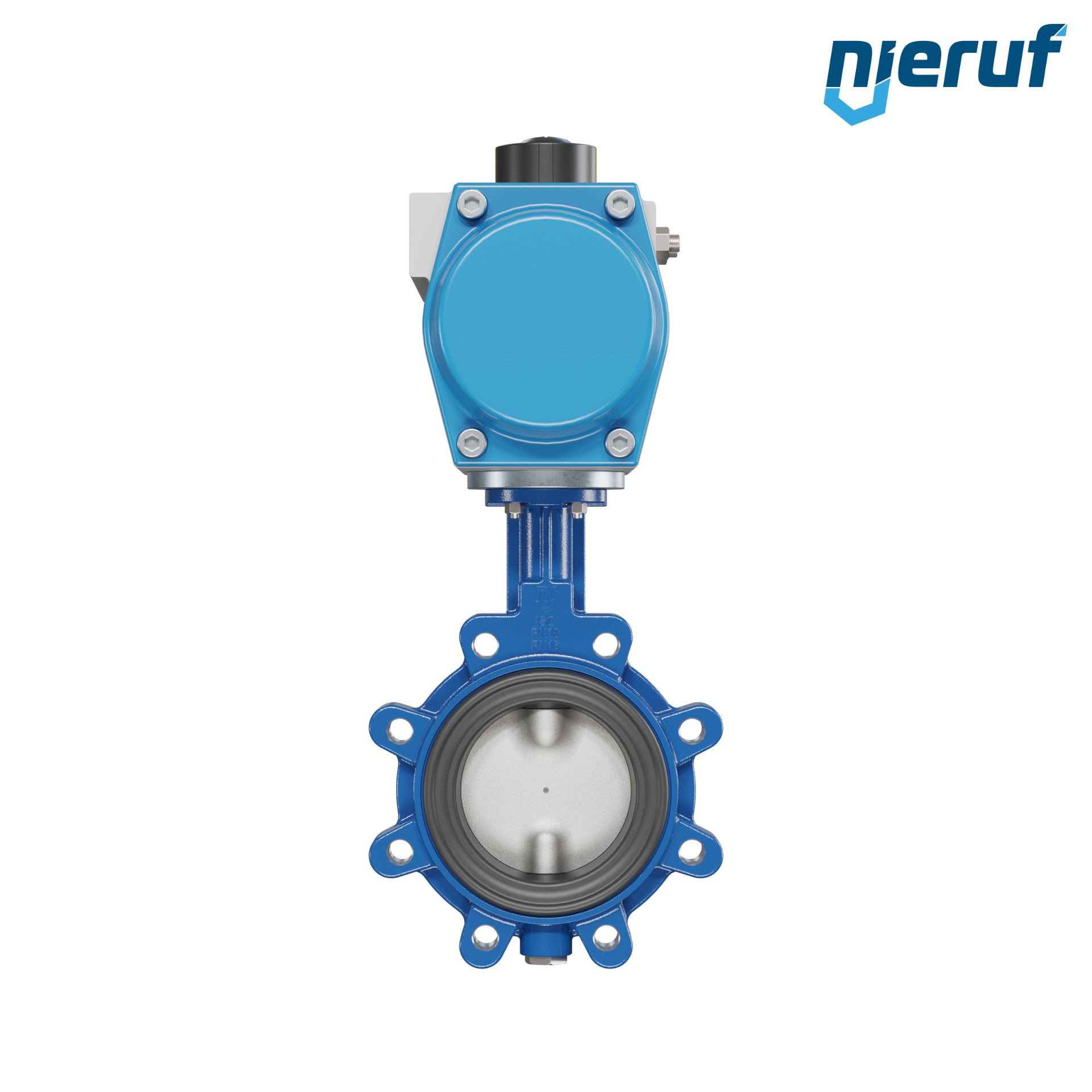

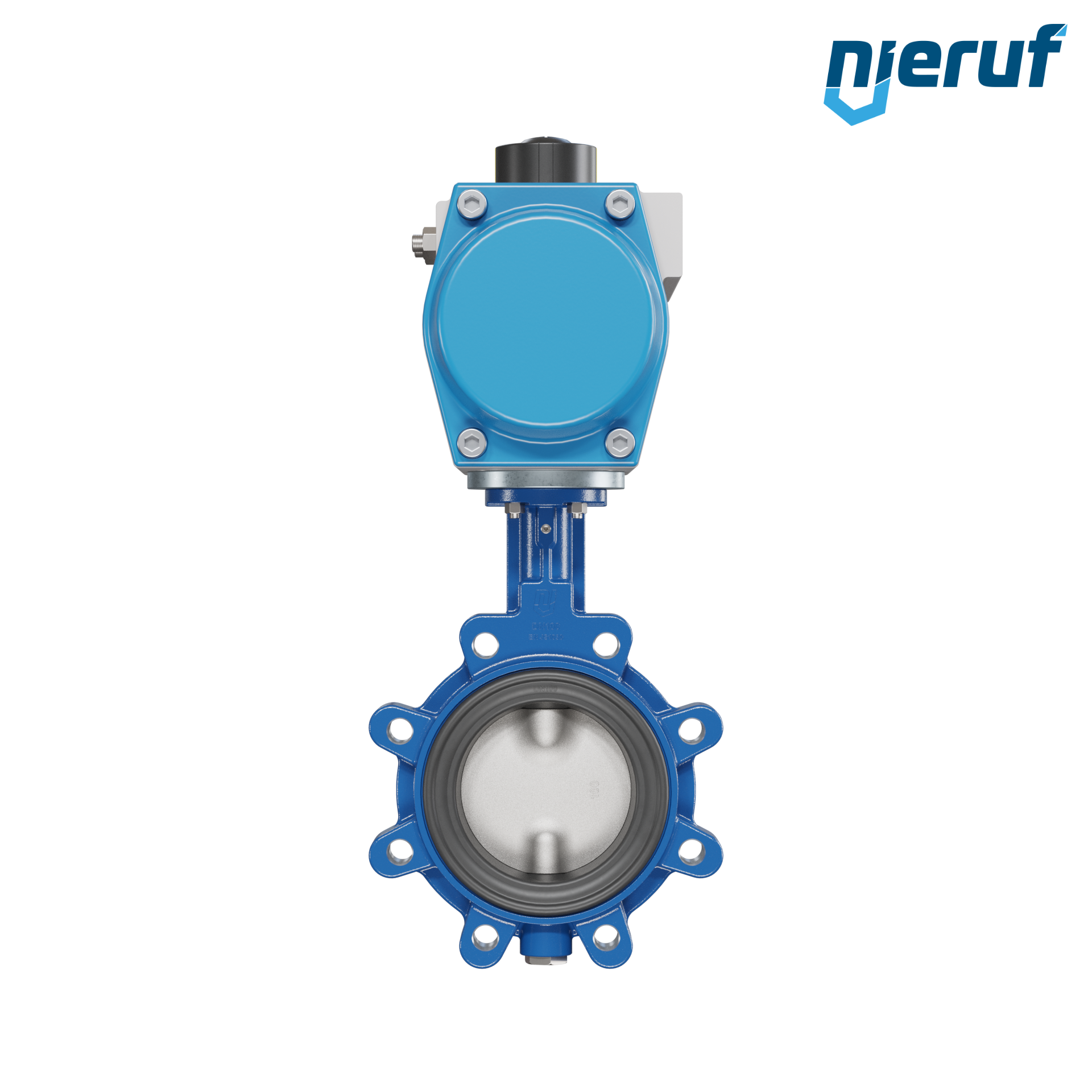

Butterfly valve DN 100 AK02 NBR-70-black DVGW gas pneumatic actuator single acting normally closed
- Delivery time
- 2 - 3 weeks
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
Positioner PS01 for pneumatic actuators single acting air volume less than 5 l
€992.10 VAT included.
Questions about the article?
Butterfly valve DN 100 Lug type body made of GGG40 with pneumatic actuator single acting normally closed seal NBR-70-black DVGW gas industry design
| product | Butterfly valve |
|---|---|
| type | AK02 |
| manufacturer | NieRuf |
| diameter | DN 100 |
| nominal pressure | PN10-PN16 |
| max. working pressure | 16 bar |
| sleeves | NBR-70-black DVGW gas |
| media | liquid and gaseous media |
| temperature | Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| design | Lug type |
| body material | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc | stainless steel 1.4408 |
| actuation | pneumatic actuator single acting normally closed |
| actuator | Pneumatic actuator AN02 GS-125 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes) |
| approval | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application | industry design |
| installation position | any position |
| product feature | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 100 AK02 NBR-70-black DVGW gas pneumatic actuator single acting normally closed
Article no.
: AK02110511
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 100
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator single acting normally closed
actuator:
Pneumatic actuator AN02 GS-125 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
