Butterfly valve DN 100 PN16 AK02 EPDM pneumatic actuator single acting

AK02100511
quantity (pcs.):
1,149.20€ * 1,333.07€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Butterfly valve DN 100 PN16 AK02 EPDM pneumatic actuator single acting

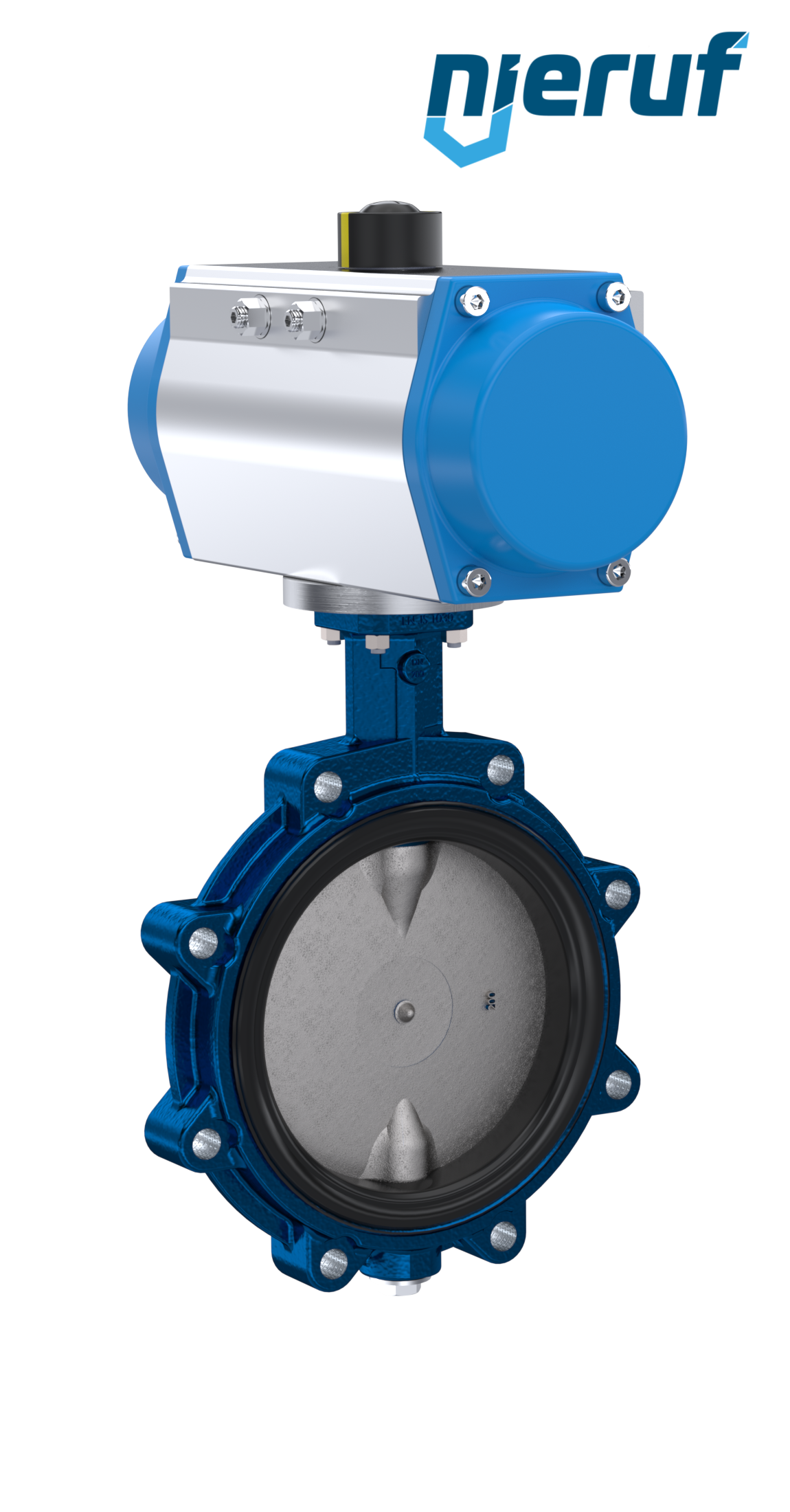

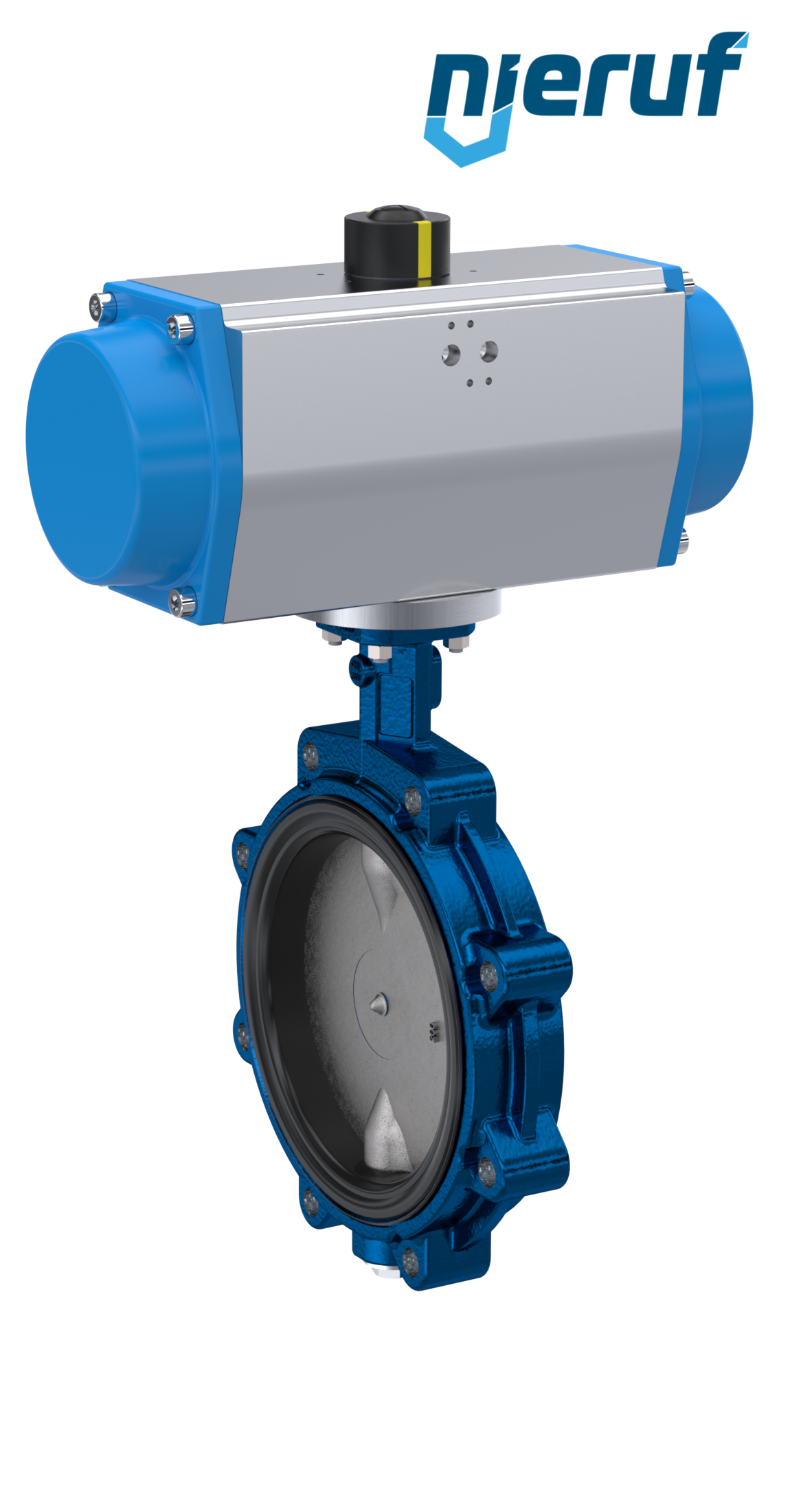

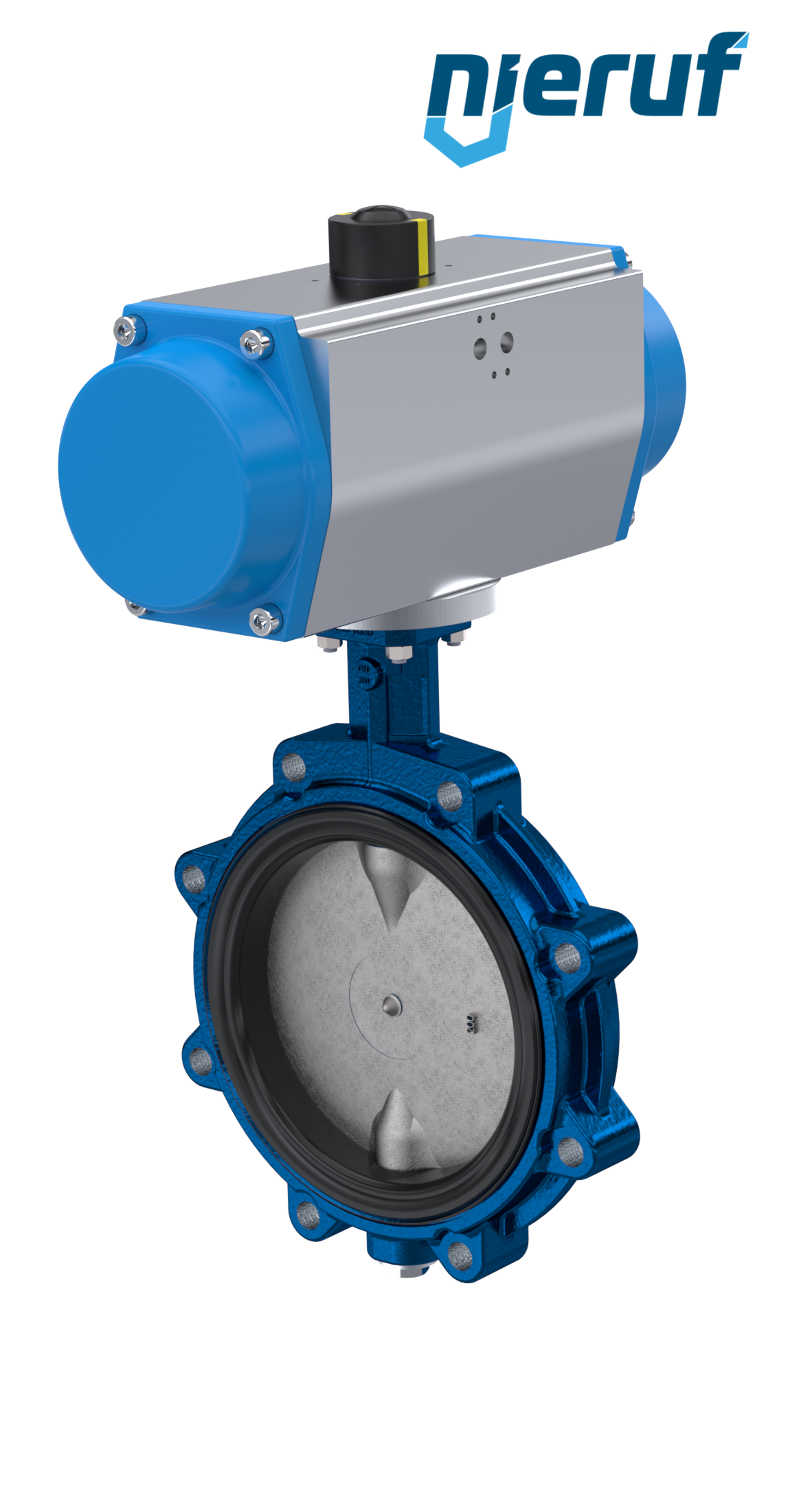

Butterfly valve DN 100 PN16 Lug type body made of GGG40 with pneumatic actuator single acting seal EPDM industry design
diameter: DN 100
nominal pressure: PN16
sleeves: EPDM
media: liquid and gaseous media
temperature: -10°C up to +130°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40)
disc: stainless steel 1.4581
actuation: pneumatic actuator single acting
actuator: Pneumatic actuator AIR Torque with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closens)
approval: EPDM for water NW-6201BQ0460, acc. to DIN EN 1074-1/-2
application: industry design
installation position: any position
product feature: Free of maintenance butterfly valve with high quality epoxyd coating body. Shaft - Disc connection not in contact with the medium. Industry design
Butterfly valve DN 100 PN16 AK02 EPDM pneumatic actuator single acting

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Butterfly valve DN 100 PN16 AK02 EPDM pneumatic actuator single acting
