KP03000205

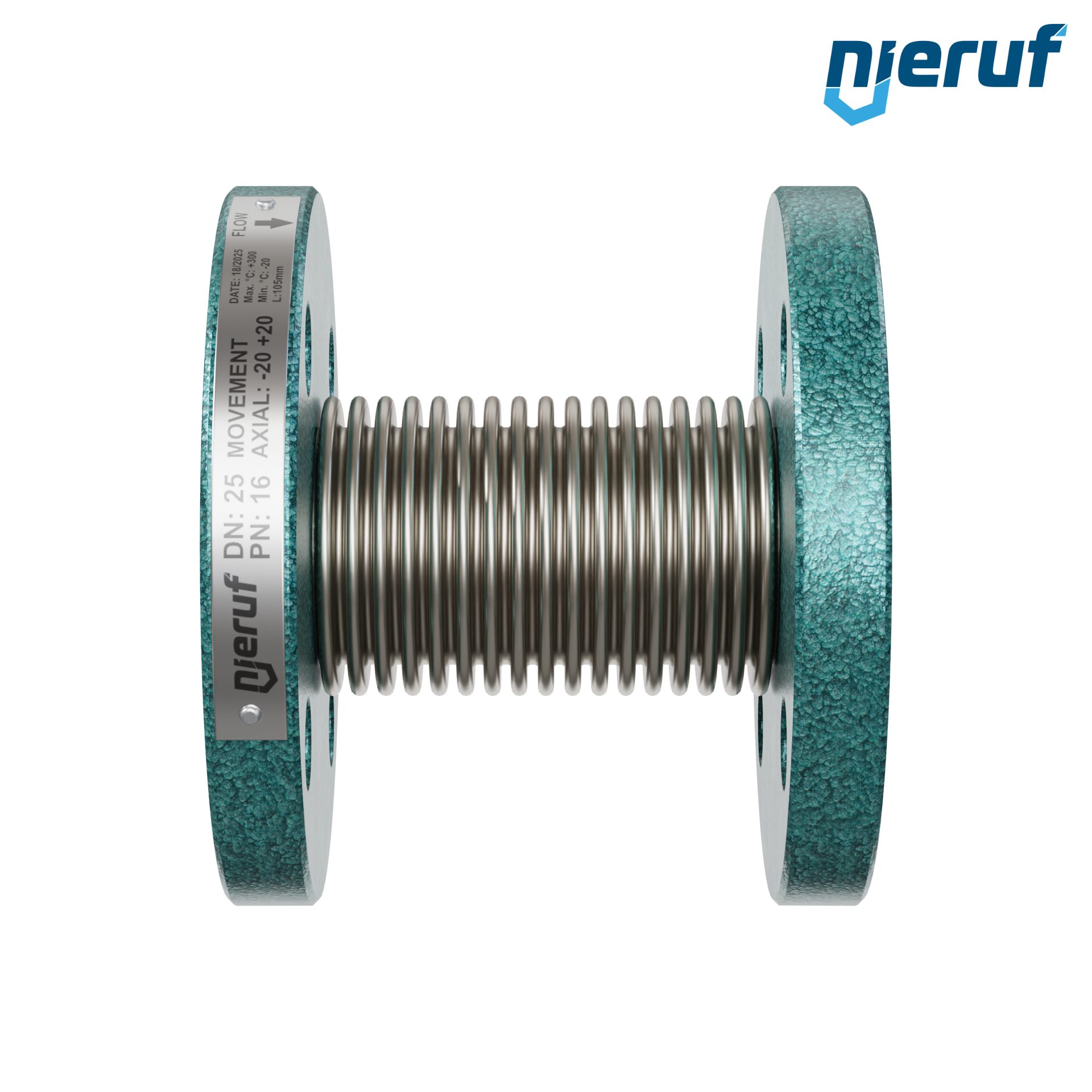

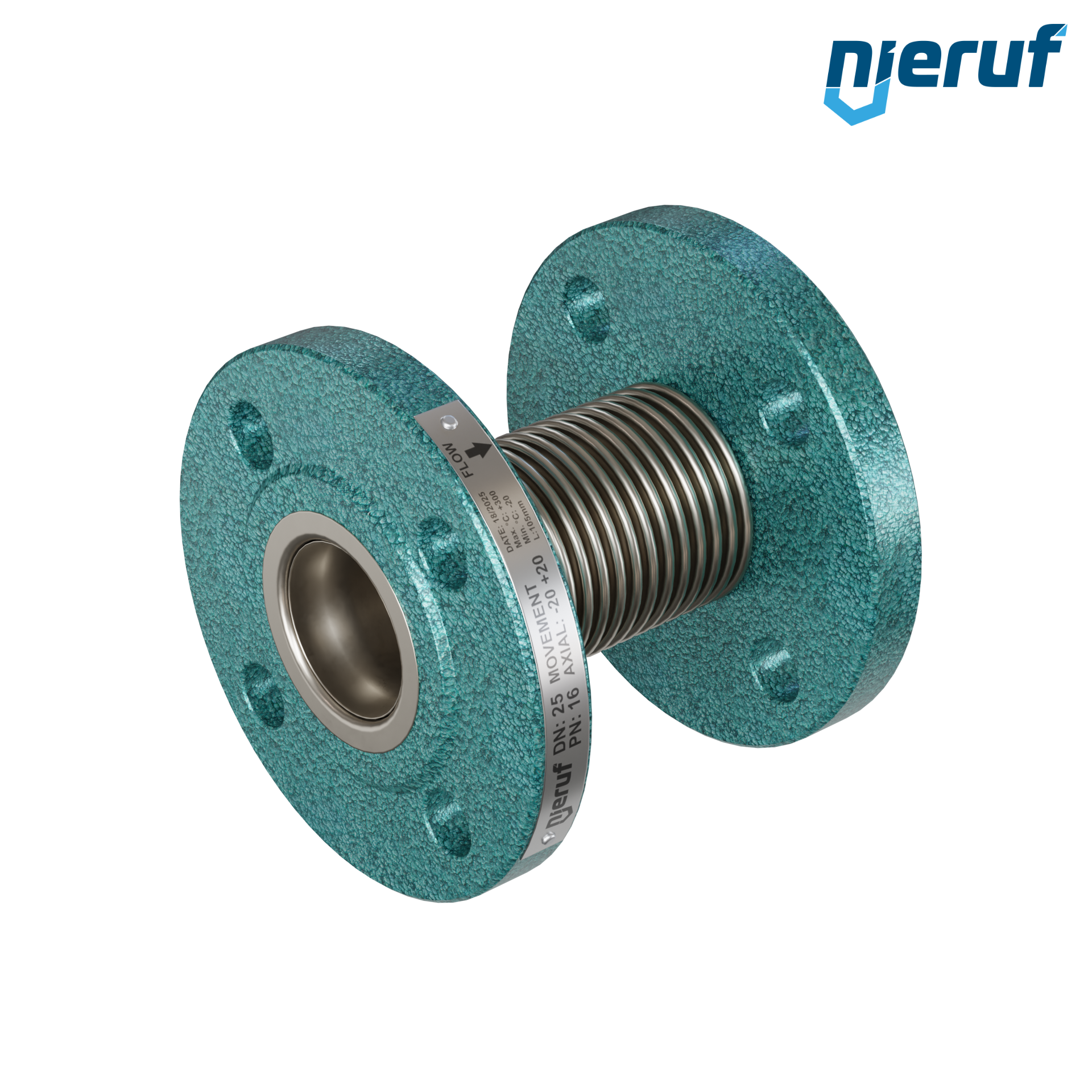

Axial expansion joint DN25 Type KP03 steel-flanges and sleeve made of stainless steel

Giunto di dilatazione assiale DN25 modello KP03 flange acciaio manicotto acciaio inox

€122.10*

€145.30 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

VS01000105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel

€3.60*

€4.28 VAT included.

FL01010105

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4571

€23.70*

€28.20 VAT included.

FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€4.10*

€4.88 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

Axial expansion joint DN25 Type KP03 steel-flanges and sleeve made of stainless steel

Axial expansion joint DN25, sleeve and bellow made of stainless steel 1.4541 / SS 321 flange acc. DIN EN 1092-1 PN 10/16

product	Axial expansion joint
type	KP03
manufacturer	NieRuf
diameter	DN25
connection	flange acc. DIN EN 1092-1 PN10/16
max. pressure	max. 16 bar (consider pressure-temperature diagram)
nominal pressure	PN 10/16
material	steel 1.0037 St 37.2
sleeves	stainless steel 1.4541 / SS 321
media	liquid media, gases media and steam
temperature	-20°C up to +300°C
design	straightway form
product feature	Axial expansion joint with stainless steel bellows and steel flanges for use in high temperatures and rough conditions.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Axial expansion joint DN25 Type KP03 steel-flanges and sleeve made of stainless steel

Article no. : KP03000205
product: Axial expansion joint
type: KP03
manufacturer: NieRuf
diameter: DN25
connection: flange acc. DIN EN 1092-1 PN10/16
max. pressure: max. 16 bar (consider pressure-temperature diagram)
nominal pressure: PN 10/16
material: steel 1.0037 St 37.2
sleeves: stainless steel 1.4541 / SS 321
media: liquid media, gases media and steam
temperature: -20°C up to +300°C
design: straightway form
product feature: Axial expansion joint with stainless steel bellows and steel flanges for use in high temperatures and rough conditions.
