FL01010105

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4571

€33.50*

€39.87 VAT included.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Tuesday, 19. March

Guaranteed delivery until Wednesday, 20. March, 12 o'clock

Order in within by express delivery


Equipment

VS01000105

joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 stainless steel

€4.00*

€4.76 VAT included.


FD01000105

flange seal DN25 PN10/16/25/40 34x71x2 Klingersil C 4400

€1.90*

€2.26 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: FL01010105

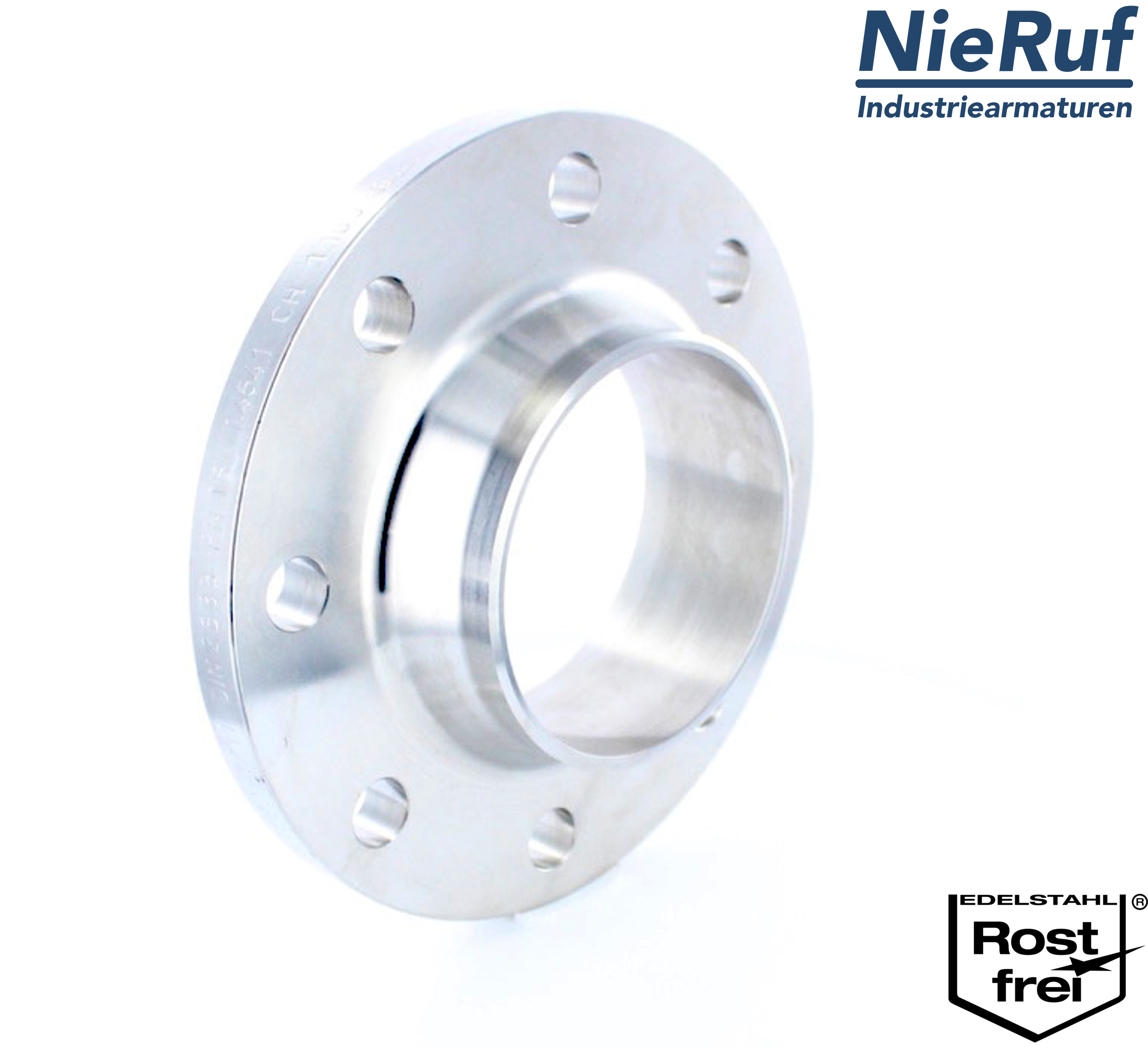

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4571

high quality Flange DN25 flange acc. DIN PN10/16/25/40 EN1092-1 Typ 11 B1 made of stainless steel 1.4571

product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN25
connection: PN10/16/25/40
material: stainless steel
material nr.: 1.4571
norm: EN1092-1
norm-type: 11
surface: B1

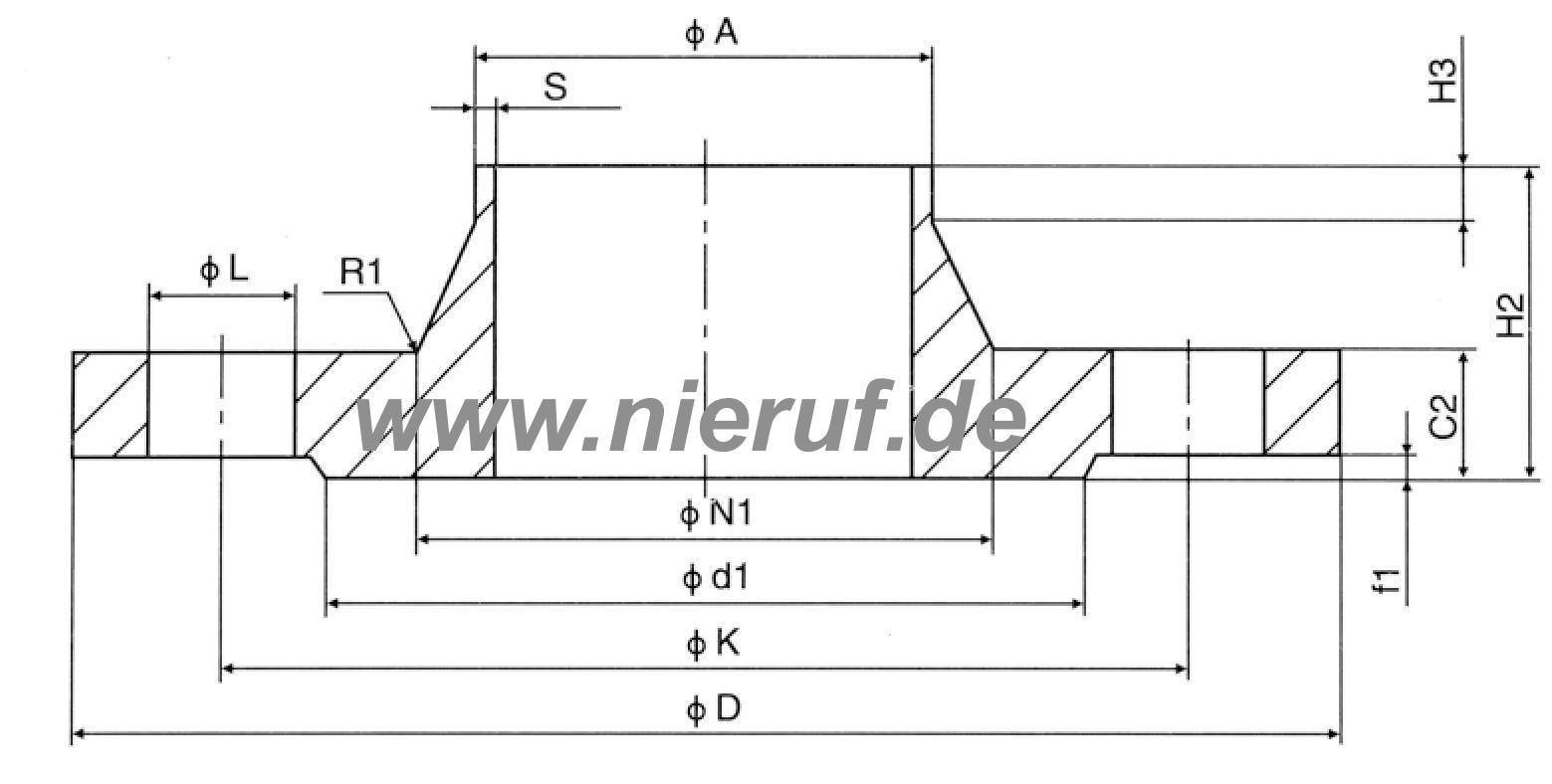

Design: Welding neck flange
Ø A: 33,7
D: 115
C2: 18
K: 85
H2: 40
N1: 46
S: 2,6
R1: 4
d1: 68
f1: 2
screw: M12
Qty. Screws: 4
L: 14

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4571

Article no. : FL01010105
product: Flange
type: FL01
manufacturer: NieRuf
diameter: DN25
connection: PN10/16/25/40
material: stainless steel
material nr.: 1.4571
norm: EN1092-1
norm-type: 11
surface: B1
Design: Welding neck flange
Ø A: 33,7
D: 115
C2: 18
K: 85
H2: 40
N1: 46
S: 2,6
R1: 4
d1: 68
f1: 2
screw: M12
Qty. Screws: 4
L: 14
