MV06210103

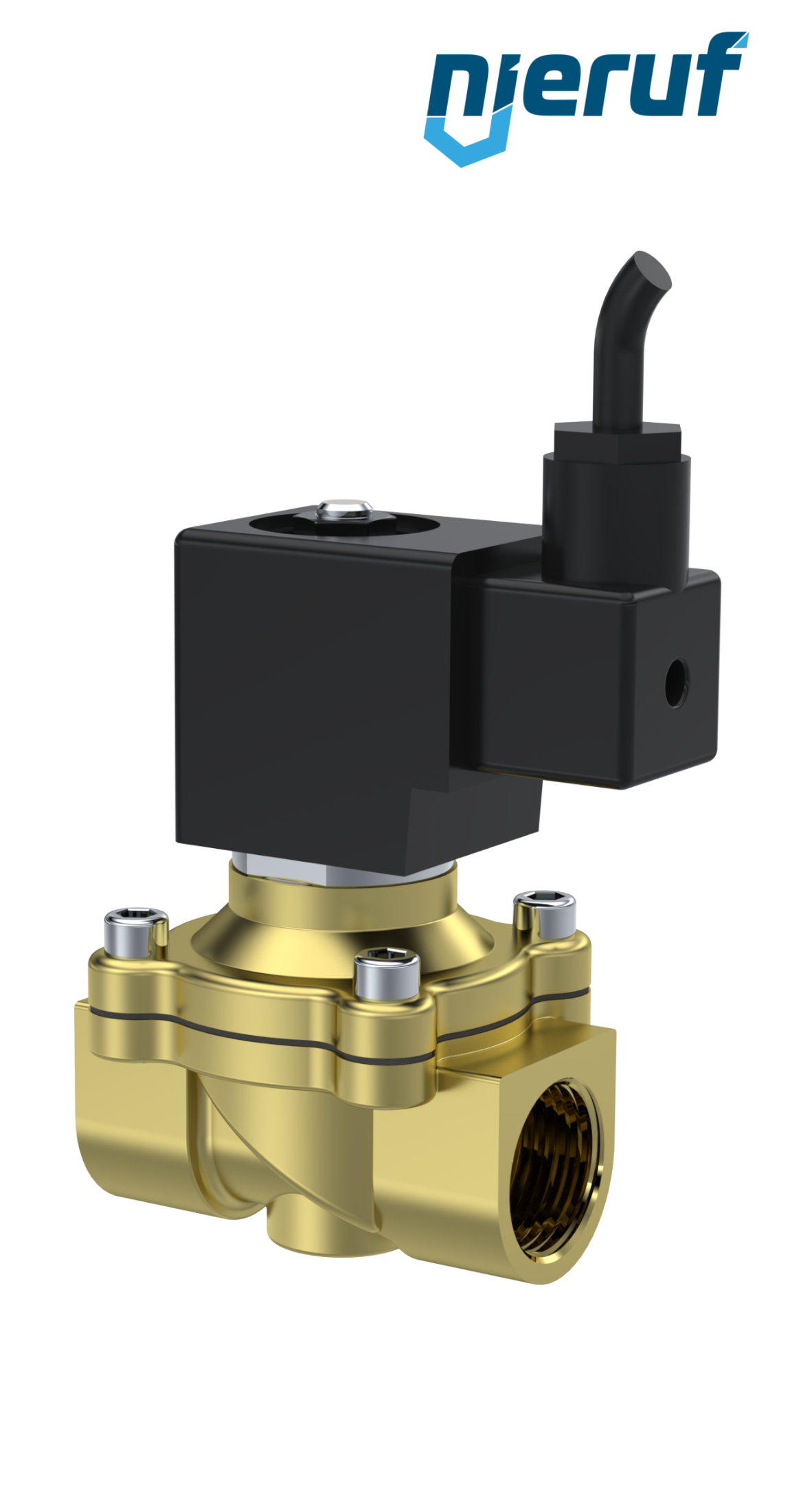

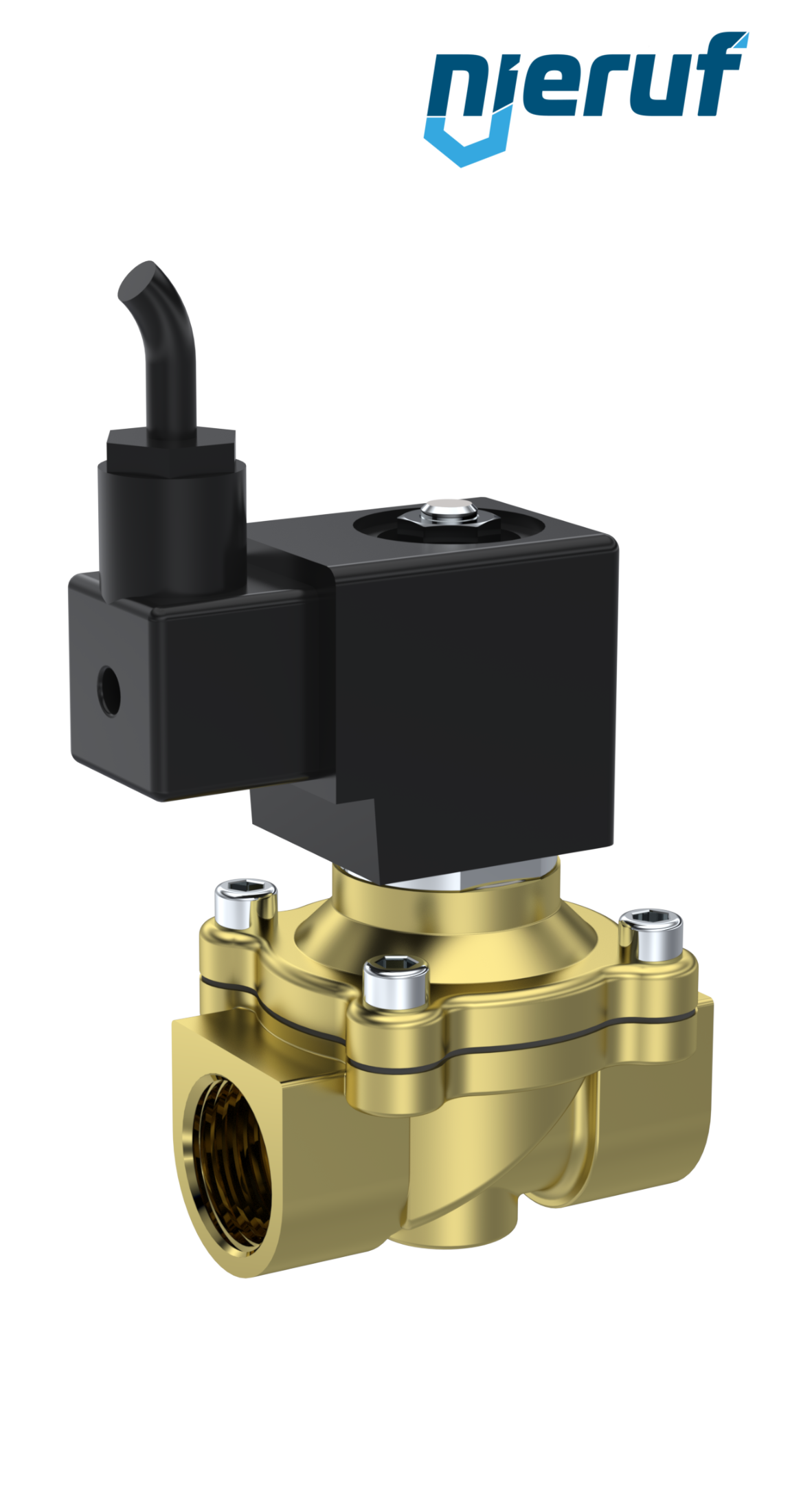

ATEX-Solenoid valve DN16 G 1/2" Inch EPDM brass
- Lead time
- 2 - 3 weeks
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
hose nozzle 1/2" 12.7 mm stainless steel 1.4408 ST01
€3.45 VAT included.
LED plug 24V DC for solenoid valves for type EV03 / MV03 / EV04 / MV04 / EV05 / MV05 / EV06 / MV06 / EV07 / MV07
€11.78 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
ATEX-Solenoid valve DN16 G 1/2" Inch EPDM brass
Ex-proofed-Solenoid valve DN16 G 1/2" Inch EPDM Type MV06 NC - normally closed force pilot operated brass 24V DC liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | MV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN16 |
| connection | G 1/2" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 2.9 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | brass |
| seal | EPDM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted and 3m cable |
| media | non-flammable, neutral gases and liquids |
| temperature media | -10°C up to +130°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 6 bar |
| Outlet pressure | 0 bar (no counter pressure) |
| Ex-proof | ex-proof solenoid with II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ATEX-Solenoid valve DN16 G 1/2" Inch EPDM brass
Article no.
: MV06210103
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN16
connection:
G 1/2" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
2.9 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
EPDM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted and 3m cable
media:
non-flammable, neutral gases and liquids
temperature media:
-10°C up to +130°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 6 bar
Outlet pressure:
0 bar (no counter pressure)
Ex-proof:
ex-proof solenoid with II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable
installation position:
any position, solenoid preferably standing
