EV09220020

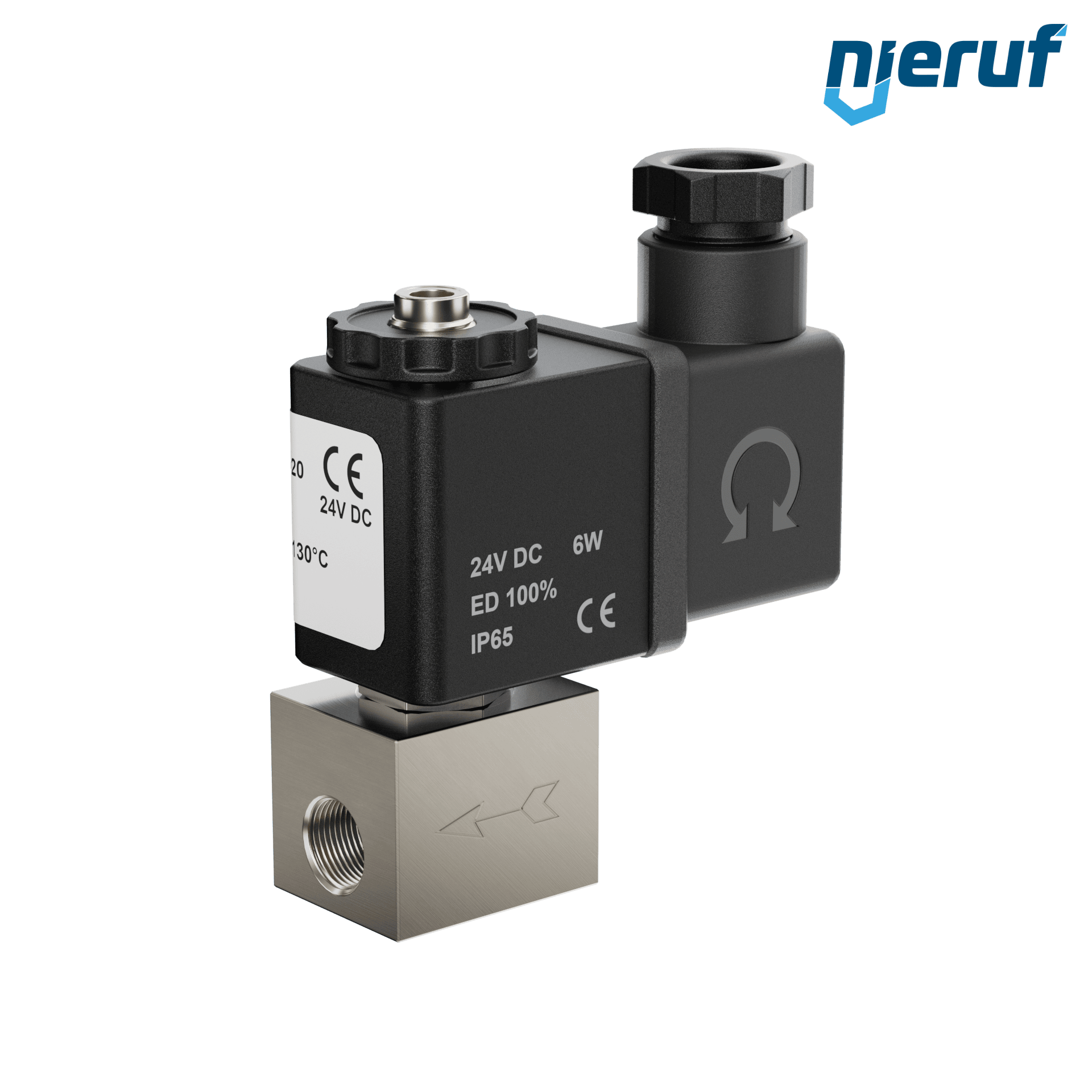

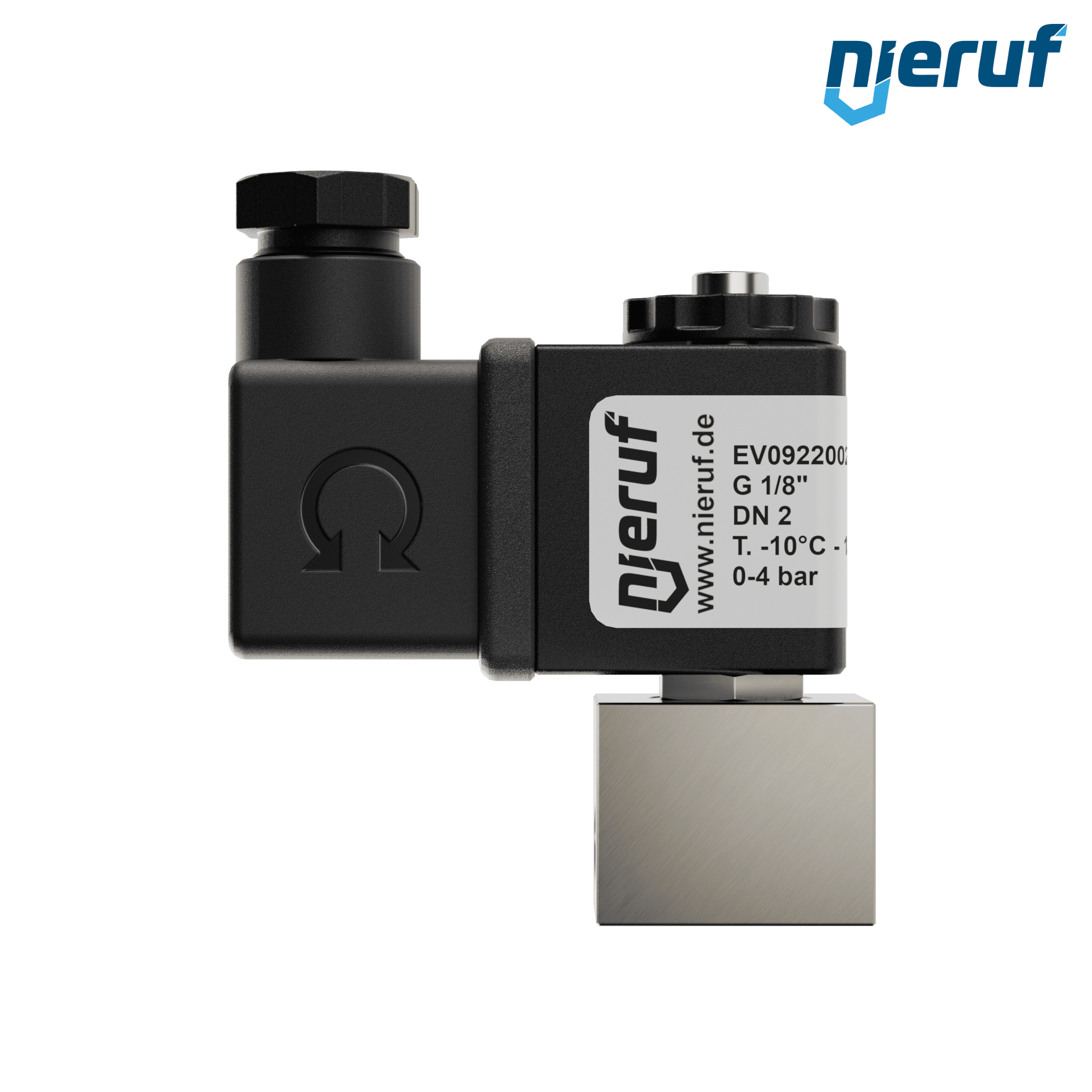

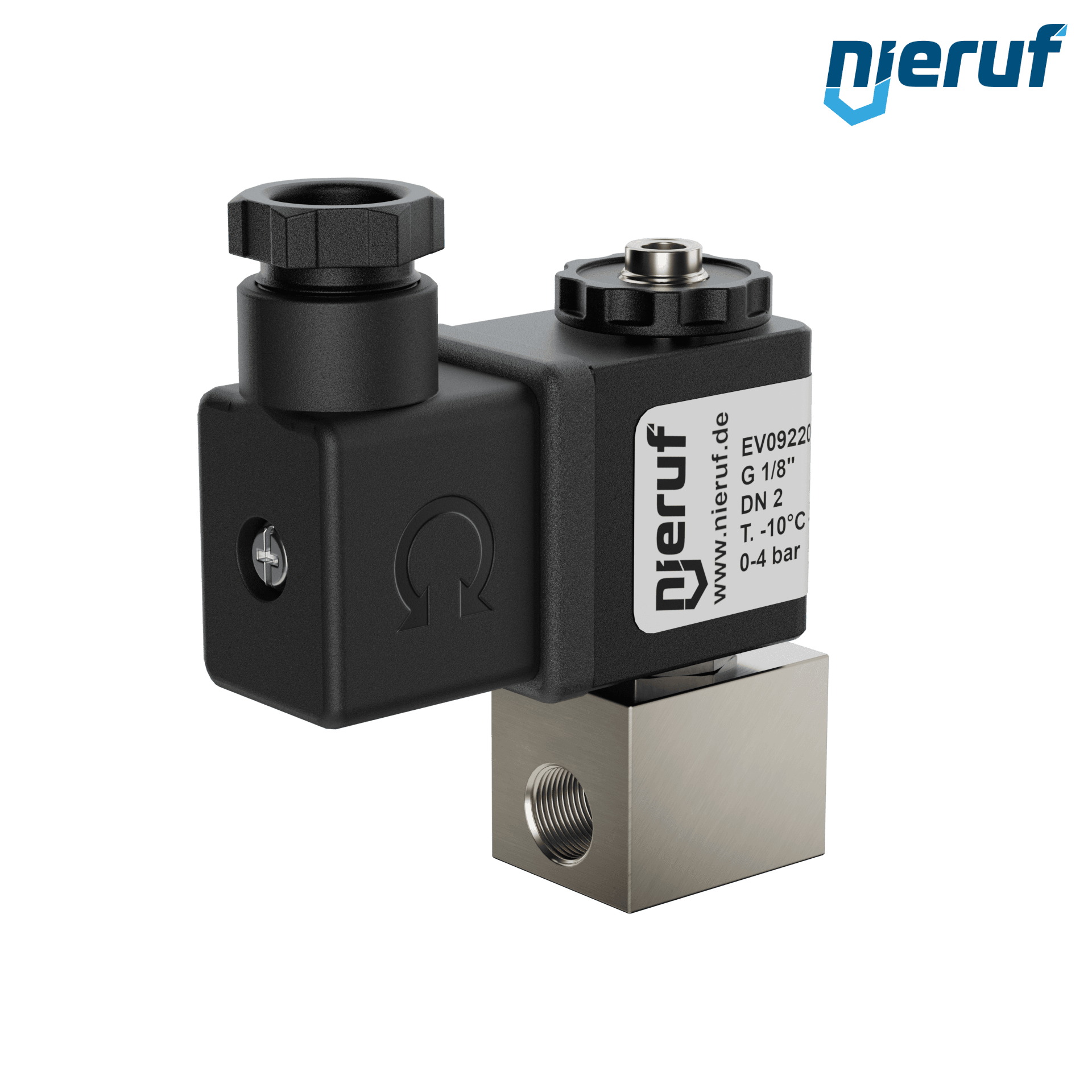

Solenoid valve DN2,0 G 1/8" Inch stainless steel EV09 FKM 24V DC

€65.10*

€77.47 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 3 - 5 working days

Equipment

ST01000000

hose nozzle 1/8" 7.0 mm stainless steel 1.4408 ST01

€1.30*

€1.55 VAT included.

GF01300000

hexagon nipple 1/8" inch male stainless steel 316

€1.20*

€1.43 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

Solenoid valve DN2,0 G 1/8" Inch stainless steel EV09 FKM 24V DC

3/2 ways Solenoid valve G 1/8" Inch DN2,0 made of stainless steel 1.4305 seal FKM direct acting nominal voltage 24V DC pressure 0-4 bar

product	Solenoid valve
type	EV09
manufacturer	NieRuf
design	seat valve
diameter	DN2,0
connection	G 1/8" Inch
type of connection	female thread
Type of design	3/2 ways
flow rate	2.1 l/min
function	NC - normally closed
control	direct acting
material	stainless steel 1.4305
seal	FKM
voltage	24V DC
voltage tolerance	+/- 10% acc. VDE 0580
power consumption	6 Watt
duty	100% ED
plug socket	IP65 with plug socket mounted
media	non-flammable, neutral gases
temperature media	-10°C up to +120°C
temperature ambiente	max up to +50°C
max. pressure	0-4 bar
Outlet pressure	0 bar (no counter pressure)

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Solenoid valve DN2,0 G 1/8" Inch stainless steel EV09 FKM 24V DC

Article no. : EV09220020
product: Solenoid valve
type: EV09
manufacturer: NieRuf
design: seat valve
diameter: DN2,0
connection: G 1/8" Inch
type of connection: female thread
Type of design: 3/2 ways
flow rate: 2.1 l/min
function: NC - normally closed
control: direct acting
material: stainless steel 1.4305
seal: FKM
voltage: 24V DC
voltage tolerance: +/- 10% acc. VDE 0580
power consumption: 6 Watt
duty: 100% ED
plug socket: IP65 with plug socket mounted
media: non-flammable, neutral gases
temperature media: -10°C up to +120°C
temperature ambiente: max up to +50°C
max. pressure: 0-4 bar
Outlet pressure: 0 bar (no counter pressure)
