AS06000009

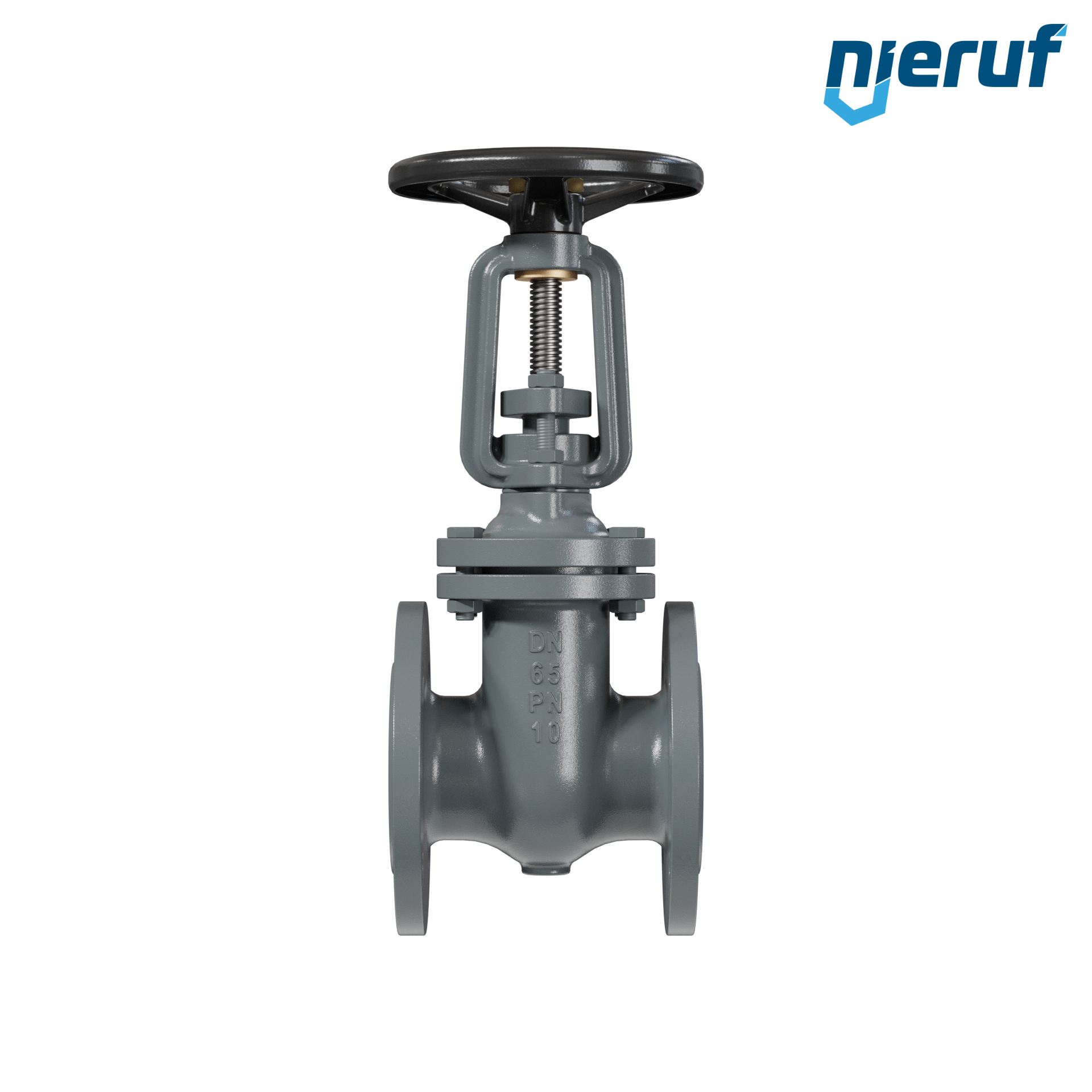

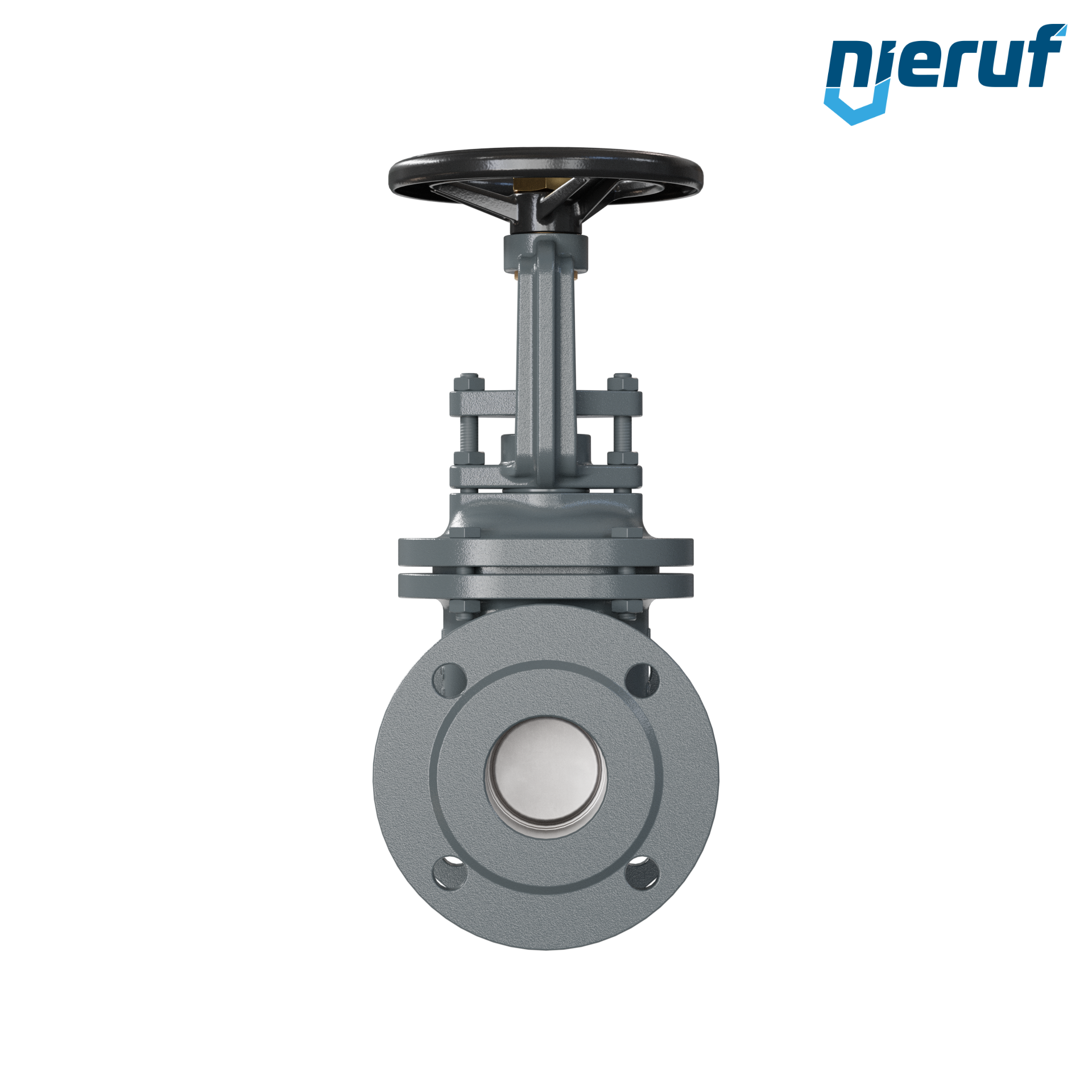

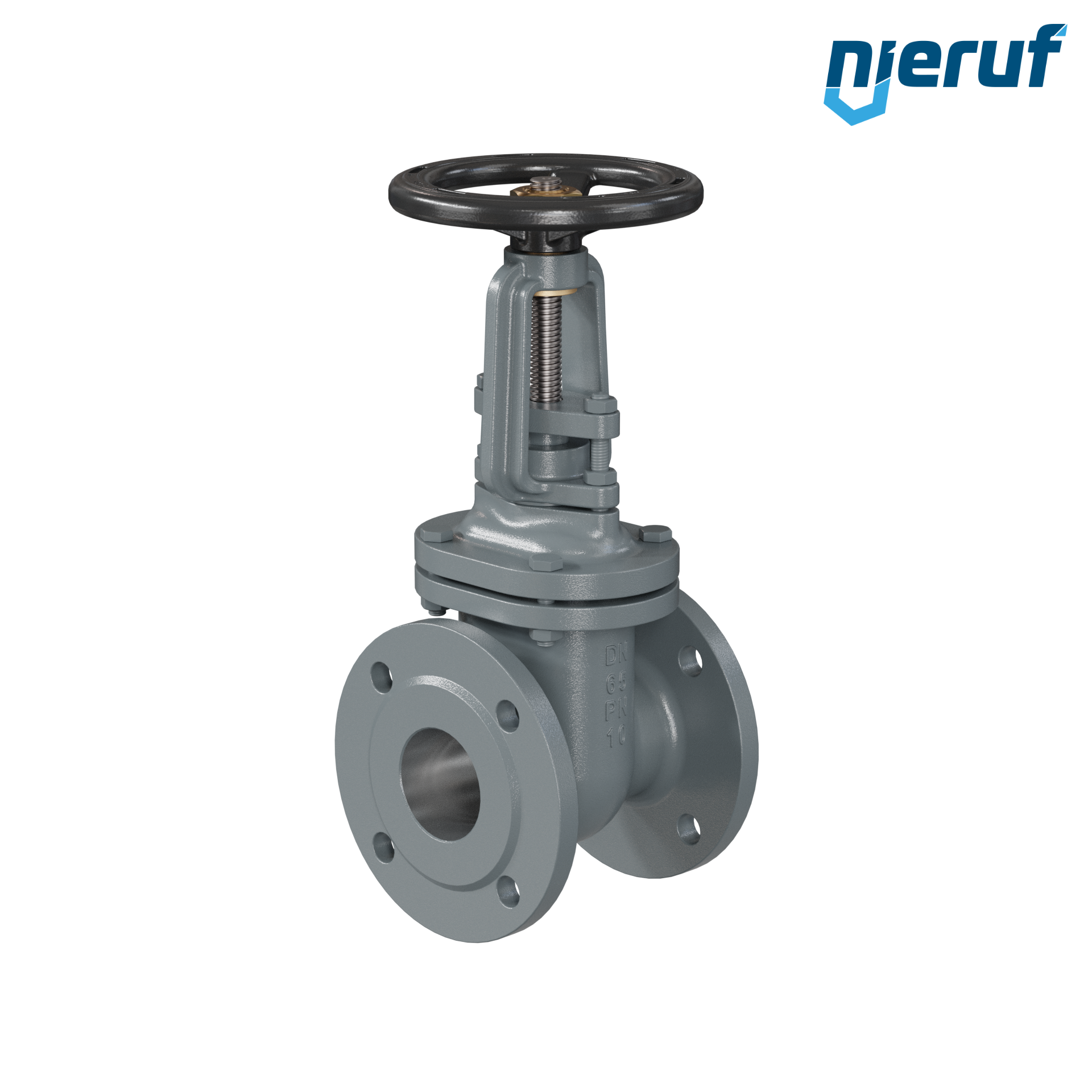

Wedge Gate Valve (flat form) made of cast iron EN-GJL-250 AS06 DN65 PN10 with rising stem
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Monday, 04. May
Guaranteed delivery until Tuesday, 05. May, 12 o'clock
Equipment
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
€15.23 VAT included.
Questions about the article?
NIERUF-SERVICE
Downloads
Wedge Gate Valve (flat form) AS06 in straightway form DN65 PN10 with flange according to DIN EN 1092, material cast iron EN-GJL-250, with rising stem
| Product | wedge gate valve (flat form) |
|---|---|
| Type | AS06 |
| Manufacturer | NieRuf |
| Nominal size | DN65 |
| Flange | flange according to DIN EN 1092 |
| Pressure rating | PN10 |
| Seal | Fasit 205 (asbestos-free) |
| Media | liquid media |
| Temperature | -10°C to +150°C |
| Pressure range | 0 to 10 bar - depending on temperature |
| Design | straightway form |
| Body material | cast iron EN-GJL-250 (GG25, 0.6025) |
| Handwheel | cast iron EN-GJL-250 (GG25, 0.6025) |
| Wedge | carbon steel A 105 + stainless steel 1.4307 / AISI 304L |
| Face-to-face length | according to DIN EN 558 series 14 |
| Testing | final inspection according to DIN EN 12266 |
| Installation position | in horizontal pipelines, spindle pointing vertically upwards |
| Standard | DIN EN 1074-1: 2000-07 |
| Product feature | wedge gate valve (flat form) made of cast iron in straightway form with flange connection and rising stem as well as non-rising handwheel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Wedge Gate Valve (flat form) made of cast iron EN-GJL-250 AS06 DN65 PN10 with rising stem
Article no.
: AS06000009
Product:
wedge gate valve (flat form)
Type:
AS06
Manufacturer:
NieRuf
Nominal size:
DN65
Flange:
flange according to DIN EN 1092
Pressure rating:
PN10
Seal:
Fasit 205 (asbestos-free)
Media:
liquid media
Temperature:
-10°C to +150°C
Pressure range:
0 to 10 bar - depending on temperature
Design:
straightway form
Body material:
cast iron EN-GJL-250 (GG25, 0.6025)
Handwheel:
cast iron EN-GJL-250 (GG25, 0.6025)
Wedge:
carbon steel A 105 + stainless steel 1.4307 / AISI 304L
Face-to-face length:
according to DIN EN 558 series 14
Testing:
final inspection according to DIN EN 12266
Installation position:
in horizontal pipelines, spindle pointing vertically upwards
Standard:
DIN EN 1074-1: 2000-07
Product feature:
wedge gate valve (flat form) made of cast iron in straightway form with flange connection and rising stem as well as non-rising handwheel.
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
Lead time: in stock
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
