GK04000010

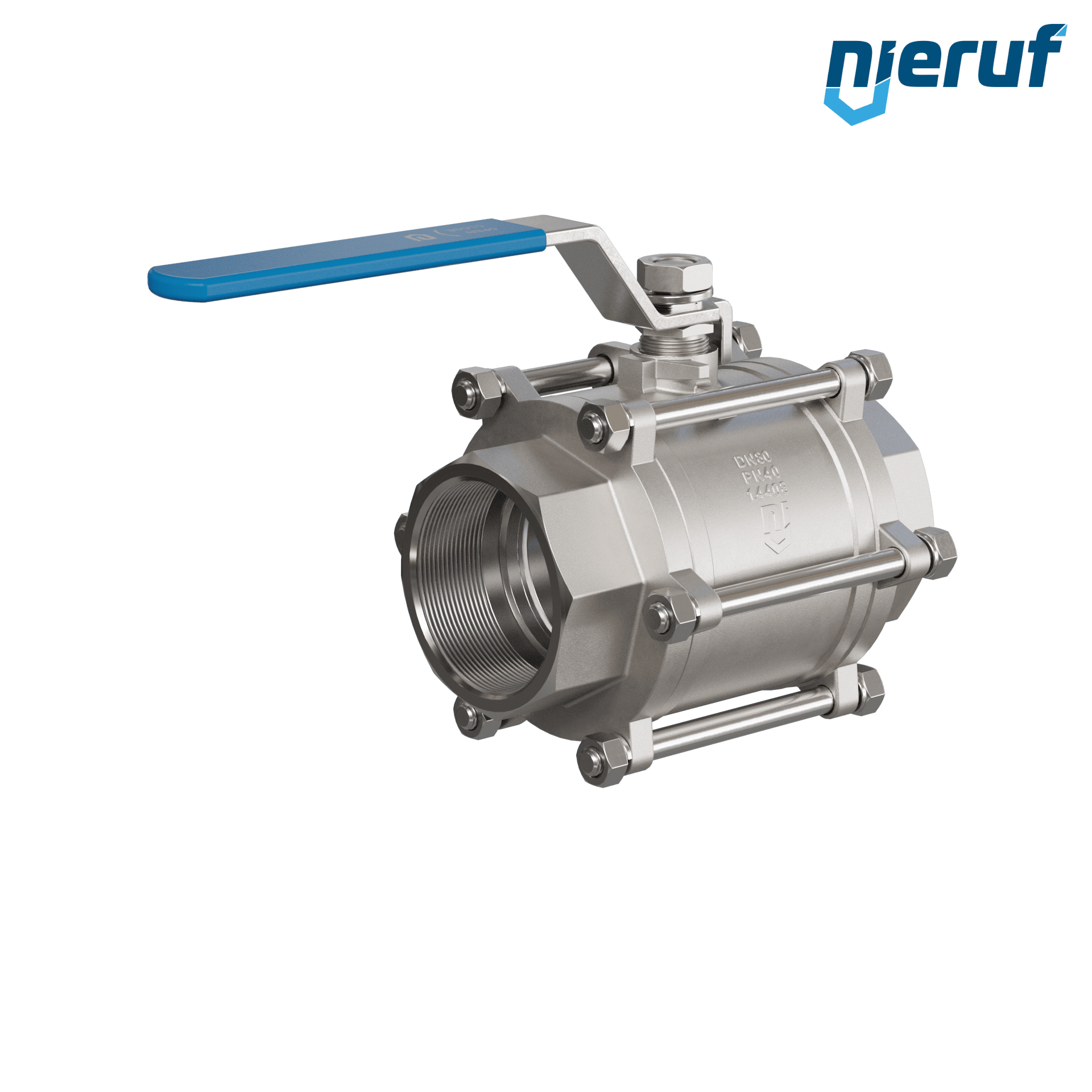

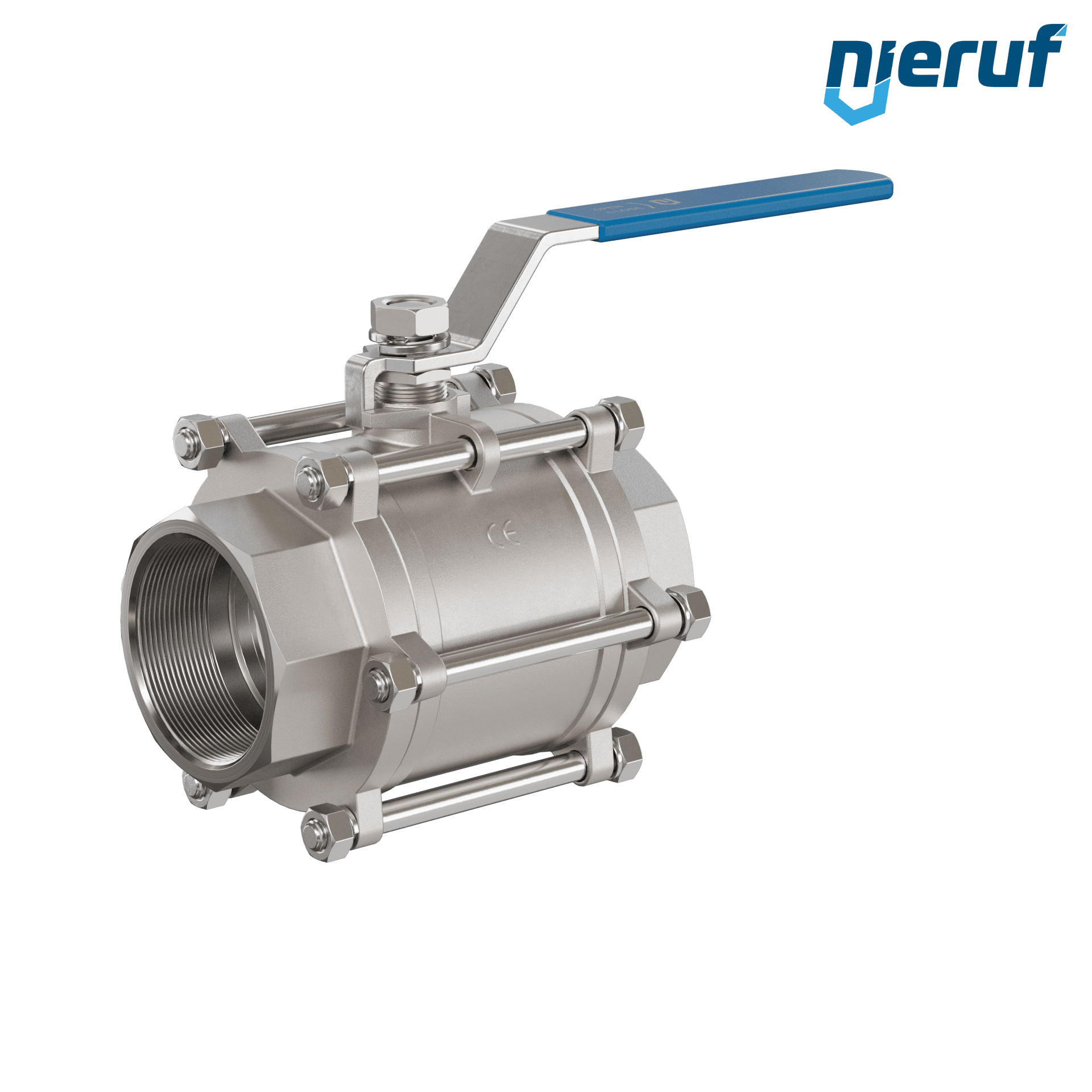

ball valve made of stainless steel DN80 - 3" inch GK04 female thread
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you
ball valve made of stainless steel DN80 - 3" inch full port design seal made of PTFE for liquid and gaseous media
product: | ball valve made of stainless steel |
---|---|
type: | GK04 |
manufacturer: | NieRuf |
diameter: | DN80 - 3" inch |
connection: | female thread |
Seal steam: | PTFE |
ball seal: | PTFE |
media: | liquid and gaseous media |
temperature: | -20°C up to +180°C - depending on working pressure and media |
max. pressure: | PN40 |
design: | full port design |
body material: | stainless steel 1.4408 |
ball material: | stainless steel 1.4401 |
length: | 205mm |
actuator: | hand lever made of stainless steel 1.4301 with plastic cover |
installation position: | any position |
product description: | This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of stainless steel DN80 - 3" inch GK04 female thread
Article no.
: GK04000010
product:
ball valve made of stainless steel
type:
GK04
manufacturer:
NieRuf
diameter:
DN80 - 3" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4401
length:
205mm
actuator:
hand lever made of stainless steel 1.4301 with plastic cover
installation position:
any position
product description:
This high quality ball valve is made of stainless steel with adjustable stem packing and blow out proof stem design. This three-piece body valve is authorized for pressure equipment directive Cat. 2
