GK17000010

three-pieces stainless steel ball valve DN80 - 3" inch female thread

€385.00*

€458.15 VAT included.

Delivery time: 3 - 5 working days

Delivery information

Equipment

GF01300010

hexagon nipple 3" inch male stainless steel 316

€24.10*

€28.68 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: GK17000010

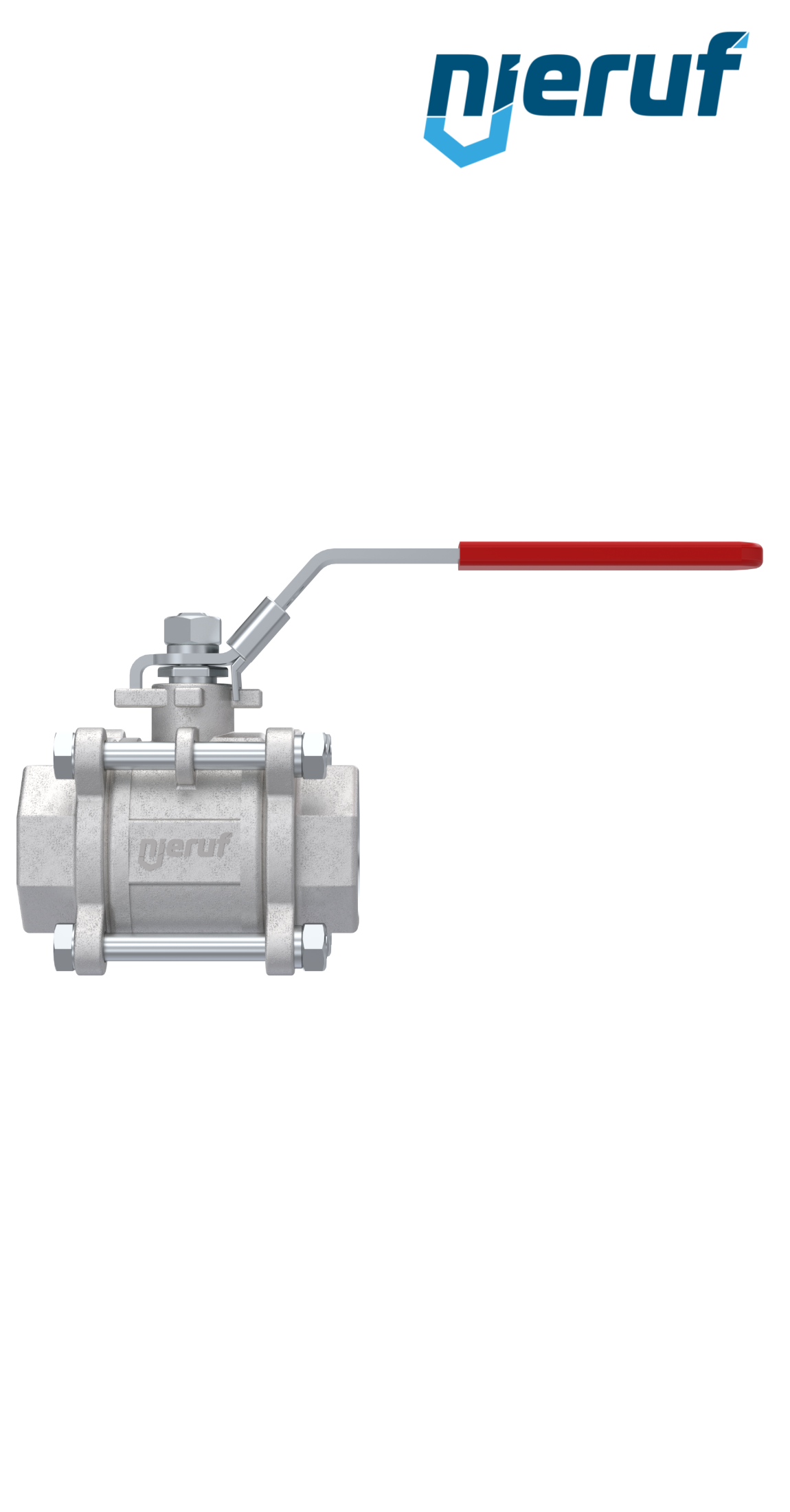

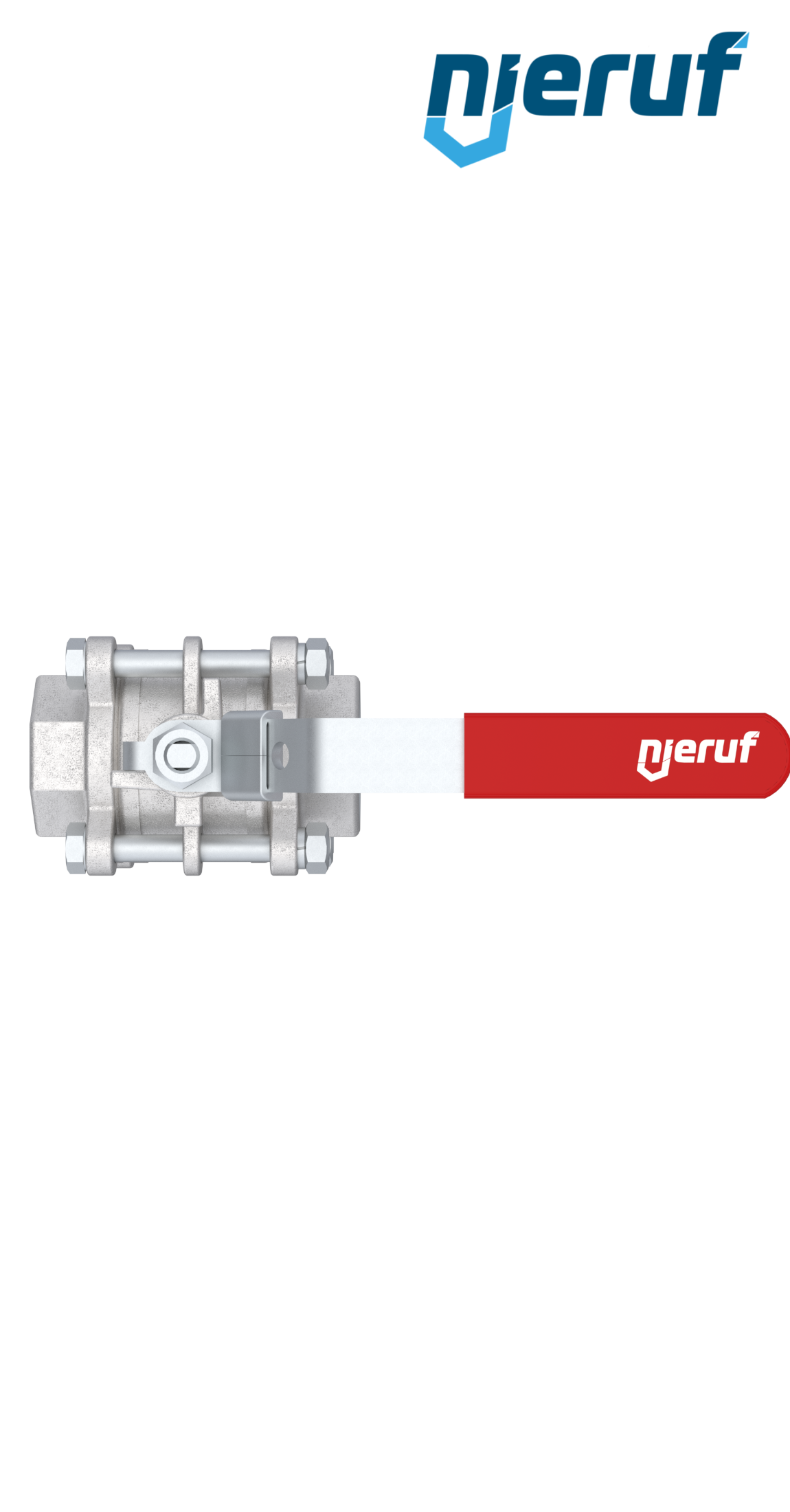

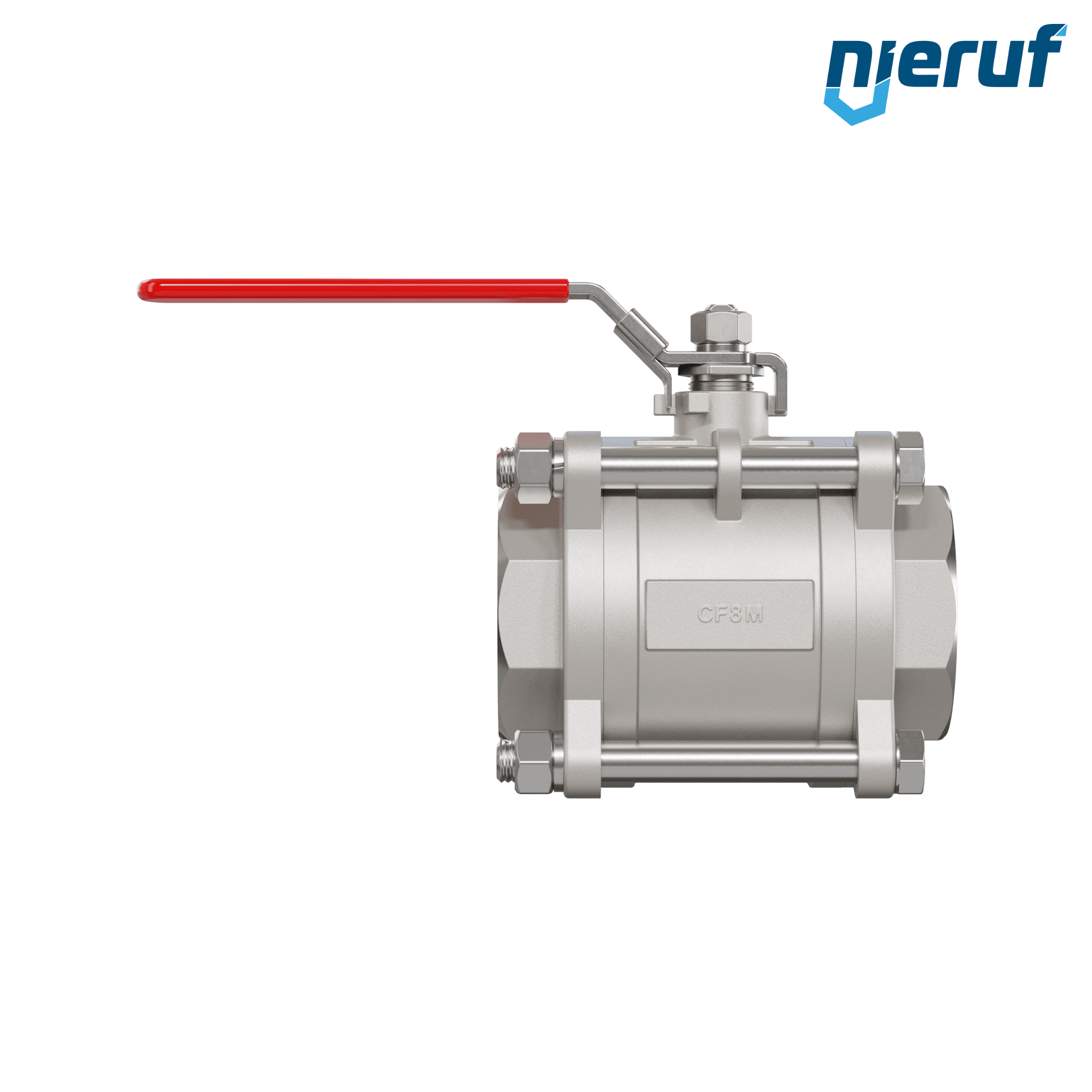

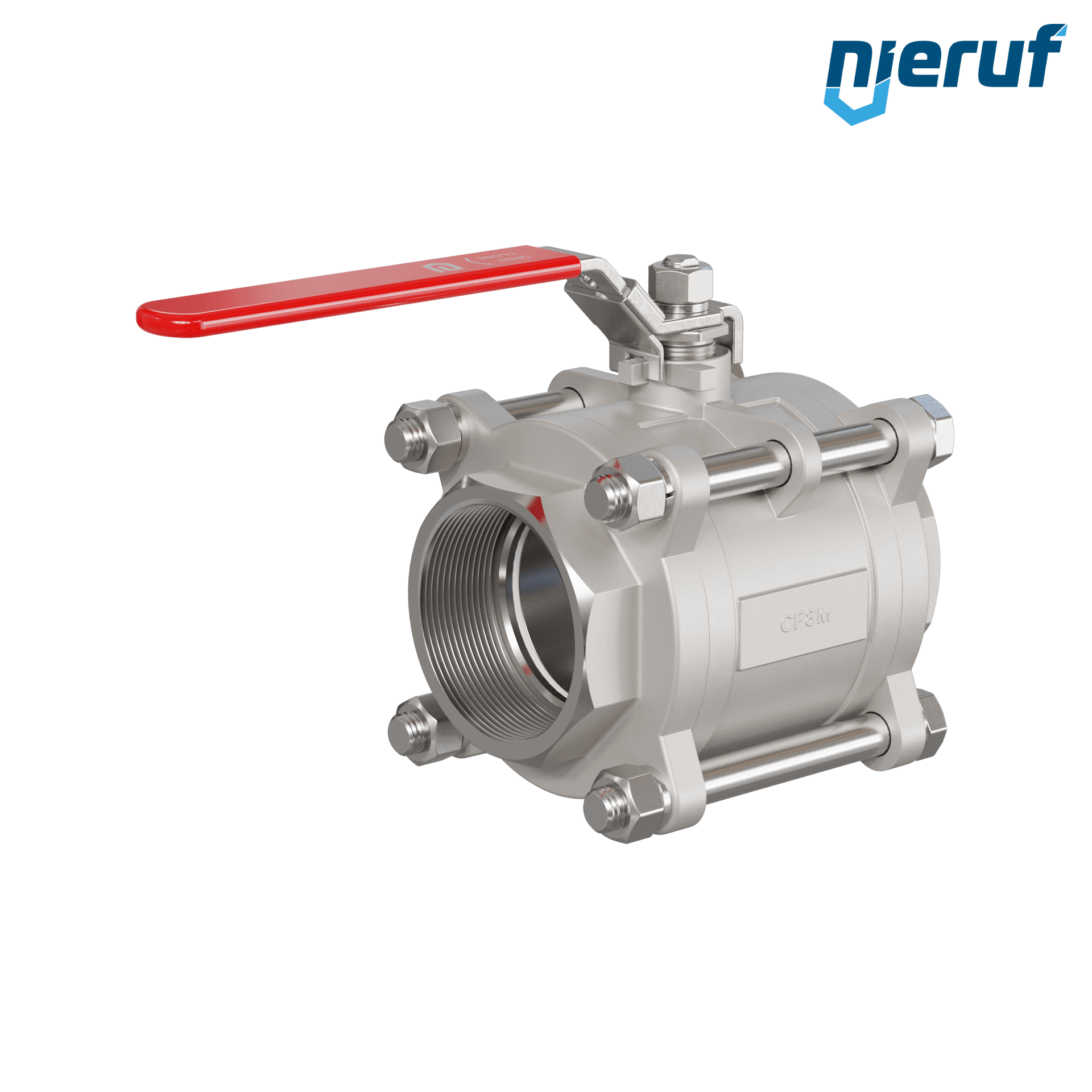

three-pieces stainless steel ball valve DN80 - 3" inch female thread

three-pieces 2-way ball valve made of stainless steel 1.4408 DN80 - 3" inch female thread for liquid and gaseous media

product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN80 - 3" inch
connection: female thread BSP
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 25 bar
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: 175mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

three-pieces stainless steel ball valve DN80 - 3" inch female thread

Article no. : GK17000010
product: 3 pieces ball valve
type: GK17
manufacturer: NieRuf
diameter: DN80 - 3" inch
connection: female thread BSP
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: - 20°C up to 180°C - depending on working pressure and media
max. pressure: 25 bar
design: full port design
body material: stainless steel 1.4408
ball material: stainless steel 1.4401
length: 175mm
actuator: hand lever with red plastic cover
installation position: any position
product description: This ball valve is made of stainless steel consists of a three-piece body, blow out proof stem design, locking device and stem extension (optional). To shut off pipeline systems.
