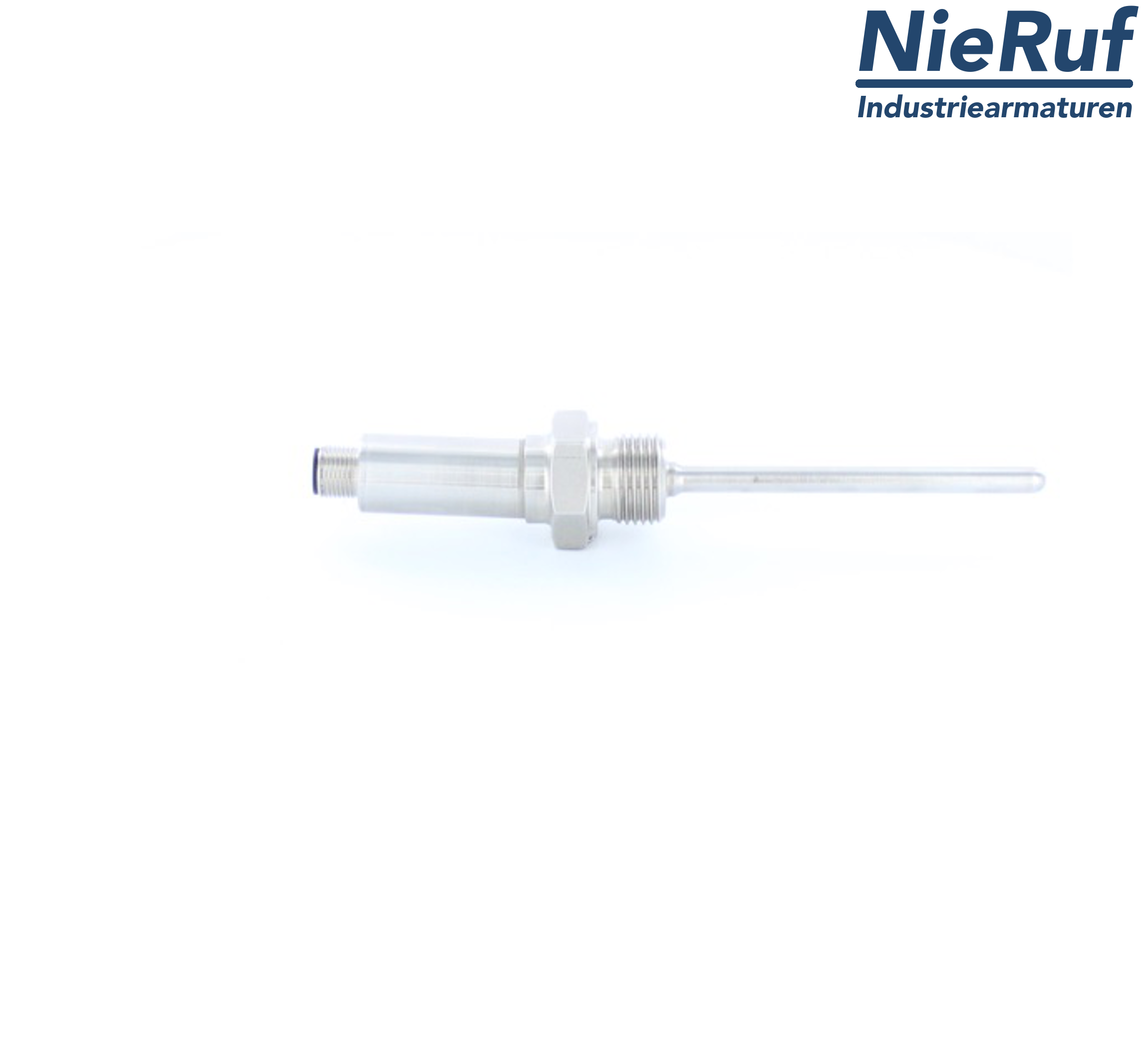

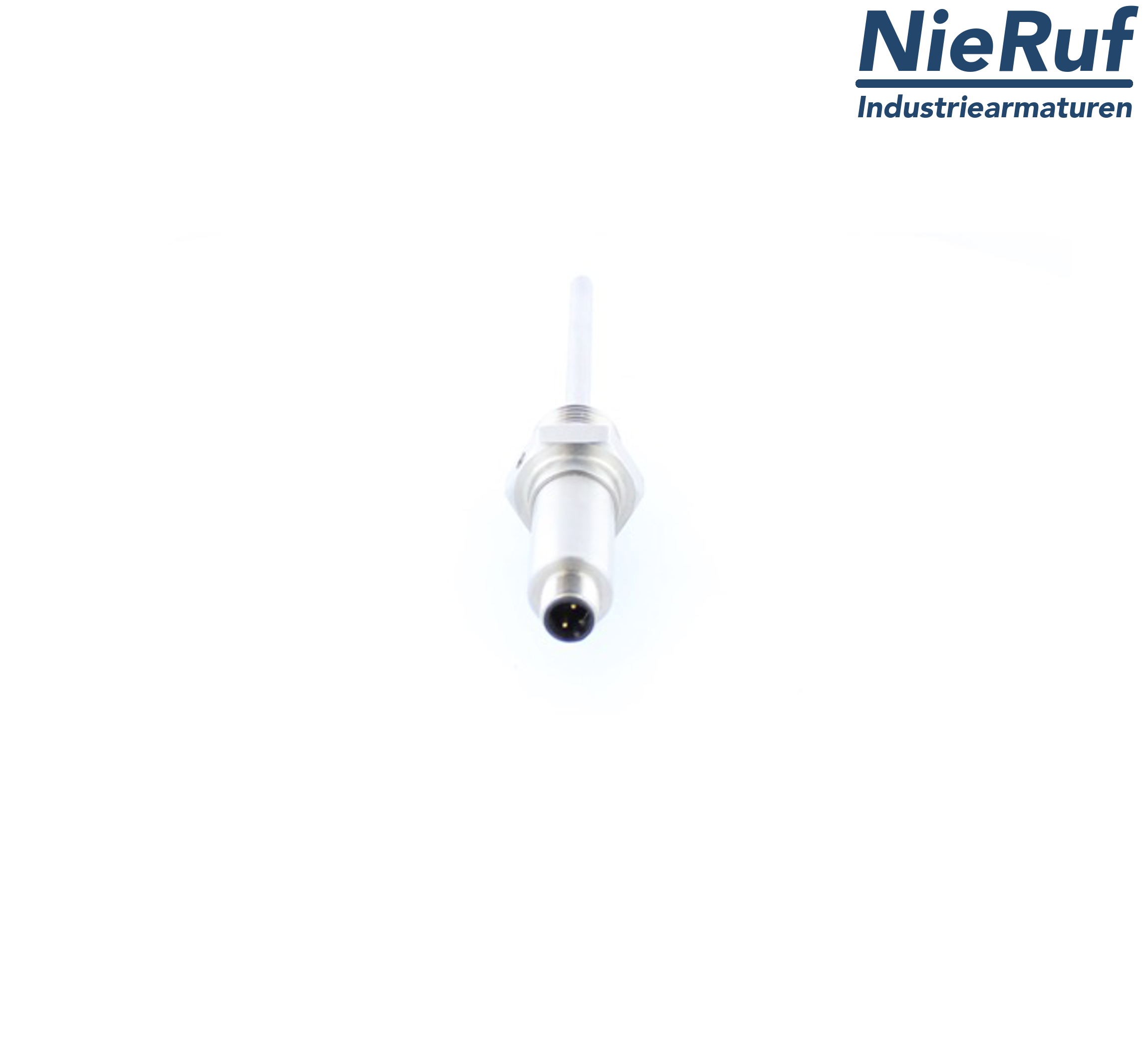

temperature device from 0°C - +50°C type TM01 G 1/2" B male thread stainless steel sensor length 100 mm output 2-wire: 4-20mA
|diameter:||G 1/2" B|
|sensor:||Pt100 class A - IEC 60751|
|media:||liquid and gaseous media|
|temperature:||-50°C - +150°C|
|temperature ambiente:||-40°C up to +85°C|
|long-term drift:||≤±0,1K / 0,5% FS / year not cumulative|
|EMV compatibility:||class B means / industrial sector (EN/IEC 61326)|
|supply voltage:||10 – 35V DC reverse voltage protected|
|sensor tube:||100 mm|
|tube diameter:||6 mm|
|range of measurement:||0°C - +50°C|
|accuracy:||0,1K / 0,08%|
|product feature:||High-quality temperature gauge made of stainless steel to controll process temperatures.|
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
temperature gauge 0°C - +50°C G 1/2" B Sensor 100 mm 2-wire: 4-20mA 6 mm
product: temperature gauge
diameter: G 1/2" B
connection: male thread
material: stainless steel
sensor: Pt100 class A - IEC 60751
media: liquid and gaseous media
temperature: -50°C - +150°C
temperature ambiente: -40°C up to +85°C
long-term drift: ≤±0,1K / 0,5% FS / year not cumulative
EMV compatibility: class B means / industrial sector (EN/IEC 61326)
supply voltage: 10 – 35V DC reverse voltage protected
sensor tube: 100 mm
tube diameter: 6 mm
range of measurement: 0°C - +50°C
accuracy: 0,1K / 0,08%
output: 2-wire: 4-20mA
plug: M12 IP67
product feature: High-quality temperature gauge made of stainless steel to controll process temperatures.
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
