UV03000107
Bypassvalve 1 1/2" inch fm UV03 stainless steel AISI 316L 0,2 - 0,8 bar
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/2" inch stainless steel 316 90° angle FM
€18.80 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

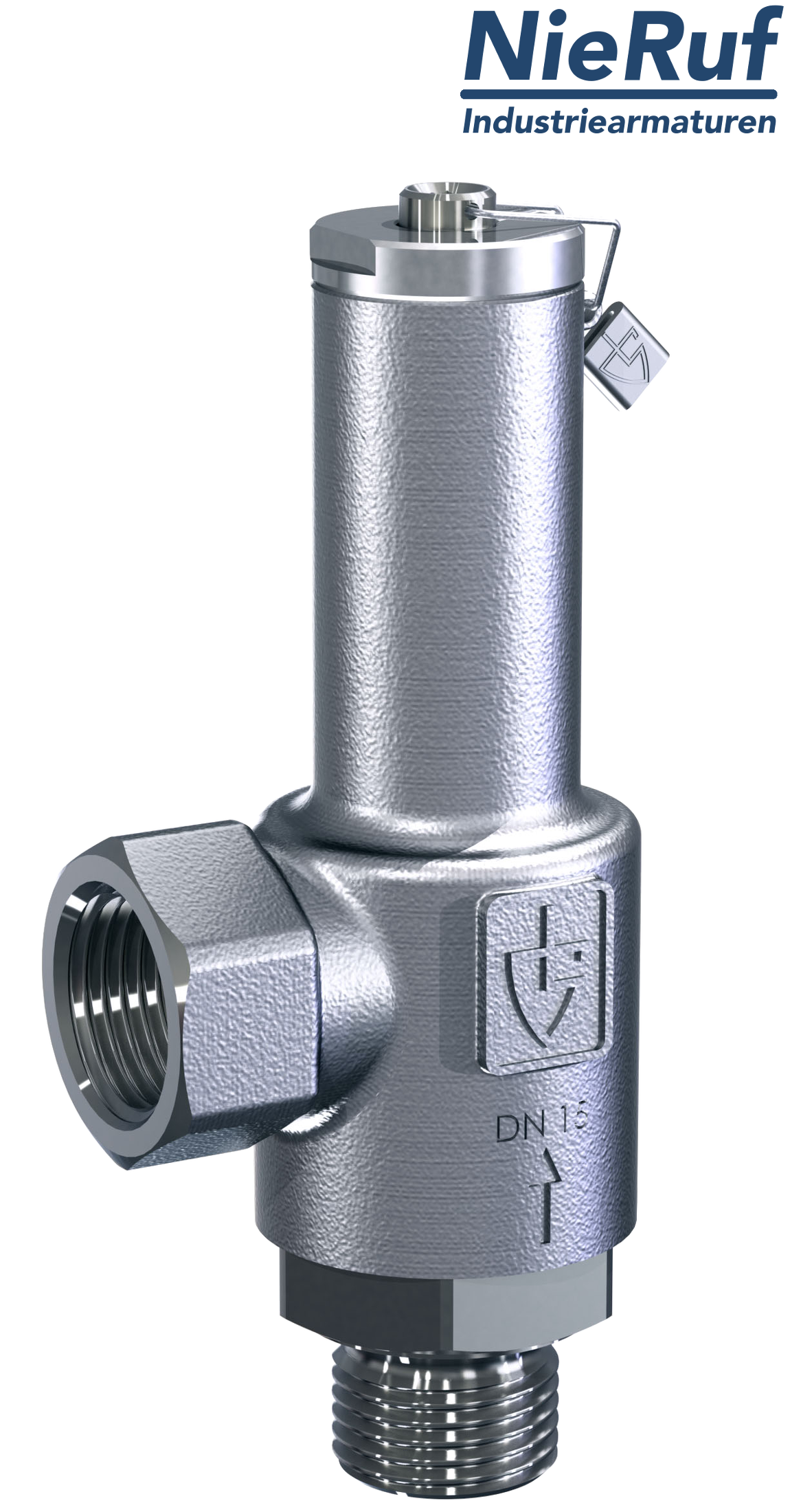

Bypassvalve 1 1/2" inch fm UV03 stainless steel AISI 316L 0,2 - 0,8 bar
Bypassvalve 1 1/2" inch fm type UV03 made of stainless steel AISI 316L pressure range 0,2 - 0,8 bar seal FKM for liquid and gaseous media
| product | Bypassvalve |
|---|---|
| type | UV03 |
| manufacturer | NieRuf |
| diameter | 1 1/2" inch fm |
| connection | male thread / female thread BSP-P |
| seal | FKM |
| media | liquid and gaseous media |
| temperature | -20°C to +200°C |
| range of adjustment | 0,2 - 0,8 bar |
| design | angle-type |
| material | stainless steel AISI 316L |
| installation position | any position |
| SIL - safety integrity level | SIL 3 |
| product feature | Adjustable under operating conditions without medium escaping into the atmosphere. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Bypassvalve 1 1/2" inch fm UV03 stainless steel AISI 316L 0,2 - 0,8 bar
Article no.
: UV03000107
product:
Bypassvalve
type:
UV03
manufacturer:
NieRuf
diameter:
1 1/2" inch fm
connection:
male thread / female thread BSP-P
seal:
FKM
media:
liquid and gaseous media
temperature:
-20°C to +200°C
range of adjustment:
0,2 - 0,8 bar
design:
angle-type
material:
stainless steel AISI 316L
installation position:
any position
SIL - safety integrity level:
SIL 3
product feature:
Adjustable under operating conditions without medium escaping into the atmosphere.
