SK06201102

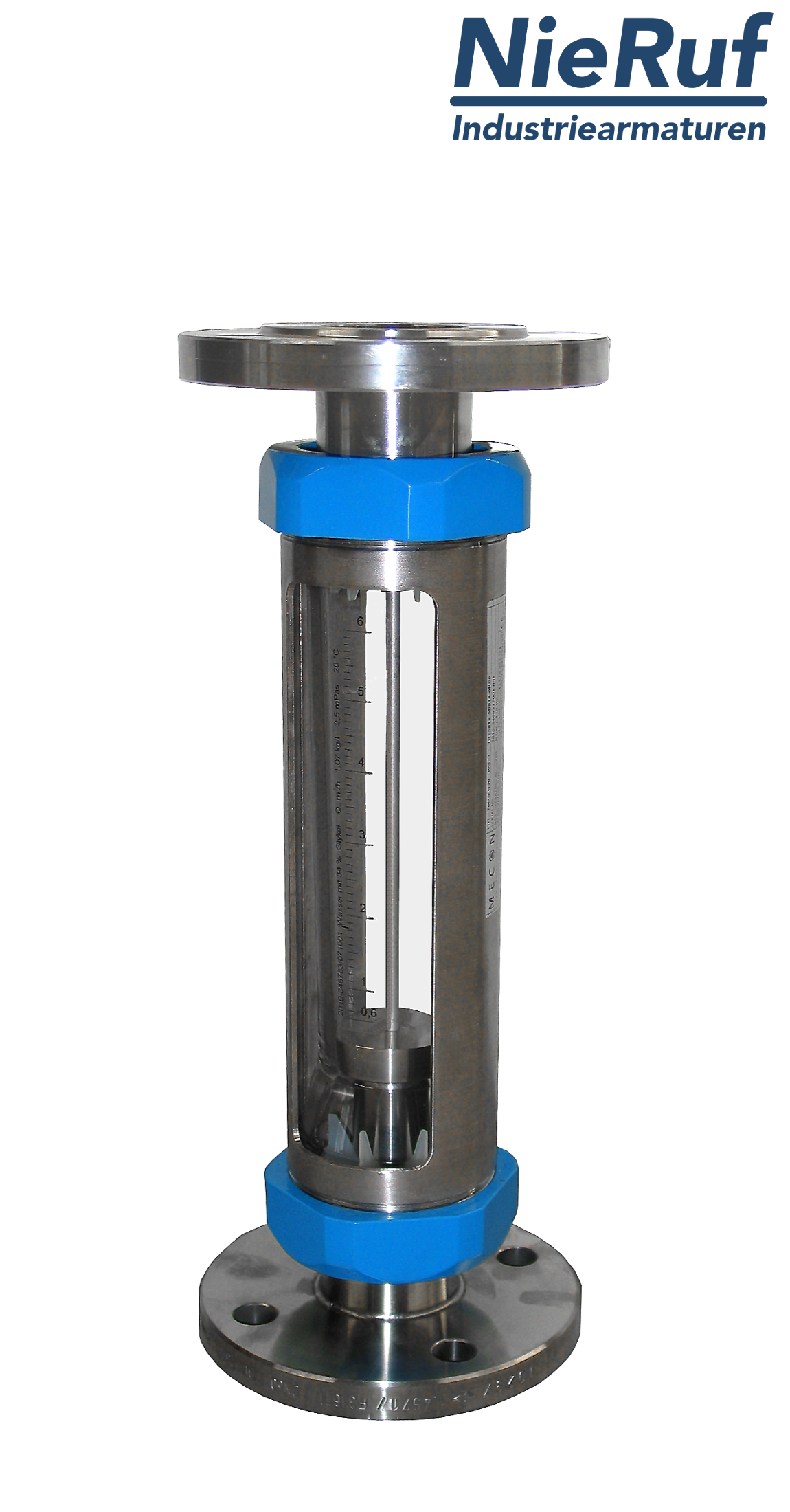

Variable area flowmeter stainless steel + borosilicate flange DN10 8.0 - 80.0 l/h water FKM

€638.70*

€760.05 VAT included.


Operating data


Delivery time: 1 - 2 weeks

Delivery information

Equipment

FD01000102

flange seal DN10 PN10/16/25/40 18x46x2 Klingersil C 4400

€1.50*

€1.79 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com


Product number: SK06201102
Variable area flowmeter stainless steel + borosilicate flange DN10 8.0 - 80.0 l/h water FKM

Variable area flowmeter Measuring range 8.0 - 80.0 l/h, connection DN10 FKM flange DIN PN40 for water

product: Variable area flowmeter
type: SK06
manufacturer: NieRuf
diameter: DN10
connection: flange DIN PN40
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: FKM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 10 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 8.0 - 80.0 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Variable area flowmeter stainless steel + borosilicate flange DN10 8.0 - 80.0 l/h water FKM

Article no. : SK06201102
product: Variable area flowmeter
type: SK06
manufacturer: NieRuf
diameter: DN10
connection: flange DIN PN40
connection material: stainless steel 1.4571
body material: stainless steel + borosilicate
seal: FKM
float material: stainless steel 1.4571
float version design: standard
media: water
mark: Different media are available upon request
mark 2: standard meassuring scale: ρ=1 kg/l, viscosity 1mPa⋅s
pressure loss float: 10 mbar
temperature: max. 150°C (from 90° additional charge)
Measuring range: 8.0 - 80.0 l/h
unit of scale: l/h
working pressure: 10 bar
accuracy: G 1,6 qG 50% (acc. VDE/VDI 3513, sheet 2)
installation position: vertically upwards
