flange seal DN10 PN10/16/25/40 18x46x2 Klingersil C 4400

FD01000102
Preview: angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 1 Preview: angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 2 Preview: angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 3
angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 1
angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 2
angle-type overflow valve 1/2" inch fm UV04 stainless steel 0,5 - 2,5 bar 3

quantity (pcs.):
0.50€ * 0.60€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Monday, 18. January
Guaranteed delivery until Tuesday, 19. January, 12 Uhr:
order within 1 Tag & 7 hours & 11 minutes via express shipping
Downloads:
datasheet
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Description Announcement Downloads
Description
more
Close menu

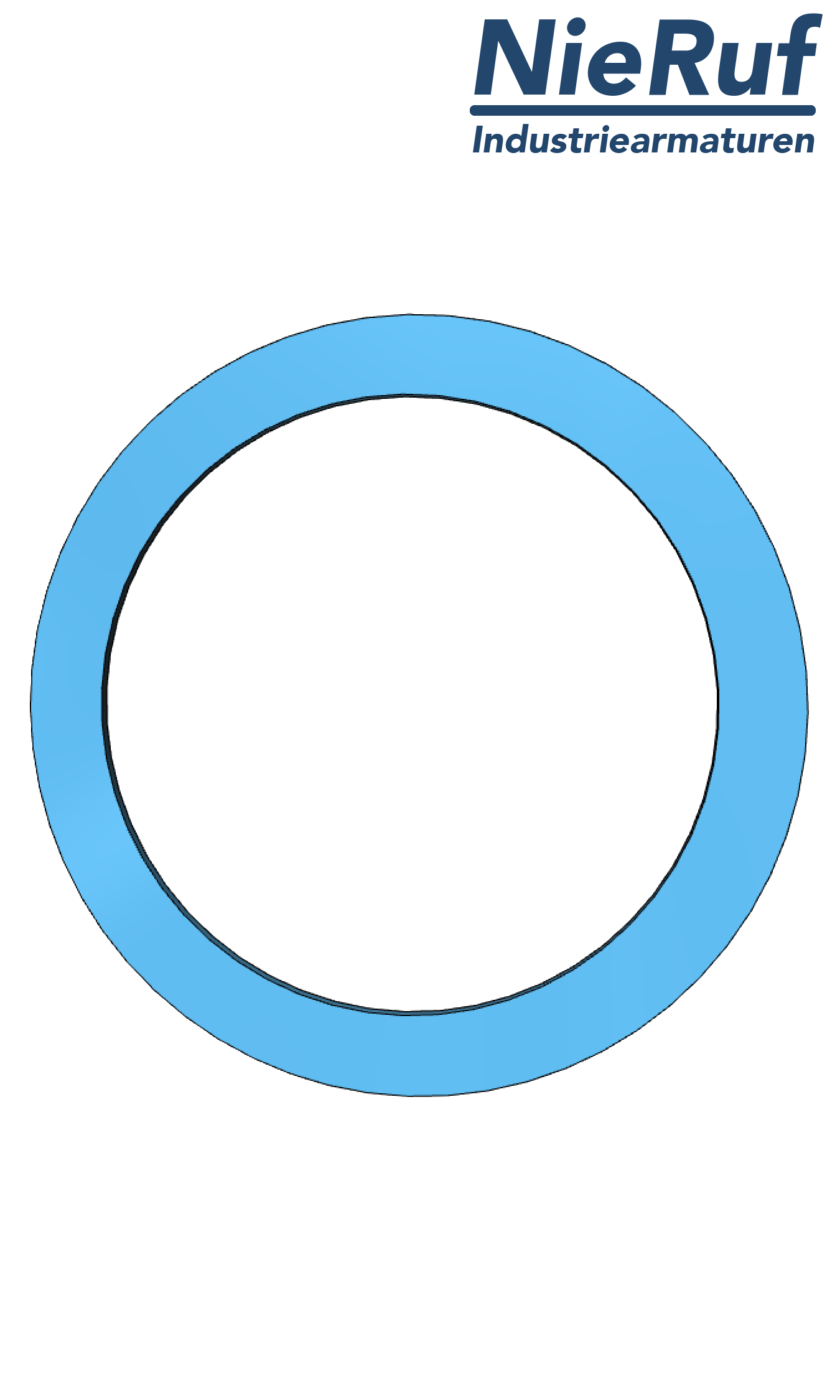

flange seal DN10 PN10/16/25/40 18x46x2 Klingersil C 4400
flange seal DN10 46x18x2 PN10/16/25/40 made of Klingersil C 4400 acc. rule EN1514-1 IBC
diameter: DN10
connection: PN10/16/25/40
material: Klingersil C 4400
norm: EN1514-1
form: IBC
Design: flange seal

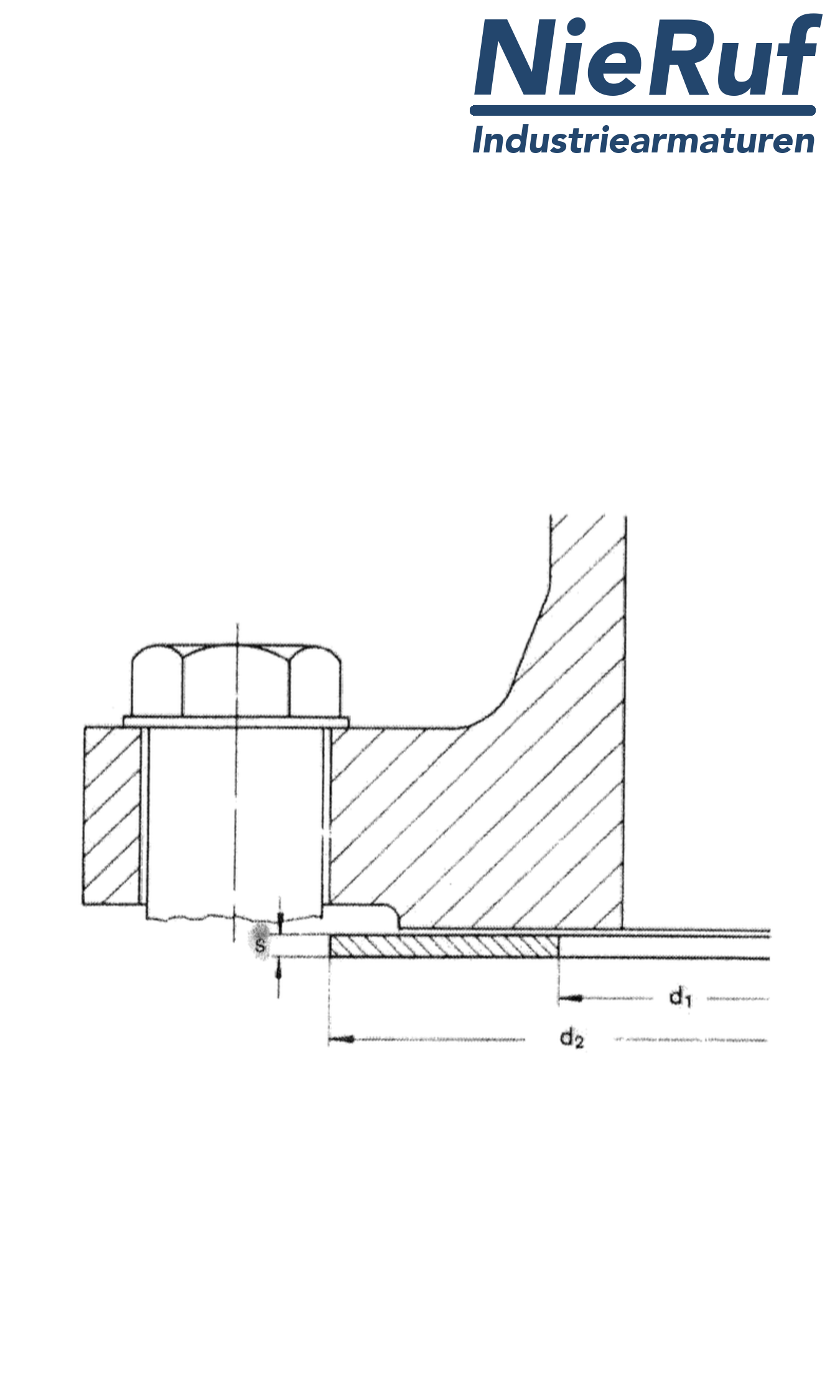

d1: 18
d2: 46
S: 2
Dimension tolerance: acc. DIN ISO 2768-1 m, dimensions up to 6 mm +/- 0,15 mm
temerature: -100°C up to +160°C, max. +400°C with 0 bar pressure
approval: DVGW, BAM, TA-Luft, ÖVGW, SVGW
suitable for: oil, gas, steam
