MB02030008

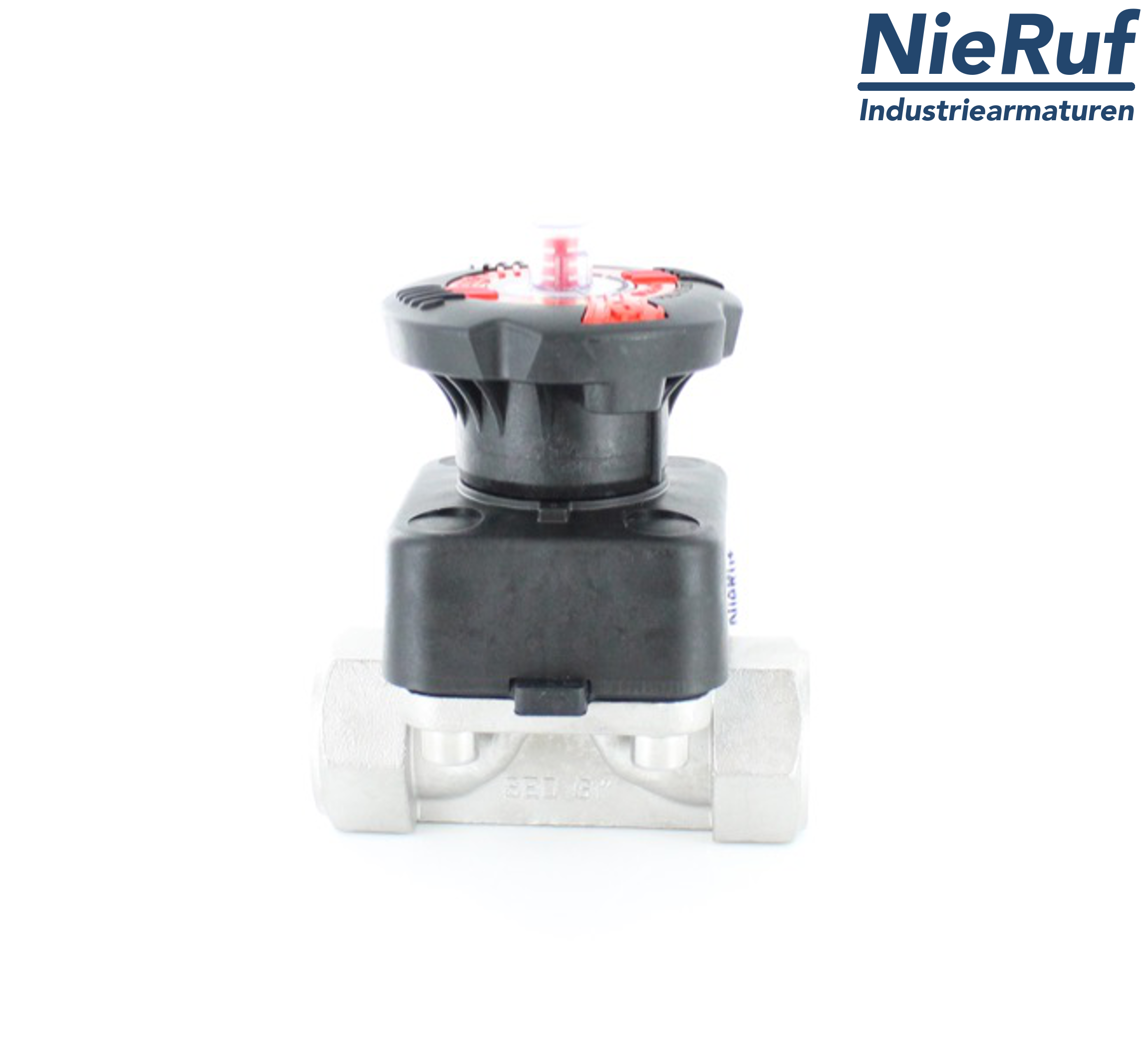

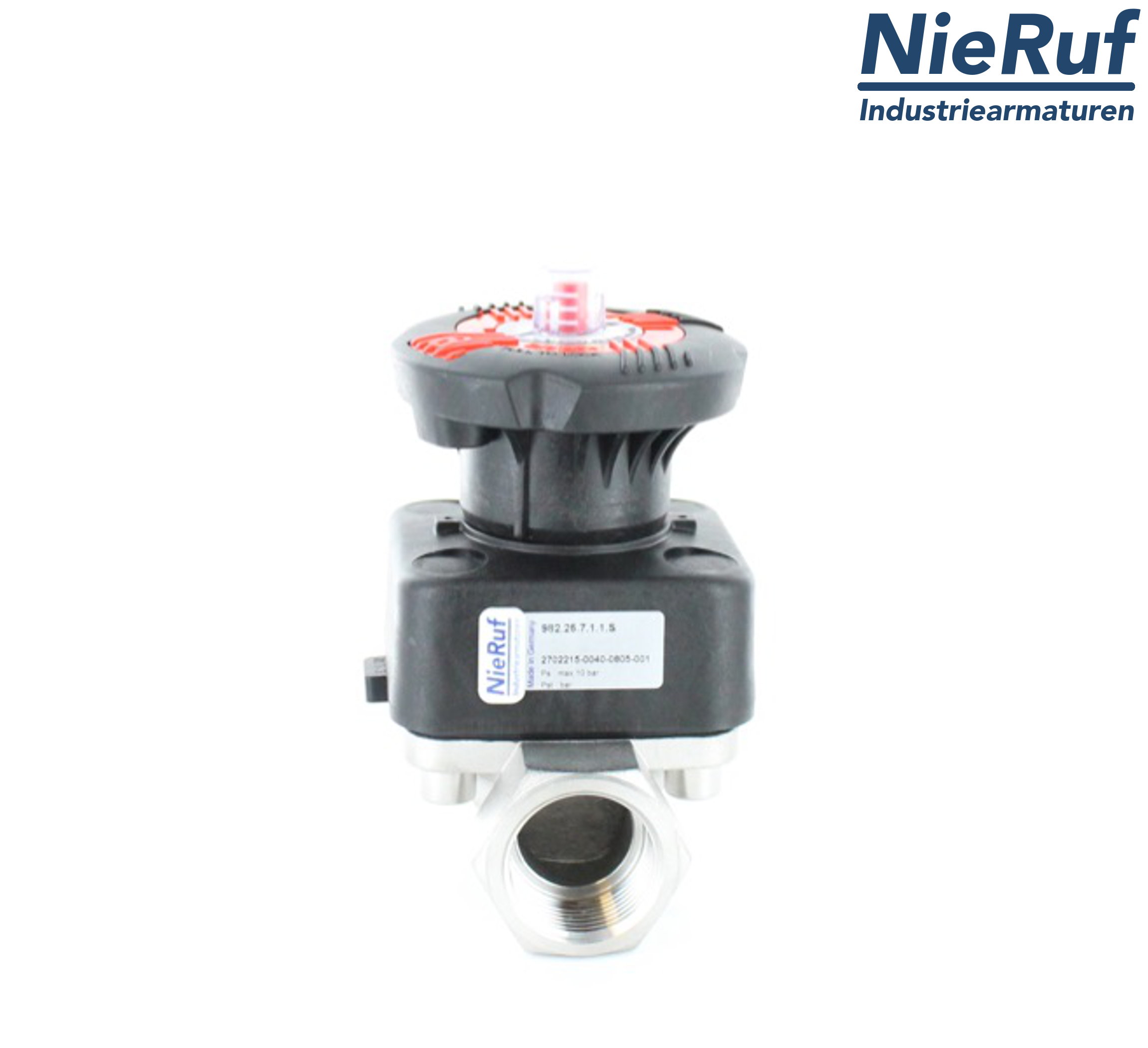

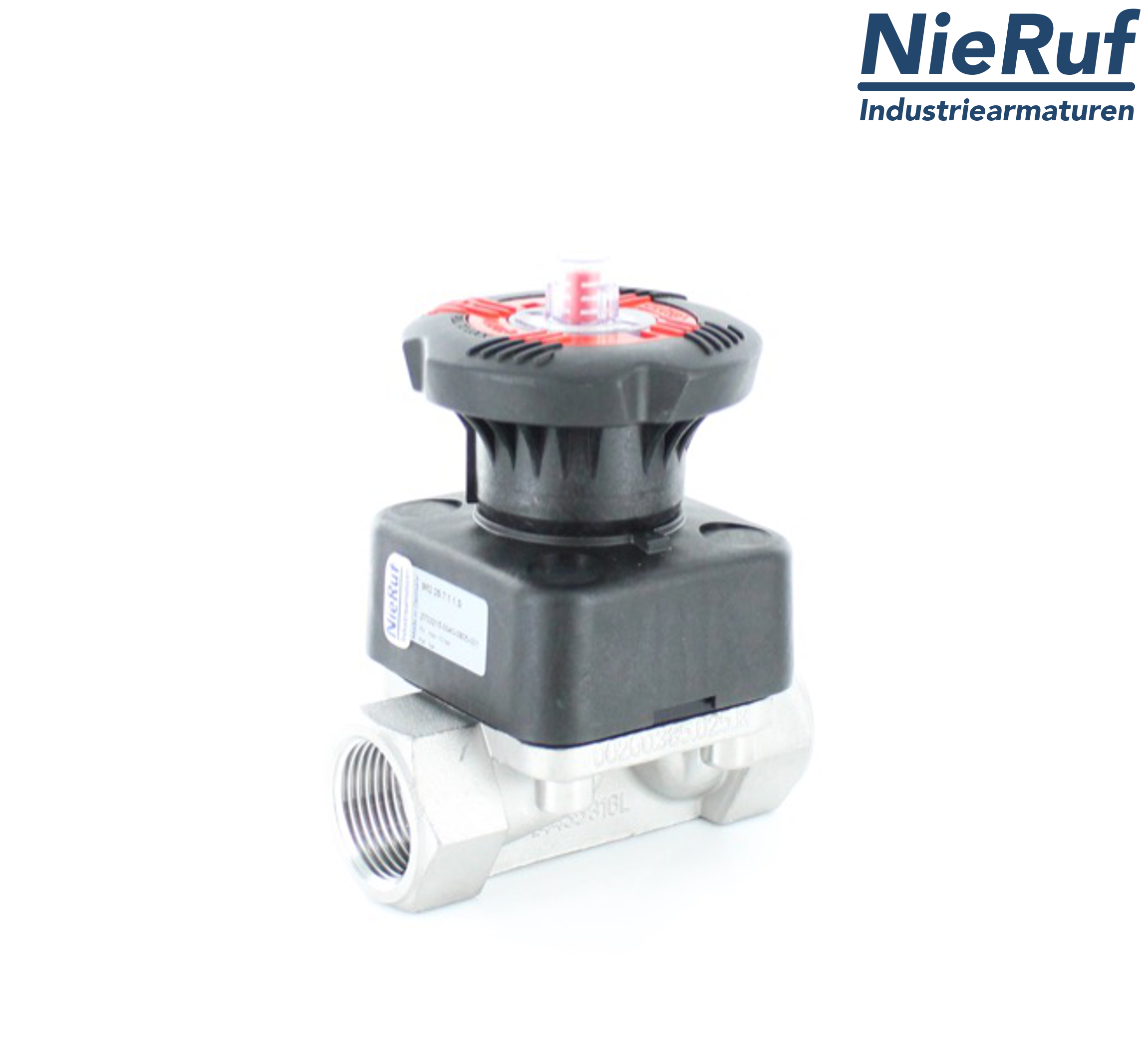

stainless steel-diaphragm valve 2 Inch membrane PTFE/EPDM two-piece female thread BSP
- Lead time
- 3 - 4 weeks
Equipment
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
stainless steel-diaphragm valve 2 Inch membrane PTFE/EPDM two-piece female thread BSP
diaphragm valve made of stainless steel 1/2 Inch female thread with two-piece PTFE/EPDM membrane handwheel made of PP-GR pressure: PN10 KVs-value: 78 m3/h
| product | diaphragm valve |
|---|---|
| type | MB02 |
| manufacturer | NieRuf |
| design | with handwheel |
| diameter | DN50 - 2" Inch |
| connection | female thread BSP |
| material | stainless steel 1.4435 |
| actuator | handwheel made of PP-GR |
| diaphragm | PTFE/EPDM two-piece |
| media | liquid and gaseous media |
| KVs-value m3/h | 78 |
| temperature | -10°C up to +80°C |
| pressure range | PN10 |
| product feature | eliminates water hammer |
| product feature 2 | Maintenance free non corrosive actuator |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
stainless steel-diaphragm valve 2 Inch membrane PTFE/EPDM two-piece female thread BSP
Article no.
: MB02030008
product:
diaphragm valve
type:
MB02
manufacturer:
NieRuf
design:
with handwheel
diameter:
DN50 - 2" Inch
connection:
female thread BSP
material:
stainless steel 1.4435
actuator:
handwheel made of PP-GR
diaphragm:
PTFE/EPDM two-piece
media:
liquid and gaseous media
KVs-value m3/h:
78
temperature:
-10°C up to +80°C
pressure range:
PN10
product feature:
eliminates water hammer
product feature 2:
Maintenance free non corrosive actuator
