MB02000008

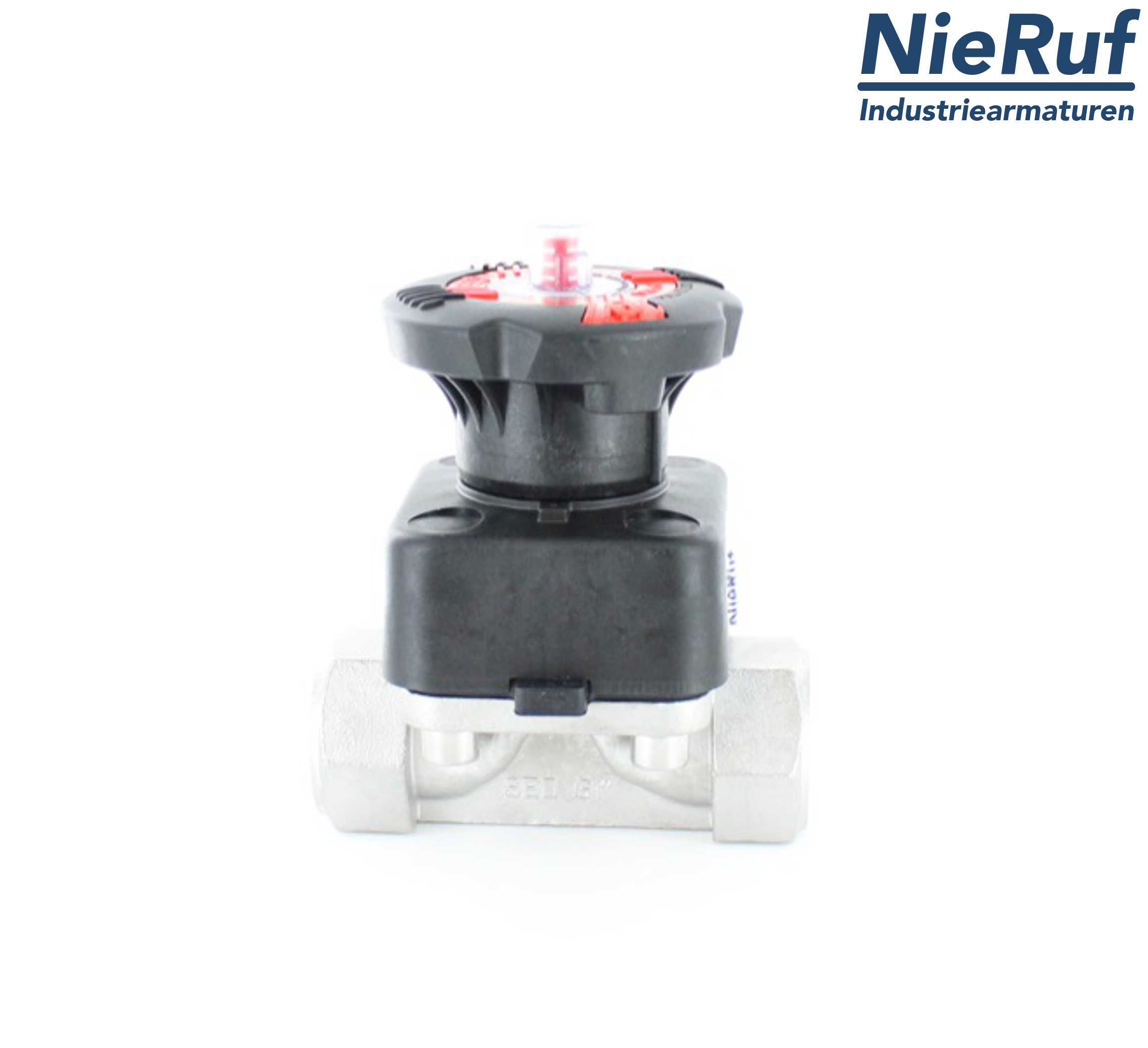

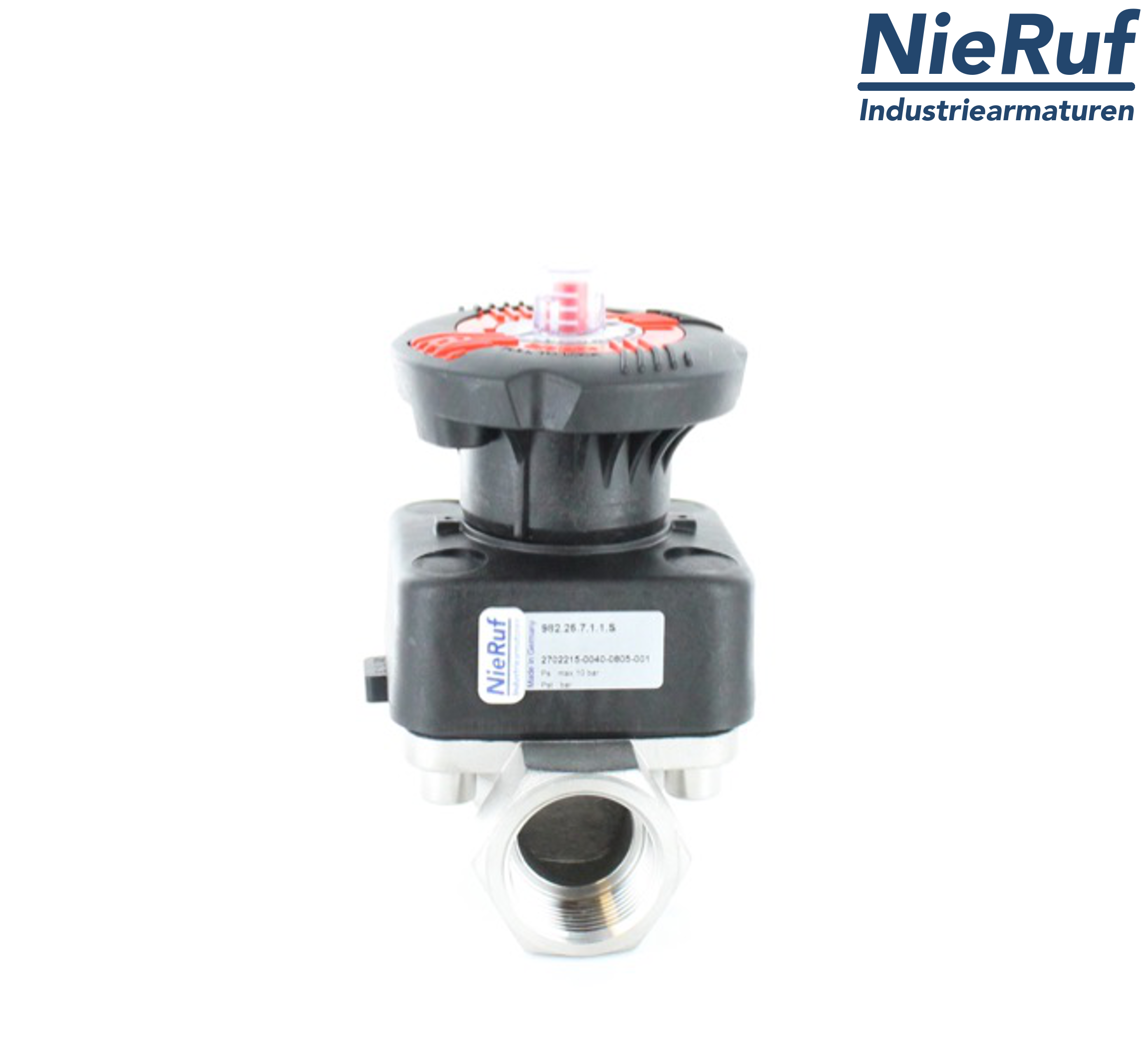

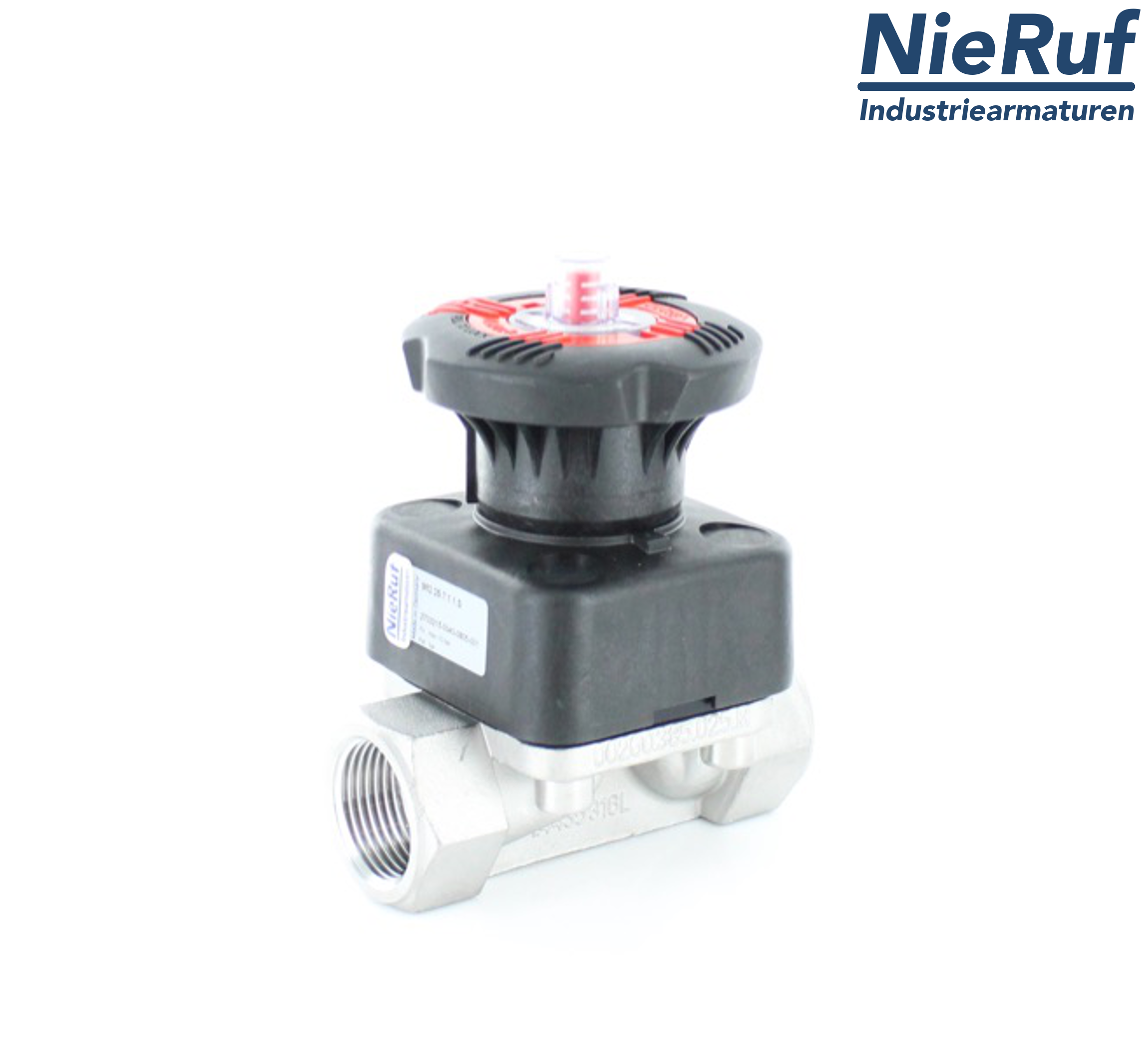

stainless steel-diaphragm valve 2 Inch membrane EPDM female thread BSP
- Lead time
- 3 - 4 weeks
Equipment
hexagon nipple 2" inch male stainless steel 316
€14.64 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
Downloads
stainless steel-diaphragm valve 2 Inch membrane EPDM female thread BSP
stainless-steel-diaphragm-valve female thread 2 Inch diaphragm: EPDM handwheel made of PP-GR pressure: PN10 KVs-value: 78 m3/h Maintenance free non corrosive actuator
| product | diaphragm valve |
|---|---|
| type | MB02 |
| manufacturer | NieRuf |
| design | with handwheel |
| diameter | DN50 - 2" Inch |
| connection | female thread BSP |
| material | stainless steel 1.4435 |
| actuator | handwheel made of PP-GR |
| diaphragm | EPDM |
| media | liquid and gaseous media |
| KVs-value m3/h | 78 |
| temperature | -10°C up to +80°C |
| pressure range | PN10 |
| product feature | Maintenance free non corrosive actuator |
| product feature 2 | eliminates water hammer |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
stainless steel-diaphragm valve 2 Inch membrane EPDM female thread BSP
Article no.
: MB02000008
product:
diaphragm valve
type:
MB02
manufacturer:
NieRuf
design:
with handwheel
diameter:
DN50 - 2" Inch
connection:
female thread BSP
material:
stainless steel 1.4435
actuator:
handwheel made of PP-GR
diaphragm:
EPDM
media:
liquid and gaseous media
KVs-value m3/h:
78
temperature:
-10°C up to +80°C
pressure range:
PN10
product feature:
Maintenance free non corrosive actuator
product feature 2:
eliminates water hammer
