UV13030209
piston overflow valve DN 65 UV13 SG iron EN-JS1049 2,0 - 5,0 bar
- Lead time
- 1 - 2 weeks
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
€4.76 VAT included.
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
€7.62 VAT included.
Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€31.42 VAT included.
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar
€12.61 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

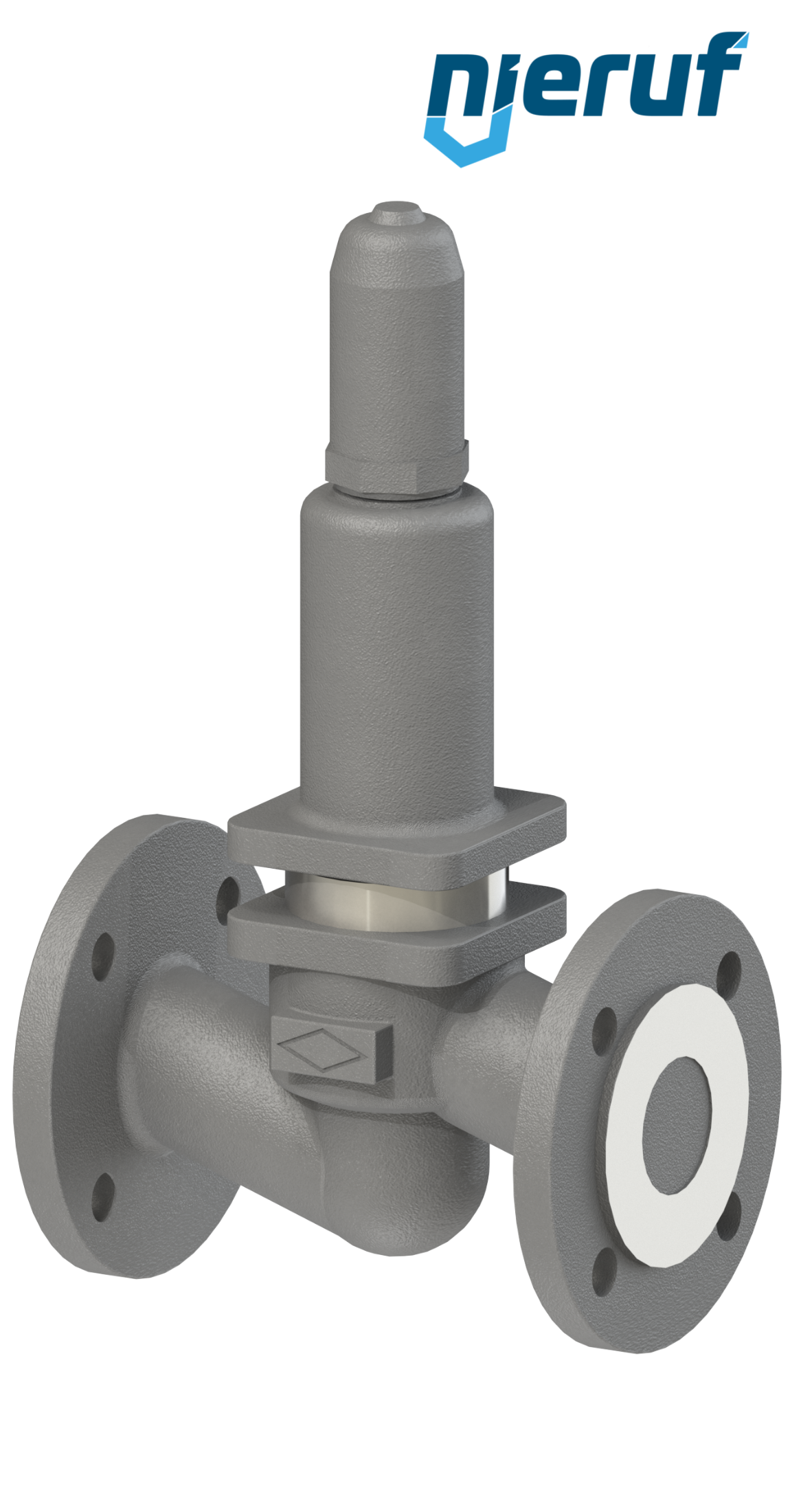

piston overflow valve DN 65 UV13 SG iron EN-JS1049 2,0 - 5,0 bar
piston overflow valve DN 65 type UV13 made of SG iron EN-JS1049 pressure range 2,0 - 5,0 bar seal metall for liquid and gaseous media
| product | piston overflow valve |
|---|---|
| type | UV13 |
| manufacturer | NieRuf |
| diameter | DN 65 |
| connection | flange connection DIN 1092-2 PN16 |
| seal | metall |
| media | liquid and gaseous media |
| temperature | -10°C to +350°C |
| range of adjustment | 2,0 - 5,0 bar |
| design | straight through, spring loaded |
| material | SG iron EN-JS1049 |
| plug unit | 1.4201+QT |
| approval | TA - Air TÜV-Test-No. 922-9241371 |
| installation position | upright, bonnet showing upwards |
| product feature | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 65 UV13 SG iron EN-JS1049 2,0 - 5,0 bar
Article no.
: UV13030209
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 65
connection:
flange connection DIN 1092-2 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +350°C
range of adjustment:
2,0 - 5,0 bar
design:
straight through, spring loaded
material:
SG iron EN-JS1049
plug unit:
1.4201+QT
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
Equipment
flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400
Lead time: in stock
Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
Lead time: in stock
Compact ball valve DN65 PN16 FK03 carbon steel 1.0619 ball stainless steel 1.4308
Lead time: 3 - 5 working days
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 10,0 bar
Lead time: in stock
joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel
Lead time: 3 - 5 working days
pipe bend (welded) 90° 76,1 x 2,0 stainless steel 1.4571
Lead time: in stock
