BS02000014
Sight glass fitting DN200 - 8" Inch BS02 stainless steel 1.4571 borosilicate glass 10bar
- Lead time
- 3 - 5 working days
Equipment
sight glass round SG01 Ø 250 x 30 mm round DIN 7080 - 10
€347.24 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

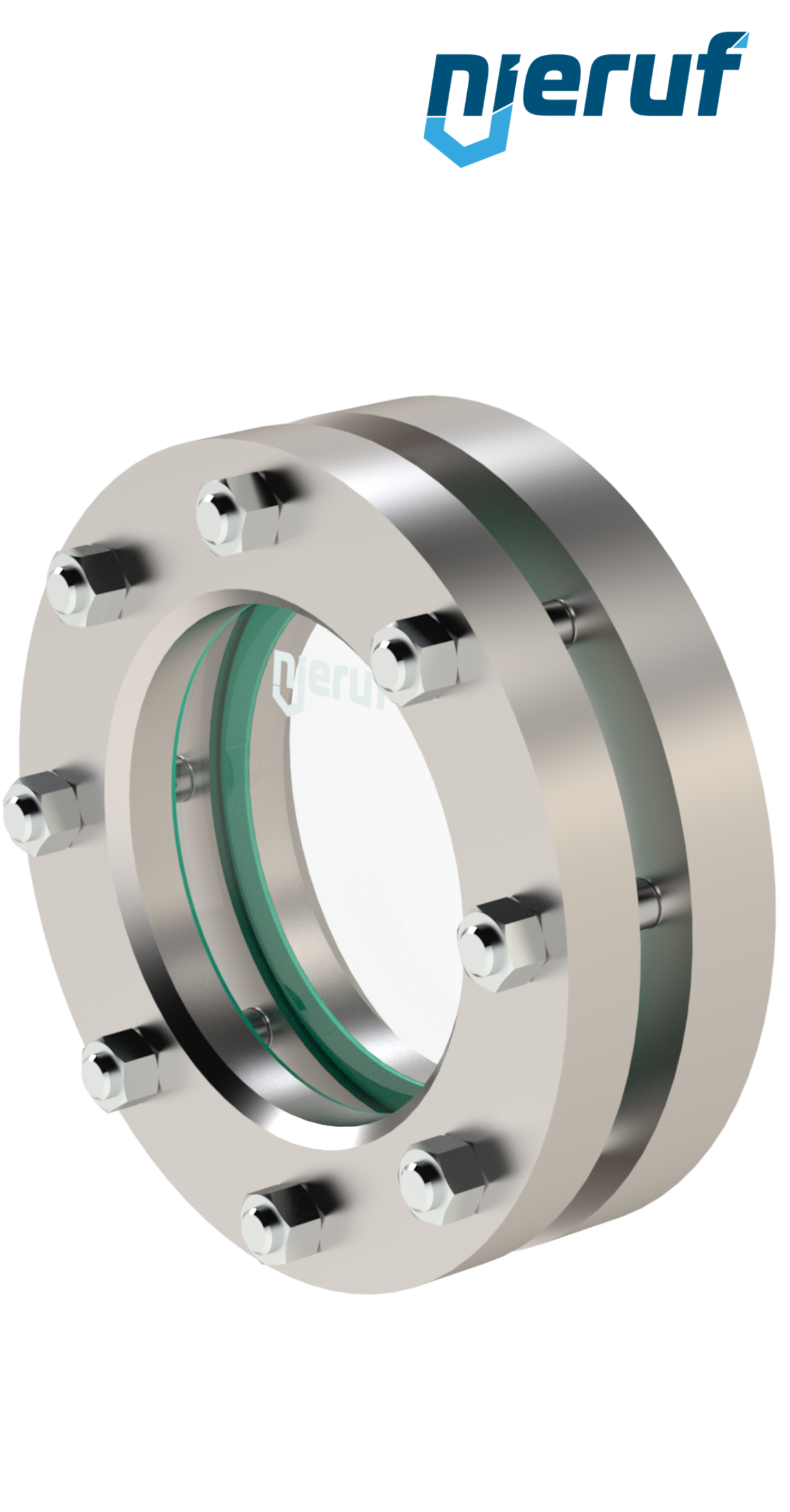

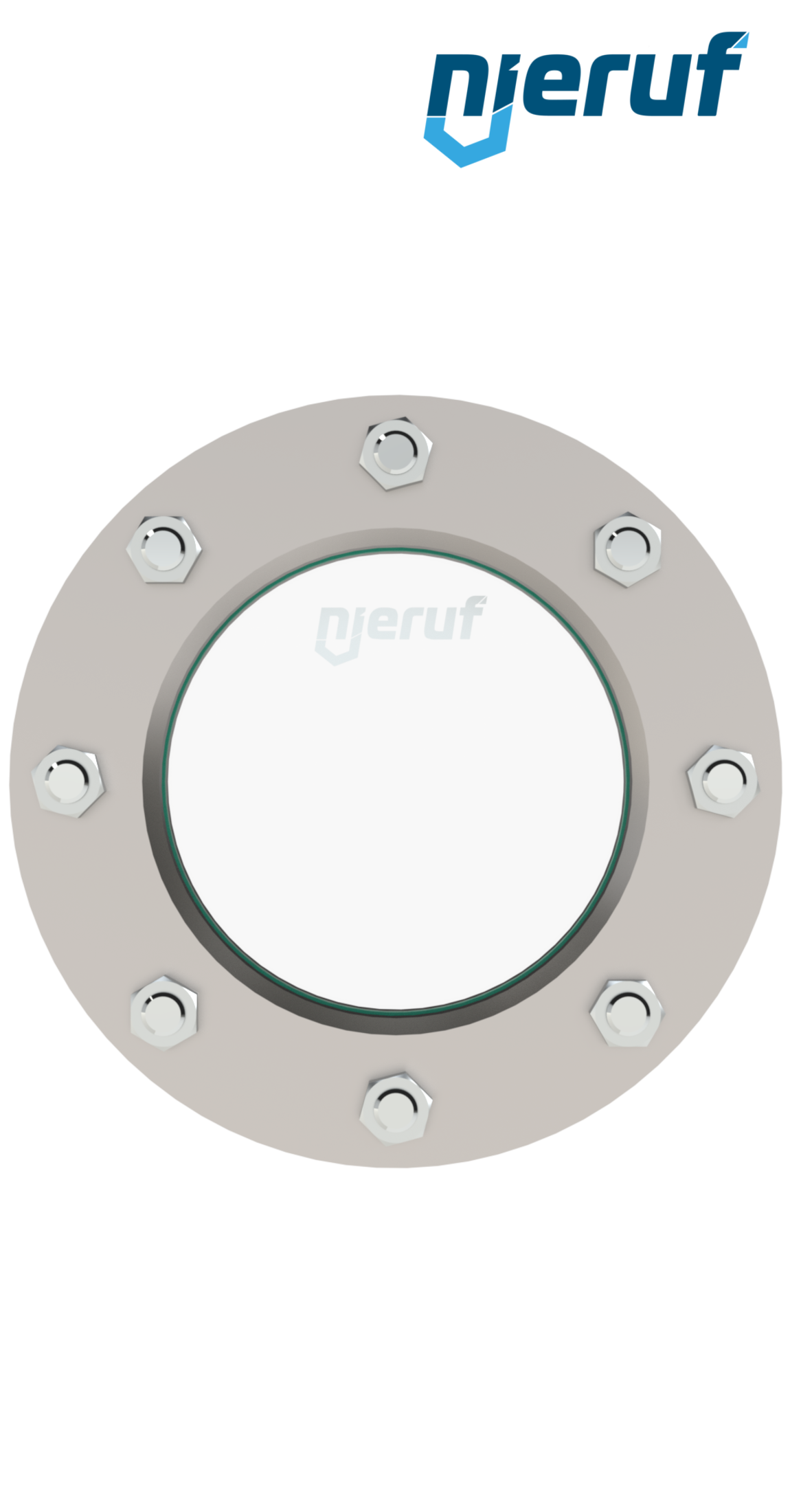

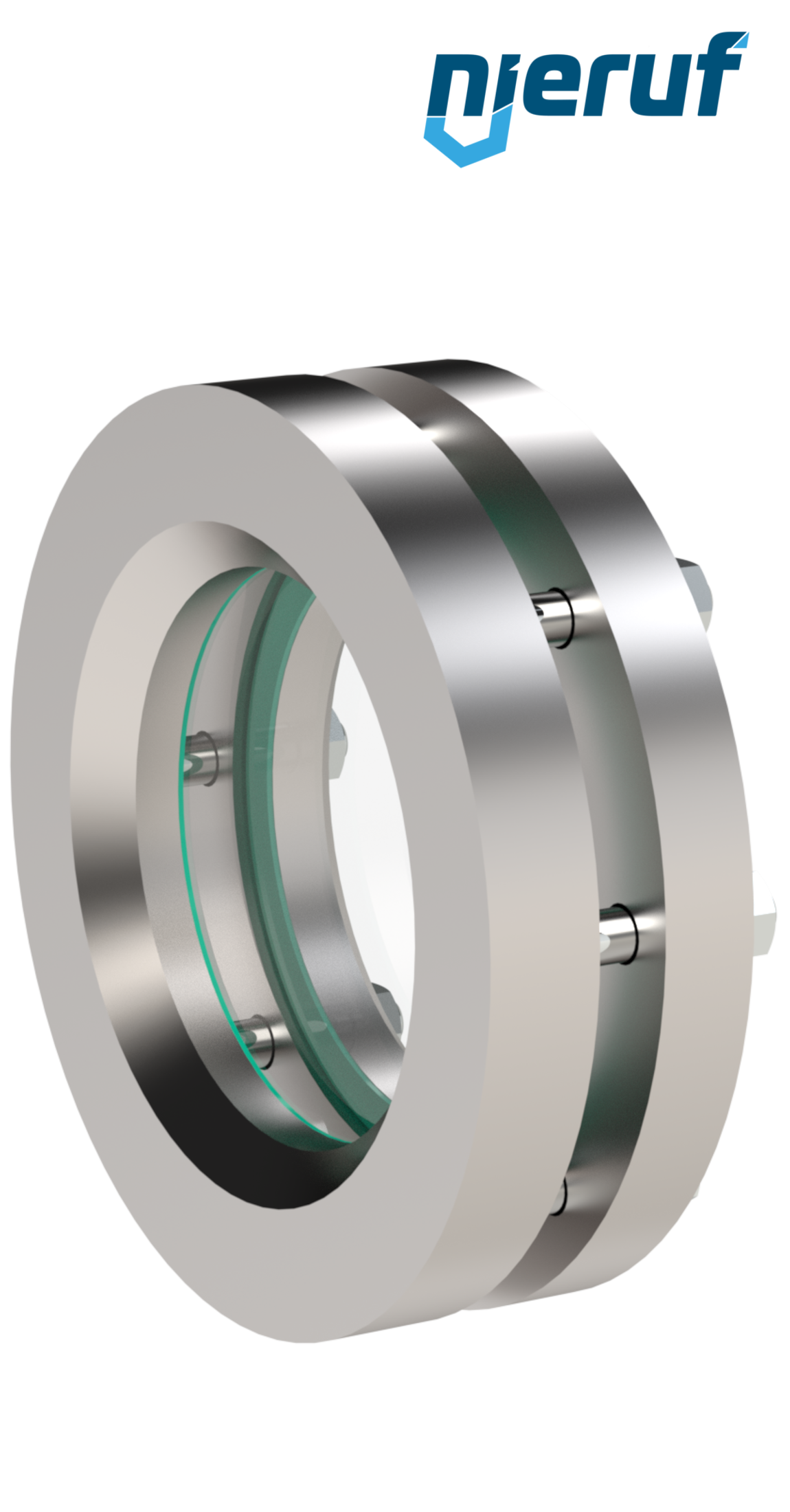

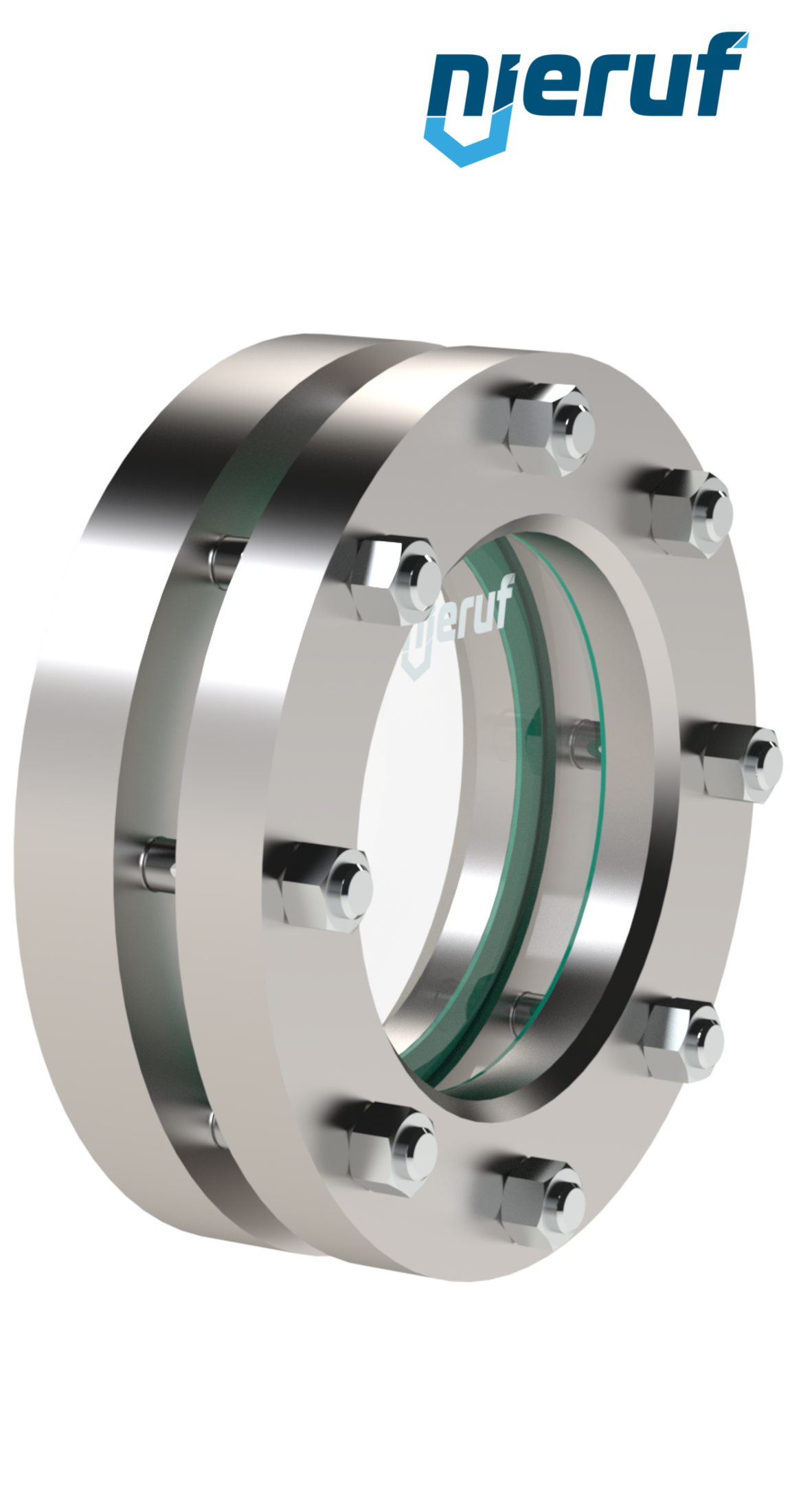

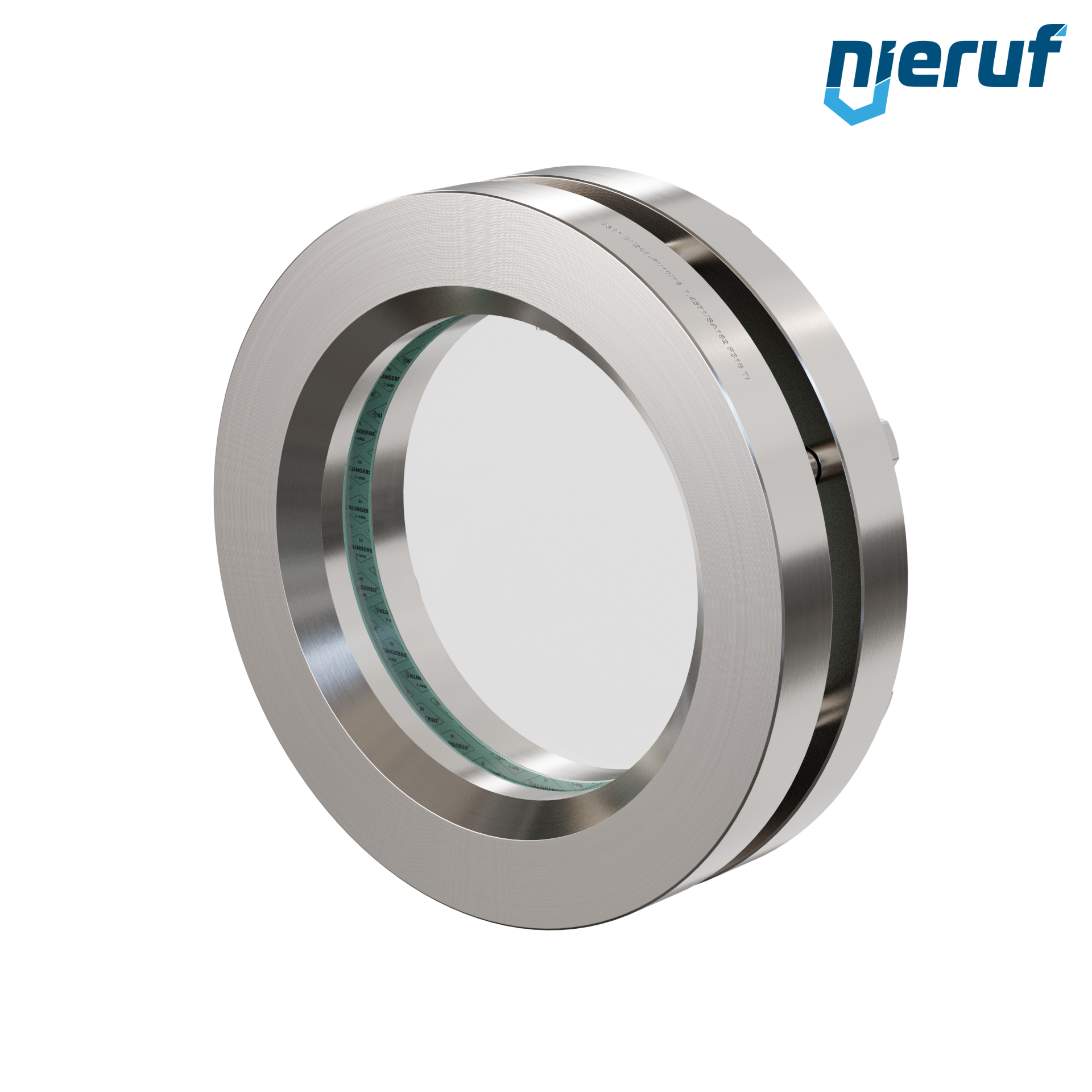

Sight glass fitting DN200 - 8" Inch BS02 stainless steel 1.4571 borosilicate glass 10bar
Sight glass fitting DN200 - 8" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass
| product | Sight glass fitting |
|---|---|
| type | BS02 |
| manufacturer | NieRuf |
| design | to be welded directly to tank |
| diameter | DN200 - 8" Inch |
| connection | to be welded directly to tank |
| body material | stainless steel 1.4571 / 316 Ti |
| cover material | stainless steel 1.4571 / 316 Ti |
| glass | borosilicate glass |
| seal | C4400 |
| media | liquid and gaseous media |
| temperature | max + 175°C |
| max. working pressure | 10bar |
| requirements | DIN 28120 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Sight glass fitting DN200 - 8" Inch BS02 stainless steel 1.4571 borosilicate glass 10bar
Article no.
: BS02000014
product:
Sight glass fitting
type:
BS02
manufacturer:
NieRuf
design:
to be welded directly to tank
diameter:
DN200 - 8" Inch
connection:
to be welded directly to tank
body material:
stainless steel 1.4571 / 316 Ti
cover material:
stainless steel 1.4571 / 316 Ti
glass:
borosilicate glass
seal:
C4400
media:
liquid and gaseous media
temperature:
max + 175°C
max. working pressure:
10bar
requirements:
DIN 28120
