BS02000012
Sight glass fitting DN125 - 5" Inch BS02 stainless steel 1.4571 borosilicate glass 16bar
- Lead time
- 3 - 5 working days
Questions about the article?
Our employee Richie Rost
will be happy to help you

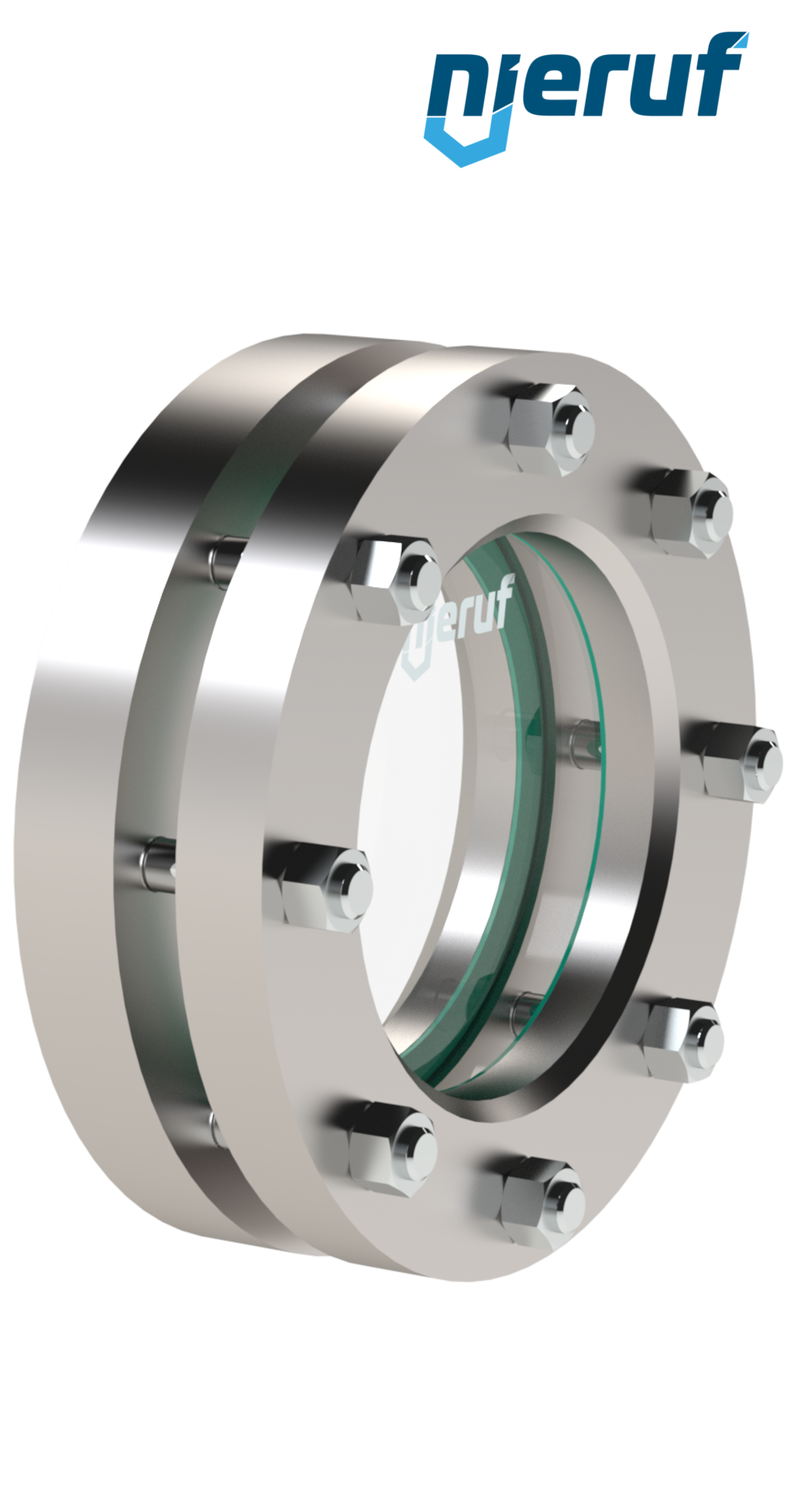

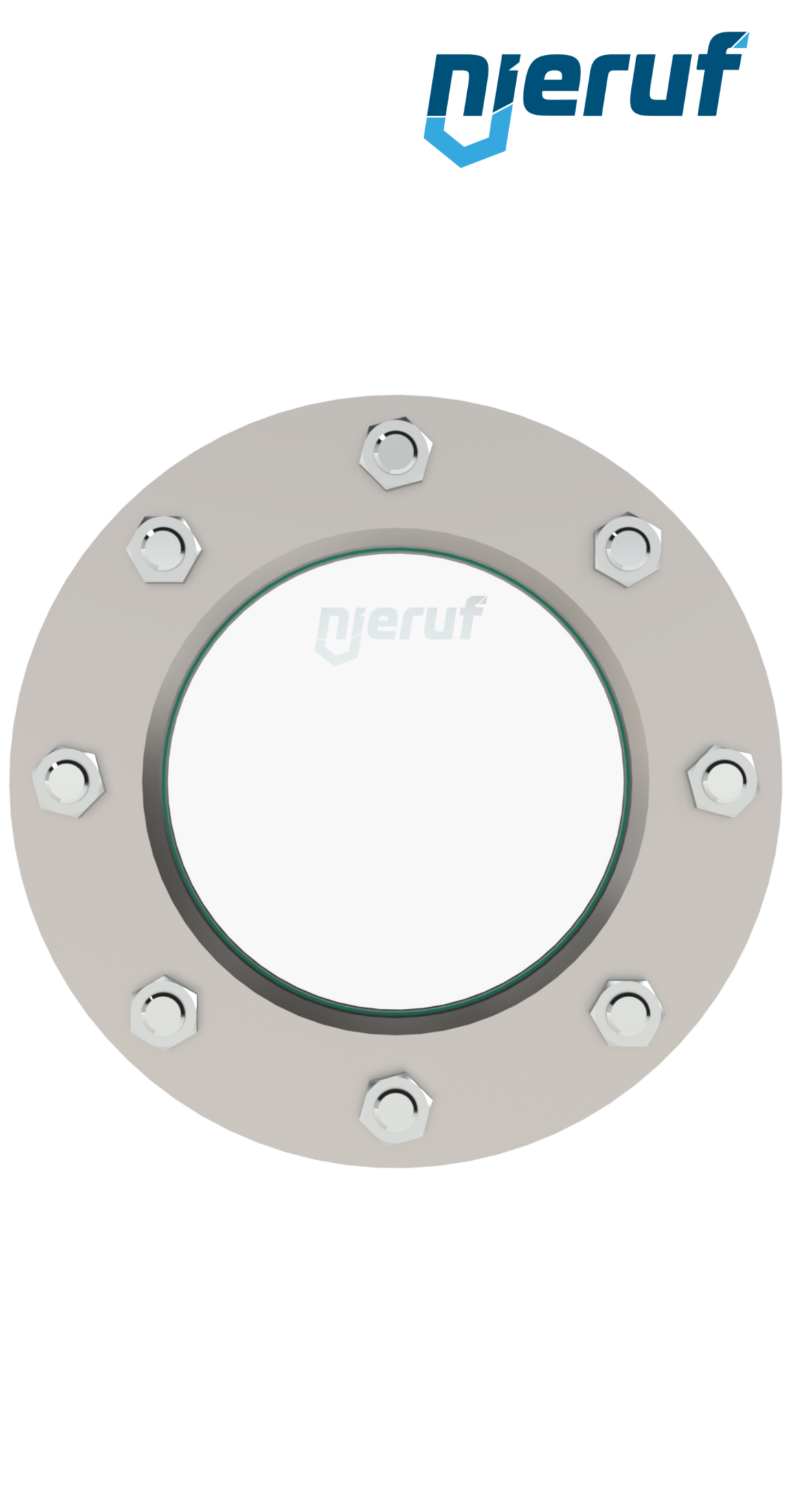

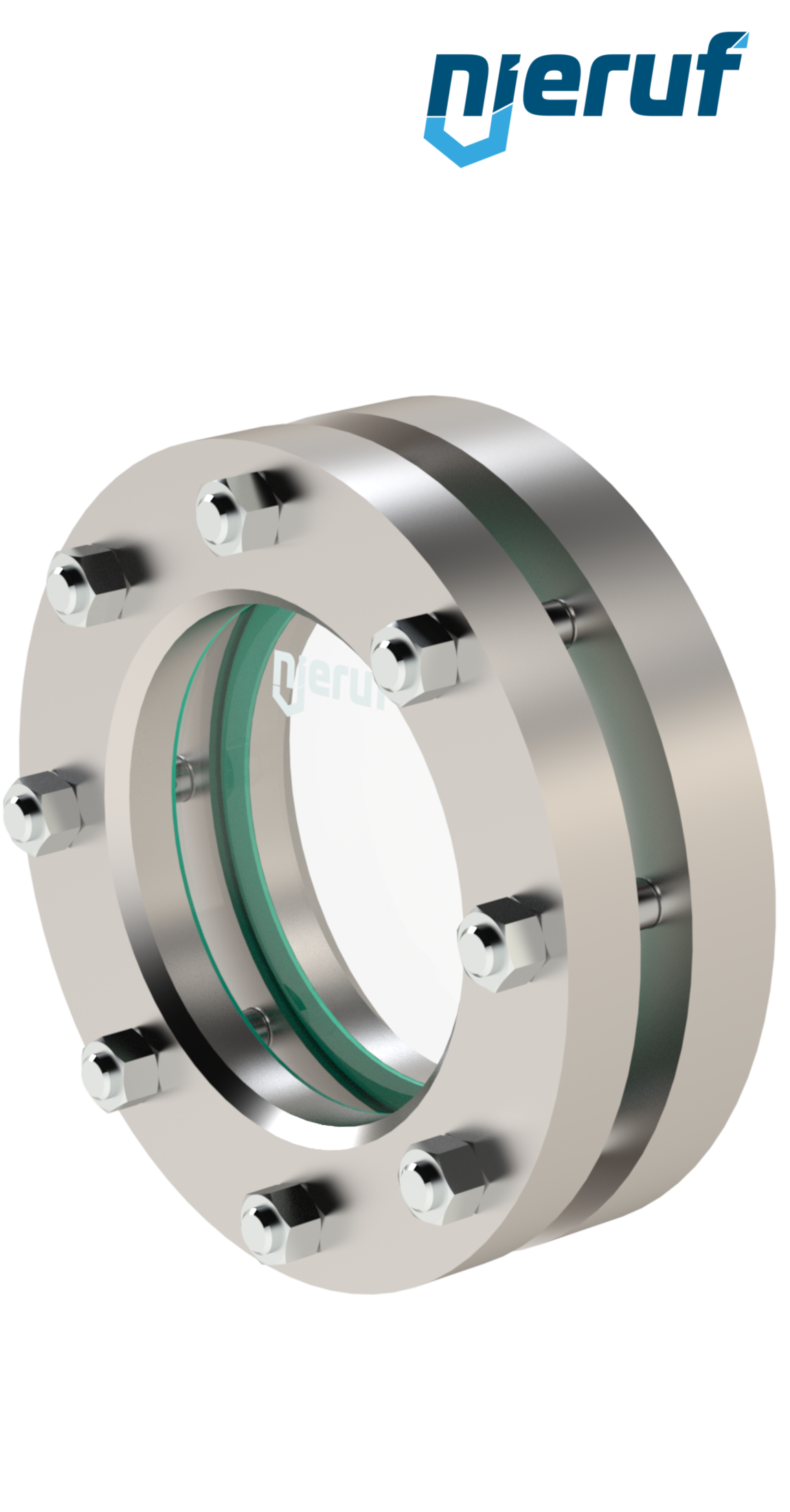

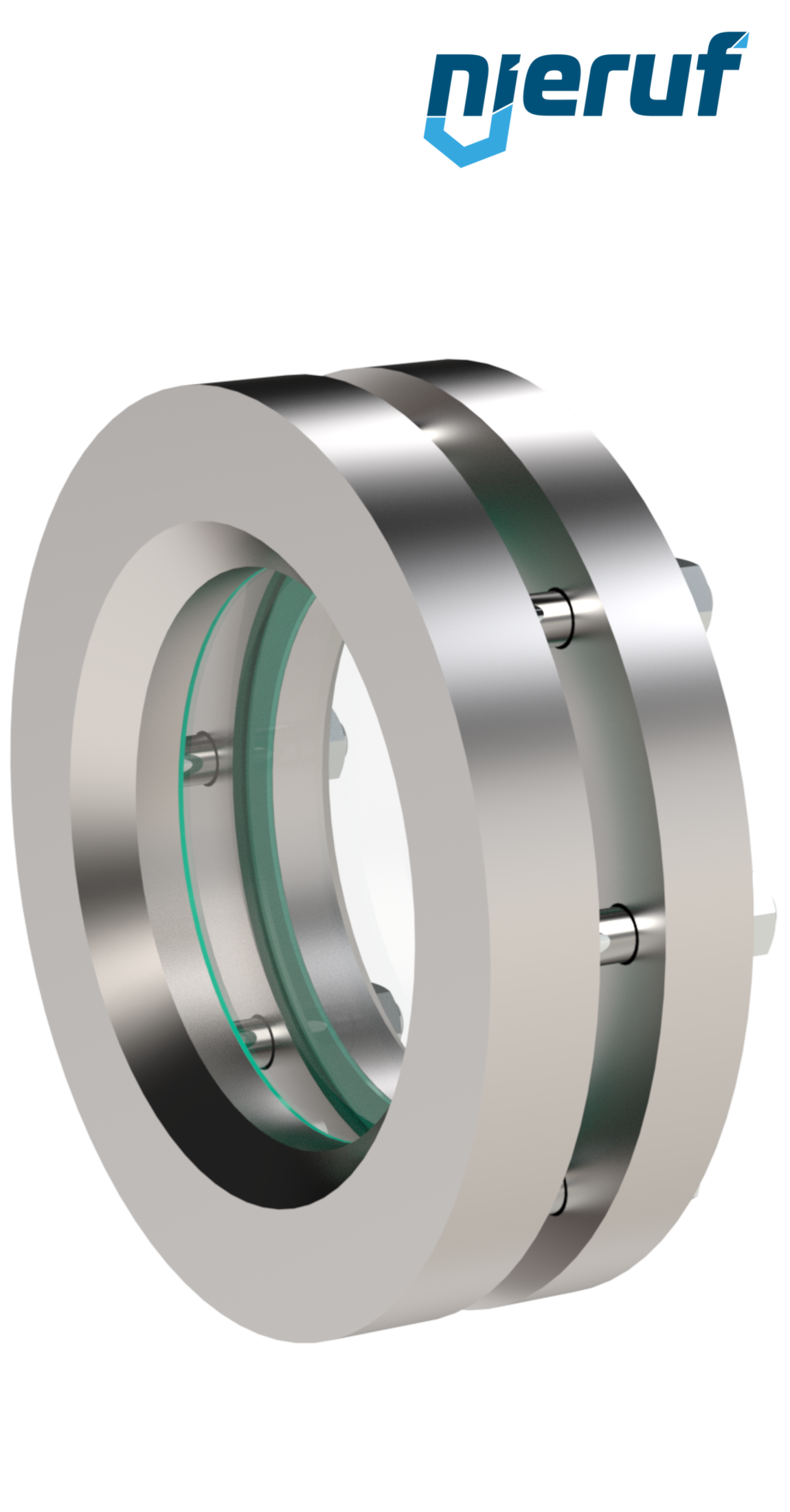

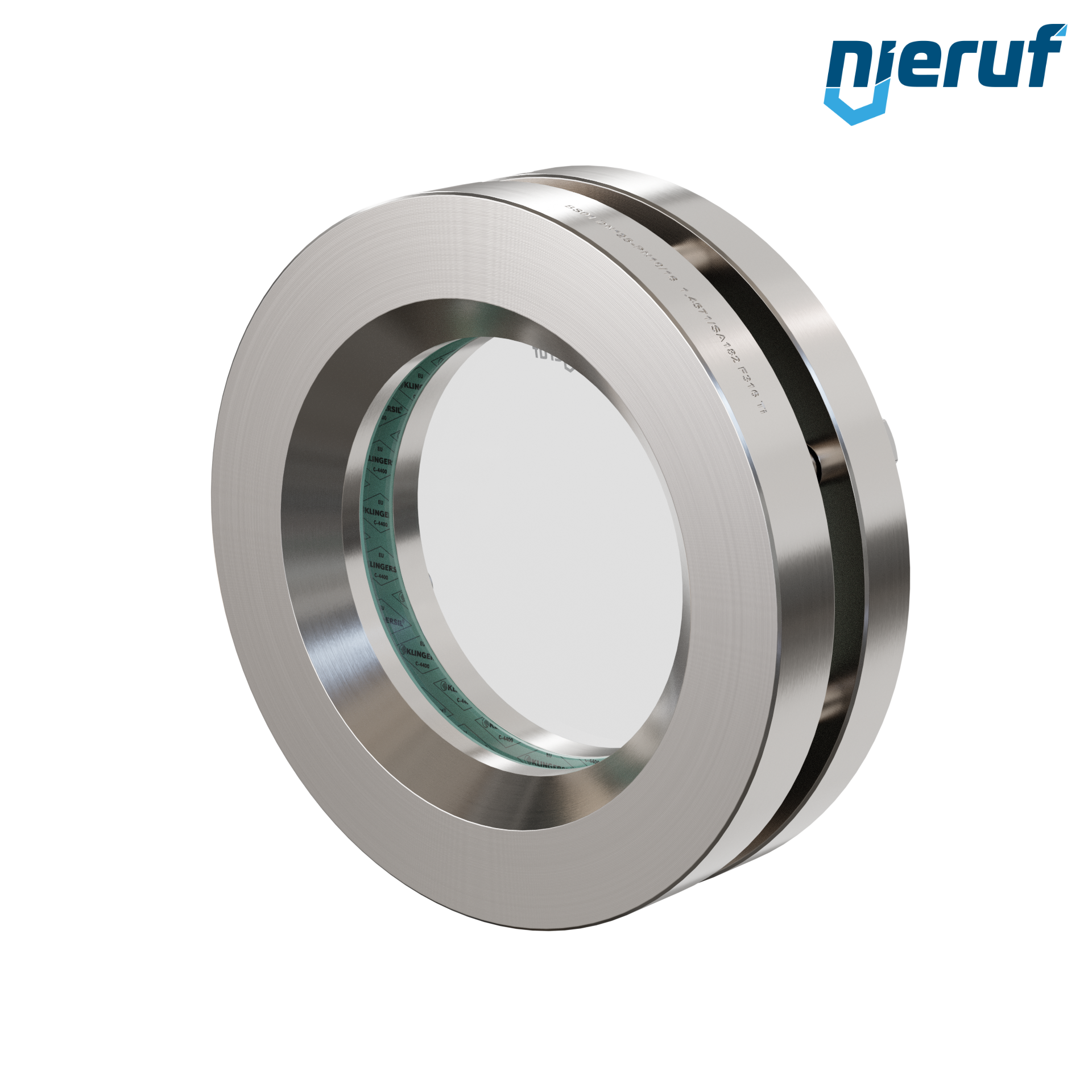

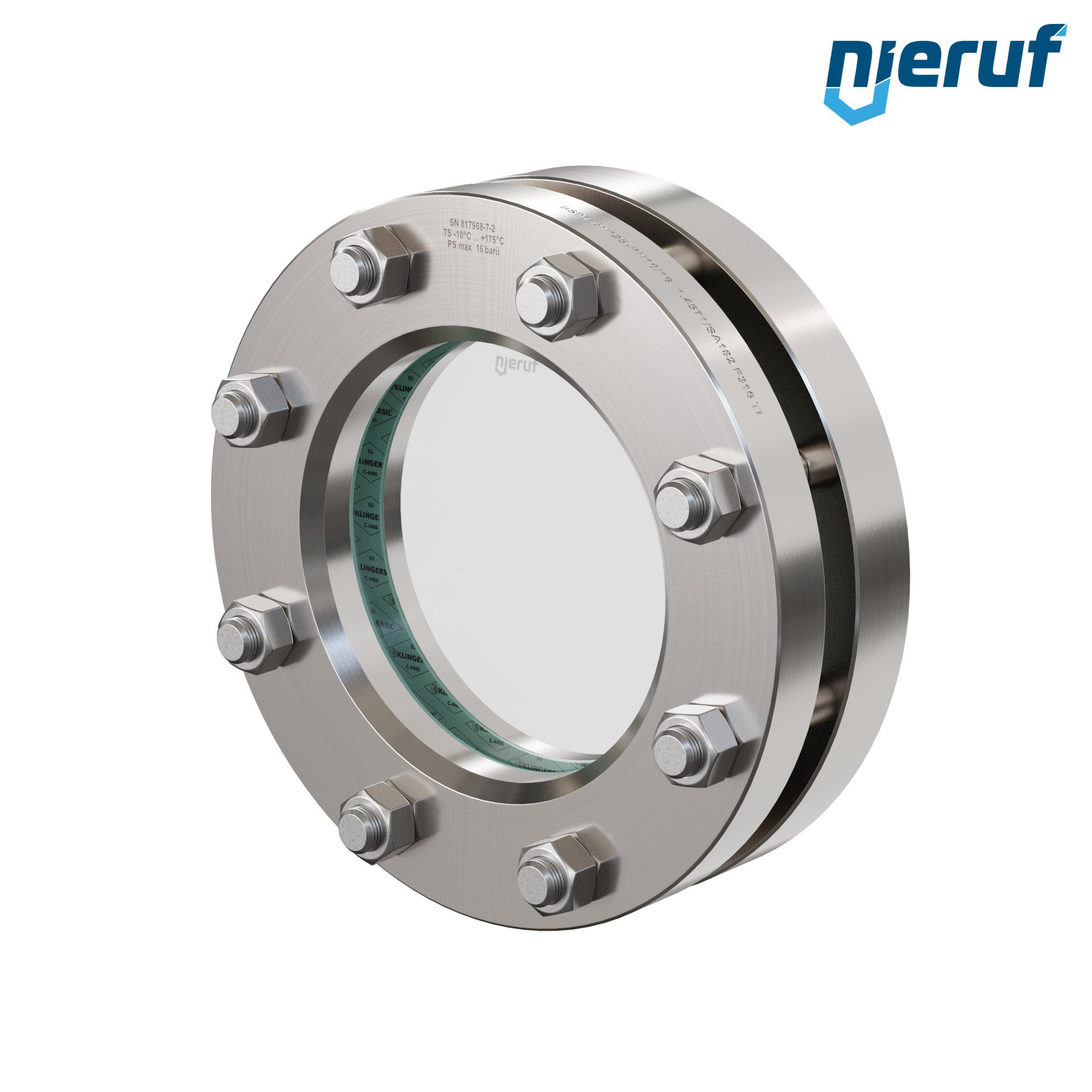

Sight glass fitting DN125 - 5" Inch BS02 stainless steel 1.4571 borosilicate glass 16bar
Sight glass fitting DN125 - 5" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass
| product | Sight glass fitting |
|---|---|
| type | BS02 |
| manufacturer | NieRuf |
| design | to be welded directly to tank |
| diameter | DN125 - 5" Inch |
| connection | to be welded directly to tank |
| body material | stainless steel 1.4571 / 316 Ti |
| cover material | stainless steel 1.4571 / 316 Ti |
| glass | borosilicate glass |
| seal | C4400 |
| media | liquid and gaseous media |
| temperature | max + 175°C |
| max. working pressure | 16bar |
| requirements | DIN 28120 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Sight glass fitting DN125 - 5" Inch BS02 stainless steel 1.4571 borosilicate glass 16bar
Article no.
: BS02000012
product:
Sight glass fitting
type:
BS02
manufacturer:
NieRuf
design:
to be welded directly to tank
diameter:
DN125 - 5" Inch
connection:
to be welded directly to tank
body material:
stainless steel 1.4571 / 316 Ti
cover material:
stainless steel 1.4571 / 316 Ti
glass:
borosilicate glass
seal:
C4400
media:
liquid and gaseous media
temperature:
max + 175°C
max. working pressure:
16bar
requirements:
DIN 28120
Equipment
pipe bend (welded) 90° 139,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 168,3 x 2,9 to 60,3 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
