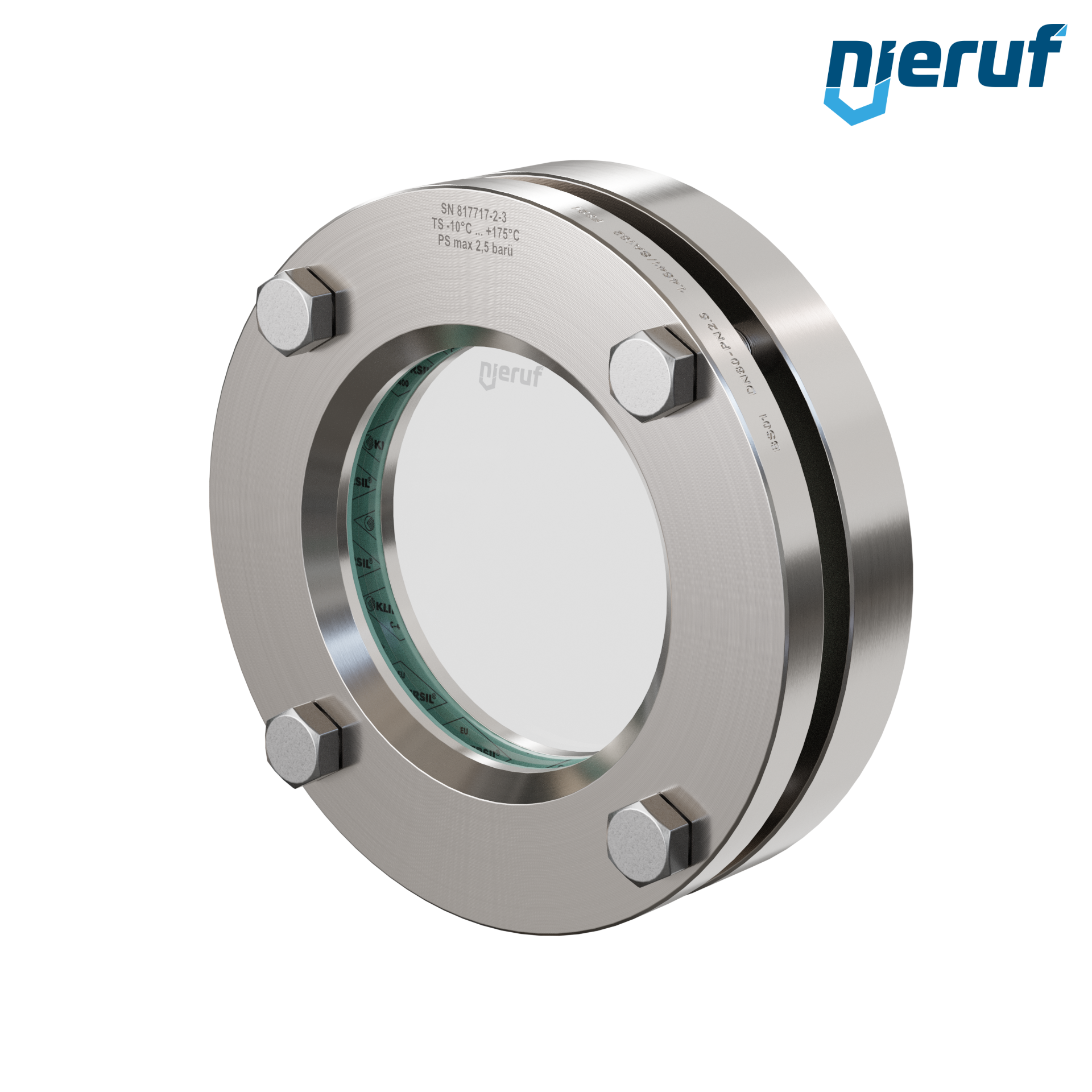

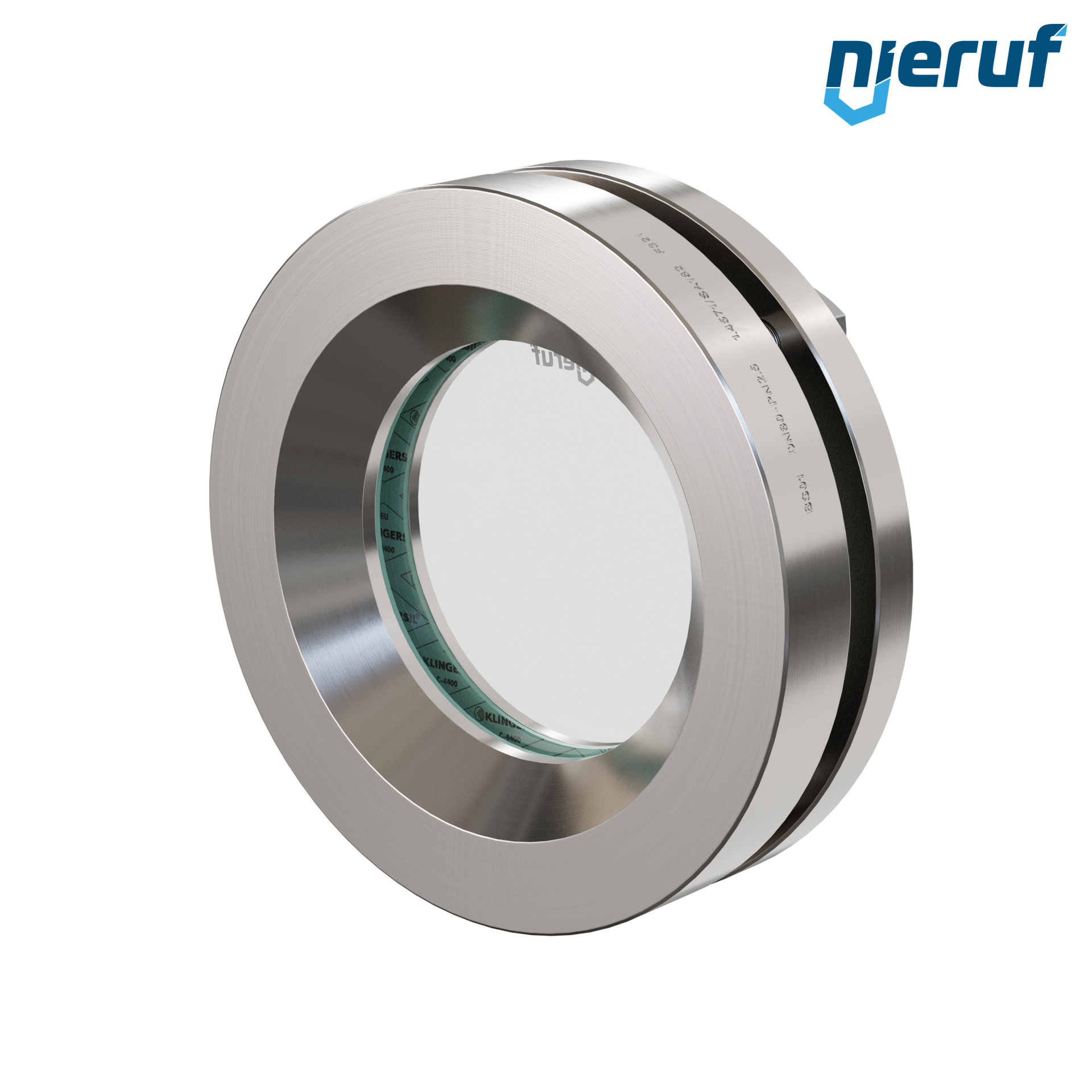

Sight glass fitting DN80 - 3" Inch BS01 stainless steel 1.4571 borosilicate glass 2,5bar

BS01000010
quantity (pcs.):
181.20€ * 215.63€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: at stock

Express shipping:

Shipping on: Tuesday, 20. April
Guaranteed delivery until Wednesday, 21. April, 12 Uhr:
order within 17 hours & 50 minutes via express shipping
datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
Sight glass fitting DN80 - 3" Inch BS01 stainless steel 1.4571 borosilicate glass 2,5bar
Sight glass fitting DN80 - 3" Inch aus stainless steel 1.4571 to be welded directly to tank Glas borosilicate glass 2,5bar
design: to be welded directly to tank
diameter: DN80 - 3" Inch
connection: to be welded directly to tank
body material: stainless steel 1.4571
cover material: stainless steel 1.4541
glass: borosilicate glass
seal: C4400
media: liquid and gaseous media
temperature: max + 150°C
max. working pressure: 2,5bar
requirements: acc. similar DIN 28120
Sight glass fitting DN80 - 3" Inch BS01 stainless steel 1.4571 borosilicate glass 2,5bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

Sight glass fitting DN80 - 3" Inch BS01 stainless steel 1.4571 borosilicate glass 2,5bar
