GS01010105
female thread sight flow indicator G 1" Inch grey cast iron GG25 soda lime glass version with flap
- Lead time
- 3 - 4 weeks
Equipment
sight glass round SG01 Ø 63 x 10 mm round DIN 7080 - 16
€17.73 VAT included.
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

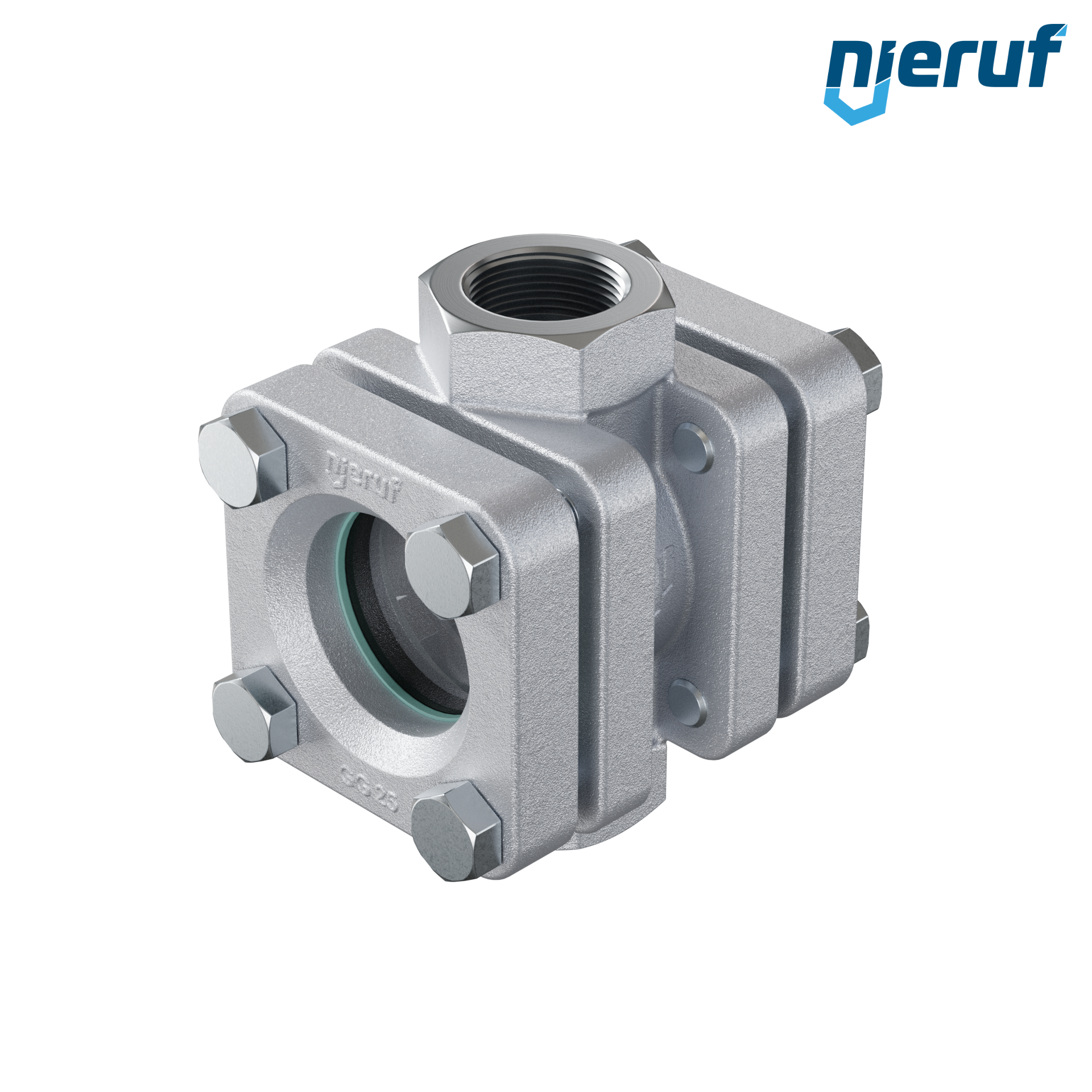

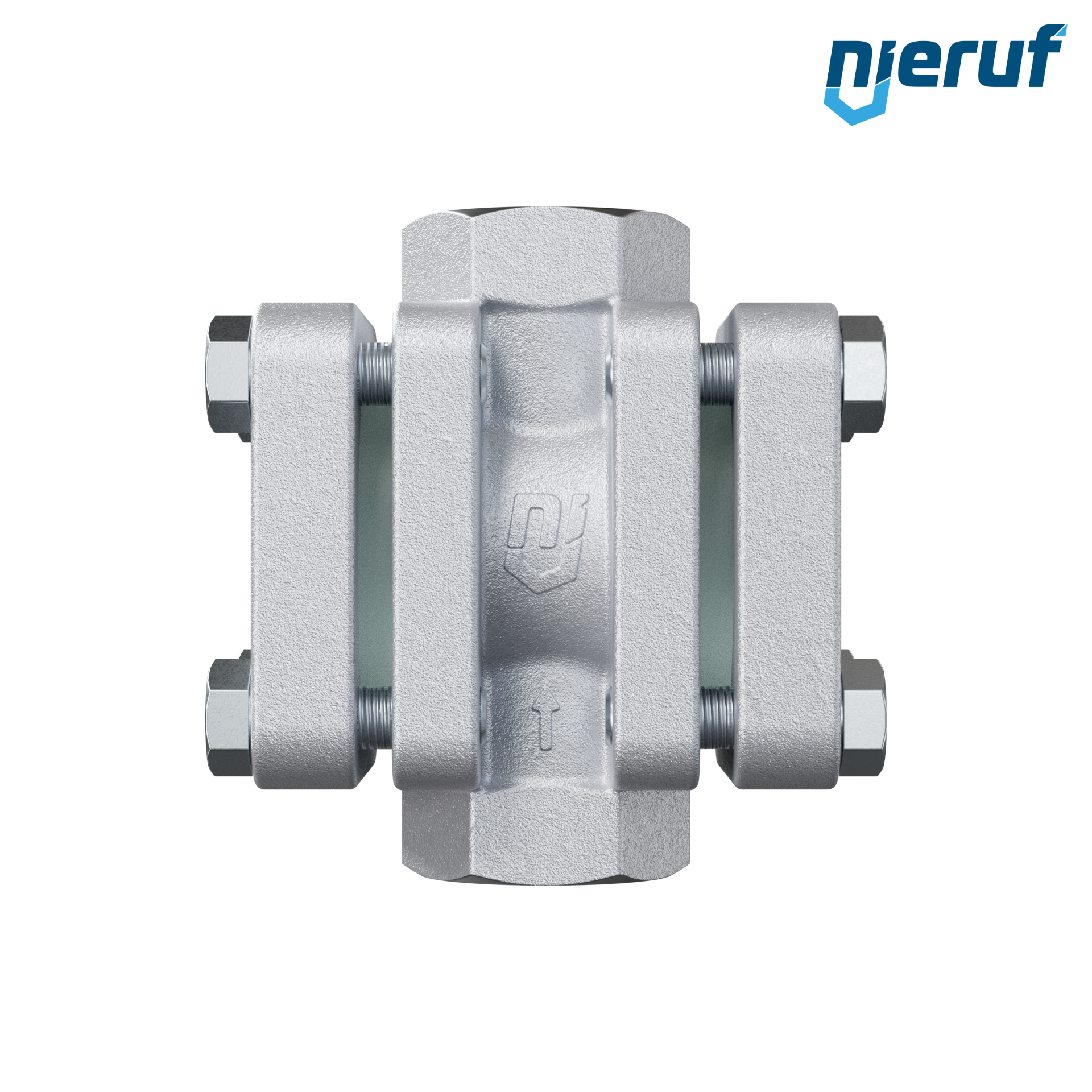

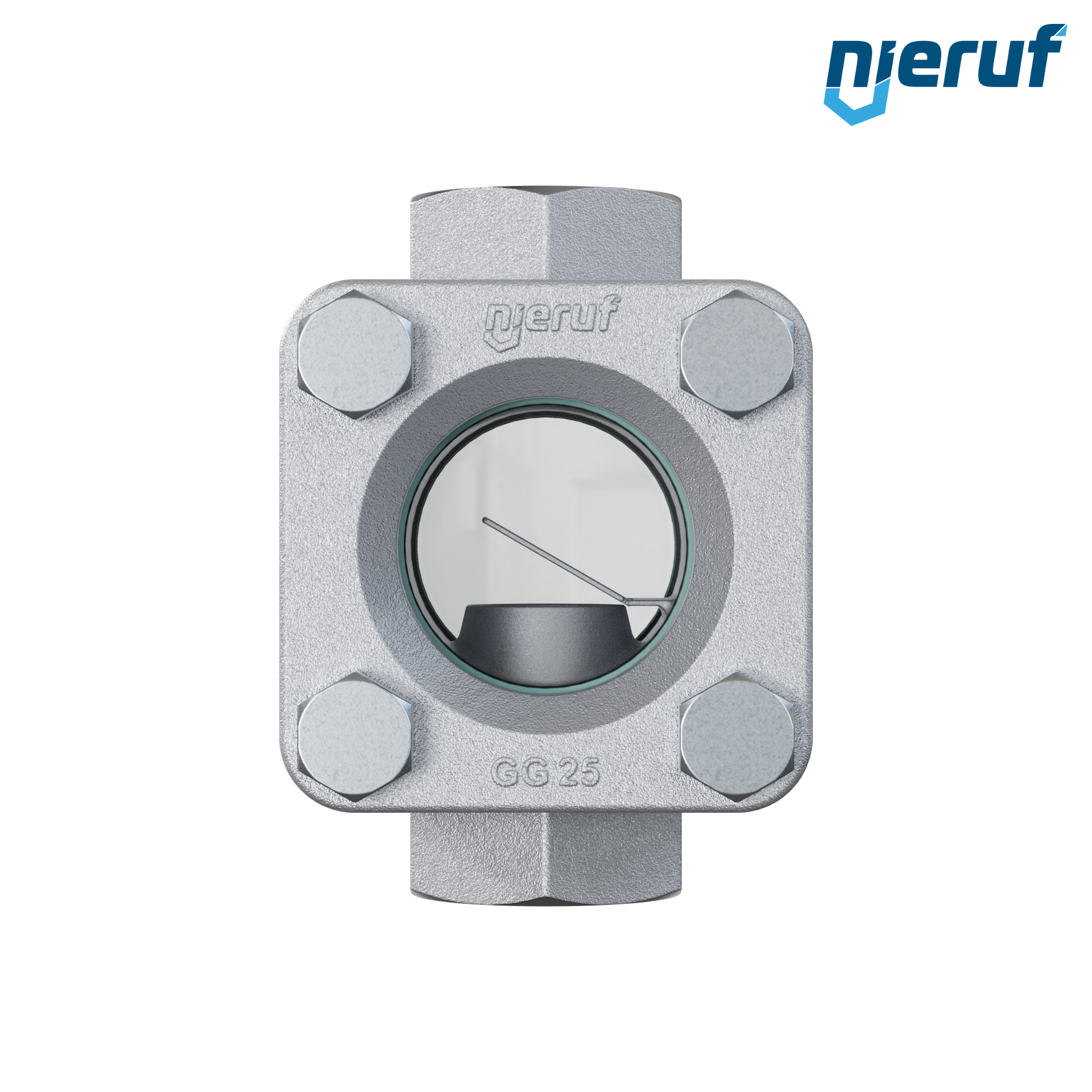

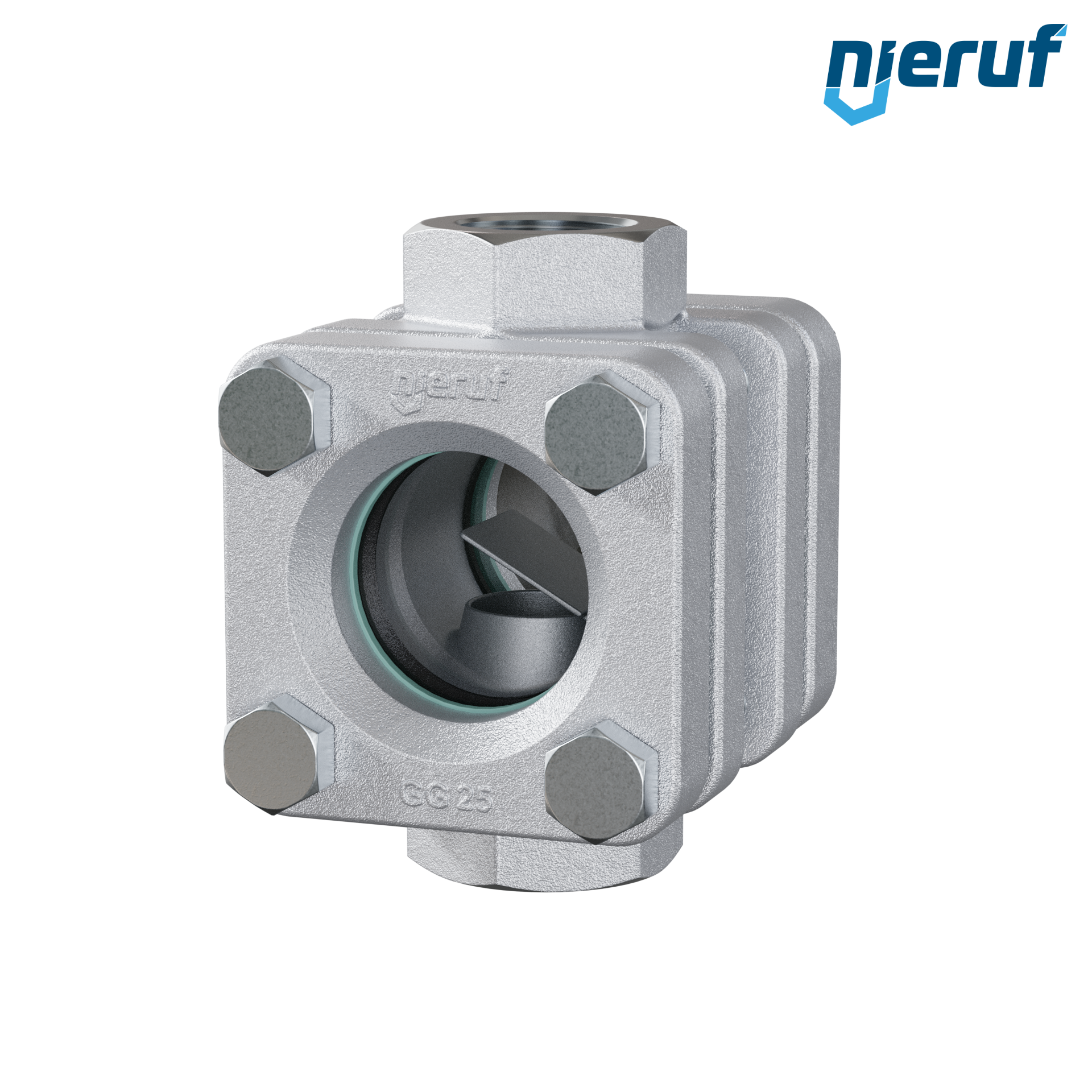

female thread sight flow indicator G 1" Inch grey cast iron GG25 soda lime glass version with flap
female thread sight flow indicator DN25 - 1" Inch grey cast iron GG25 Typ GS01 soda lime glass graphit max 16 bar version with flap
| product | female thread sight flow indicator |
|---|---|
| type | GS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 1" Inch |
| connection | female thread BSP |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | soda lime glass |
| seal | graphit |
| media | liquid and gaseous media |
| temperature | -10°C up to + 150°C |
| max. working pressure | 16 bar |
| installation position | horizontal or vertical with direction of flow from the bottom up |
| product feature | version with flap |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
female thread sight flow indicator G 1" Inch grey cast iron GG25 soda lime glass version with flap
Article no.
: GS01010105
product:
female thread sight flow indicator
type:
GS01
manufacturer:
NieRuf
design:
straightway form
diameter:
G 1" Inch
connection:
female thread BSP
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
soda lime glass
seal:
graphit
media:
liquid and gaseous media
temperature:
-10°C up to + 150°C
max. working pressure:
16 bar
installation position:
horizontal or vertical with direction of flow from the bottom up
product feature:
version with flap
