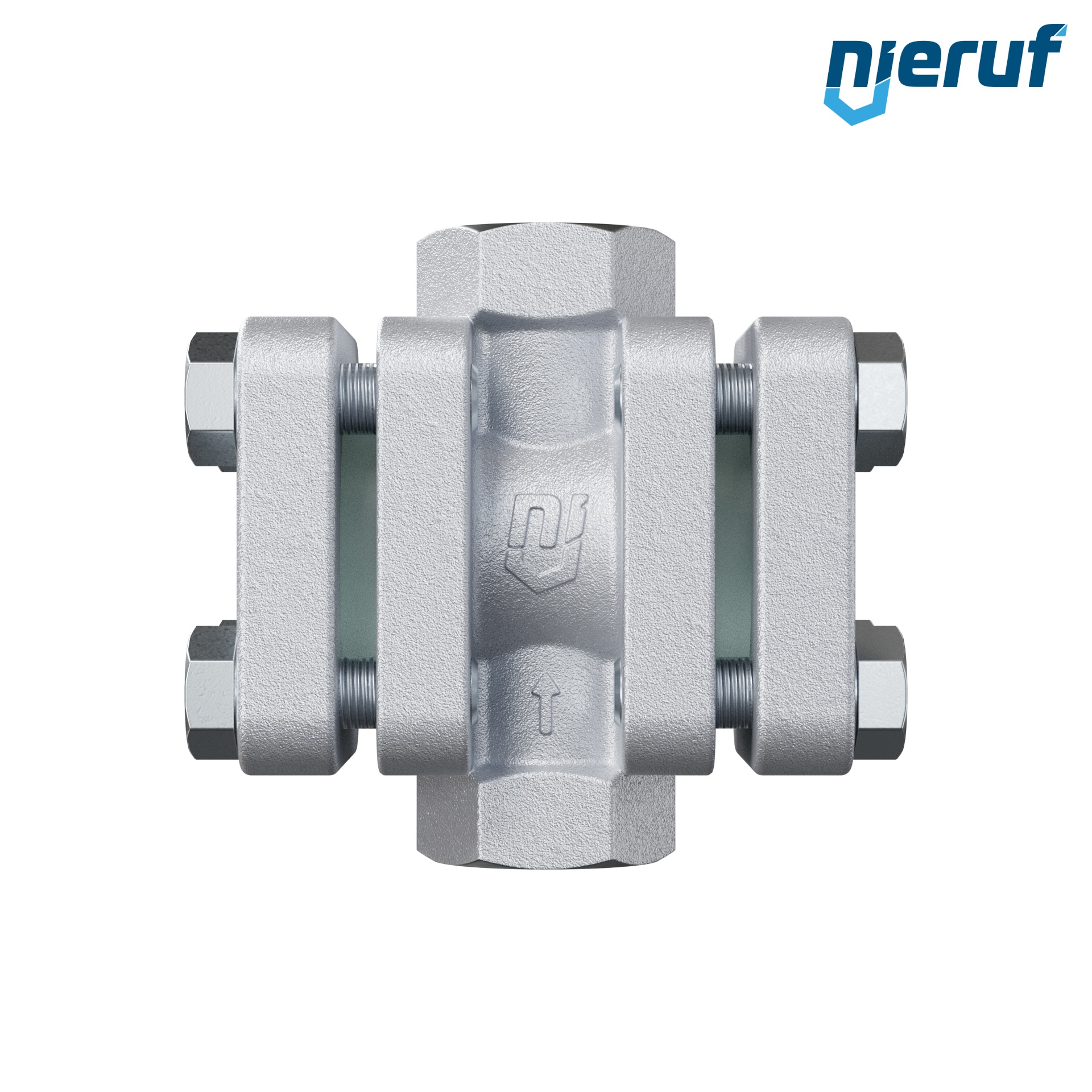

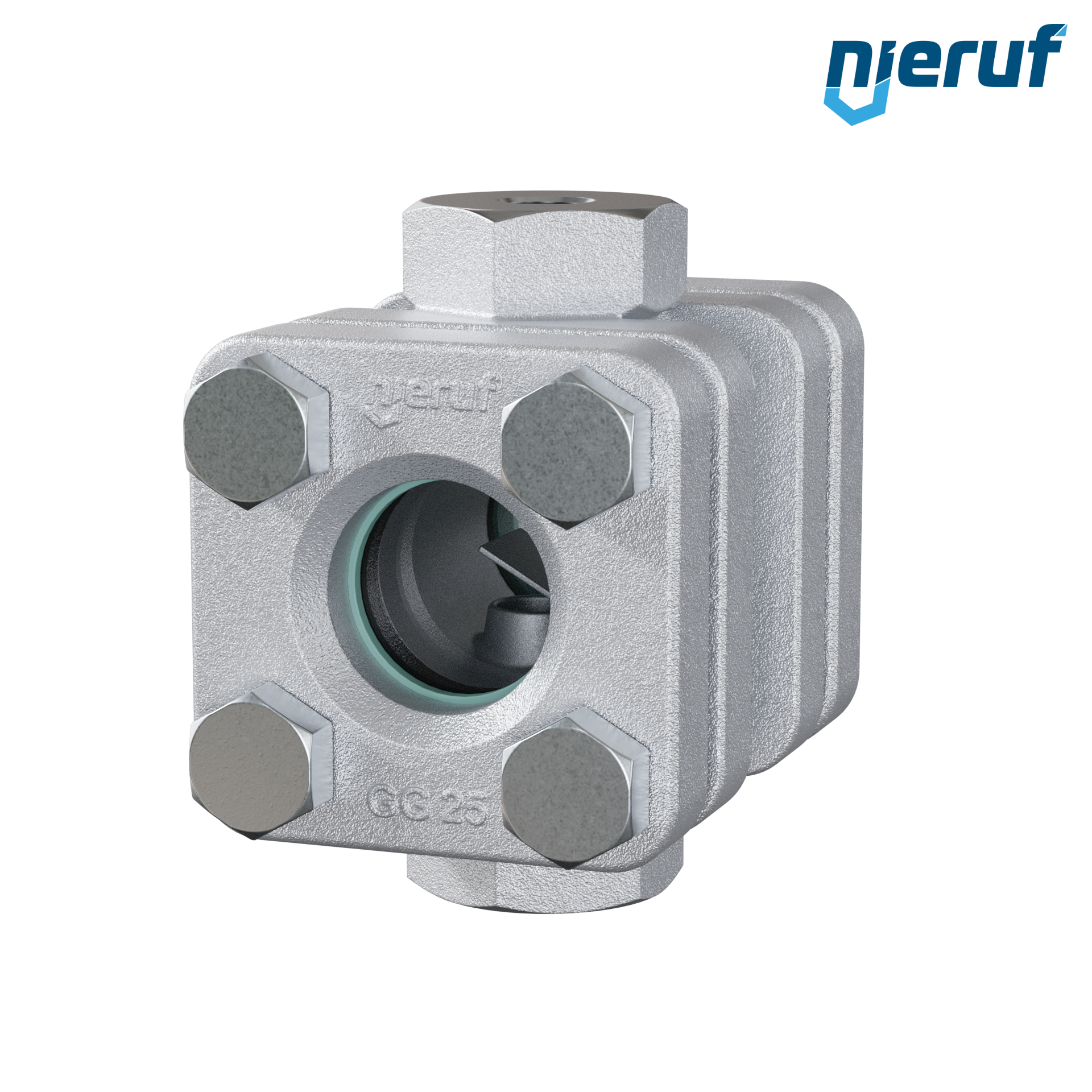

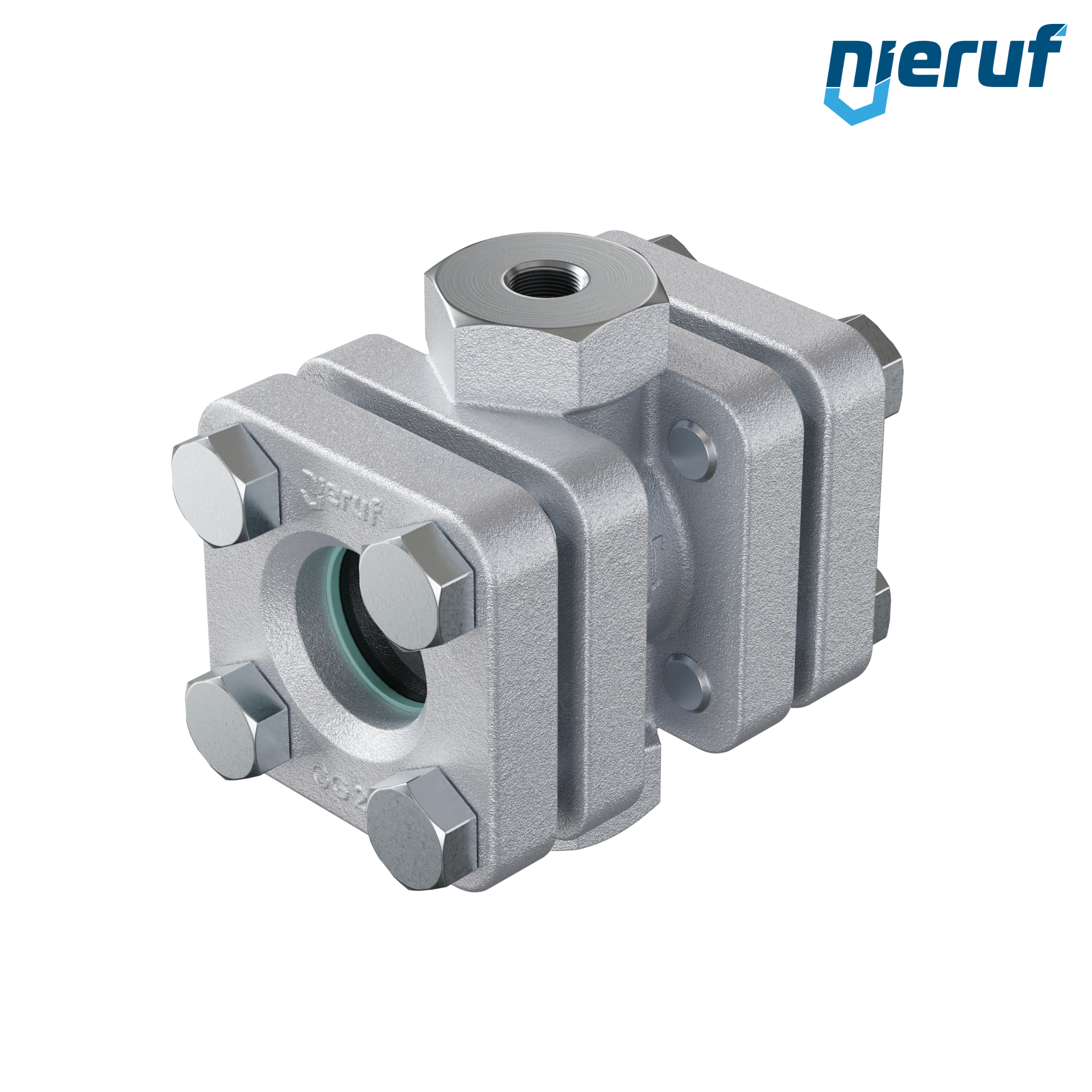

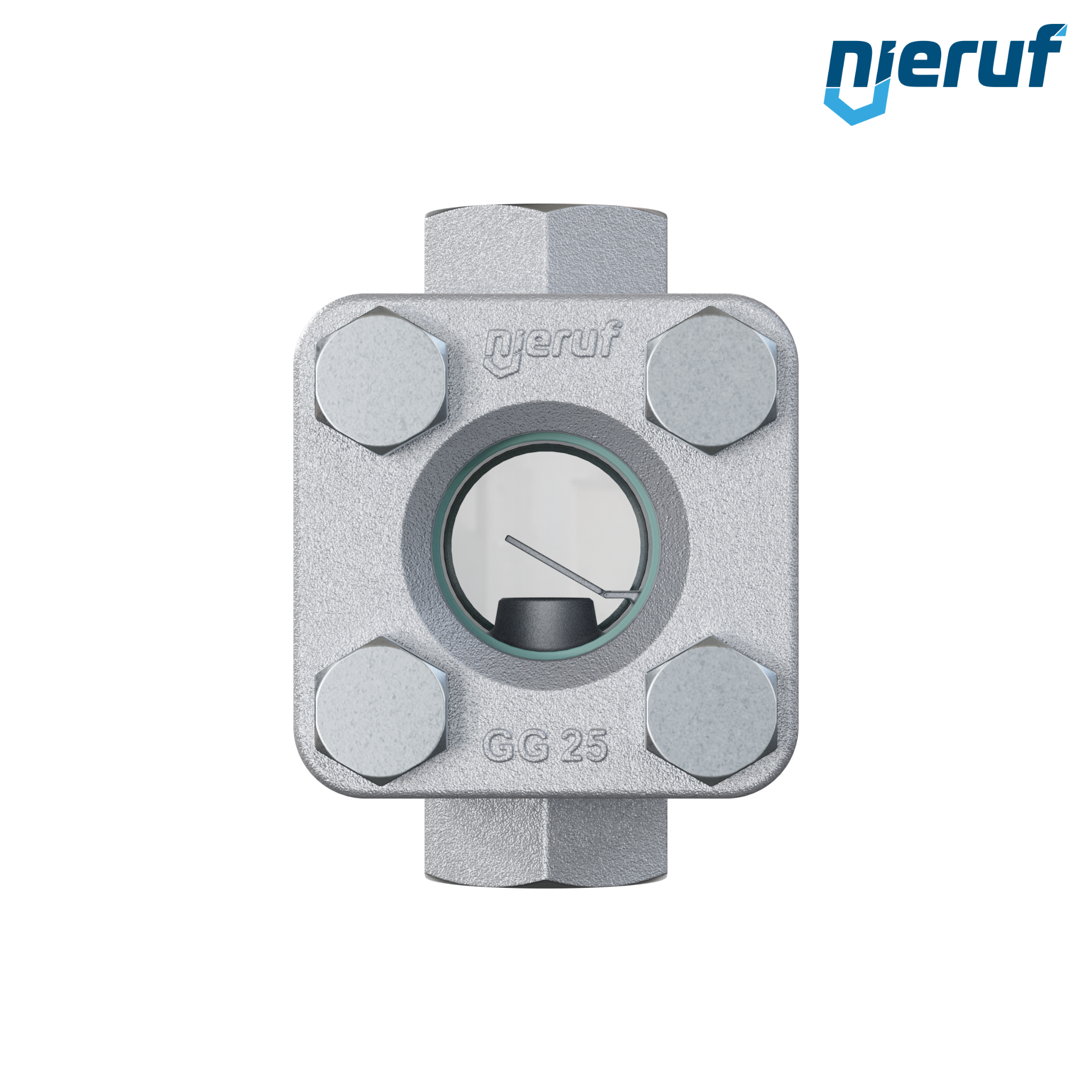

female thread sight flow indicator DN8 - 1/4" Inch grey cast iron GG25 soda lime glass design with disc

GS01010101
quantity (pcs.):
172.20€ * 204.92€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
female thread sight flow indicator DN8 - 1/4" Inch grey cast iron GG25 soda lime glass design with disc
female thread sight flow indicator DN8 - 1/4" Inch grey cast iron GG25 Typ GS01 soda lime glass graphit max 16 bar design with disc
design: straightway form
diameter: DN8 - 1/4" Inch
connection: female thread
body material: grey cast iron GG25
cover material: grey cast iron GG25
glass: soda lime glass
seal: graphit
media: liquid and gaseous media
temperature: min -10°C up to max + 150°C
max. working pressure: max 16 bar
installation position: horizontal or vertikal with direction of flow from the bottom up
product feature: design with disc
female thread sight flow indicator DN8 - 1/4" Inch grey cast iron GG25 soda lime glass design with disc

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

female thread sight flow indicator DN8 - 1/4" Inch grey cast iron GG25 soda lime glass design with disc
