GS01020203
female thread sight flow indicator G 1/2" Inch grey cast iron GG25 borosilicate glass version with PTFE-spinner
- Lead time
- 3 - 4 weeks
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
sight glass round SG01 Ø 45 x 10 mm round DIN 7080 - 40
€19.52 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

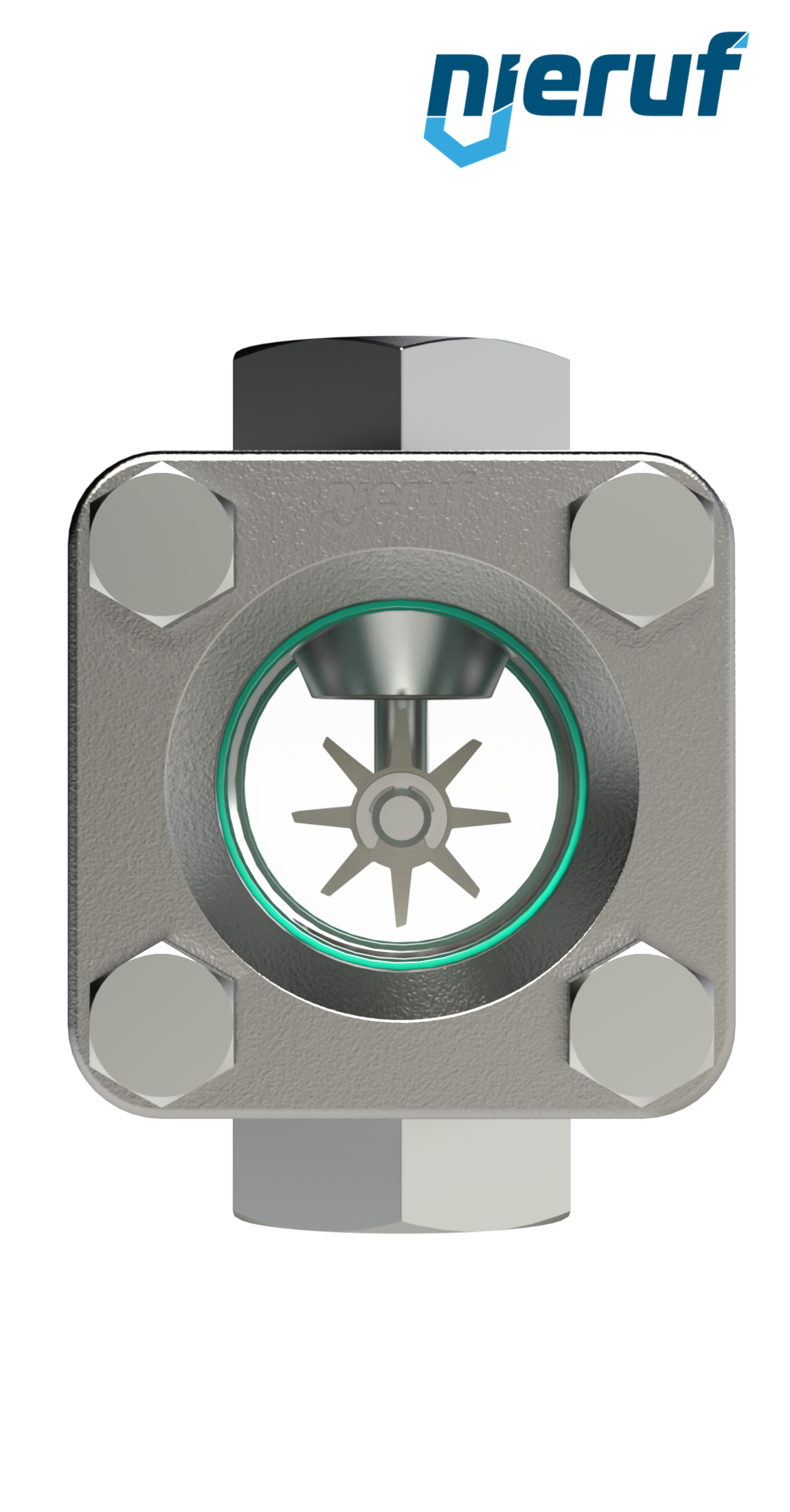

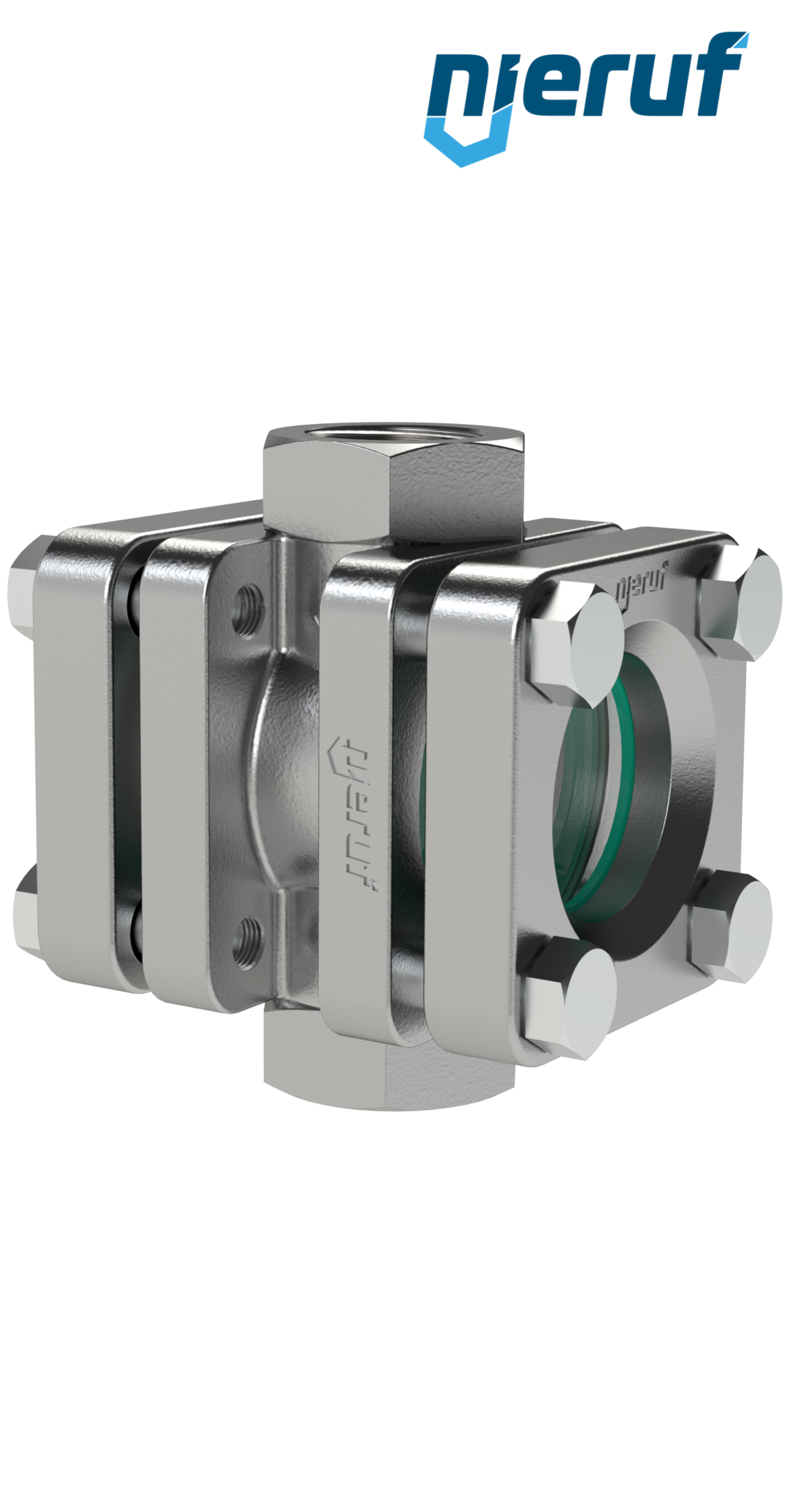

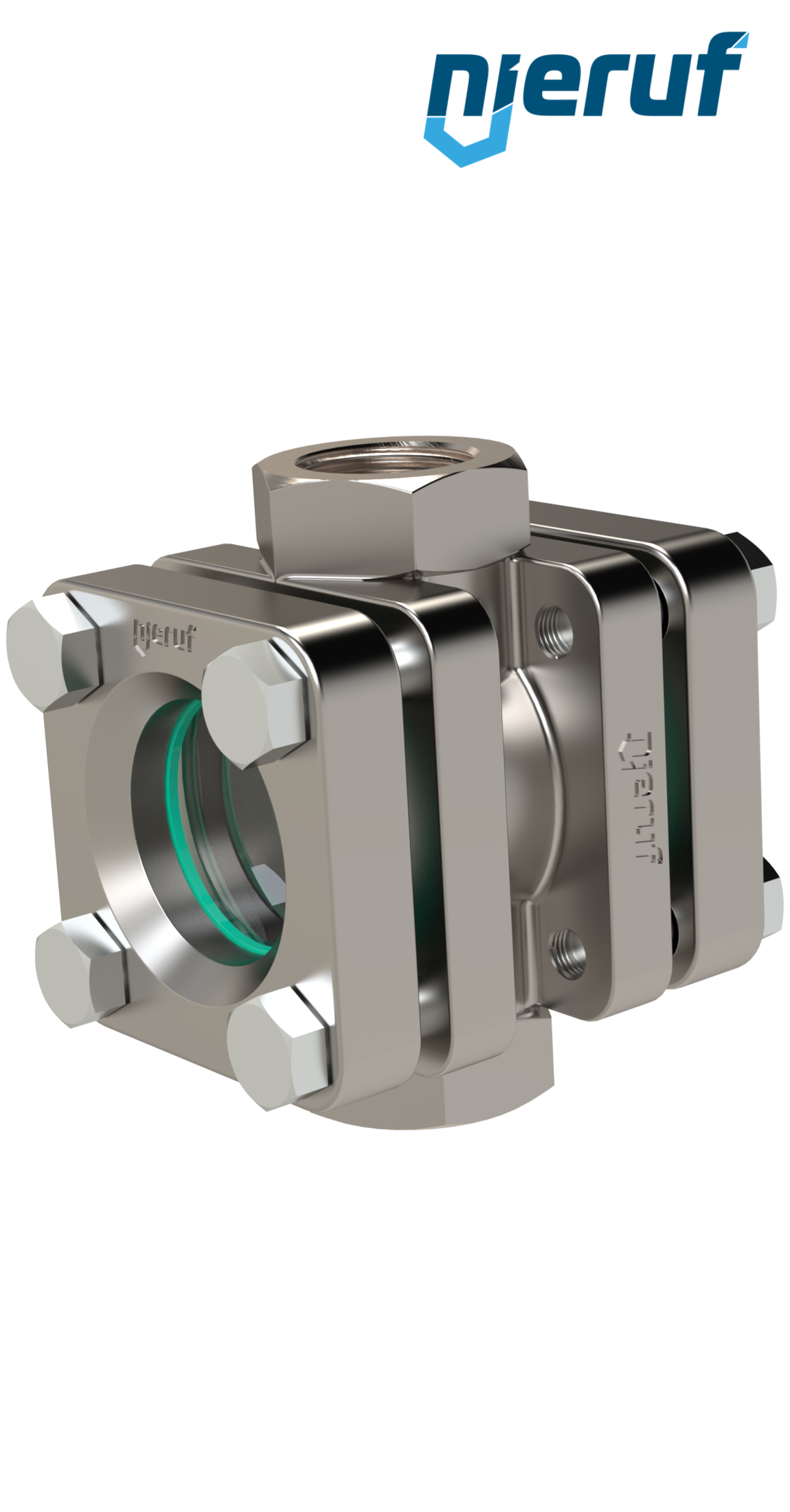

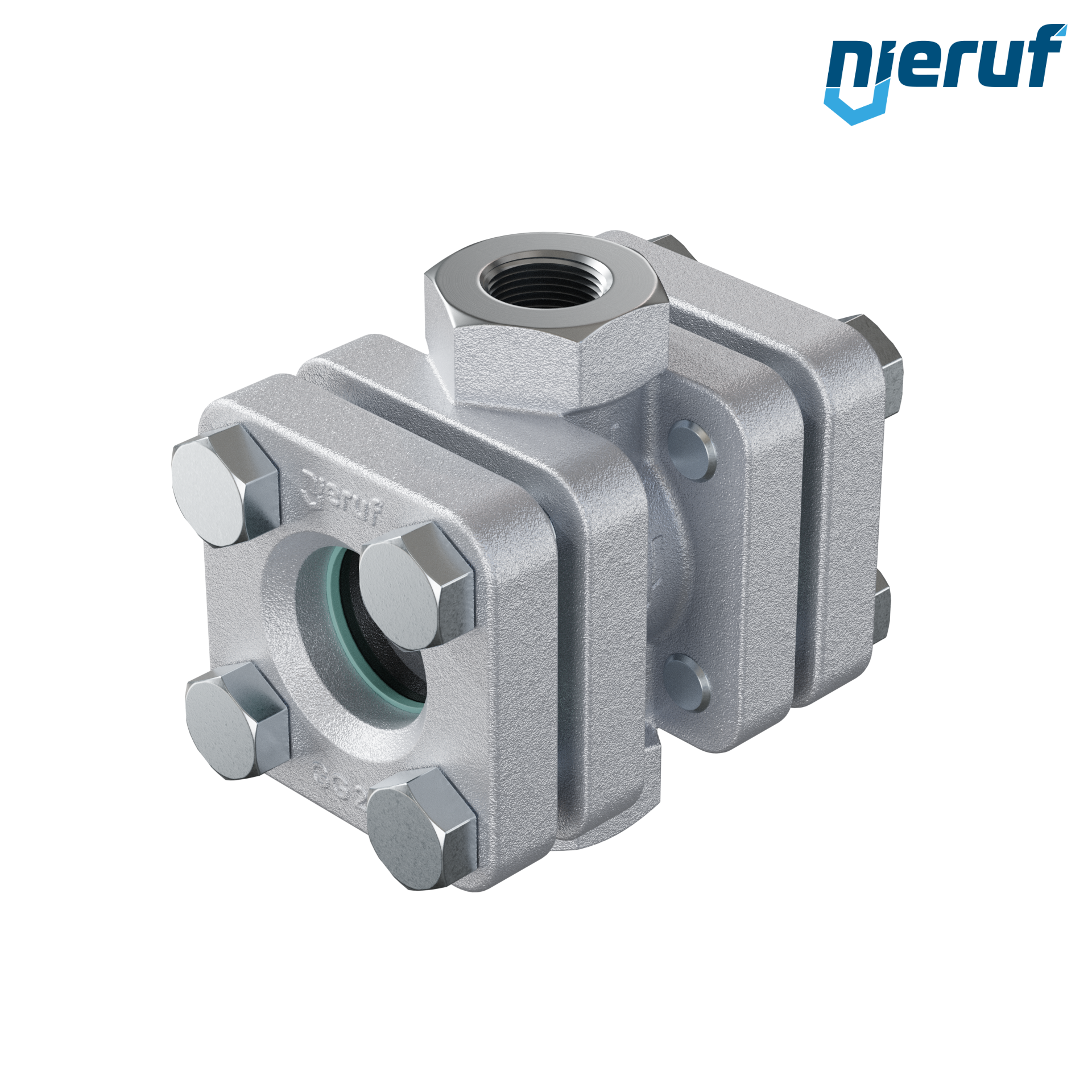

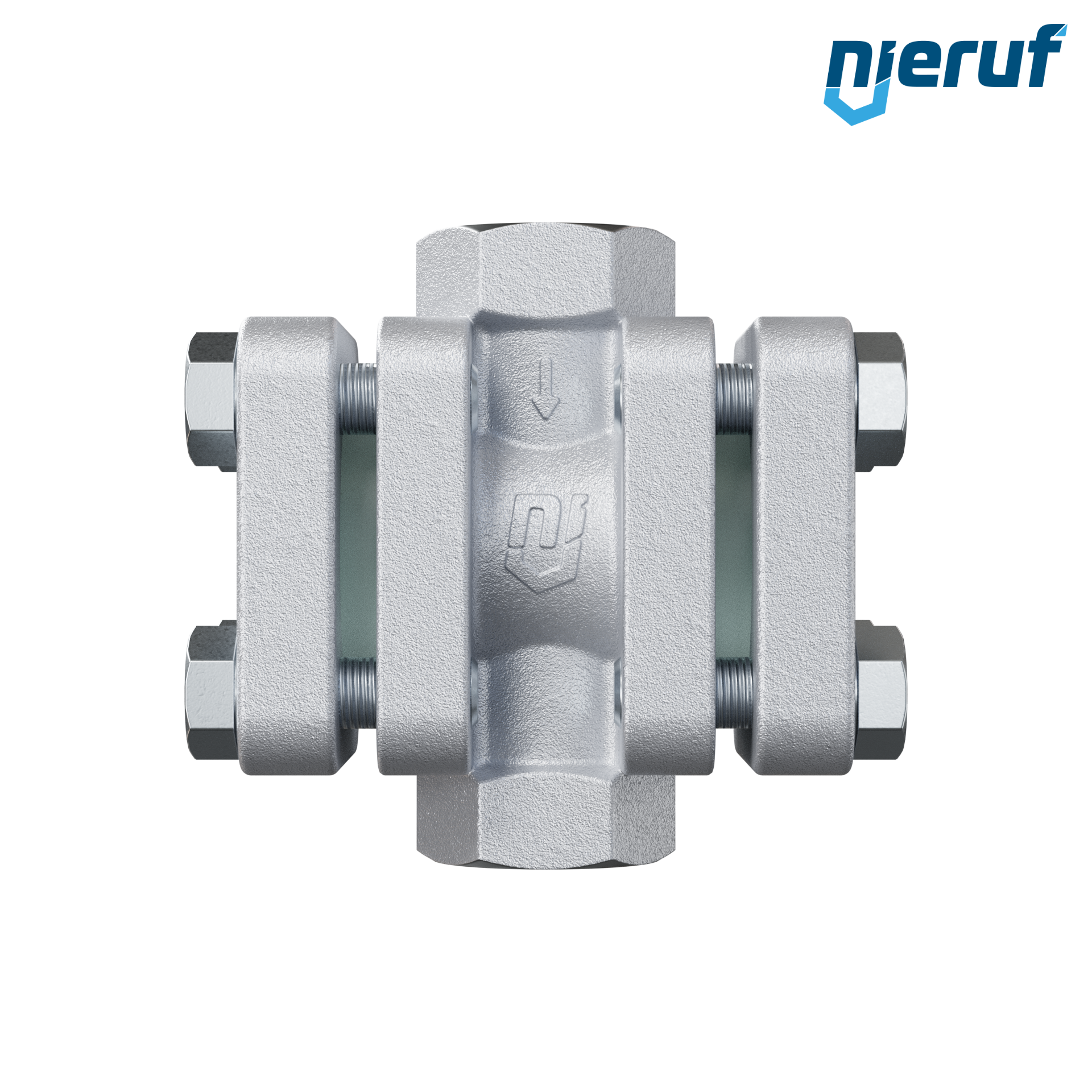

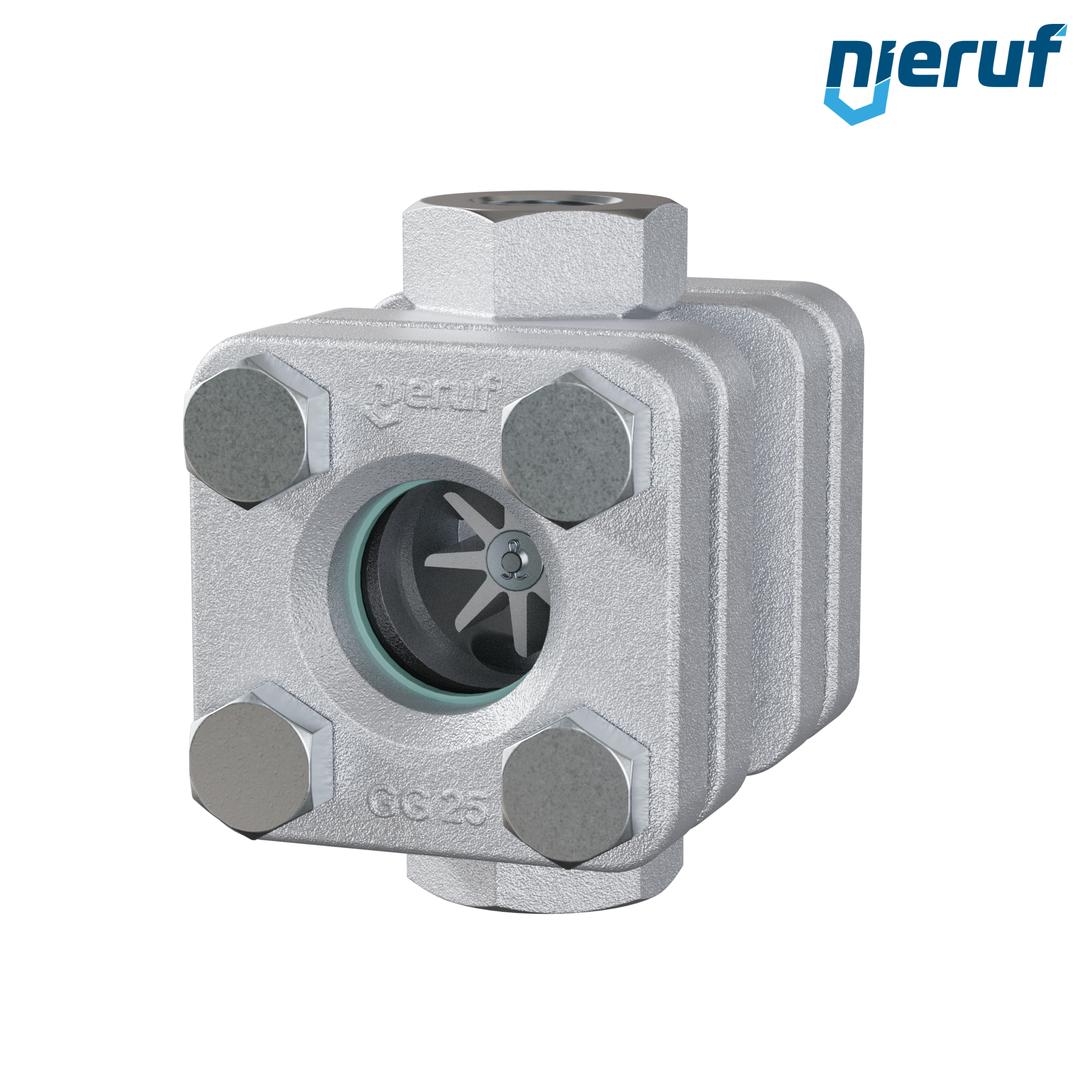

female thread sight flow indicator G 1/2" Inch grey cast iron GG25 borosilicate glass version with PTFE-spinner
female thread sight flow indicator 1/2" version with PTFE-spinner Typ GS01 grey cast iron GG25 borosilicate glass graphit max 16 bar
| product | female thread sight flow indicator |
|---|---|
| type | GS01 |
| manufacturer | NieRuf |
| design | straightway form |
| diameter | G 1/2" Inch |
| connection | female thread BSP |
| body material | grey cast iron GG25 |
| cover material | grey cast iron GG25 |
| glass | borosilicate glass |
| seal | graphit |
| media | liquid media |
| temperature | -10°C up to + 280°C |
| max. working pressure | 16 bar |
| installation position | any position |
| product feature | version with PTFE-spinner |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
female thread sight flow indicator G 1/2" Inch grey cast iron GG25 borosilicate glass version with PTFE-spinner
Article no.
: GS01020203
product:
female thread sight flow indicator
type:
GS01
manufacturer:
NieRuf
design:
straightway form
diameter:
G 1/2" Inch
connection:
female thread BSP
body material:
grey cast iron GG25
cover material:
grey cast iron GG25
glass:
borosilicate glass
seal:
graphit
media:
liquid media
temperature:
-10°C up to + 280°C
max. working pressure:
16 bar
installation position:
any position
product feature:
version with PTFE-spinner
