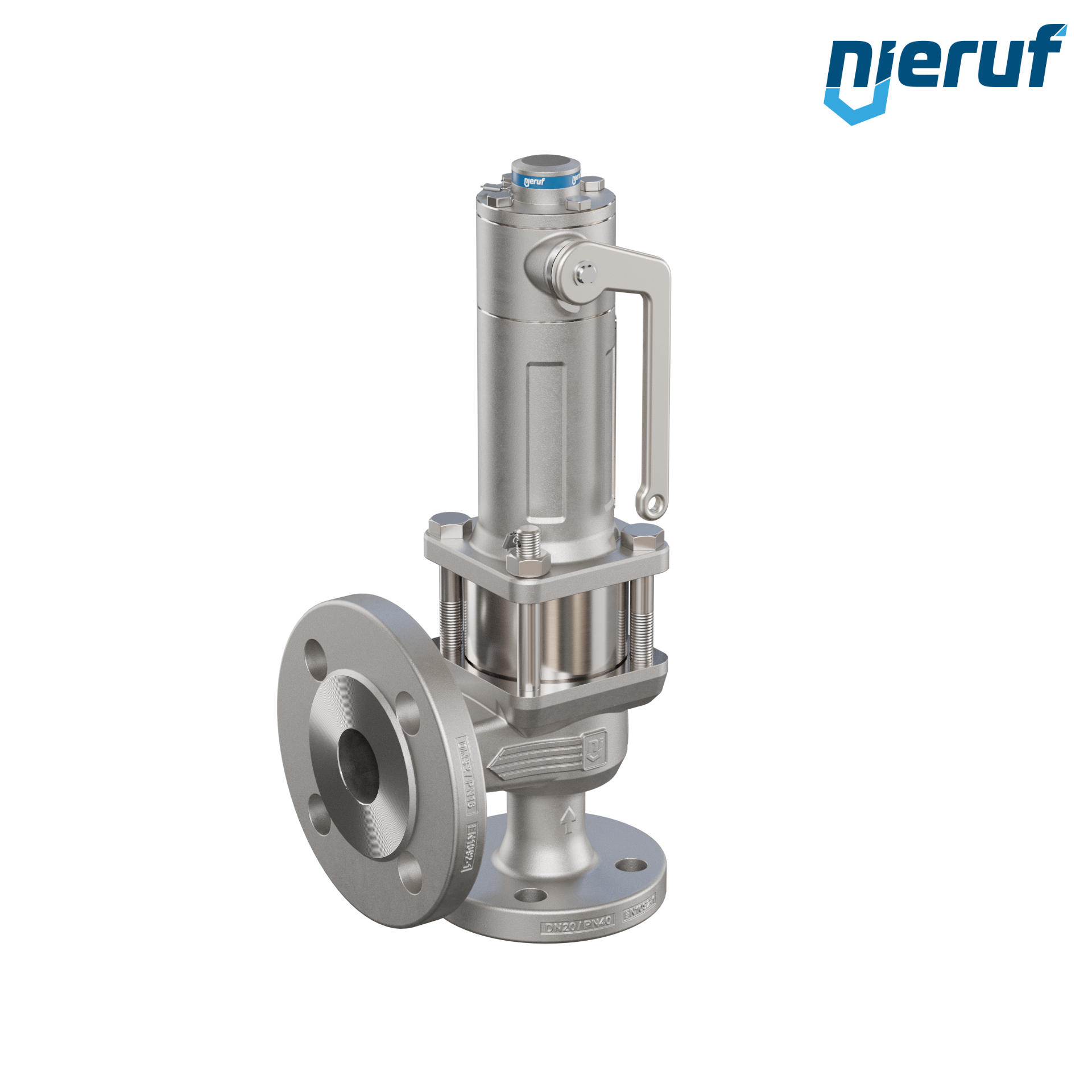

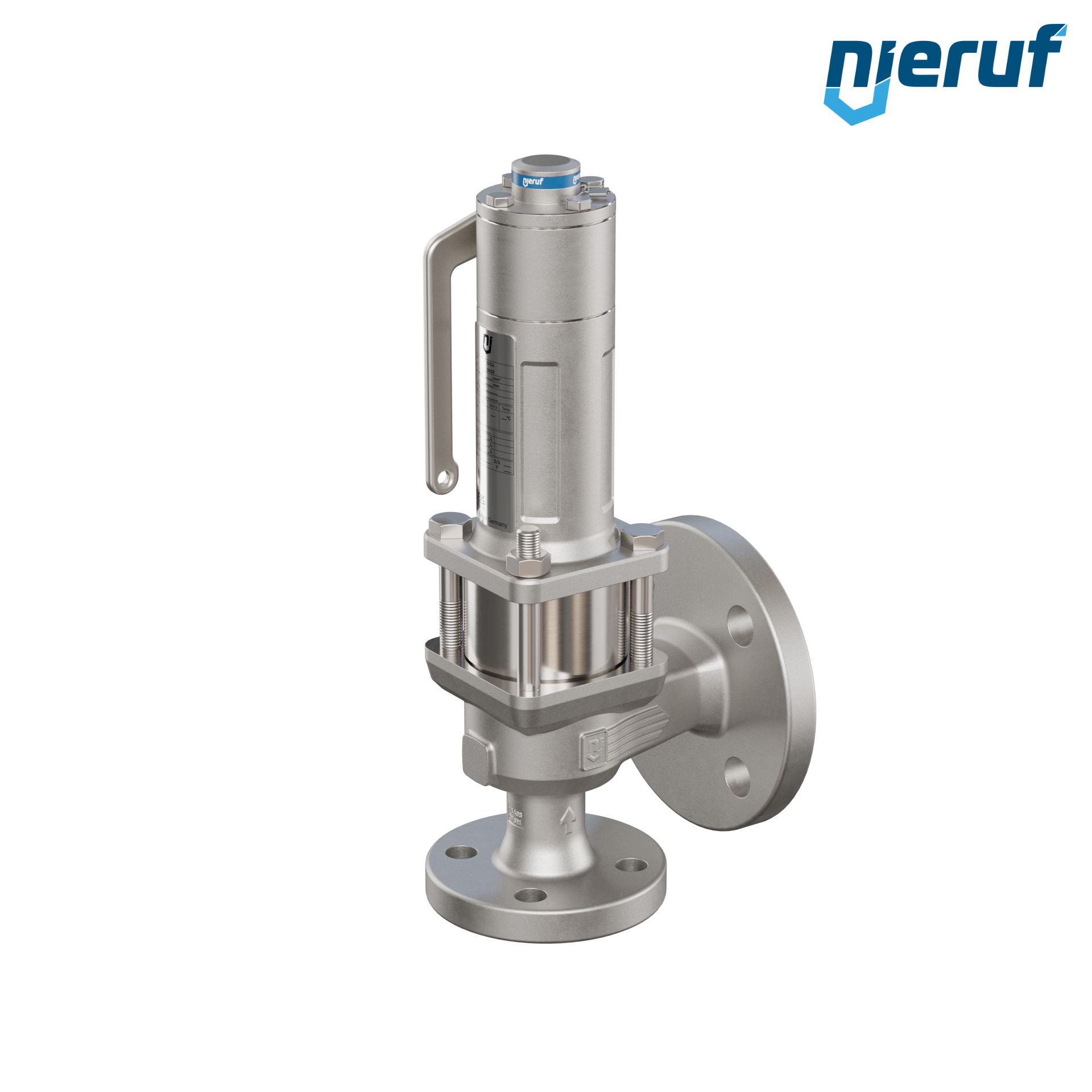

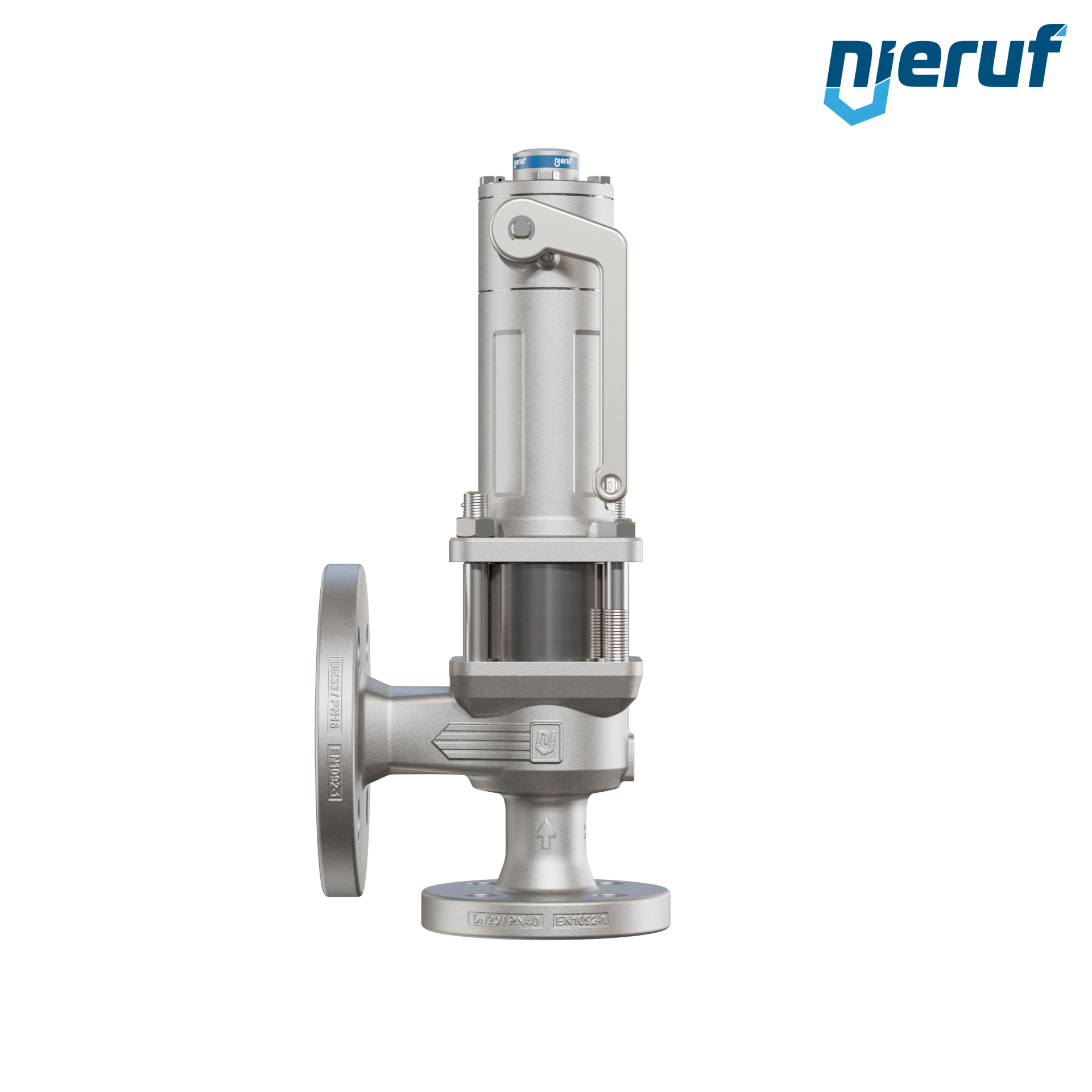

safety valve DN20/DN32 SF04 with bellows & gastight cap stainless steel seal metal pressure 0,4 - 40,0 bar lever
| product | flange-safety valve |
|---|---|
| type | SF04 |
| manufacturer | NieRuf |
| diameter | DN20/DN32 |
| d0 | 18,0 mm |
| connection | flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16 |
| seal | metal |
| media | liquid and gaseous media |
| temperature | -60°C up to +400°C |
| set pressure | 0,4 - 40,0 bar |
| design | angle-type with bellow & gastight cap |
| material | stainless steel 1.4408 / CF8M |
| lifting | with lifting device lever |
| type test approval | TUV-SV-2094-D/G/F |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | vertical, spindle standing upwards |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve |
| product feature 2 | for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve bellow & gastight cap DN20/DN32 SF04, metal, with lifting device lever
Article no.
: SF04120004
product:
flange-safety valve
type:
SF04
manufacturer:
NieRuf
diameter:
DN20/DN32
d0:
18,0 mm
connection:
flange acc. to DIN EN 1092-1 inlet PN40 / outlet PN16
seal:
metal
media:
liquid and gaseous media
temperature:
-60°C up to +400°C
set pressure:
0,4 - 40,0 bar
design:
angle-type with bellow & gastight cap
material:
stainless steel 1.4408 / CF8M
lifting:
with lifting device lever
type test approval:
TUV-SV-2094-D/G/F
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
vertical, spindle standing upwards
SIL - safety integrity level:
SIL 3
product feature 1:
Full-lift safety valve as D/G valve | Normal-lift safety valve as F valve
product feature 2:
for neutral and non-neutral media and /or counter-pressure. Spring, moving parts and the environment are protected from being affected by the medium.
