SV15021103.3

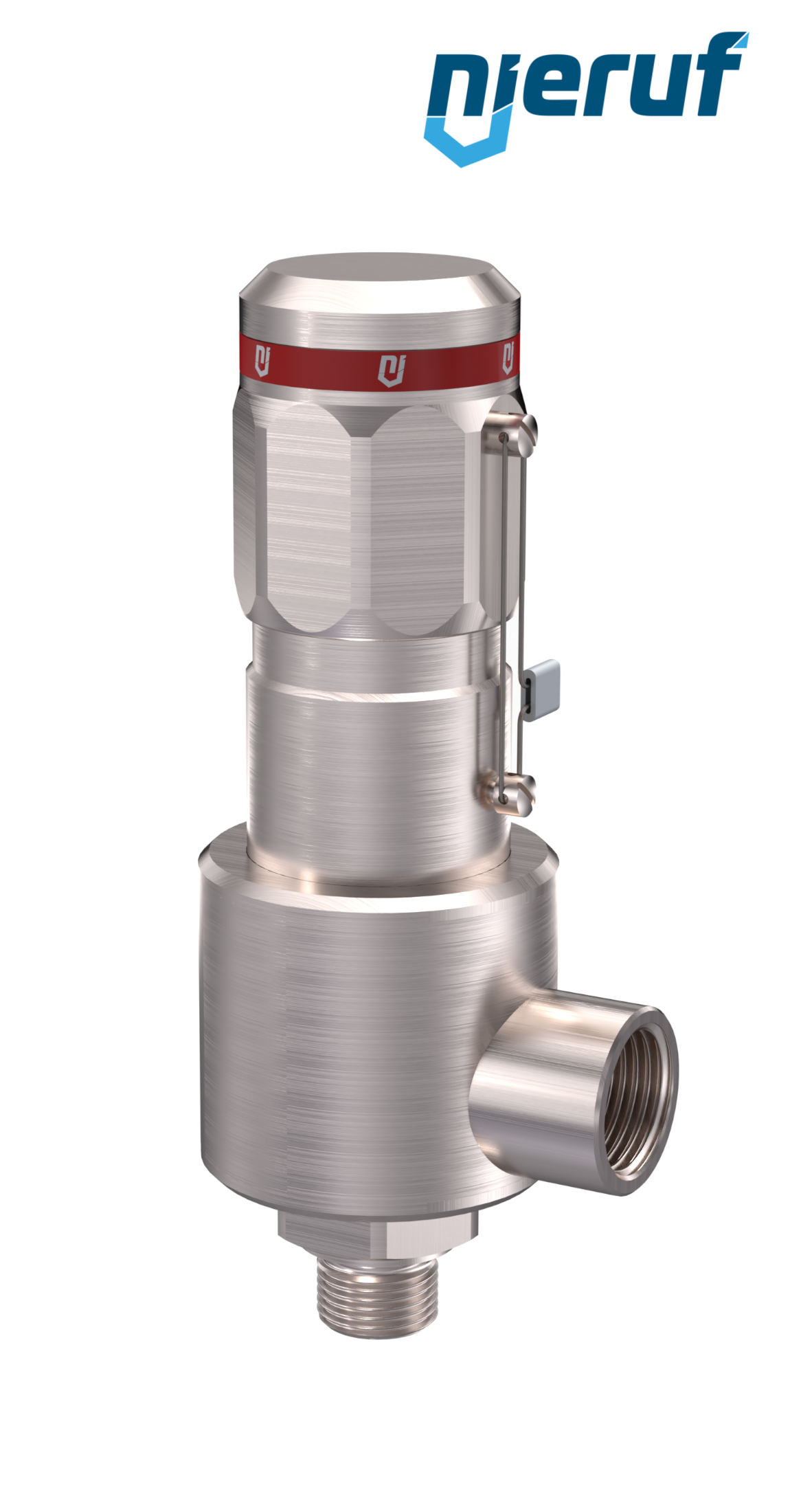

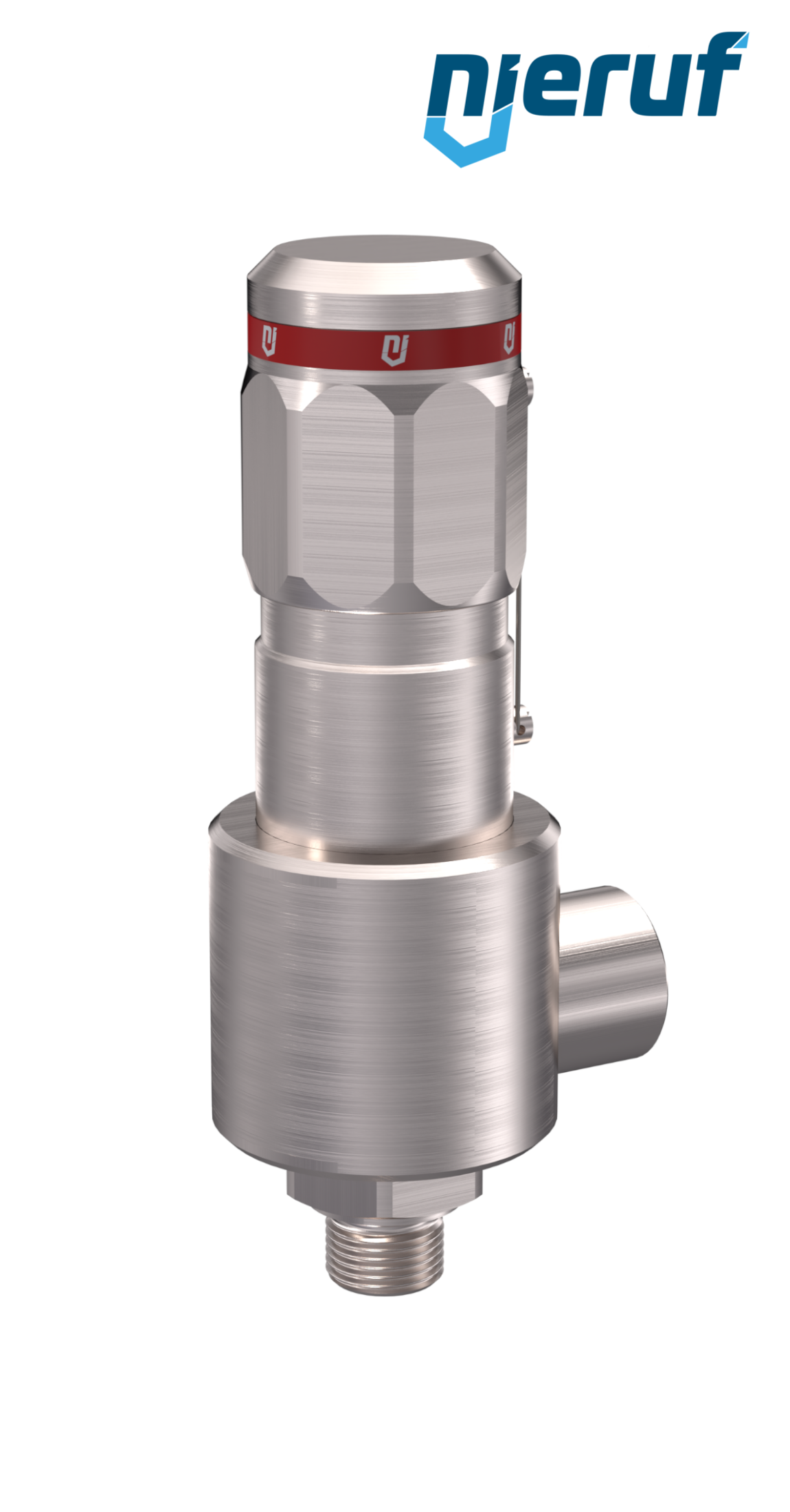

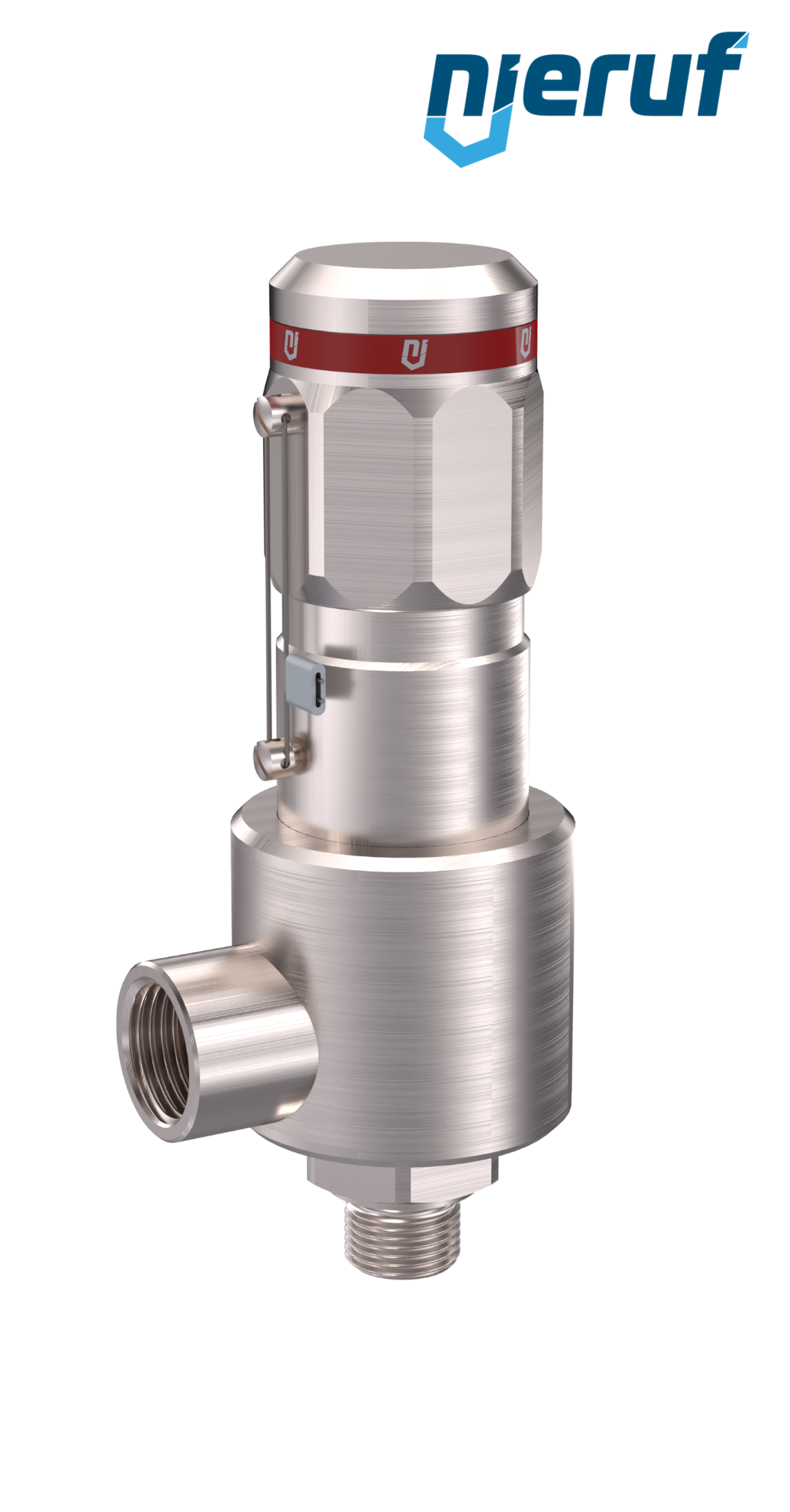

safety-valve DN6 1/2" m x 1/2" fm NPT, SV15, MD/ PEEK, without lifting device, angle-type, 150,0 - 500,0 bar
- Lead time
- 3 - 5 working days
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
safety-valve DN6 1/2" m x 1/2" fm NPT, SV15, MD/ PEEK, without lifting device, angle-type, 150,0 - 500,0 bar
safety-valve DN6 1/2" m x 1/2" fm with NPT-thread SV15 for gaseous media made of stainless steel seal MD/ PEEK pressure 150,0 - 500,0 bar without lifting device angle-type
| product | High-pressure safety valve |
|---|---|
| type | SV15 |
| manufacturer | NieRuf |
| diameter | DN6 1/2" m x 1/2" fm |
| d0 | 3,0 mm |
| connection | male screw threaded NPT |
| seal | MD/ PEEK |
| media | gaseous media |
| temperature | - 60°C up to + 180°C |
| set pressure | 150,0 - 500,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | without lifting device |
| type test approval | TUV = D/G 2100 / EG = S/G |
| requirements | acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| product feature 1 | For compressed air and other neutral and non-neutral gaseous media, not back pressure compensated. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety-valve DN6 1/2" m x 1/2" fm NPT, SV15, MD/ PEEK, without lifting device, angle-type, 150,0 - 500,0 bar
Article no.
: SV15021103.3
product:
High-pressure safety valve
type:
SV15
manufacturer:
NieRuf
diameter:
DN6 1/2" m x 1/2" fm
d0:
3,0 mm
connection:
male screw threaded NPT
seal:
MD/ PEEK
media:
gaseous media
temperature:
- 60°C up to + 180°C
set pressure:
150,0 - 500,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
without lifting device
type test approval:
TUV = D/G 2100 / EG = S/G
requirements:
acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
product feature 1:
For compressed air and other neutral and non-neutral gaseous media, not back pressure compensated.
