SV15311005.0

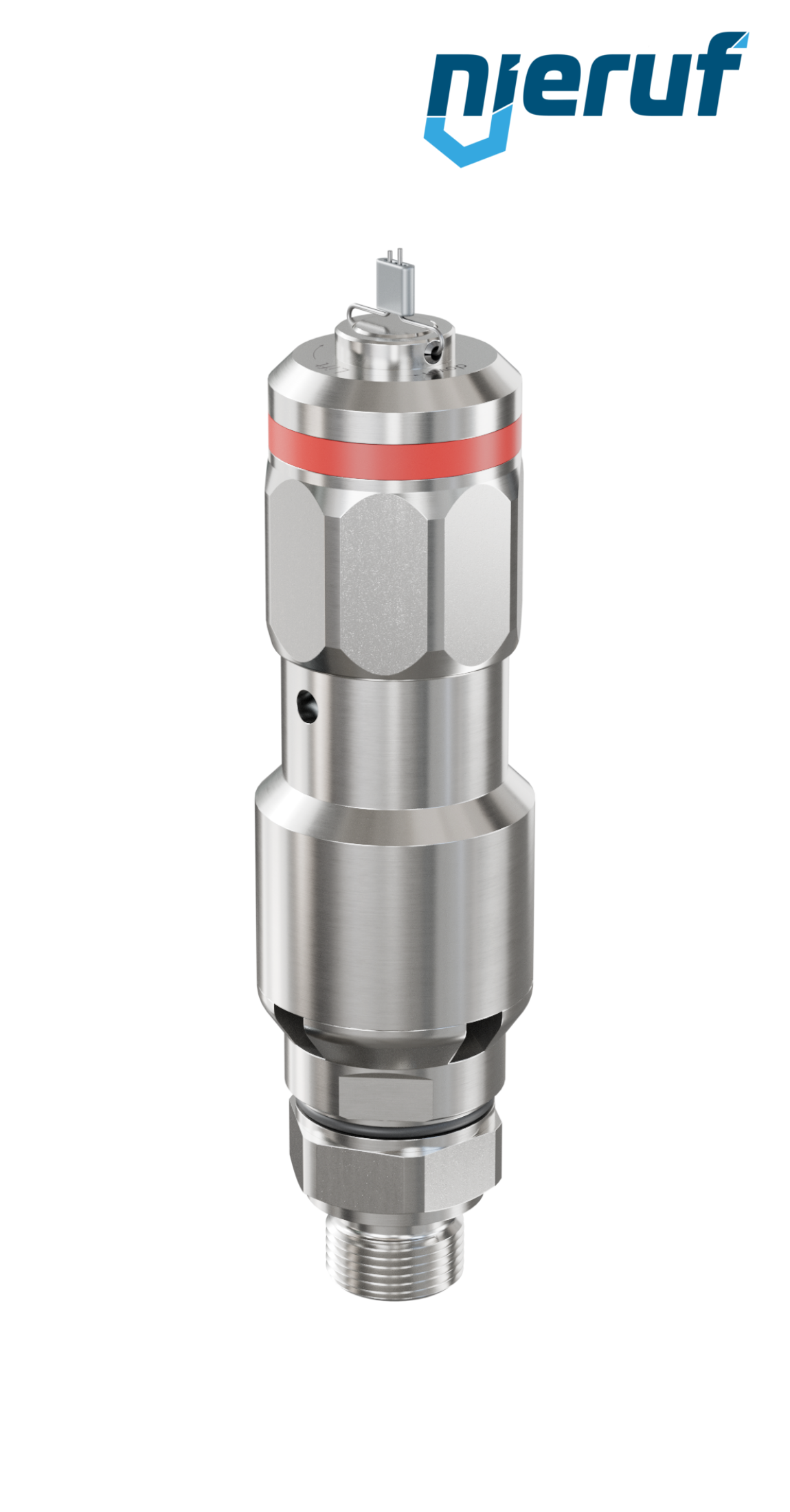

safety-valve DN15 1" SV15, MD / PAI, twist-type lifting mechanism, atmospheric discharge, 50,0 - 180,0 bar
- Lead time
- 3 - 5 working days
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
Downloads
safety-valve DN15 1" SV15, MD / PAI, twist-type lifting mechanism, atmospheric discharge, 50,0 - 180,0 bar
safety-valve DN15 1" SV15 for gaseous media made of stainless steel seal MD / PAI pressure 50,0 - 180,0 bar twist-type lifting mechanism atmospheric discharge
| product | High-pressure safety valve |
|---|---|
| type | SV15 |
| manufacturer | NieRuf |
| diameter | DN15 1" |
| d0 | 9,0 mm |
| connection | male screw threaded BSP-P |
| seal | MD / PAI |
| media | gaseous media |
| temperature | - 60°C up to + 200°C |
| set pressure | 50,0 - 180,0 bar |
| design | atmospheric discharge |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G 2100 / EG = S/G |
| requirements | acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| product feature 1 | Cylindrical design, free blowing off, For compressed air and neutral, non-toxic and non-flammable gaseous media which may be blown off freely into the environment. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety-valve DN15 1" SV15, MD / PAI, twist-type lifting mechanism, atmospheric discharge, 50,0 - 180,0 bar
Article no.
: SV15311005.0
product:
High-pressure safety valve
type:
SV15
manufacturer:
NieRuf
diameter:
DN15 1"
d0:
9,0 mm
connection:
male screw threaded BSP-P
seal:
MD / PAI
media:
gaseous media
temperature:
- 60°C up to + 200°C
set pressure:
50,0 - 180,0 bar
design:
atmospheric discharge
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G 2100 / EG = S/G
requirements:
acc. EN ISO 4126-1, DGR 2014/68/EU, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
product feature 1:
Cylindrical design, free blowing off, For compressed air and neutral, non-toxic and non-flammable gaseous media which may be blown off freely into the environment.
