SV13110102
safety valve 3/8" m NPT x 3/8" fm SV13, stainless steel EPDM, with lever
- Lead time
- 3 - 5 working days
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

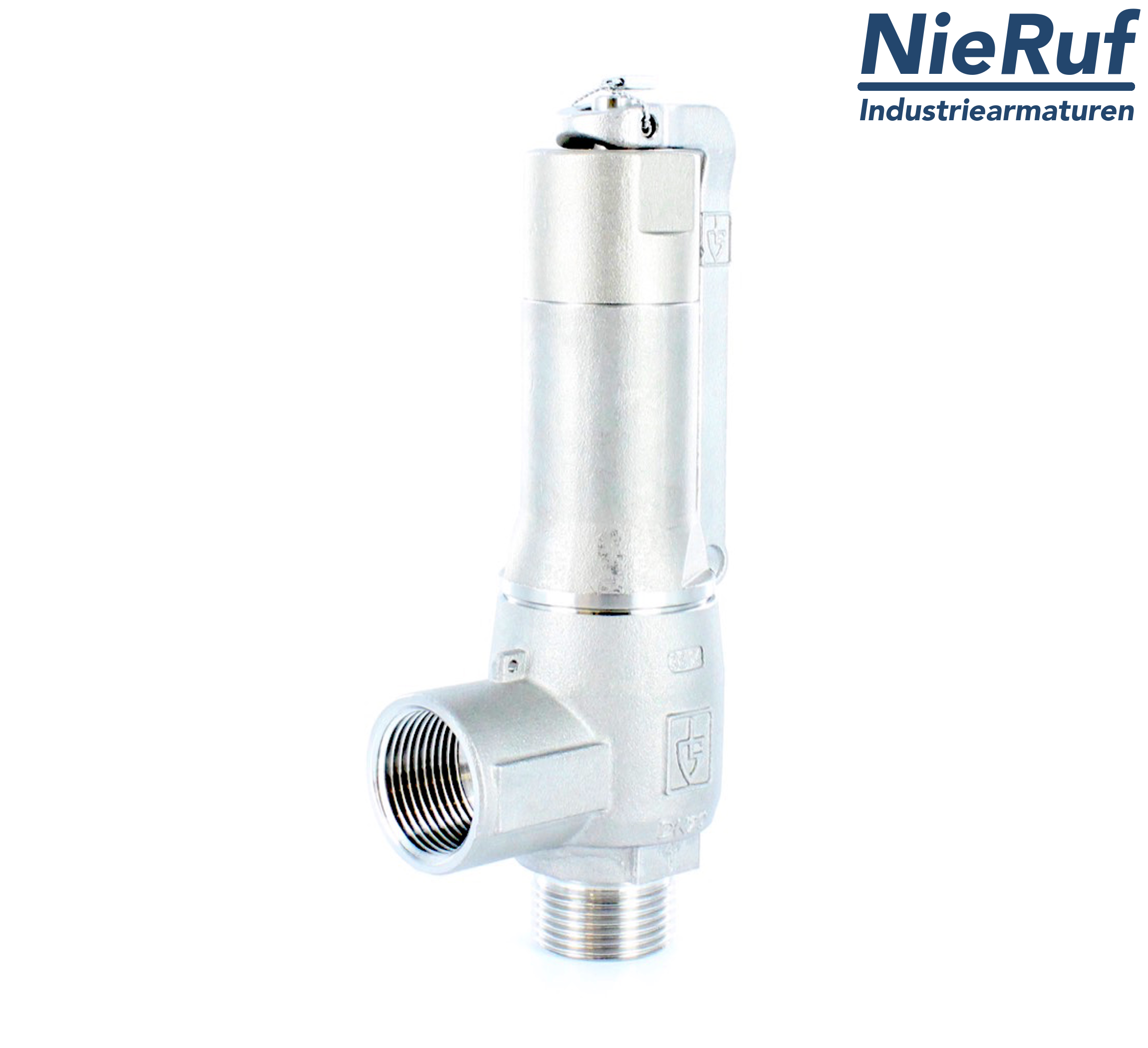

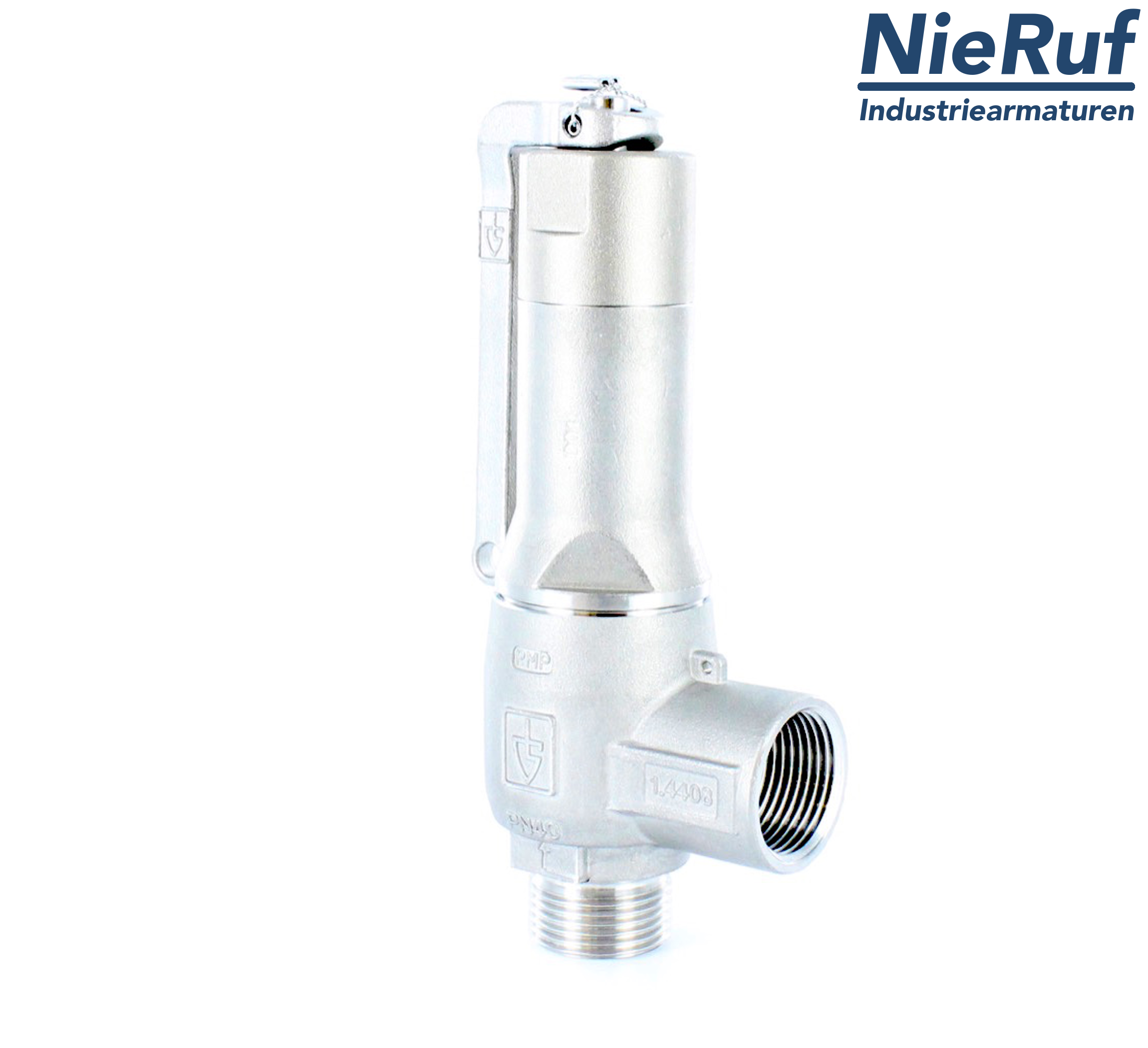

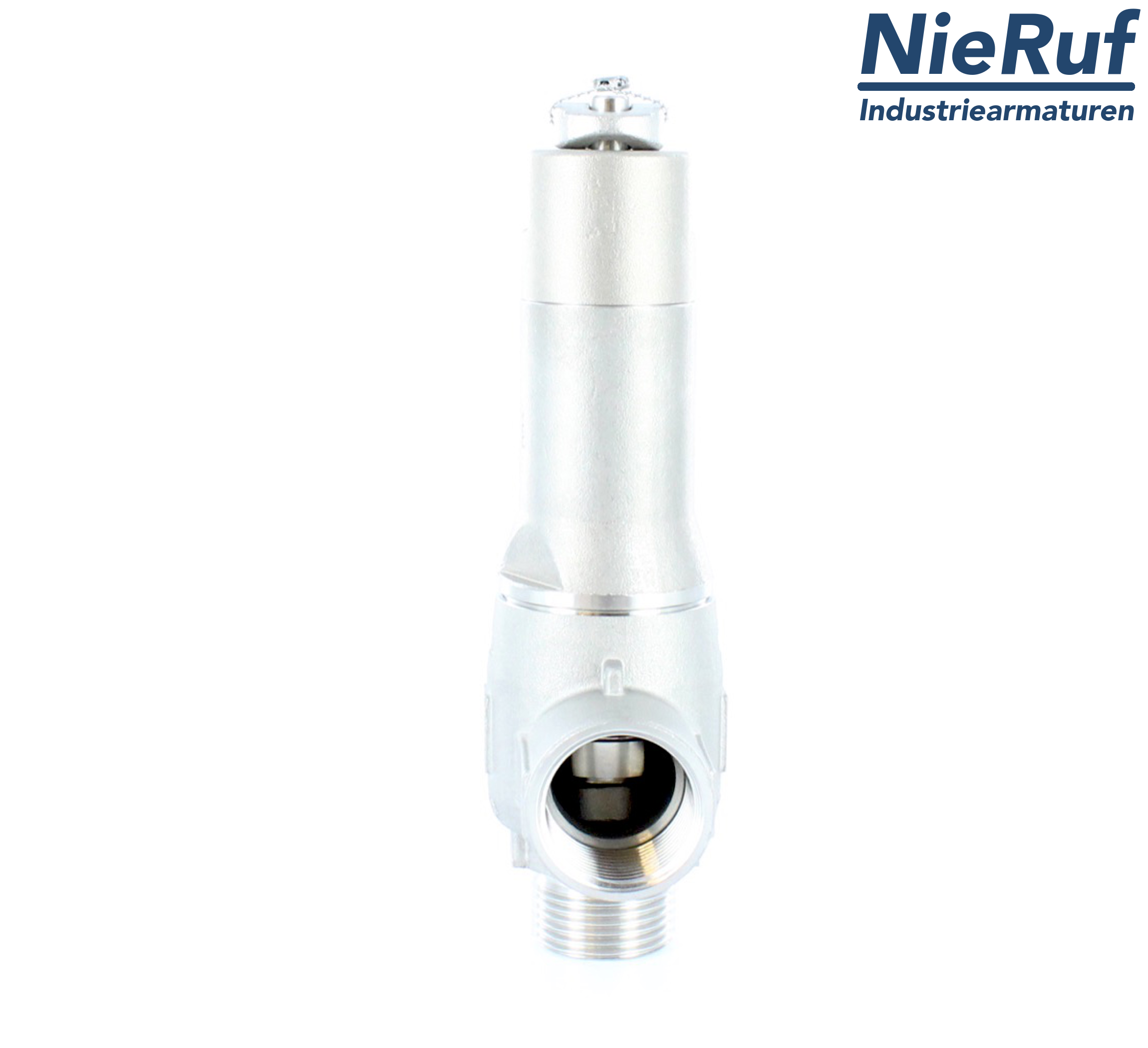

safety valve 3/8" m NPT x 3/8" fm SV13, stainless steel EPDM, with lever
safety valve 3/8" m NPT x 3/8" fm SV13 for liquid and gaseous media made of stainless steel seal EPDM pressure 0,2 - 25,0 bar with lever
| product | safety valve |
|---|---|
| type | SV13 |
| manufacturer | NieRuf |
| diameter | 3/8" m NPT x 3/8" fm |
| d0 | 9,0 mm |
| connection | male screw threaded NPT |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | - 50°C up to + 150°C |
| set pressure | 0,2 - 25,0 bar |
| design | angle-type |
| material | stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TÜV-SV-2067 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/8" m NPT x 3/8" fm SV13, stainless steel EPDM, with lever
Article no.
: SV13110102
product:
safety valve
type:
SV13
manufacturer:
NieRuf
diameter:
3/8" m NPT x 3/8" fm
d0:
9,0 mm
connection:
male screw threaded NPT
seal:
EPDM
media:
liquid and gaseous media
temperature:
- 50°C up to + 150°C
set pressure:
0,2 - 25,0 bar
design:
angle-type
material:
stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TÜV-SV-2067 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
