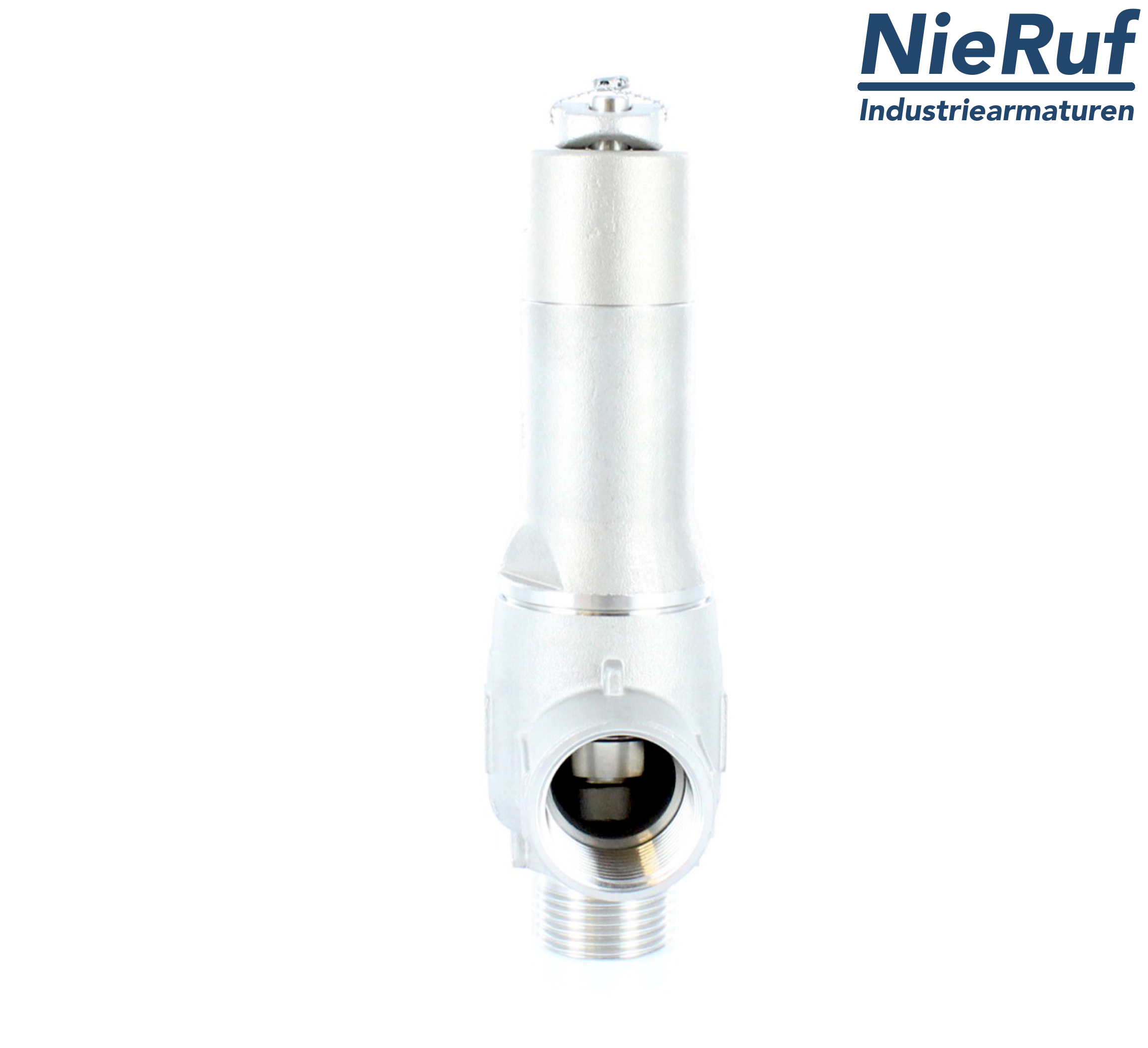

safety valve 3/8" m x 3/8" fm SV13 for liquid and gaseous media made of stainless steel seal EPDM pressure 0,2 - 25,0 bar without lever
| product | safety valve |
|---|---|
| type | SV13 |
| manufacturer | NieRuf |
| diameter | 3/8" m x 3/8" fm |
| d0 | 9,0 mm |
| connection | male screw threaded BSP-P |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | - 50°C up to + 150°C |
| set pressure | 0,2 - 25,0 bar |
| design | angle-type |
| material | stainless steel |
| lifting | without lever |
| type test approval | TÜV-SV-2067 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | without bellows |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 3/8" m x 3/8" fm SV13, stainless steel EPDM, without lever
Article no.
: SV13000102
product:
safety valve
type:
SV13
manufacturer:
NieRuf
diameter:
3/8" m x 3/8" fm
d0:
9,0 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
liquid and gaseous media
temperature:
- 50°C up to + 150°C
set pressure:
0,2 - 25,0 bar
design:
angle-type
material:
stainless steel
lifting:
without lever
type test approval:
TÜV-SV-2067 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
