SV13000405
safety valve 1" m x 1" fm SV13, stainless steel NBR, without lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

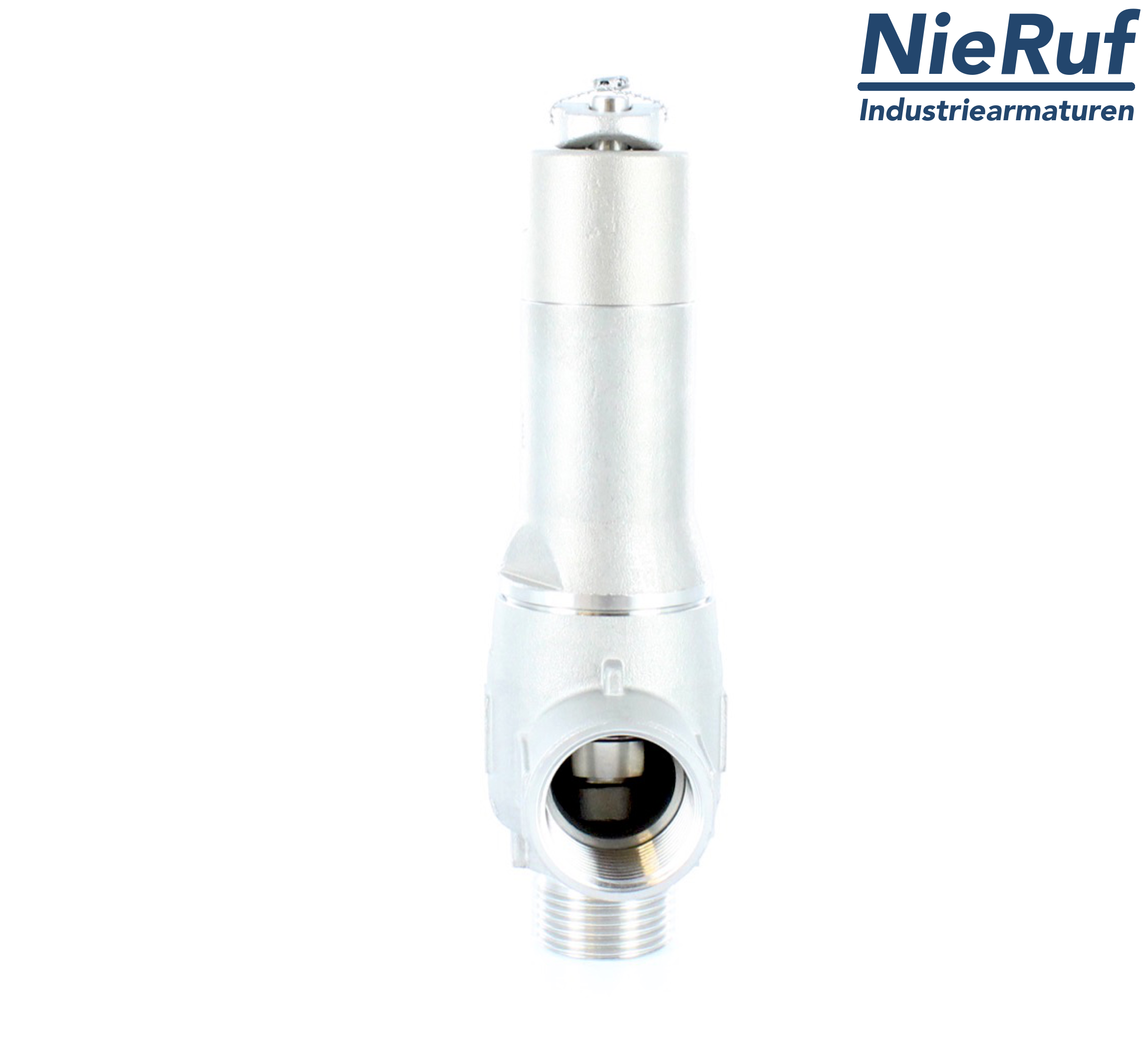

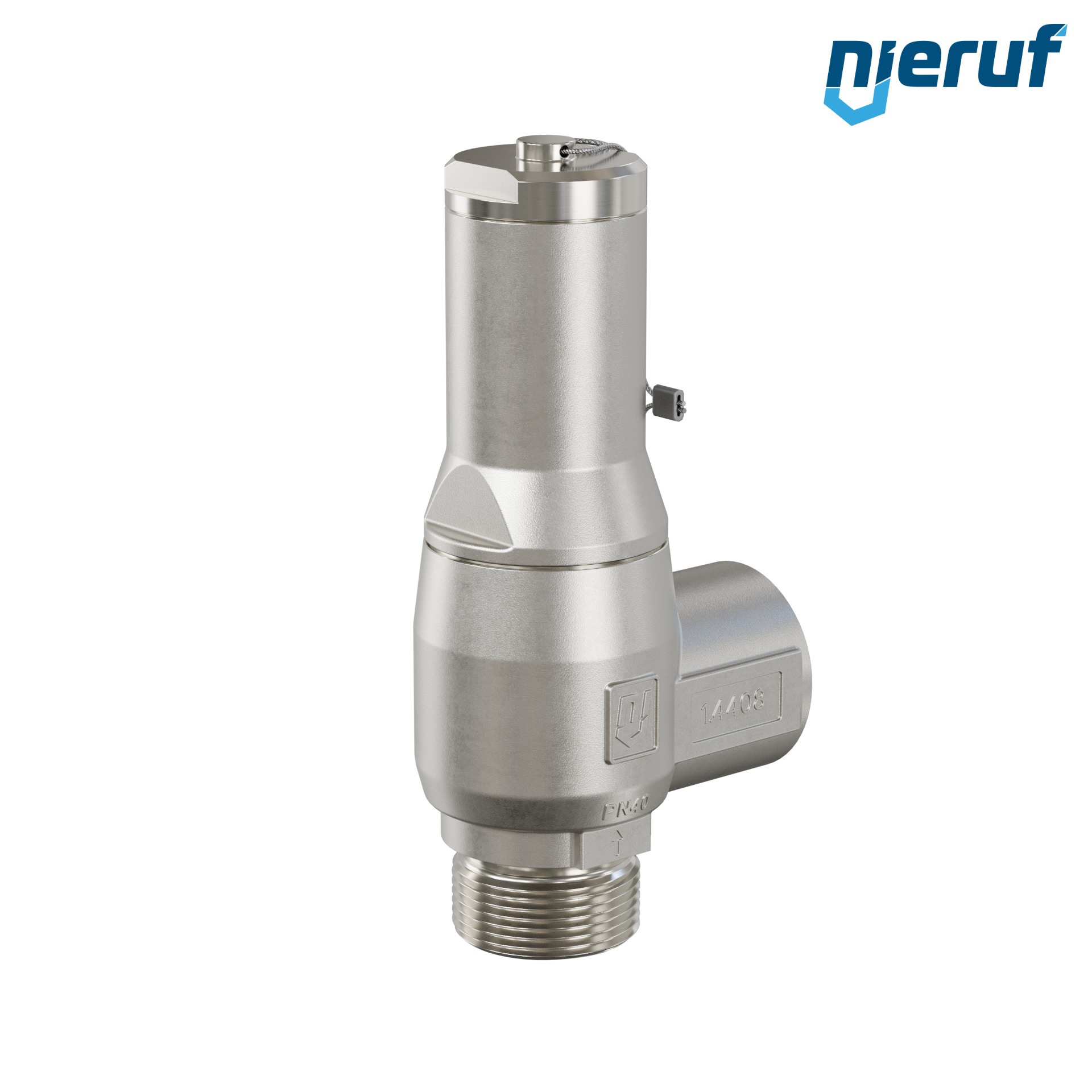

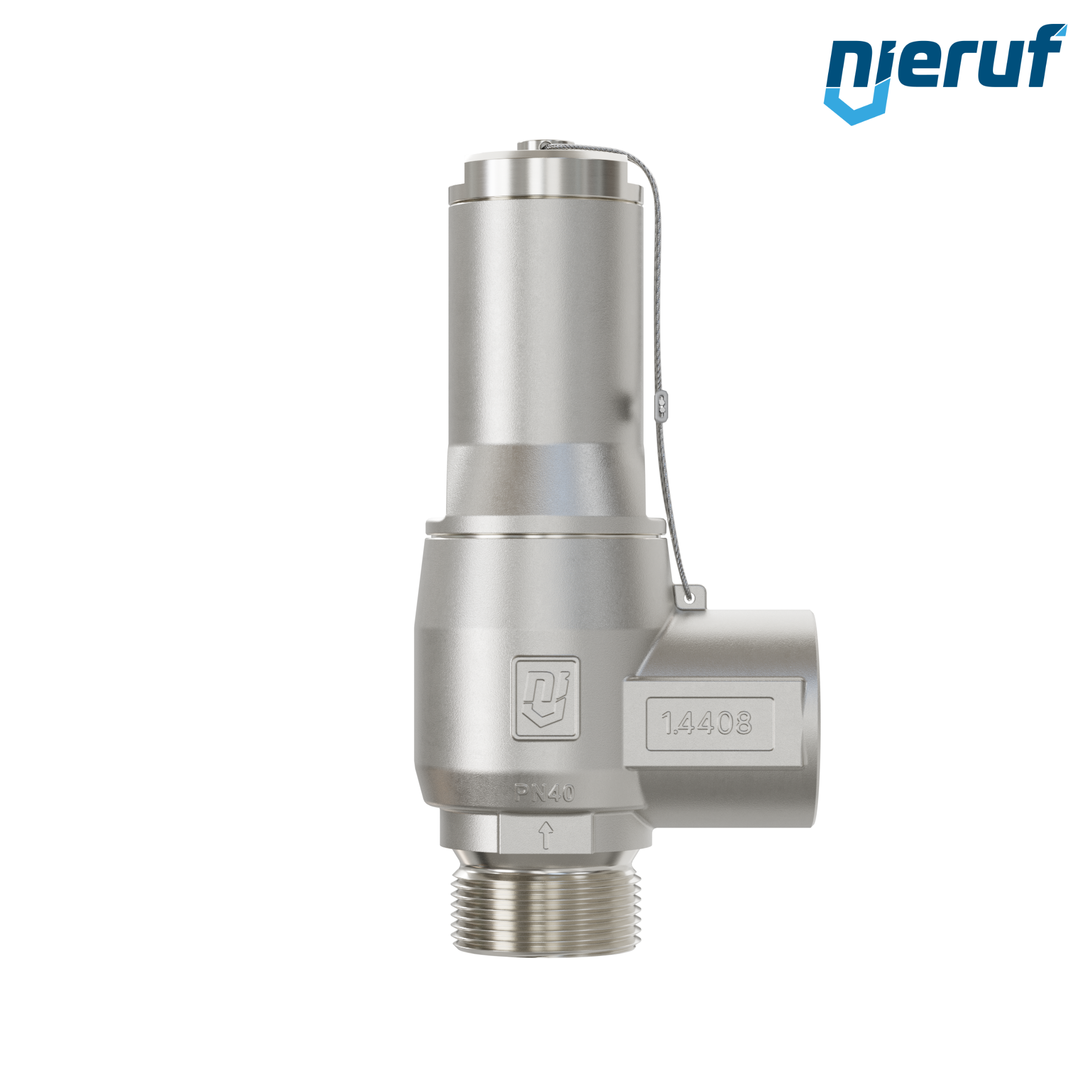

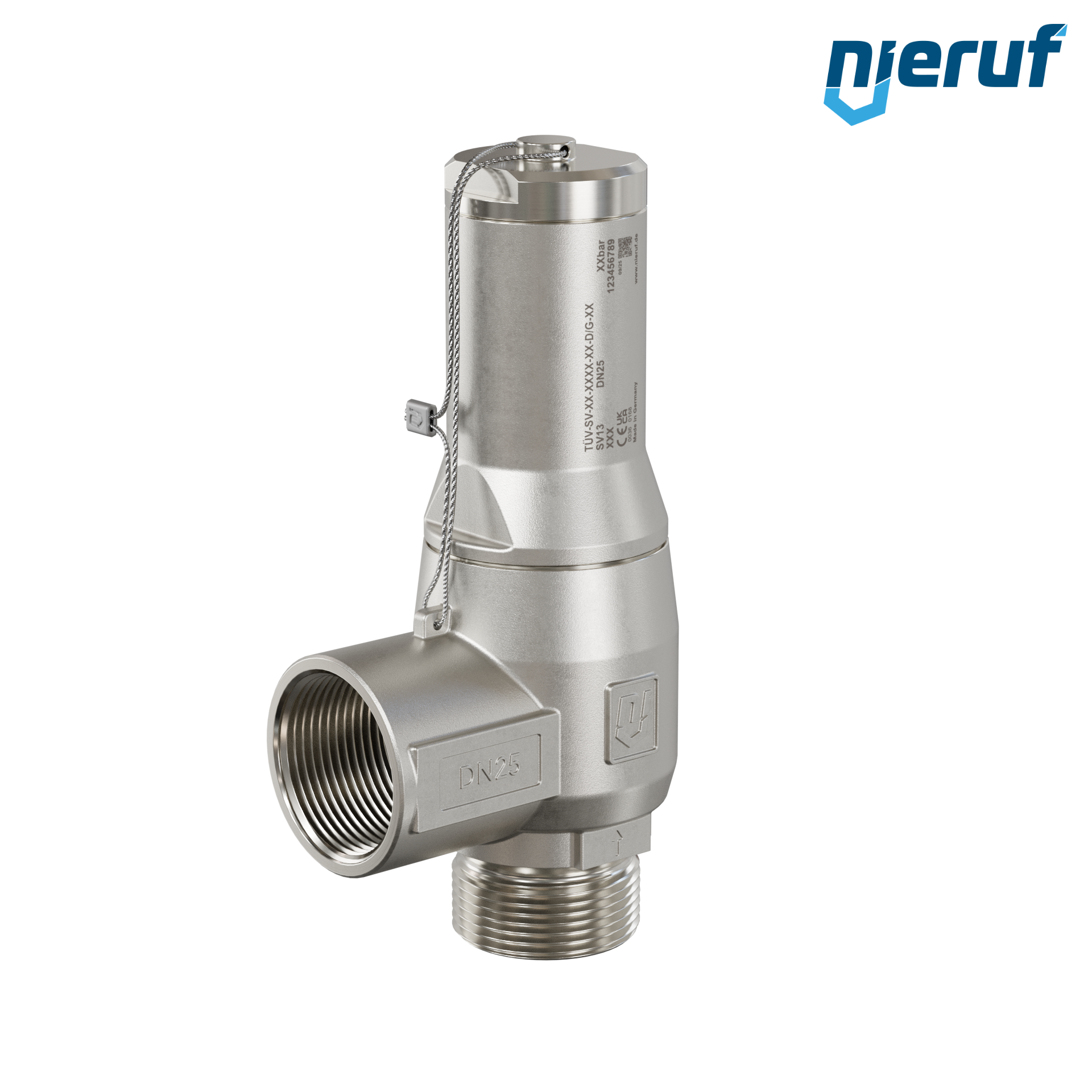

safety valve 1" m x 1" fm SV13, stainless steel NBR, without lever
safety valve 1" m x 1" fm SV13 for liquid and gaseous media made of stainless steel seal NBR pressure 0,2 - 25,0 bar without lever
| product | safety valve |
|---|---|
| type | SV13 |
| manufacturer | NieRuf |
| diameter | 1" m x 1" fm |
| d0 | 18,0 mm |
| connection | male screw threaded BSP-P |
| seal | NBR |
| media | liquid and gaseous media |
| temperature | - 30°C up to + 130°C |
| set pressure | 0,2 - 25,0 bar |
| design | angle-type |
| material | stainless steel 1.4408 / CF8M |
| lifting | without lever |
| type test approval | TÜV-SV-2067 D/G/F |
| requirements | acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m x 1" fm SV13, stainless steel NBR, without lever
Article no.
: SV13000405
product:
safety valve
type:
SV13
manufacturer:
NieRuf
diameter:
1" m x 1" fm
d0:
18,0 mm
connection:
male screw threaded BSP-P
seal:
NBR
media:
liquid and gaseous media
temperature:
- 30°C up to + 130°C
set pressure:
0,2 - 25,0 bar
design:
angle-type
material:
stainless steel 1.4408 / CF8M
lifting:
without lever
type test approval:
TÜV-SV-2067 D/G/F
requirements:
acc. DIN ISO 4126-1, DGR 2014/68/EU, VdTÜV-leaflet AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing. The safety feature of the valve is also proved and confirmed at horizontal position.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
Equipment
pipe bend (welded) 90° 33,7 x 2,0 stainless steel 1.4571
Lead time: in stock
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Lead time: 3 - 5 working days
