SV10110305

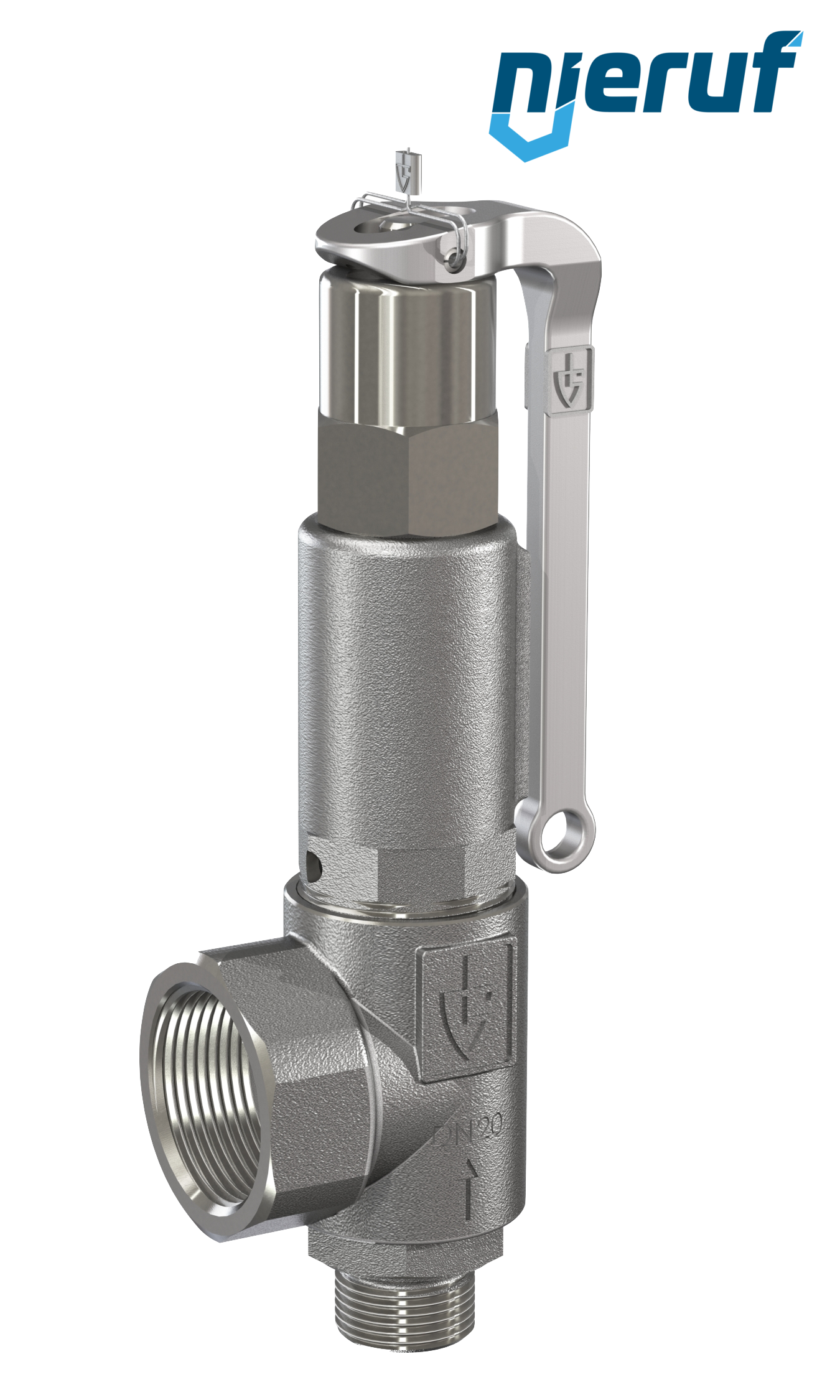

safety valve 1" m x 1 1/2" fm SV10 gaseous media, stainless steel PTFE, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve 1" m x 1 1/2" fm SV10 gaseous media, stainless steel PTFE, with lever
safety valve 1" m x 1 1/2" fm male screw threaded BSP-P SV10 for gaseous media made of stainless steel seal PTFE set pressure 0,5 - 70,0 bar with lever
| product | safety valve |
|---|---|
| type | SV10 |
| manufacturer | NieRuf |
| diameter | 1" m x 1 1/2" fm |
| d0 | 23,0 mm |
| connection | male screw threaded BSP-P |
| seal | PTFE |
| media | gaseous media |
| temperature | -60°C up to +225°C |
| set pressure | 0,5 - 70,0 bar |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | with bellows |
| product feature 2 | for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m x 1 1/2" fm SV10 gaseous media, stainless steel PTFE, with lever
Article no.
: SV10110305
product:
safety valve
type:
SV10
manufacturer:
NieRuf
diameter:
1" m x 1 1/2" fm
d0:
23,0 mm
connection:
male screw threaded BSP-P
seal:
PTFE
media:
gaseous media
temperature:
-60°C up to +225°C
set pressure:
0,5 - 70,0 bar
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
with bellows
product feature 2:
for neutral and non-neutral media and/or counter pressure up to 4 bar. Spring, moving parts and the environment are protected from being affected by the medium.
