SV09110205

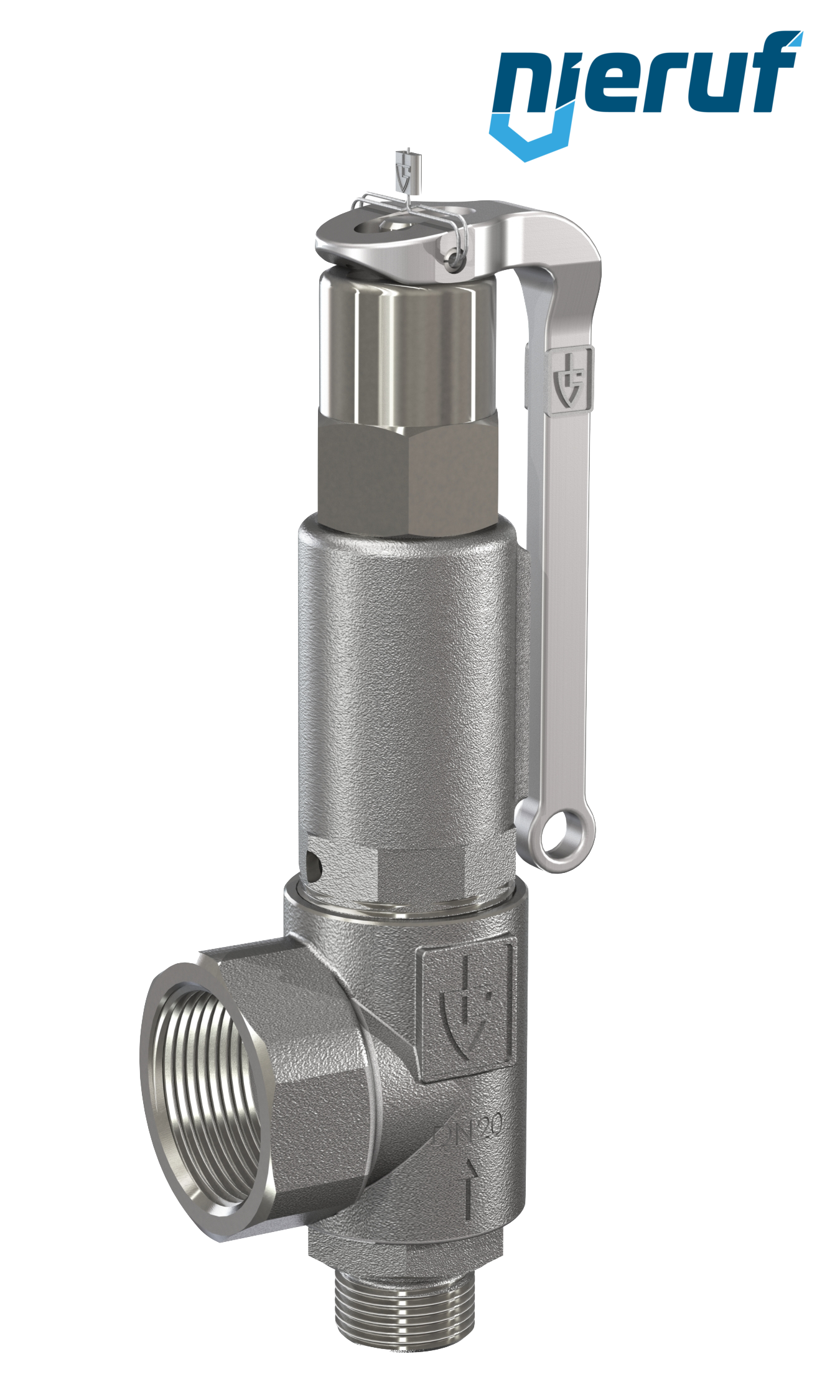

safety valve 1" m x 1 1/2" fm SV09 neutral gaseous media, stainless steel FKM, with lever
- Lead time
- 3 - 5 working days
Equipment
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you
safety valve 1" m x 1 1/2" fm SV09 neutral gaseous media, stainless steel FKM, with lever
safety valve 1" m x 1 1/2" fm made ofsengewinde SV09 for neutral gaseous media made of stainless steel seal FKM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
| product | safety valve |
|---|---|
| type | SV09 |
| manufacturer | NieRuf |
| diameter | 1" m x 1 1/2" fm |
| d0 | 23,0 mm |
| connection | male screw threaded BSP-P |
| seal | FKM |
| media | neutral gaseous media |
| temperature | -20°C up to +200°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" m x 1 1/2" fm SV09 neutral gaseous media, stainless steel FKM, with lever
Article no.
: SV09110205
product:
safety valve
type:
SV09
manufacturer:
NieRuf
diameter:
1" m x 1 1/2" fm
d0:
23,0 mm
connection:
male screw threaded BSP-P
seal:
FKM
media:
neutral gaseous media
temperature:
-20°C up to +200°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
