SV09100105
safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel EPDM, with lever
- Lead time
- 3 - 5 working days
Equipment
hexagon nipple 1" inch male stainless steel 316
€5.36 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
Certificates
Questions about the article?
Our employee Richie Rost
will be happy to help you

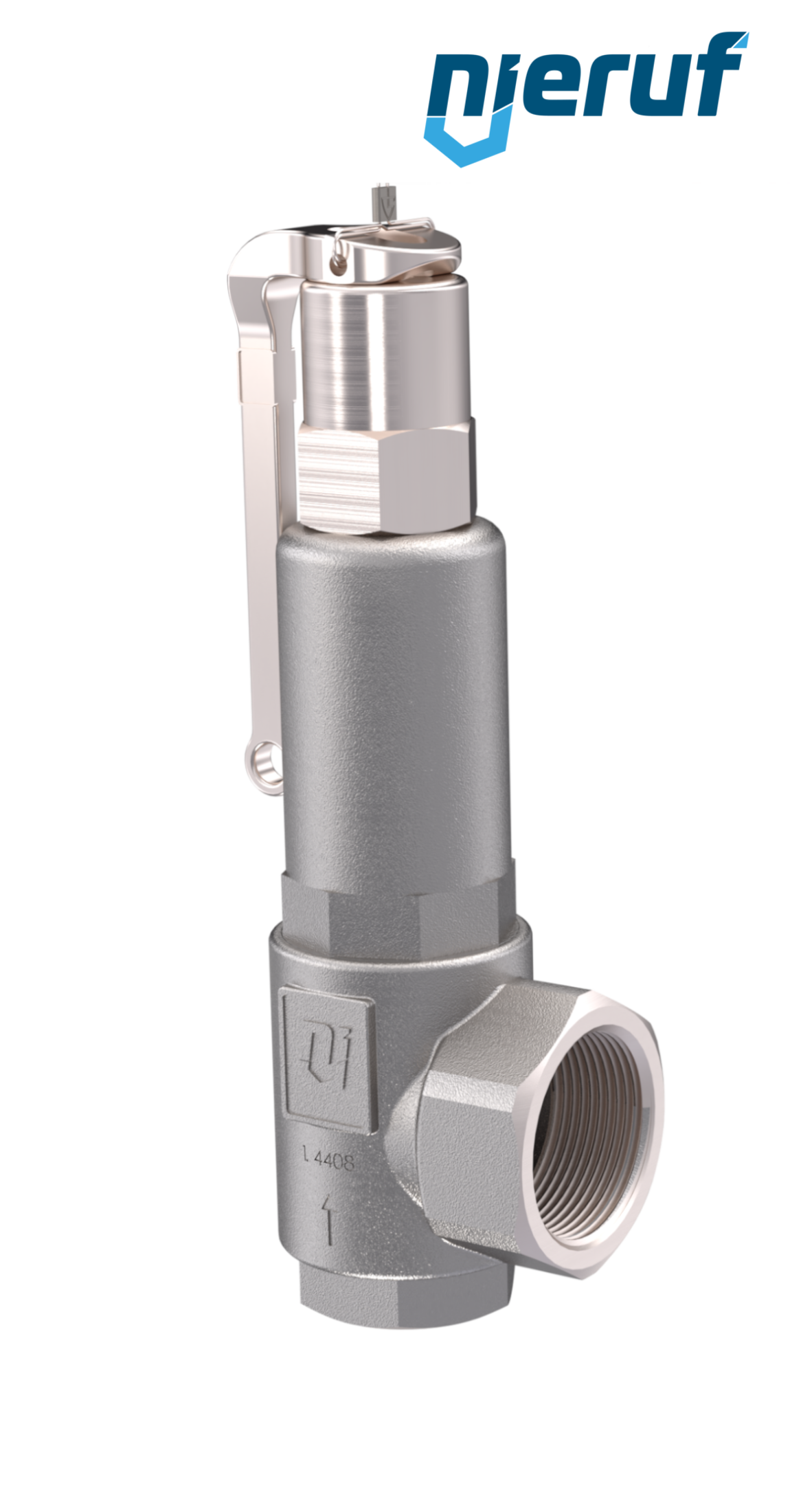

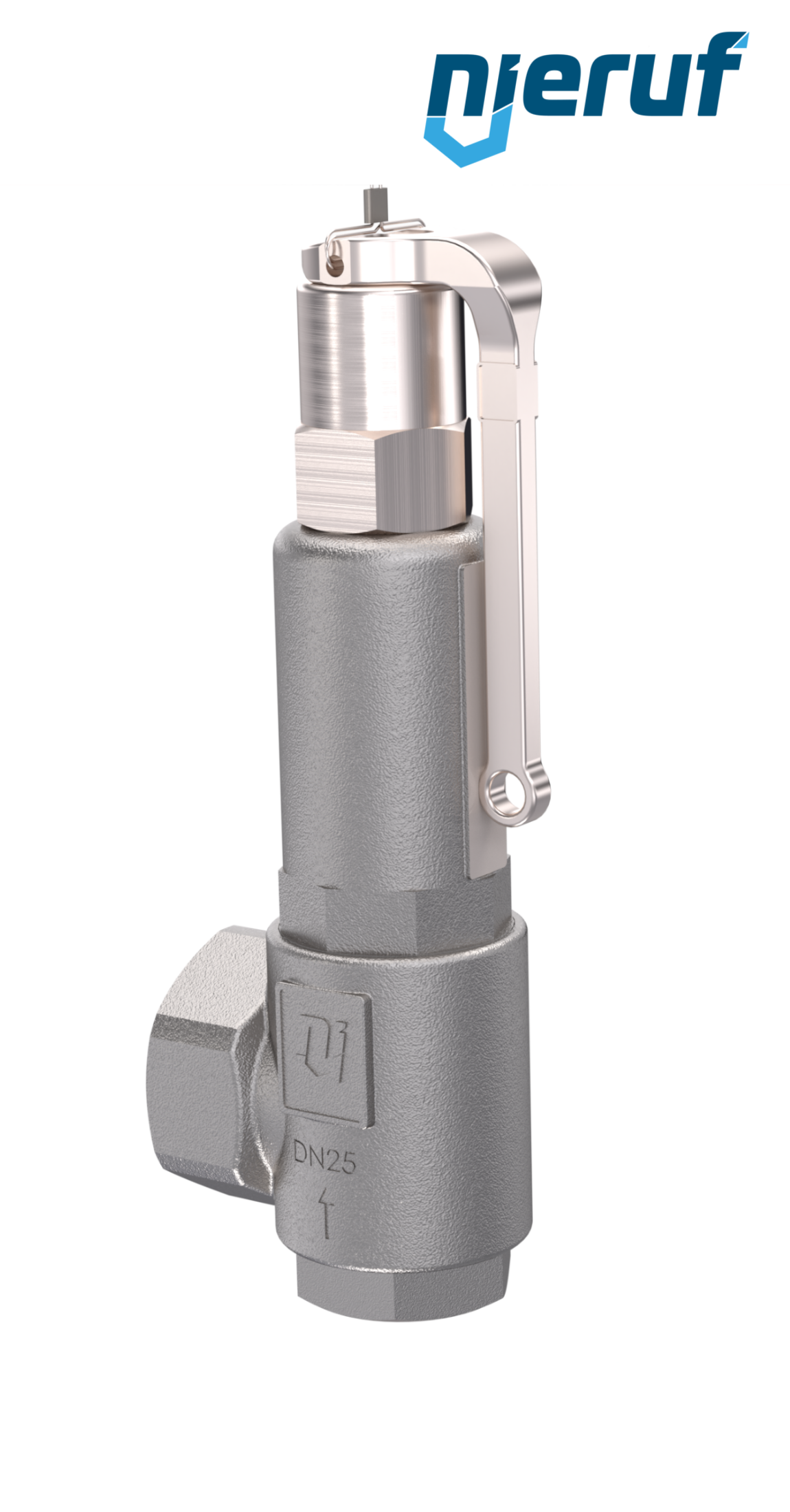

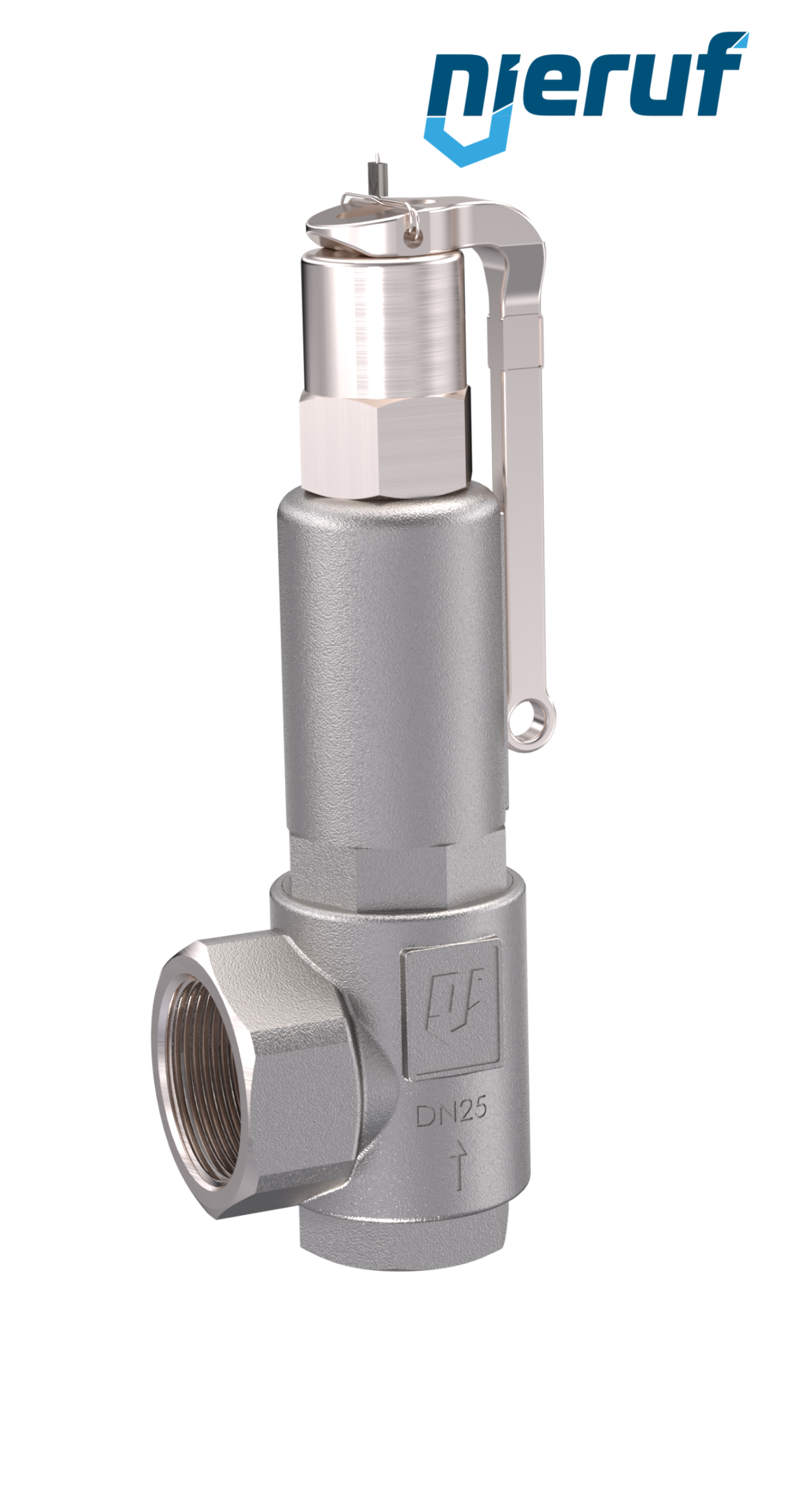

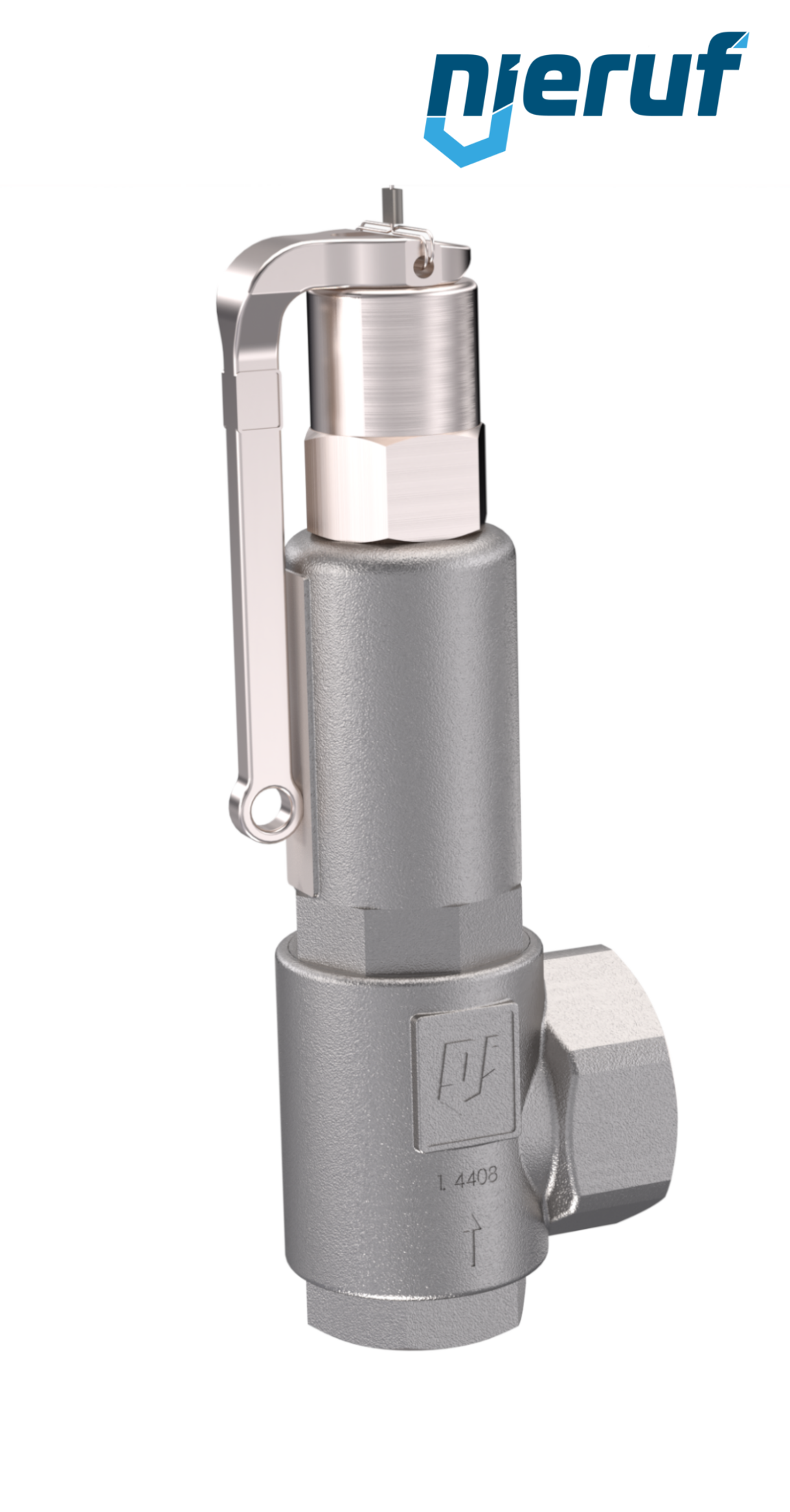

safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel EPDM, with lever
safety valve 1" x 1 1/2" fm mit with lever SV09 for neutral gaseous media made of stainless steel seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
| product | safety valve |
|---|---|
| type | SV09 |
| manufacturer | NieRuf |
| diameter | 1" x 1 1/2" fm |
| d0 | 23,0 mm |
| connection | Female screw threaded BSP-P |
| seal | EPDM |
| media | neutral gaseous media |
| temperature | -40°C to +170°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M |
| lifting | with lever |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 (on request) |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1" x 1 1/2" fm SV09 neutral gaseous media, stainless steel EPDM, with lever
Article no.
: SV09100105
product:
safety valve
type:
SV09
manufacturer:
NieRuf
diameter:
1" x 1 1/2" fm
d0:
23,0 mm
connection:
Female screw threaded BSP-P
seal:
EPDM
media:
neutral gaseous media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel 1.4404 / 316 L & stainless steel 1.4408 / CF8M
lifting:
with lever
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3 (on request)
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
