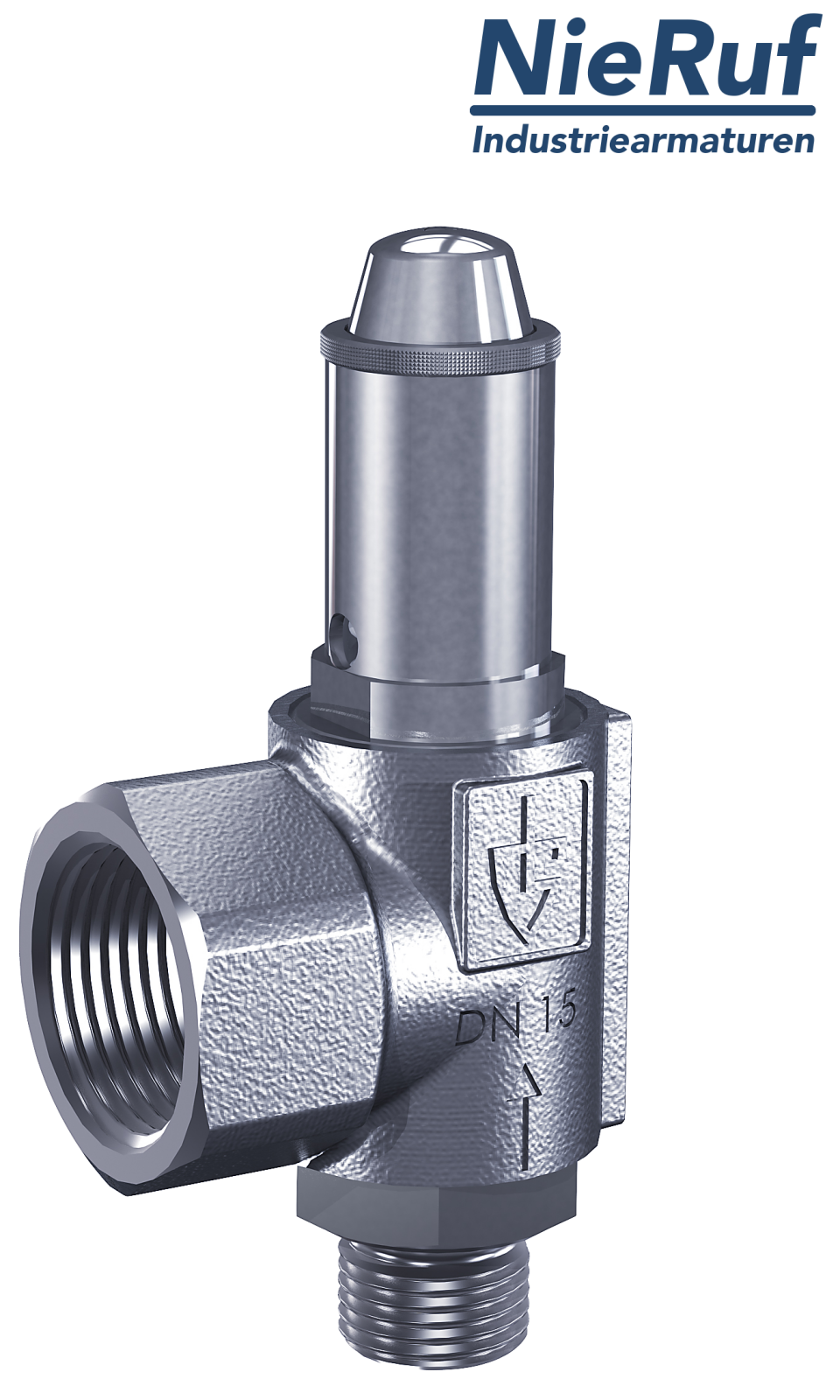

safety valve 1 1/4" male screw threaded BSP-P SV09 for neutral gaseous media made of stainless steel seal EPDM set pressure 0,5 - 25,0 bar- higher pressures possible in PTFE version
| product | safety valve |
|---|---|
| type | SV09 |
| manufacturer | NieRuf |
| diameter | 1 1/4" m x 2" fm |
| d0 | 30,3 mm |

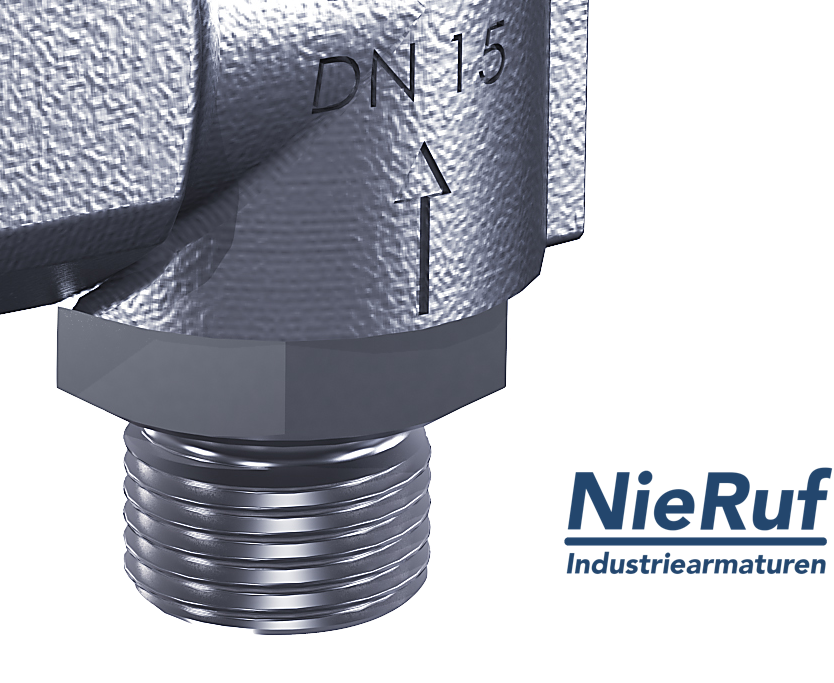

| connection | male screw threaded BSP-P |
| seal | EPDM |
| media | neutral gaseous media |
| temperature | -40°C to +170°C |
| set pressure | 0,5 - 25,0 bar- higher pressures possible in PTFE version |
| design | angle-type |
| material | stainless steel |

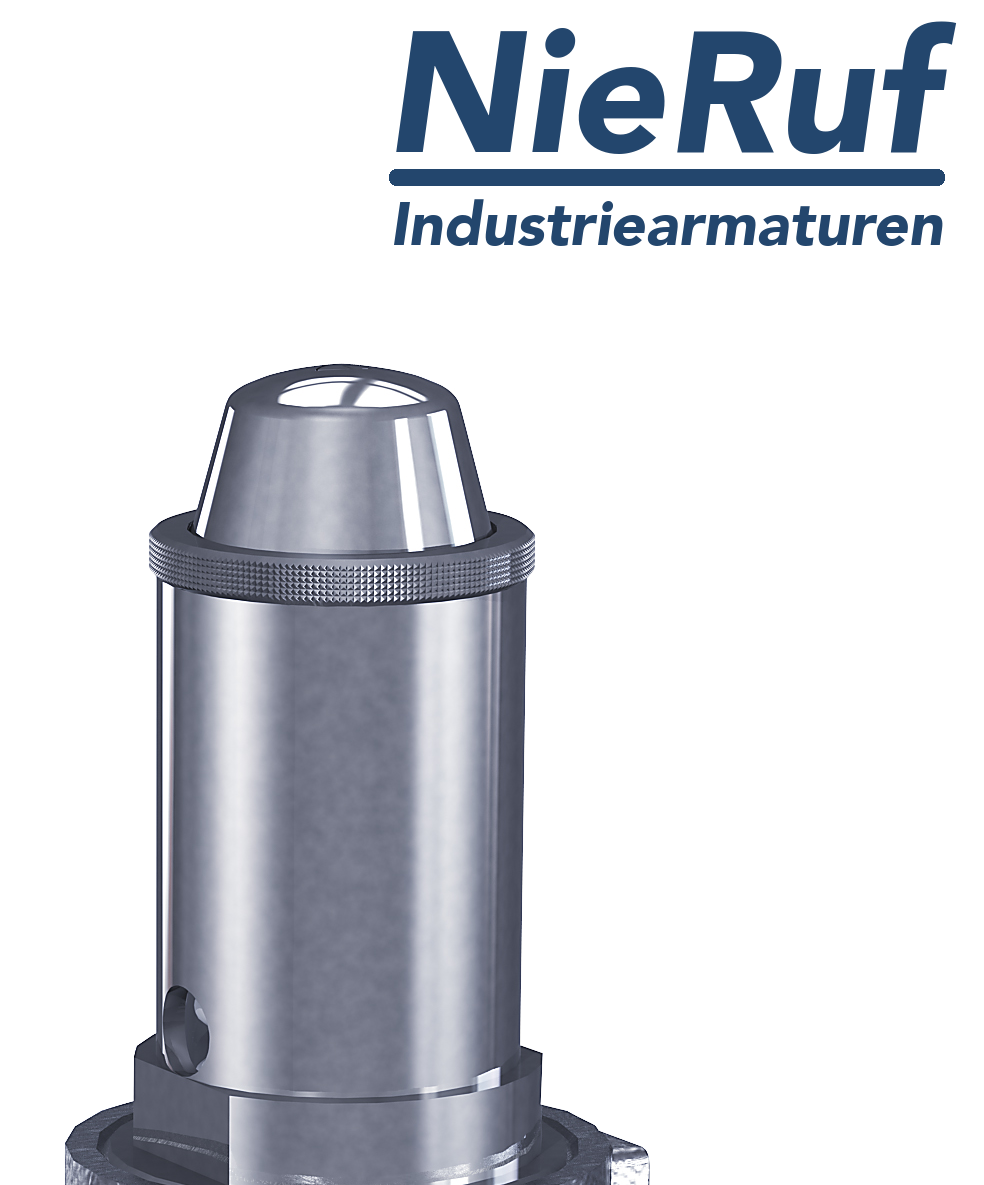

| lifting | twist-type lifting mechanism |
| type test approval | TUV = D/G | EG = S/G |
| requirements | acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2 |
| installation position | Safety valves with spring to be installed vertical with spring bonnet upwards standing. |
| SIL - safety integrity level | SIL 3 |
| product feature 1 | without bellows |
| product feature 2 | for neutral media without counter pressure. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
safety valve 1 1/4" m x 2" fm SV09 neutral gaseous media, stainless steel EPDM
Article no.
: SV09010106
product:
safety valve
type:
SV09
manufacturer:
NieRuf
diameter:
1 1/4" m x 2" fm
d0:
30,3 mm
connection:
male screw threaded BSP-P
seal:
EPDM
media:
neutral gaseous media
temperature:
-40°C to +170°C
set pressure:
0,5 - 25,0 bar- higher pressures possible in PTFE version
design:
angle-type
material:
stainless steel
lifting:
twist-type lifting mechanism
type test approval:
TUV = D/G | EG = S/G
requirements:
acc. EN ISO 4126-1, VdTÜV-leaflet 100, AD2000-A2
installation position:
Safety valves with spring to be installed vertical with spring bonnet upwards standing.
SIL - safety integrity level:
SIL 3
product feature 1:
without bellows
product feature 2:
for neutral media without counter pressure.
reducing bush (welded) 42,4 x 2,0 to 33,7 x 2,0 stainless steel 1.4571
Delivery time: 3 - 5 working days
