DM15020107
precision-pressure reducing valve with secondary venting 1 1/2" inch DM15 stainless steel EPDM 0.5 - 15 bar
- Lead time
- 3 - 5 working days
Equipment
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
€103.89 VAT included.
Wall mount WH01 for pressure reducing valve DM14 and DM15 DN40 / DN50
€40.94 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

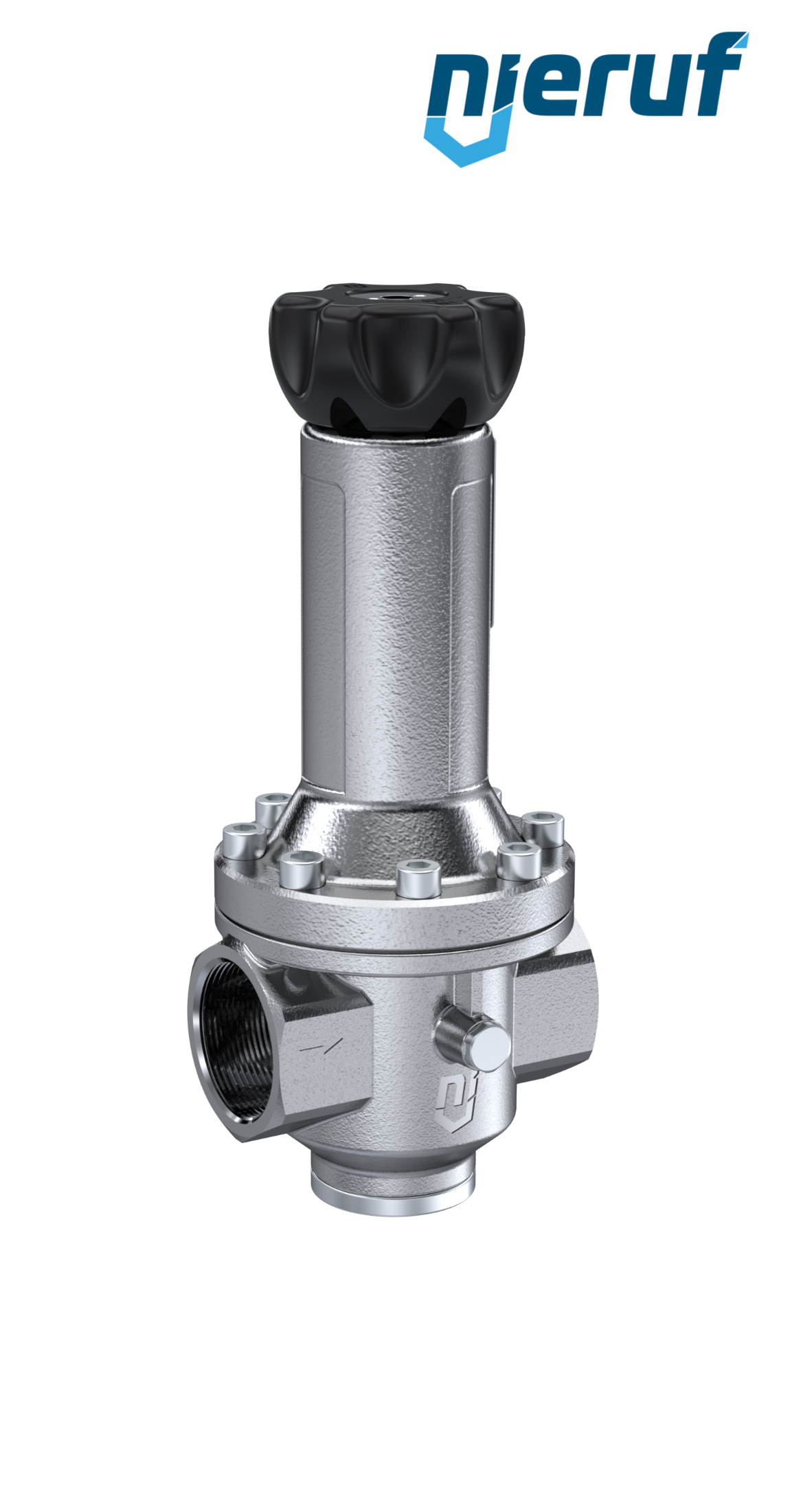

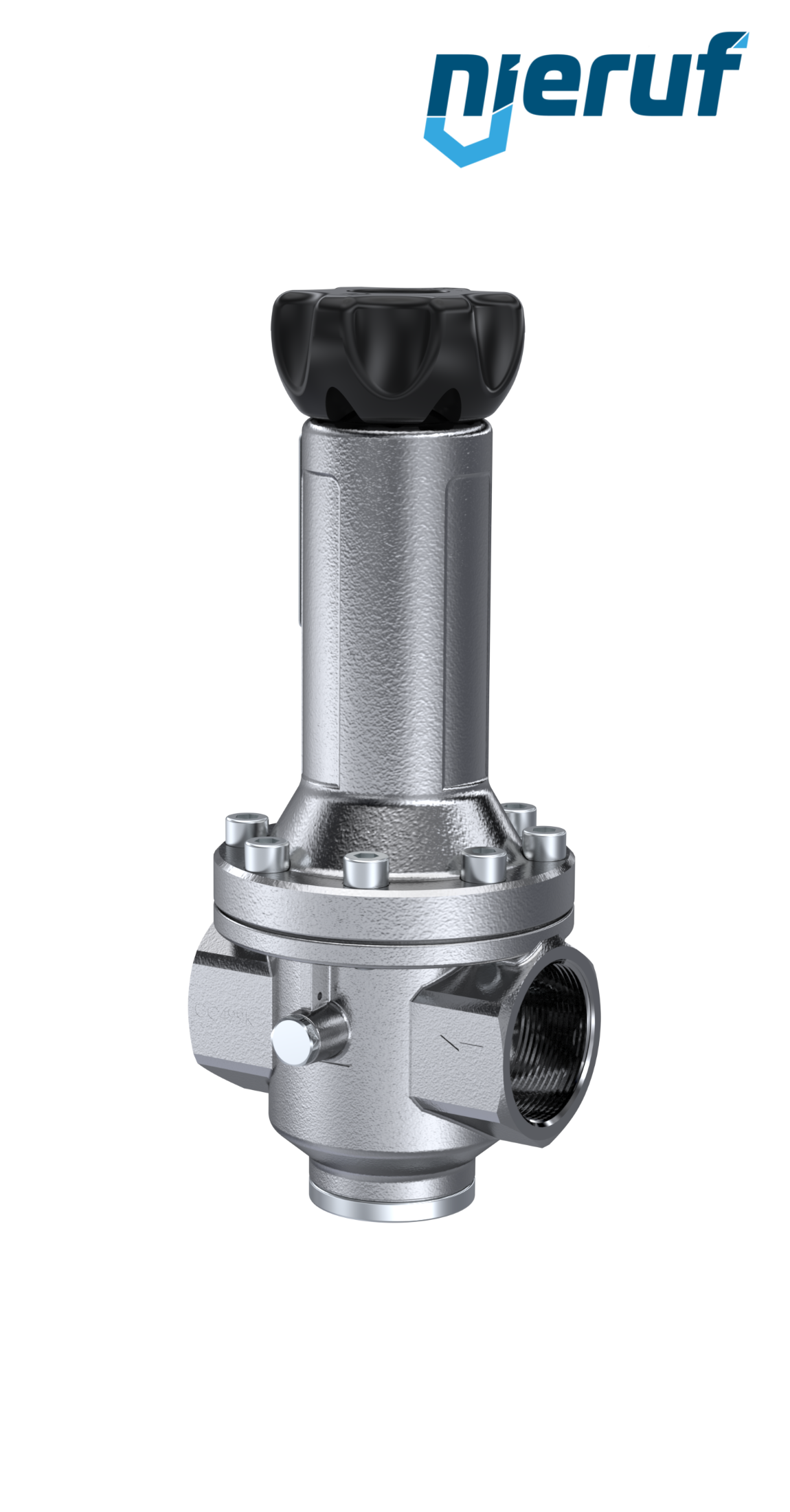

precision-pressure reducing valve with secondary venting 1 1/2" inch DM15 stainless steel EPDM 0.5 - 15 bar
precision-pressure reducing valve with secondary venting 1 1/2" inch female thread made of stainless steel seal EPDM for neutral gaseous media, set pressure 0.5 - 15 bar
| product | precision-pressure reducing valve |
|---|---|
| type | DM15 |
| manufacturer | NieRuf |
| diameter | 1 1/2" inch |
| connection | female thread |
| material | stainless steel |
| seal | EPDM |
| media | neutral gaseous media |
| temperature | -40°C up to +120°C |
| range of adjustment | 0.5 - 15 bar |
| max. inlet pressure | 60 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
precision-pressure reducing valve with secondary venting 1 1/2" inch DM15 stainless steel EPDM 0.5 - 15 bar
Article no.
: DM15020107
product:
precision-pressure reducing valve
type:
DM15
manufacturer:
NieRuf
diameter:
1 1/2" inch
connection:
female thread
material:
stainless steel
seal:
EPDM
media:
neutral gaseous media
temperature:
-40°C up to +120°C
range of adjustment:
0.5 - 15 bar
max. inlet pressure:
60 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
membrane-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4"
Equipment
hexagon nipple 1 1/2" inch male stainless steel 316
Lead time: in stock
pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05
Lead time: in stock
Wall mount WH01 for pressure reducing valve DM14 and DM15 DN40 / DN50
Lead time: 3 - 5 working days
