DM15010103

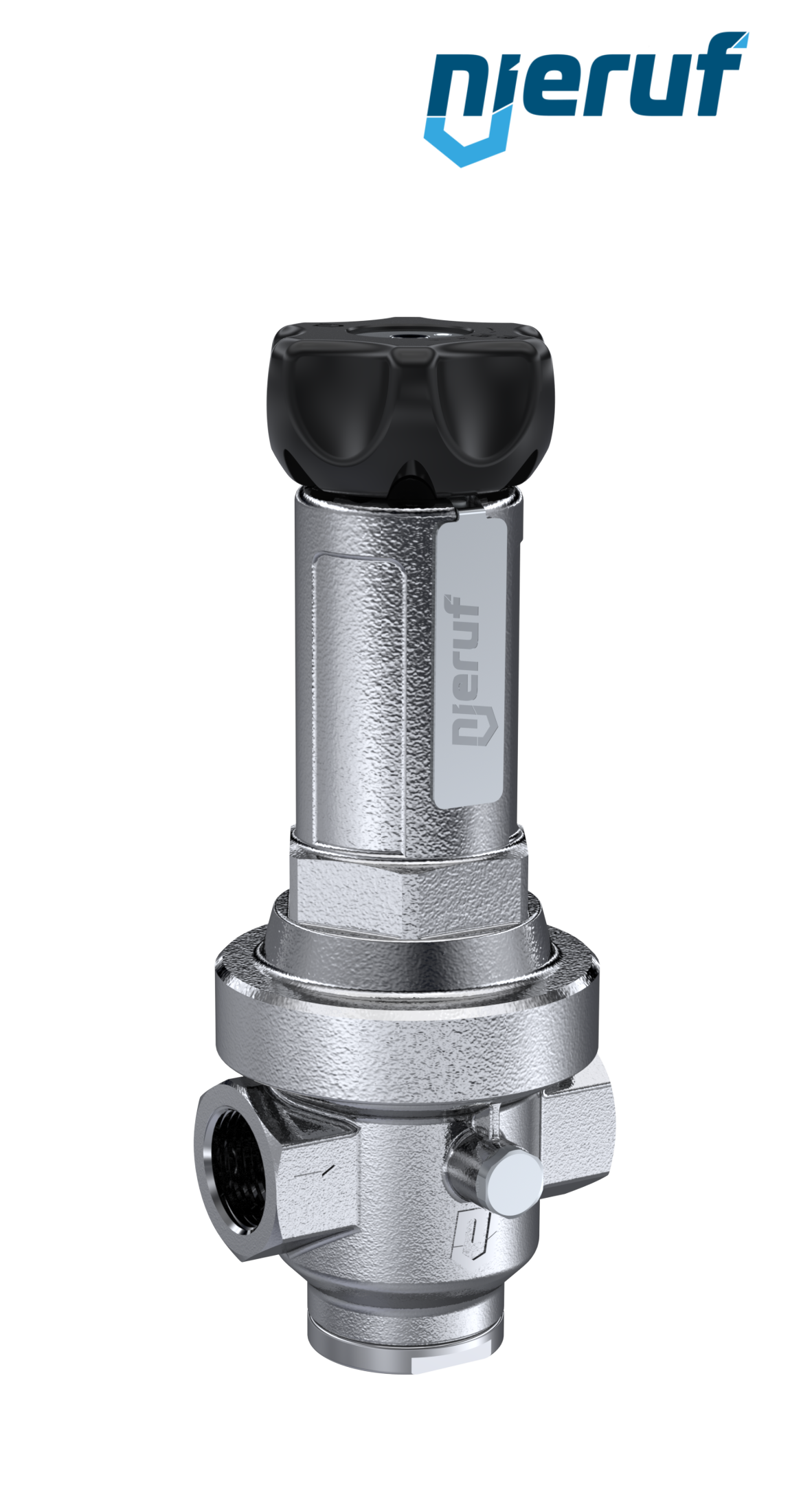

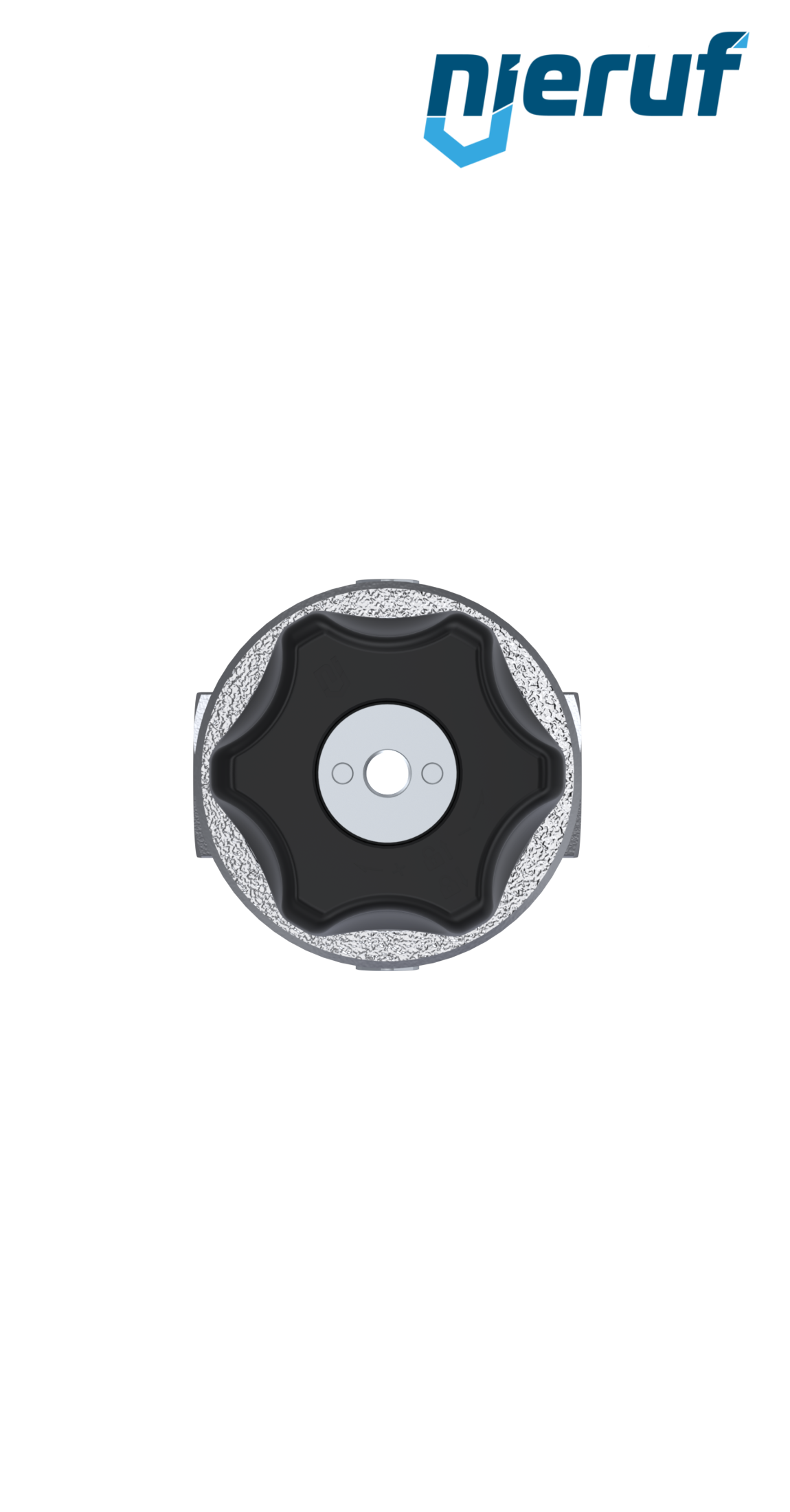

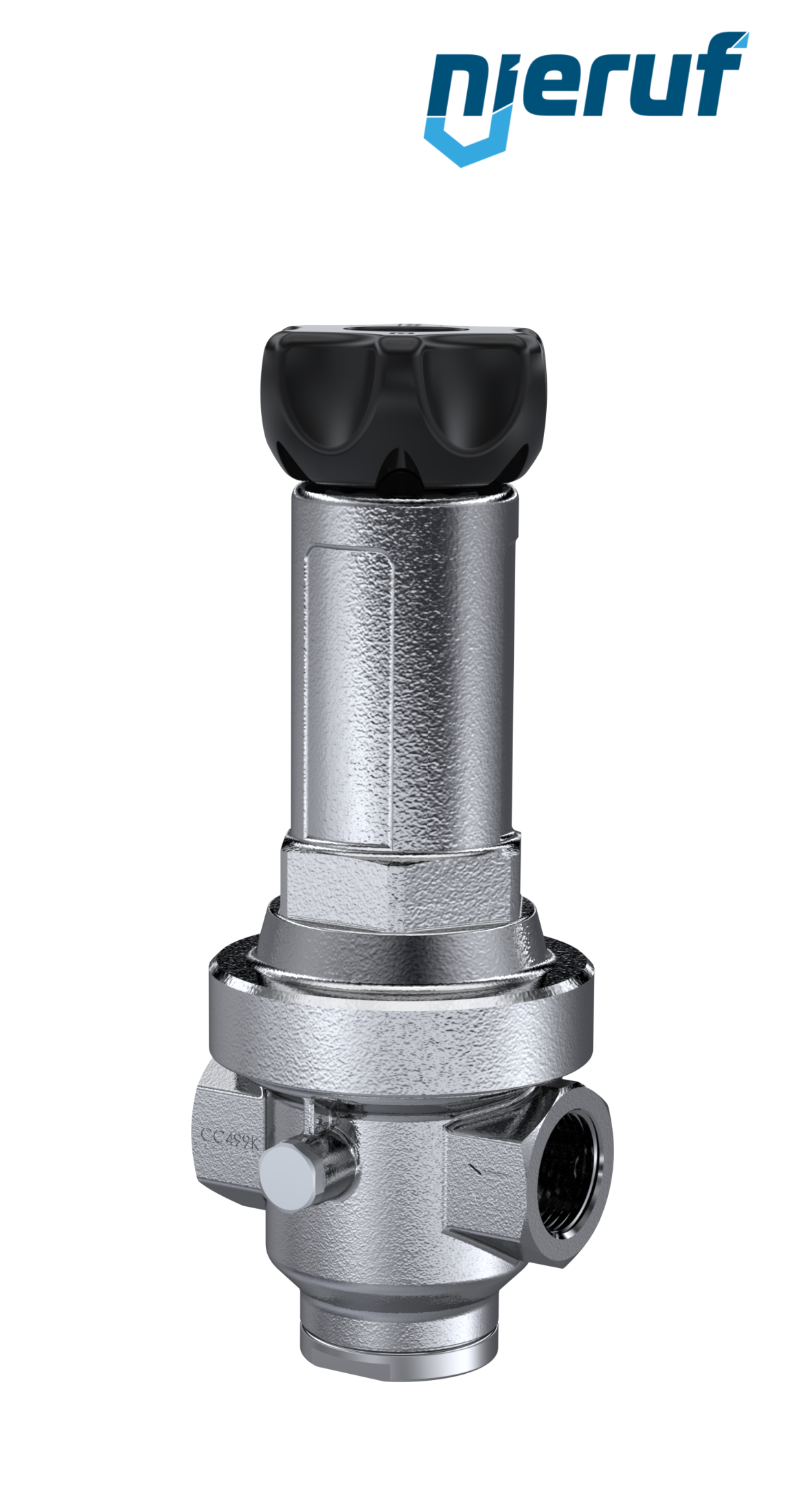

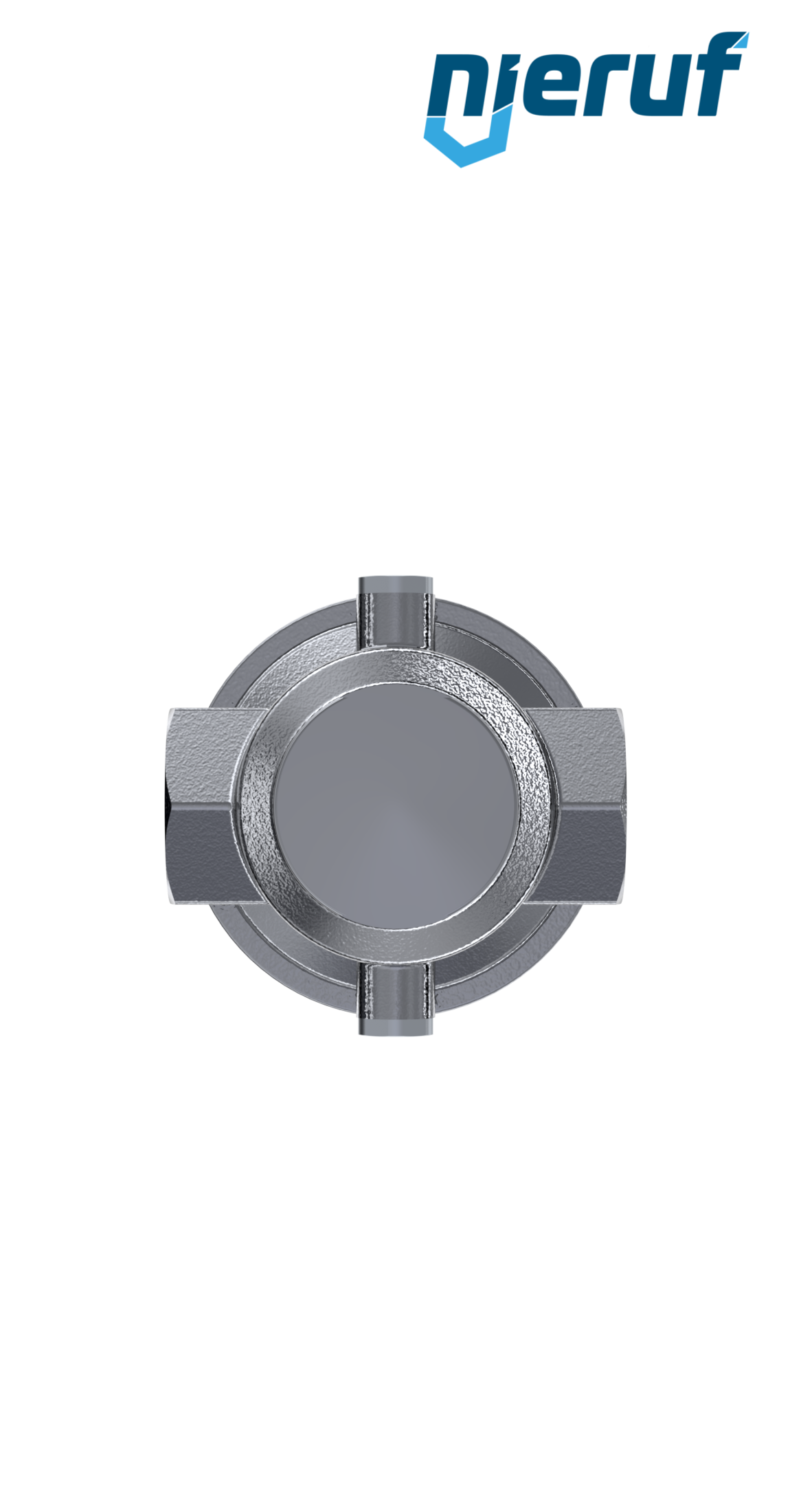

precision-pressure reducing valve 1/2" inch DM15 stainless steel EPDM 10.0 - 50.0 bar
- Lead time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Tuesday, 06. October
Guaranteed delivery until Wednesday, 07. October, 12 o'clock
Equipment
hexagon nipple 1/2" inch male stainless steel 316
€2.26 VAT included.
pressure gauge 0 - 60,0 bar G 1/4" axial 50 mm stainless steel MM05
€114.48 VAT included.
Wall mount WH01 for pressure reducing valve DM14 and DM15 DN8 / DN10 / DN15
€27.61 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
precision-pressure reducing valve 1/2" inch DM15 stainless steel EPDM 10.0 - 50.0 bar
precision-pressure reducing valve 1/2" inch female thread made of stainless steel seal EPDM for liquid and gaseous media, set pressure 10.0 - 50.0 bar
| product | precision-pressure reducing valve |
|---|---|
| type | DM15 |
| manufacturer | NieRuf |
| diameter | 1/2" inch |
| connection | female thread |
| material | stainless steel |
| seal | EPDM |
| media | liquid and gaseous media |
| temperature | -40°C up to +120°C |
| range of adjustment | 10.0 - 50.0 bar |
| max. inlet pressure | 60 bar |
| design | straightway form |
| installation position | any position |
| SIL - safety integrity level | SIL 2 |
| product feature | high quality piston-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
precision-pressure reducing valve 1/2" inch DM15 stainless steel EPDM 10.0 - 50.0 bar
Article no.
: DM15010103
product:
precision-pressure reducing valve
type:
DM15
manufacturer:
NieRuf
diameter:
1/2" inch
connection:
female thread
material:
stainless steel
seal:
EPDM
media:
liquid and gaseous media
temperature:
-40°C up to +120°C
range of adjustment:
10.0 - 50.0 bar
max. inlet pressure:
60 bar
design:
straightway form
installation position:
any position
SIL - safety integrity level:
SIL 2
product feature:
high quality piston-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4"
Equipment
pressure gauge 0 - 60,0 bar G 1/4" axial 50 mm stainless steel MM05
Lead time: in stock
Wall mount WH01 for pressure reducing valve DM14 and DM15 DN8 / DN10 / DN15
Lead time: 3 - 5 working days
