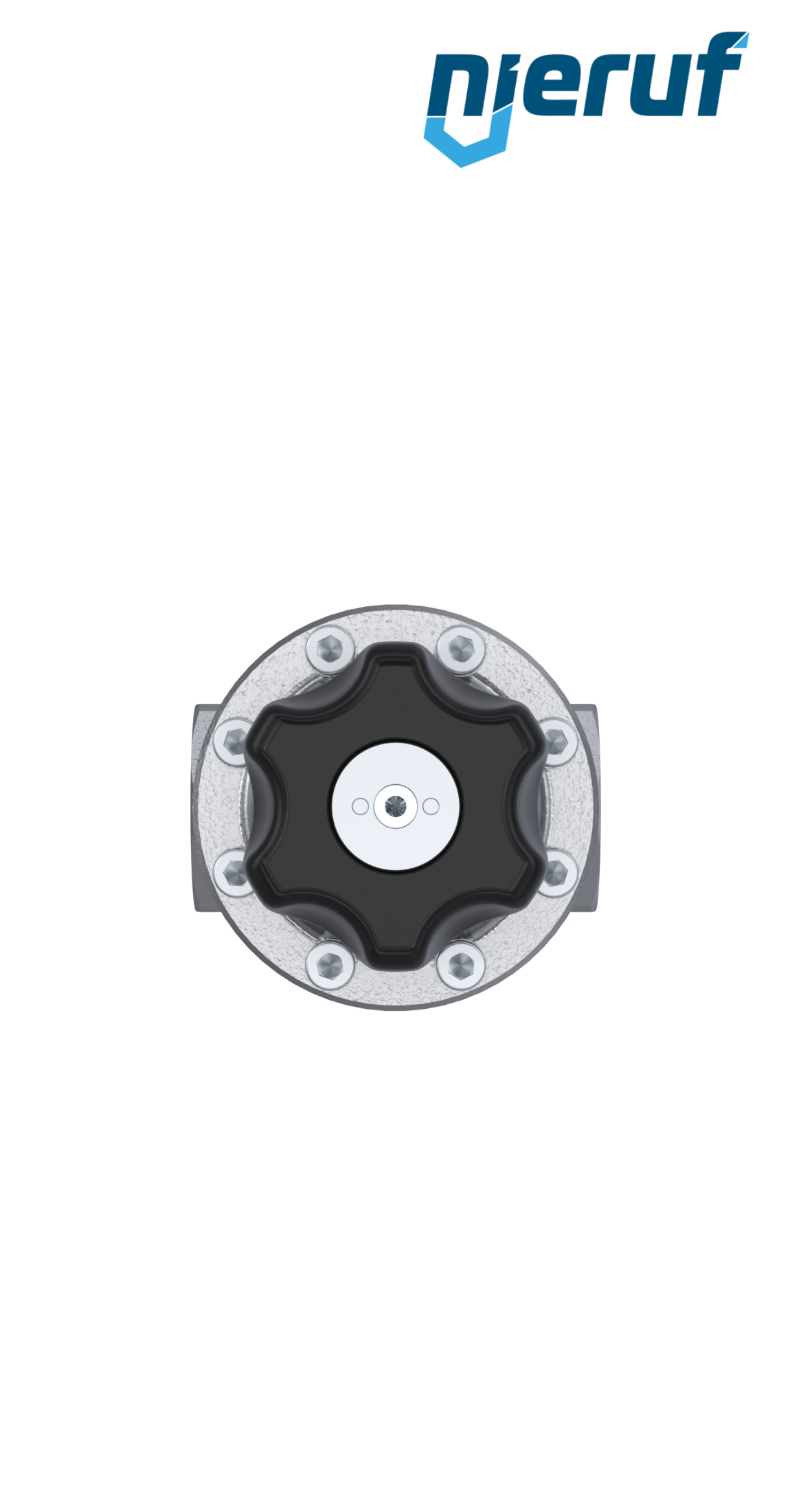

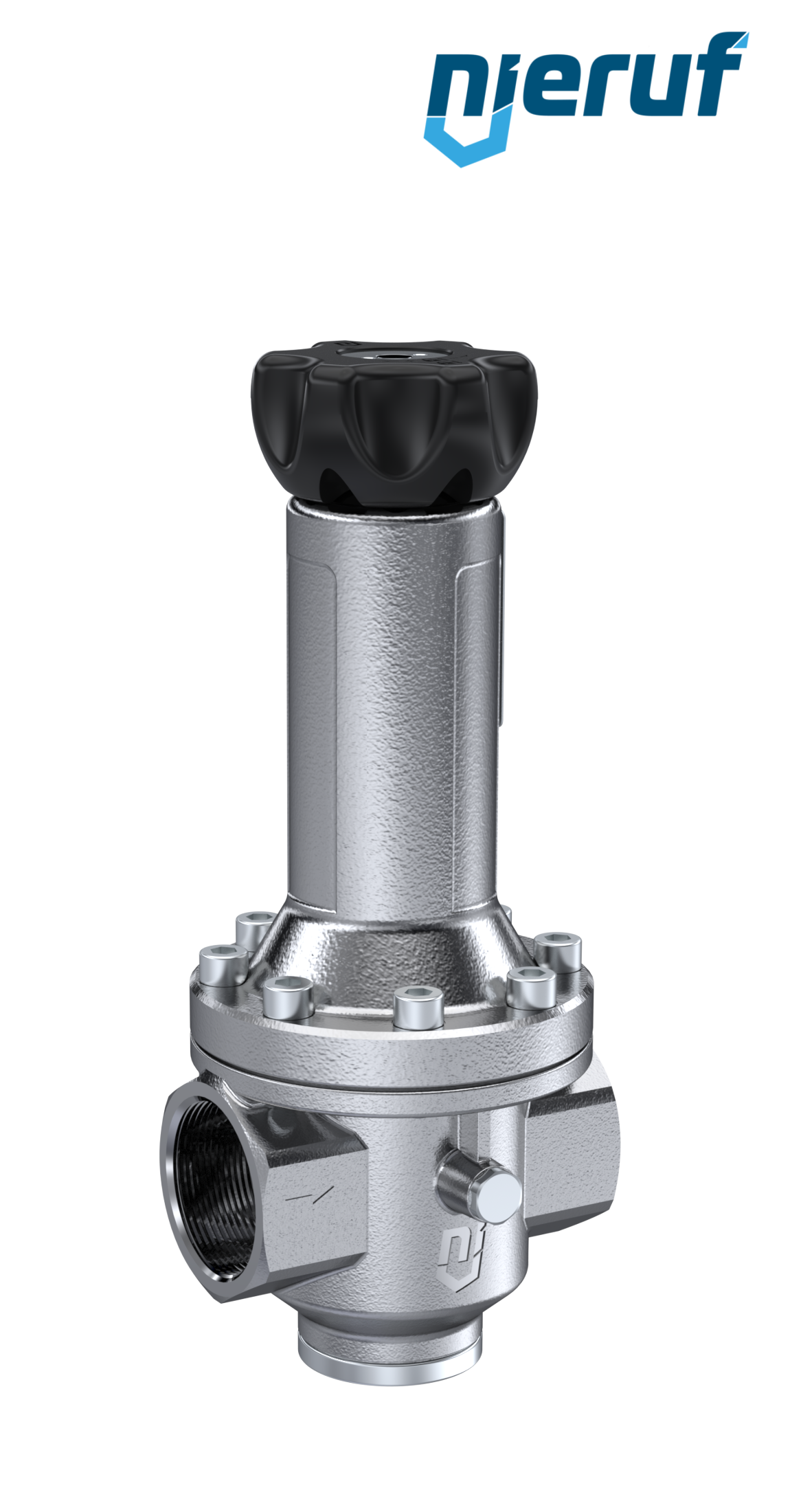

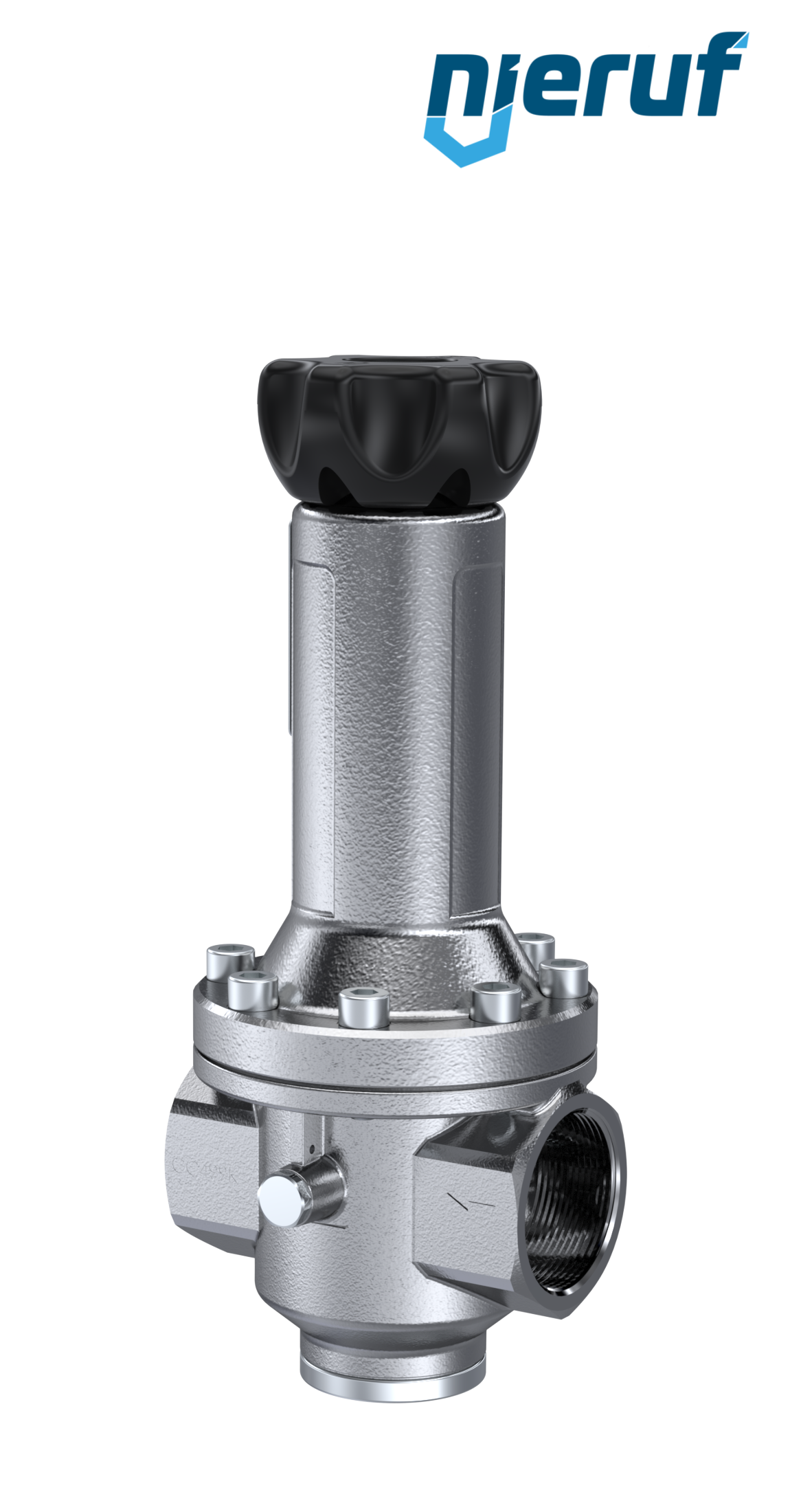

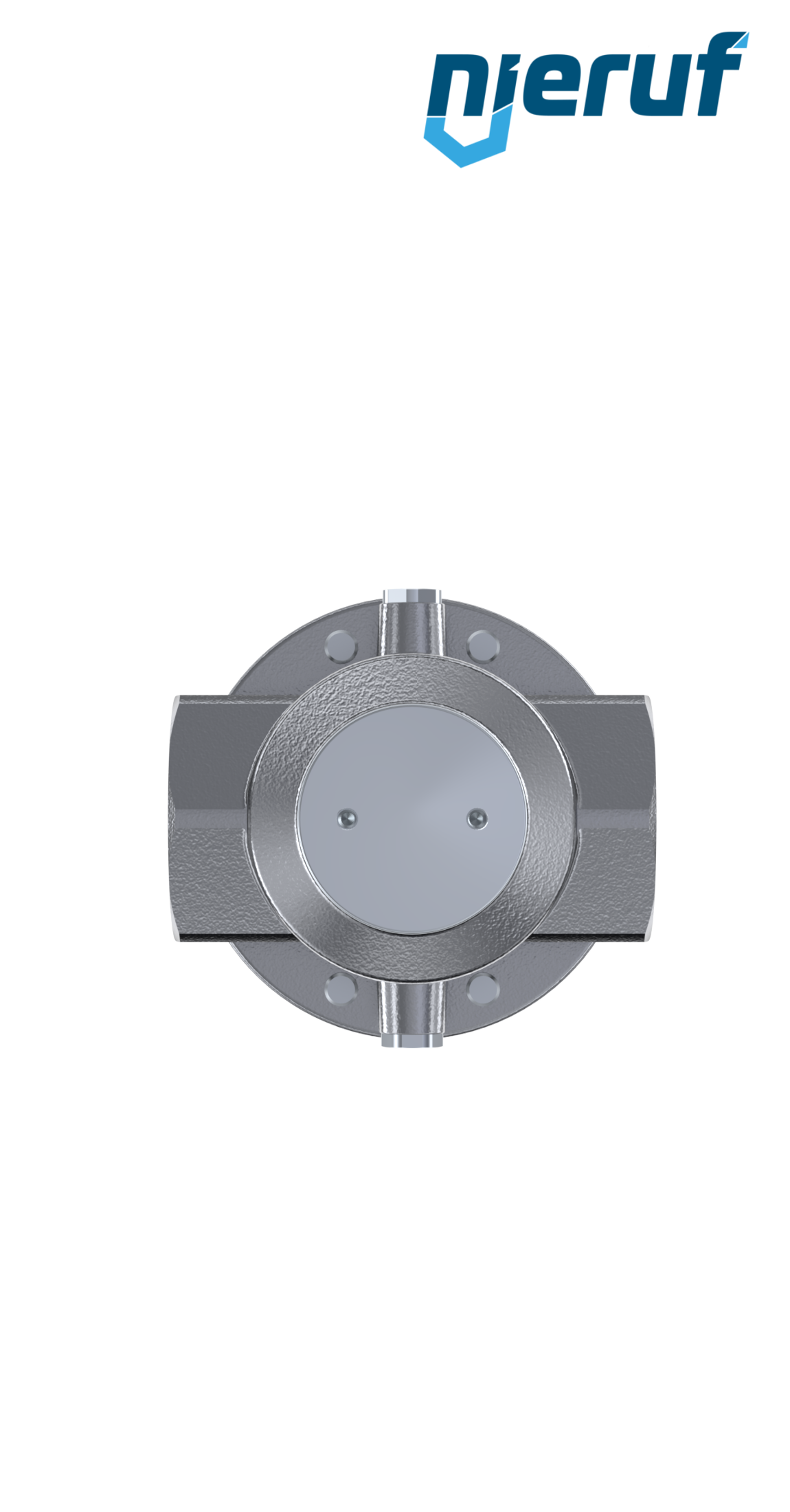

precision-pressure reducing valve 1 1/2" inch DM15 stainless steel EPDM 5,0 - 30,0 bar
DM15000107
quantity (pcs.):
1,502.70€ * 1,788.21€ incl. VAT
*Price plus VAT and shipping costs
Warranty: NieRuf-Garantie: Gilt bei sachgemäßer Verwendung für alle Mängel am Produkt, die Sie nicht selbst verschuldet haben. Gilt bspw. nicht bei Verschleiß. Weitere Details siehe AGBs Punkt 7 – 7.11. 24 Months
Delivery time: 3-5 working days
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.
If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
precision-pressure reducing valve 1 1/2" inch DM15 stainless steel EPDM 5,0 - 30,0 bar
precision-pressure reducing valve 1 1/2" inch female thread made of stainless steel seal EPDM for liquid and gaseous media, set pressure 5,0 - 30,0 bar
| diameter: | 1 1/2" inch |
| connection: | female thread |
| material: | stainless steel |
| seal: | EPDM |
| media: | liquid and gaseous media |
| temperature: | -40°C up to +120°C |
| range of adjustment: | 5,0 - 30,0 bar |
| max. inlet pressure: | 60,0 bar |
| design: | straightway form |
| installation position: | any position |
| SIL - safety integrity level: | SIL 2 |
| product feature: | high quality piston-pressure reducing valve with supporting ring. Pressure adjustment about not rising spindle and manometer connection 1/4" |
