AN02021107

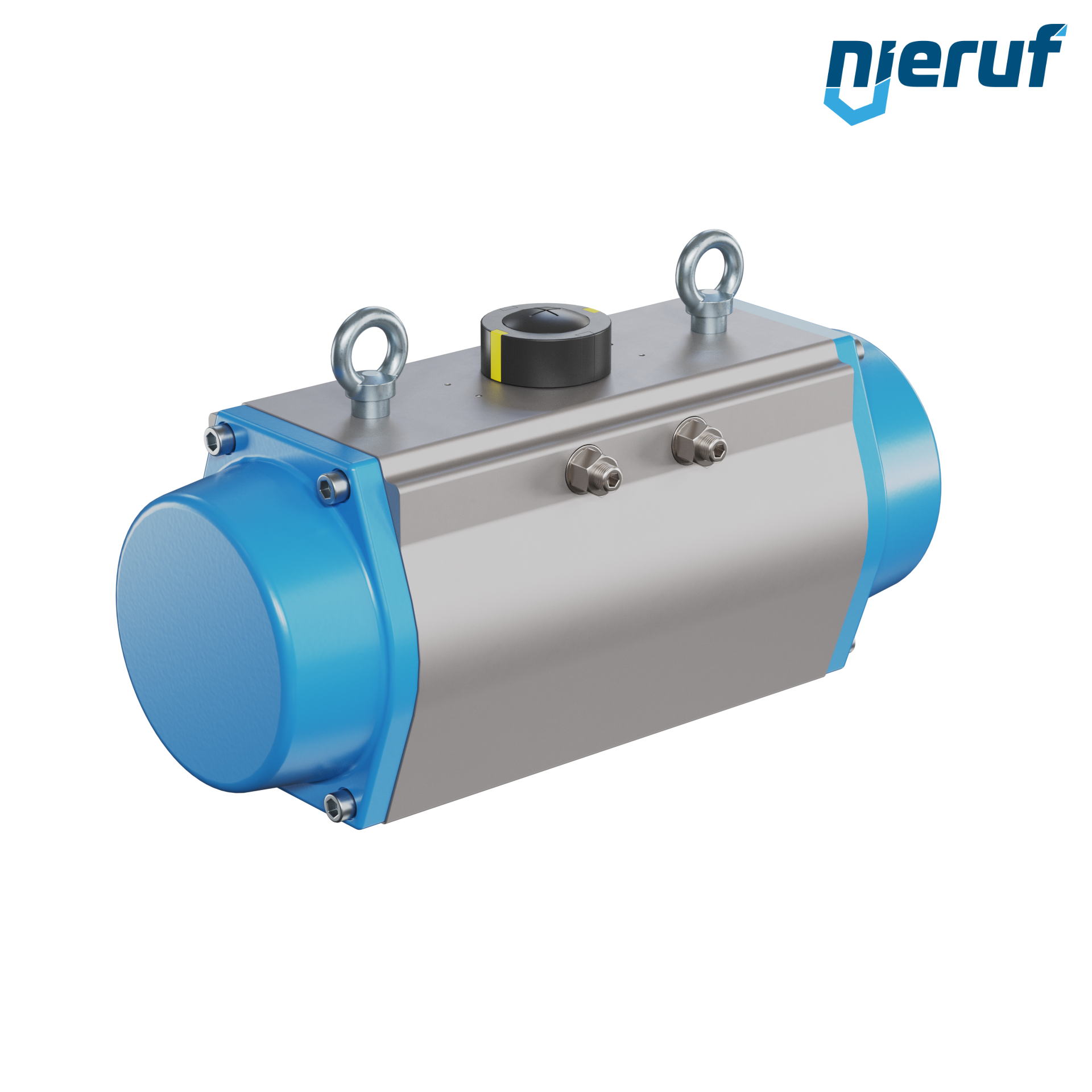

pneumatic actuator AN02 single acting, normally open GS-190 90° with 7 springs
- Lead time
- 1 - 2 weeks
Equipment
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
€1,088.49 VAT included.
manual operated Block form flow regulator for 3/2 way valve
€91.51 VAT included.
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
€54.98 VAT included.
Position indicator Typ PR01 for pneumatic actuator
€77.11 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
NIERUF-SERVICE
pneumatic actuator AN02 single acting, normally open GS-190 90° with 7 springs
pneumatic actuator single acting and normally open with 90° pan angle GS-190 number of springs 7 according to ISO 5211 F14 for control pressure 2 to 8 bar
| product | pneumatic actuator |
|---|---|
| type | AN02 |
| manufacturer | NieRuf |
| SIL - safety integrity level | SIL 3 |
| ISO flange 5211 | F14 |
| stem intake | 36mm |
| screw depth | 40mm |
| number of springs | 7 |
| torque | min. 89,0Nm up to max. 1399,0Nm |

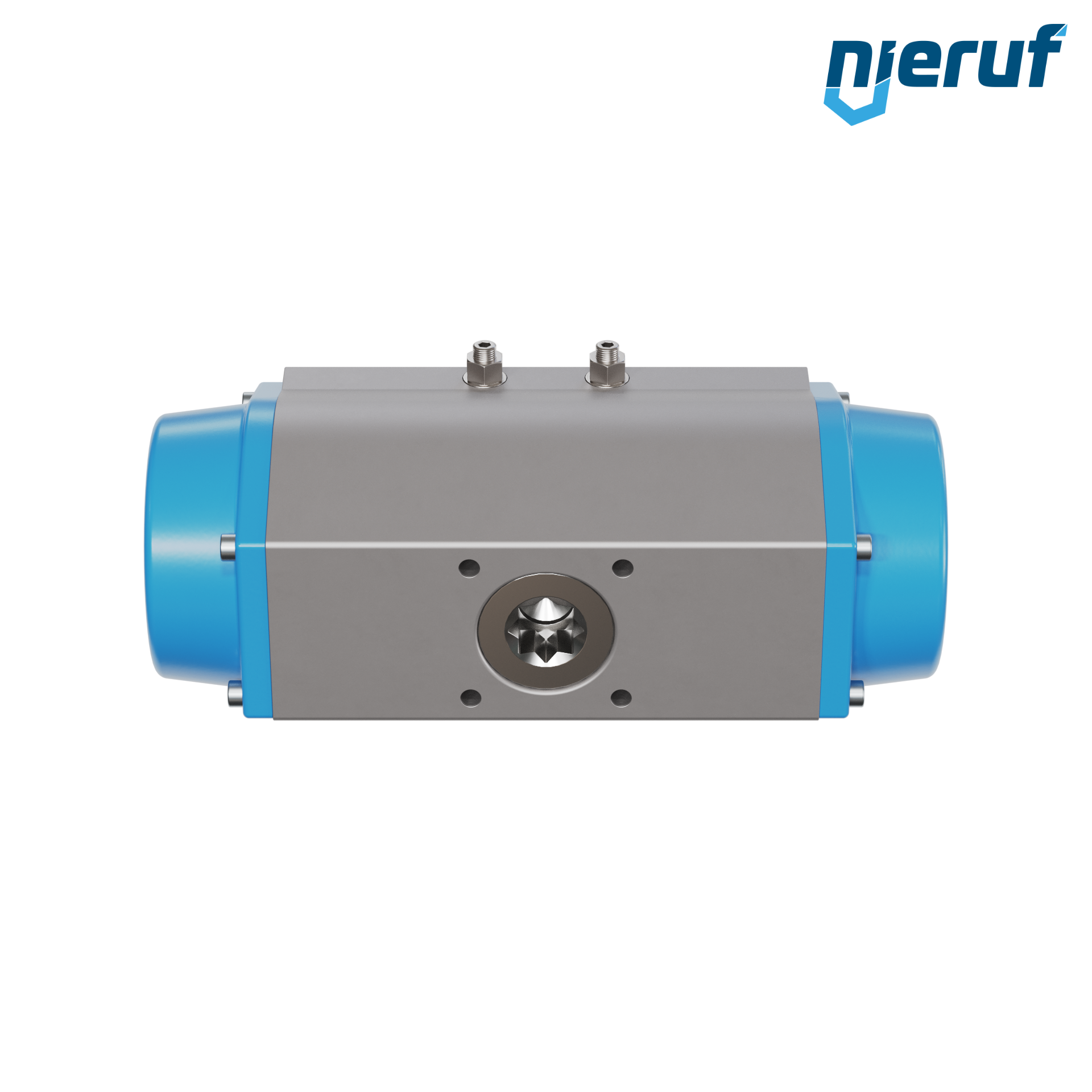

| drive sprocket design | octagon |
| spring force min | 306,0Nm |
| spring force-max | 444,0Nm |
| temperature | - 20°C up to +80°C |
| length | 528mm |
| width | 206mm |
| high | 267mm |
| actuator | GS-190 |
| actuator informations | Robust, high-quality design for aggressive environments. Adjustable by 5° |
| body material | Hard-coated aluminum alloy |
| function | single acting, normally open |
| swivel angle | 90° |
| control pressure | 2 bar to 8 bar |
| seals | NBR |
| control medium | filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4] |
| installation position | any position |
| product description | Compact, single-acting, spring-loaded opening, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
pneumatic actuator AN02 single acting, normally open GS-190 90° with 7 springs
Article no.
: AN02021107
product:
pneumatic actuator
type:
AN02
manufacturer:
NieRuf
SIL - safety integrity level:
SIL 3
ISO flange 5211:
F14
stem intake:
36mm
screw depth:
40mm
number of springs:
7
torque:
min. 89,0Nm up to max. 1399,0Nm
drive sprocket design:
octagon
spring force min:
306,0Nm
spring force-max:
444,0Nm
temperature:
- 20°C up to +80°C
length:
528mm
width:
206mm
high:
267mm
actuator:
GS-190
actuator informations:
Robust, high-quality design for aggressive environments. Adjustable by 5°
body material:
Hard-coated aluminum alloy
function:
single acting, normally open
swivel angle:
90°
control pressure:
2 bar to 8 bar
seals:
NBR
control medium:
filtered air with regard to residual oil content, dust and water, at least according to DIN ISO 8573-1: 2010 [7:-:4]
installation position:
any position
product description:
Compact, single-acting, spring-loaded opening, pneumatic actuator for controlling and regulating valves. Preset swing angle 90° with optical position indicator.
Equipment
3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC
Lead time: in stock
manual operated Block form flow regulator for 3/2 way valve
Lead time: in stock
Positioner PS01 for pneumatic actuators single acting air volume more than 5 l
Lead time: 2 - 3 weeks
