UV13010310
piston overflow valve DN 80 UV13 cast iron 1.0619+N 0,5 - 1,5 bar
- Lead time
- 1 - 2 weeks
Equipment
Flange DN80 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare
€34.51 VAT included.
pressure gauge G 1/4" axial 50 mm steel MM03 0 - 2,5 bar
€12.61 VAT included.
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 steel
€15.23 VAT included.
flange seal DN80 PN10/16/25/40 89x142x2 Klingersil C 4400
€5.24 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

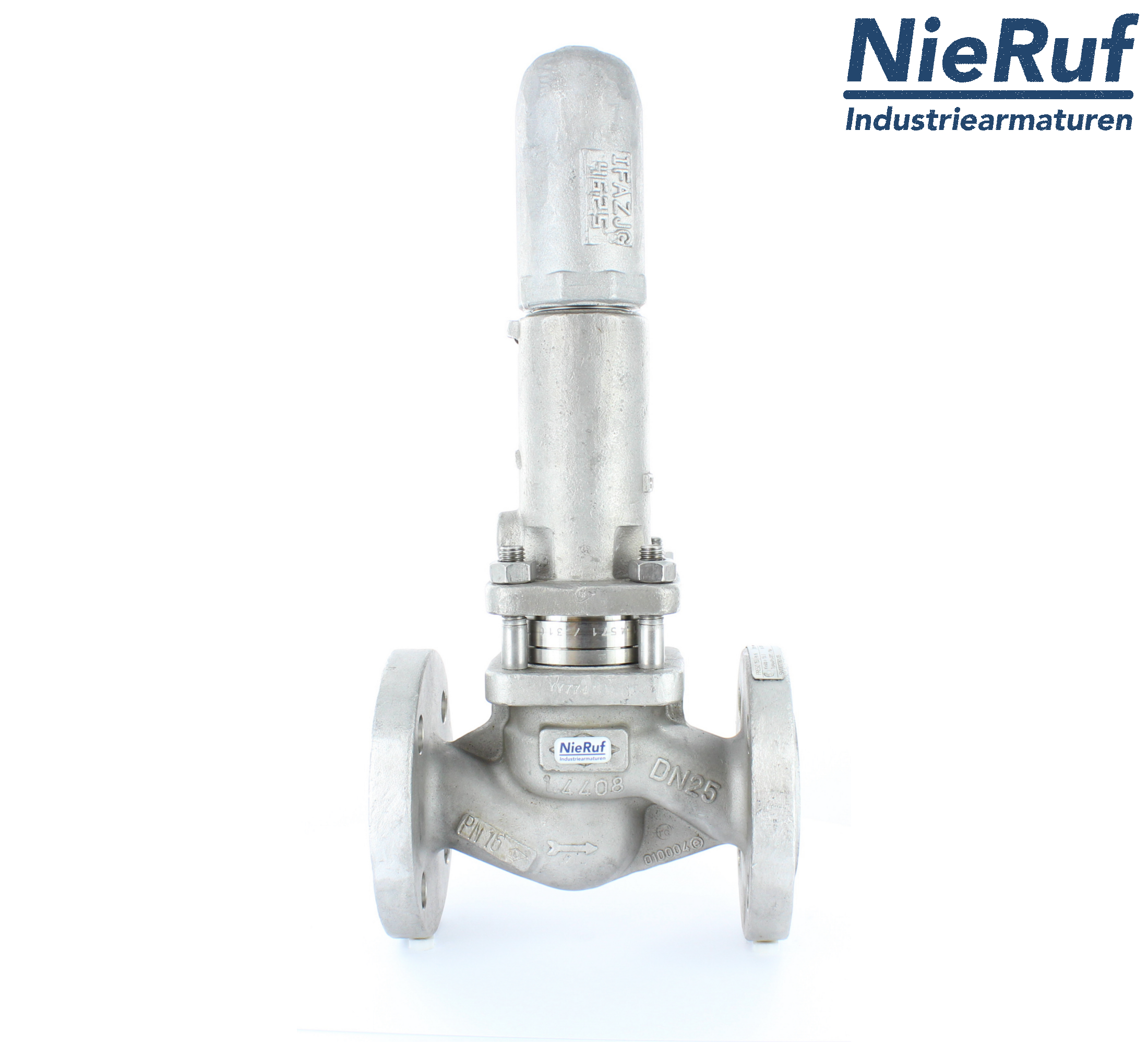

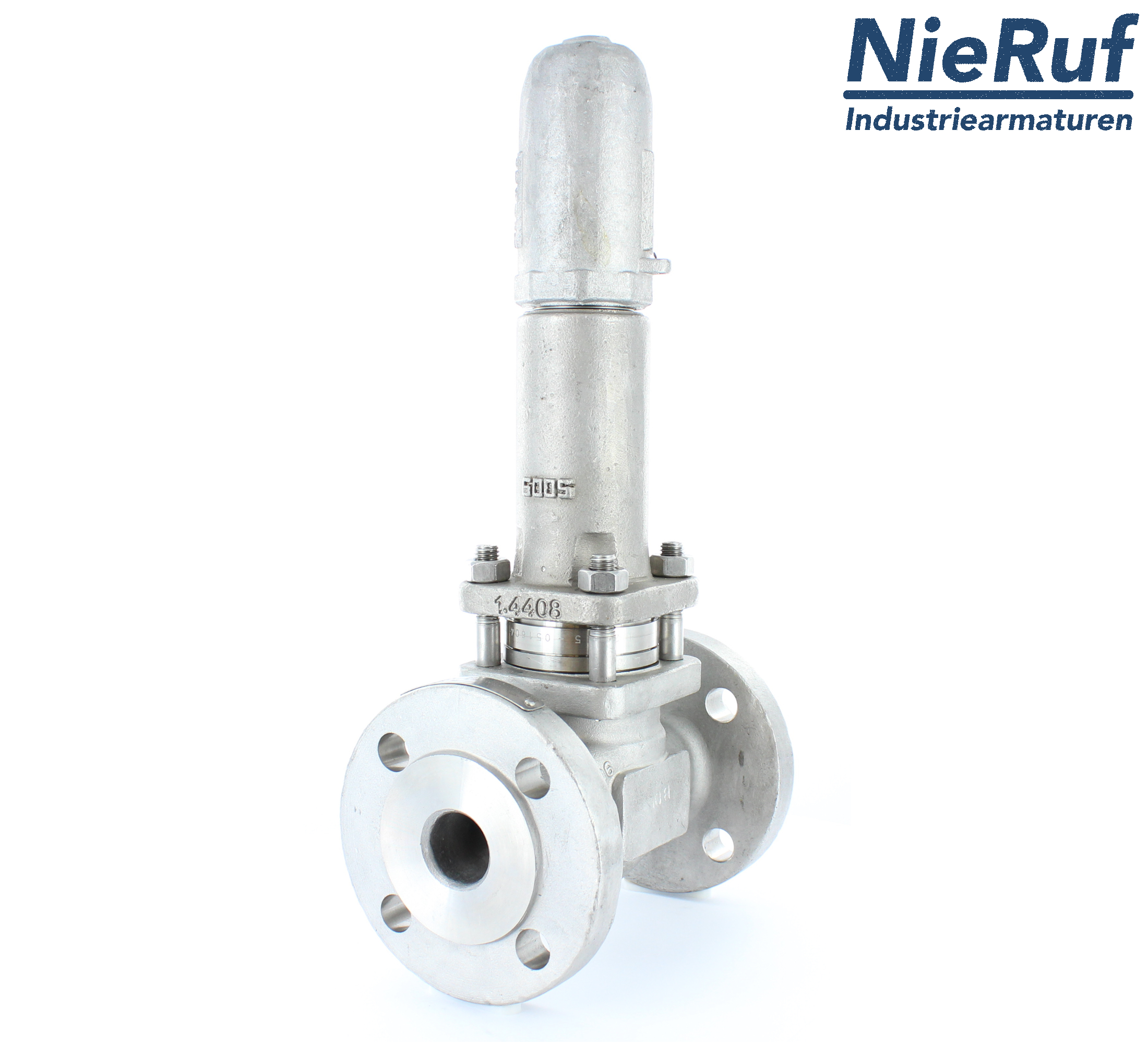

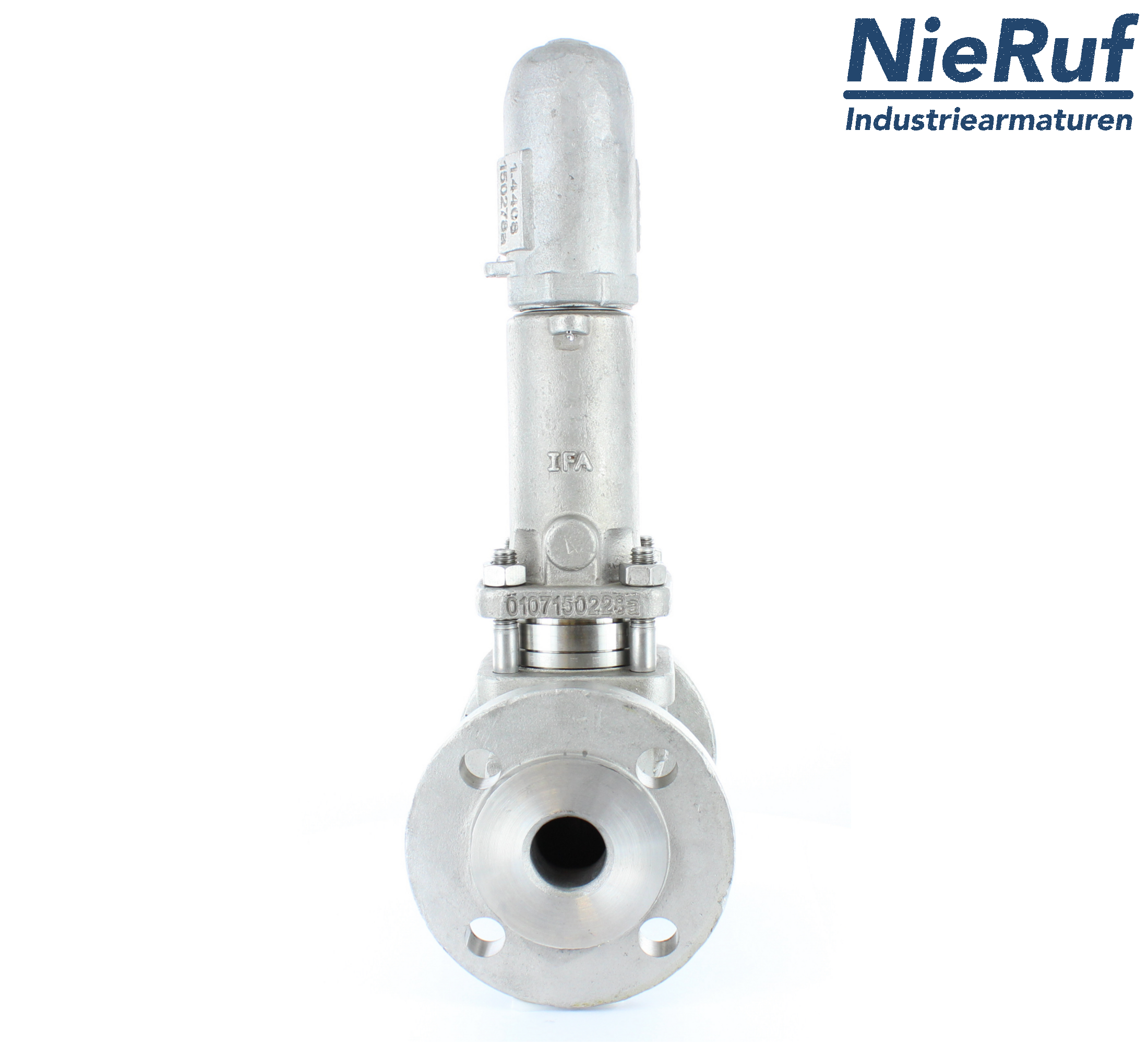

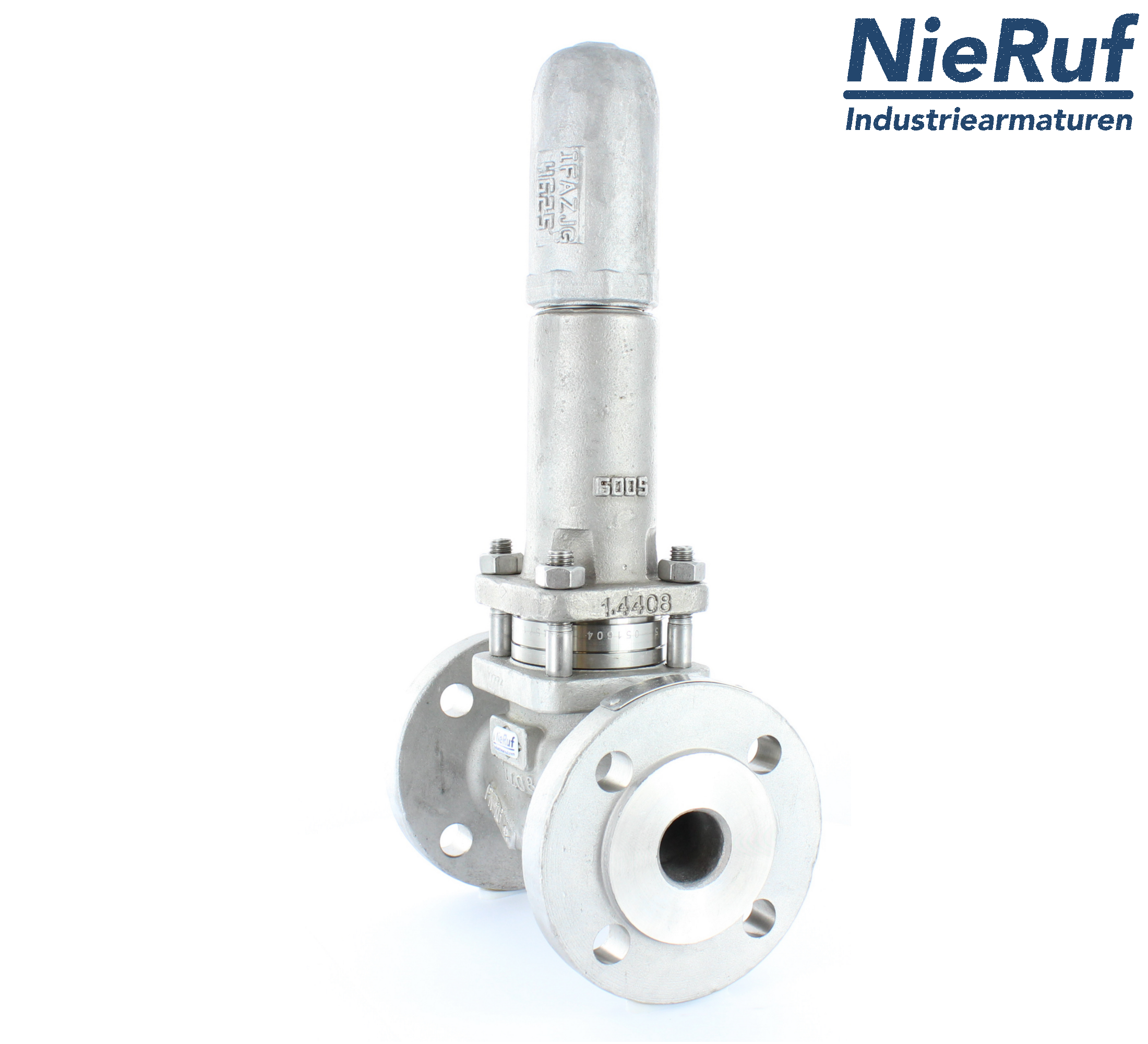

piston overflow valve DN 80 UV13 cast iron 1.0619+N 0,5 - 1,5 bar
piston overflow valve DN 80 type UV13 made of cast iron 1.0619+N pressure range 0,5 - 1,5 bar seal metall for liquid and gaseous media
| product | piston overflow valve |
|---|---|
| type | UV13 |
| manufacturer | NieRuf |
| diameter | DN 80 |
| connection | flange connection DIN 1092-1 PN16 |
| seal | metall |
| media | liquid and gaseous media |
| temperature | -10°C to +450°C |
| range of adjustment | 0,5 - 1,5 bar |
| design | straight through, spring loaded |
| material | cast iron 1.0619+N |
| plug unit | 1.4201+QT |
| approval | TA - Air TÜV-Test-No. 922-9241371 |
| installation position | upright, bonnet showing upwards |
| product feature | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 80 UV13 cast iron 1.0619+N 0,5 - 1,5 bar
Article no.
: UV13010310
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 80
connection:
flange connection DIN 1092-1 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +450°C
range of adjustment:
0,5 - 1,5 bar
design:
straight through, spring loaded
material:
cast iron 1.0619+N
plug unit:
1.4201+QT
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
