UV13040209

piston overflow valve DN 65 UV13 SG iron EN-JS1049 4,0 - 10,0 bar

€2,467.00*

€2,935.73 VAT included.

Delivery time: 1 - 2 weeks

Delivery information

Equipment

FD01000109

flange seal DN65 PN10/16/25/40 77x127x2 Klingersil C 4400

€3.60*

€4.28 VAT included.


MM03000401

pressure gauge G 1/4" axial 50 mm steel MM03 0 - 16,0 bar

€10.60*

€12.61 VAT included.


FL01020109

Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€26.40*

€31.42 VAT included.


VS01010109

joint set flange/flange DN65 - 2 1/2" Inch for flange PN10/16/25 steel

€6.80*

€8.09 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

Certified

Certified

Product number: UV13040209

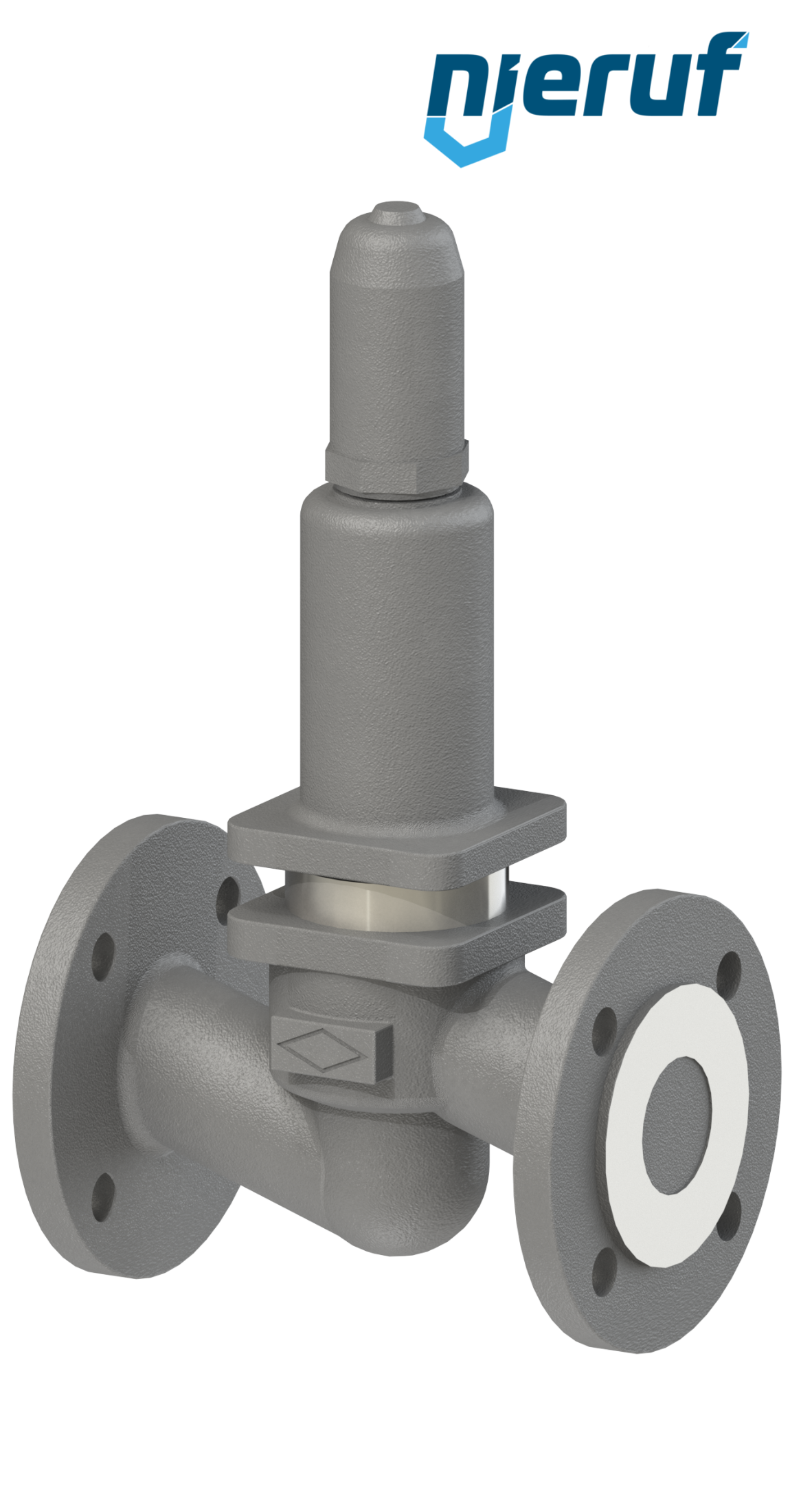

piston overflow valve DN 65 UV13 SG iron EN-JS1049 4,0 - 10,0 bar

piston overflow valve DN 65 type UV13 made of SG iron EN-JS1049 pressure range 4,0 - 10,0 bar seal metall for liquid and gaseous media

product: piston overflow valve
type: UV13
manufacturer: NieRuf
diameter: DN 65
connection: flange connection DIN 1092-2 PN16
seal: metall
media: liquid and gaseous media
temperature: -10°C to +350°C
range of adjustment: 4,0 - 10,0 bar
design: straight through, spring loaded
material: SG iron EN-JS1049
plug unit: 1.4201+QT
approval: TA - Air TÜV-Test-No. 922-9241371
installation position: upright, bonnet showing upwards
product feature: Spring operated Overflow valve with proportional operating characteristics.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

piston overflow valve DN 65 UV13 SG iron EN-JS1049 4,0 - 10,0 bar

Article no. : UV13040209
product: piston overflow valve
type: UV13
manufacturer: NieRuf
diameter: DN 65
connection: flange connection DIN 1092-2 PN16
seal: metall
media: liquid and gaseous media
temperature: -10°C to +350°C
range of adjustment: 4,0 - 10,0 bar
design: straight through, spring loaded
material: SG iron EN-JS1049
plug unit: 1.4201+QT
approval: TA - Air TÜV-Test-No. 922-9241371
installation position: upright, bonnet showing upwards
product feature: Spring operated Overflow valve with proportional operating characteristics.
