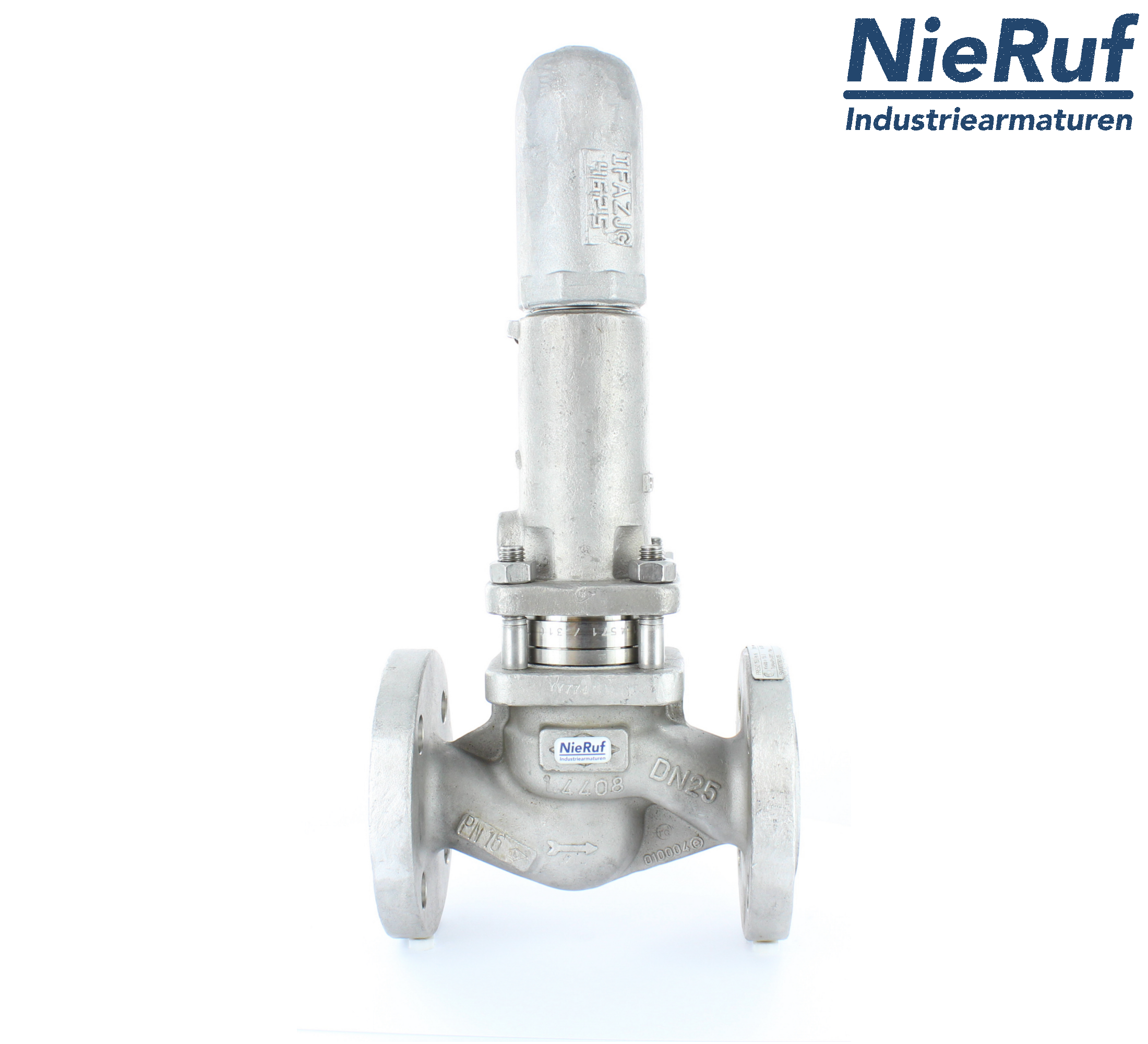

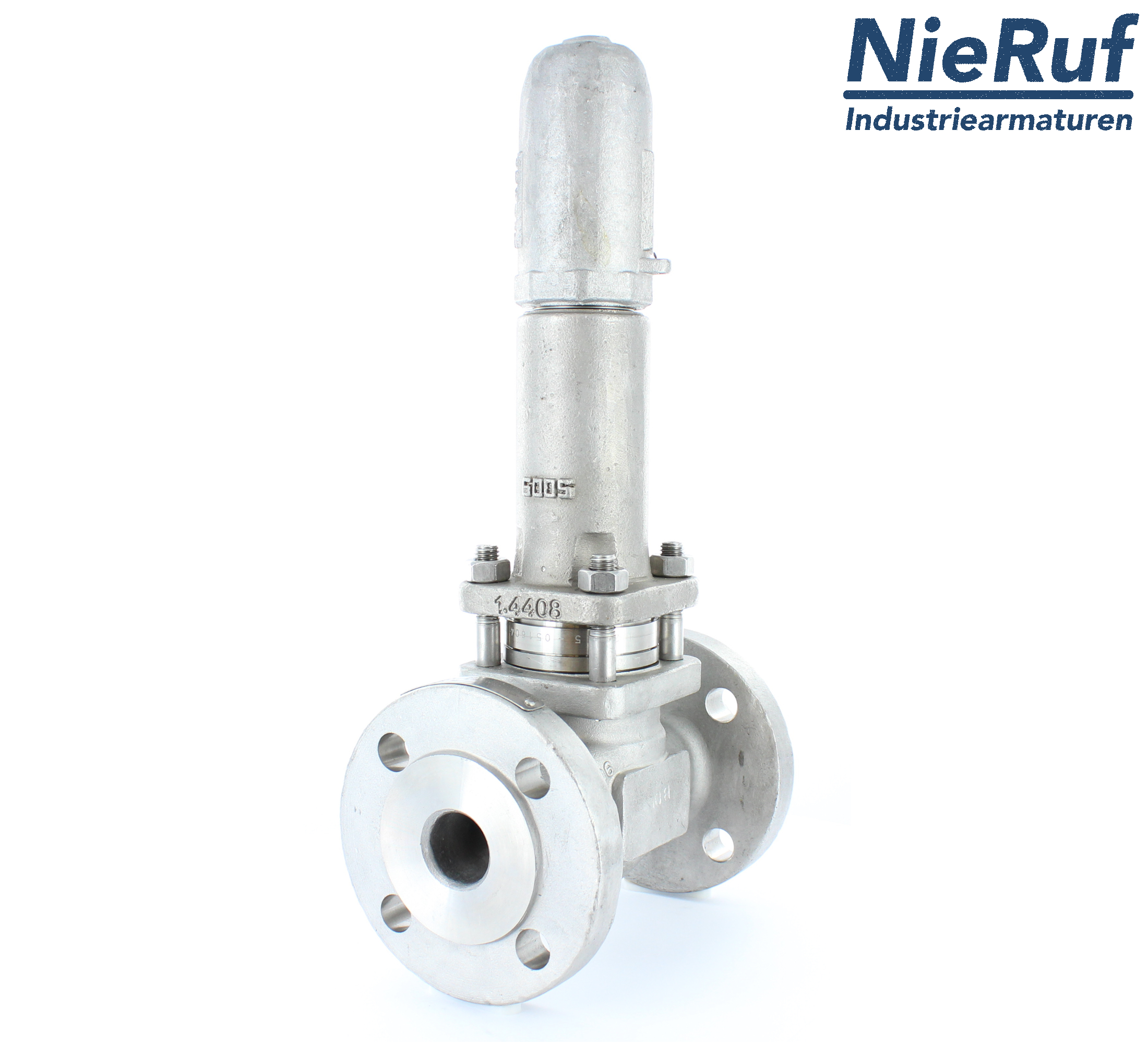

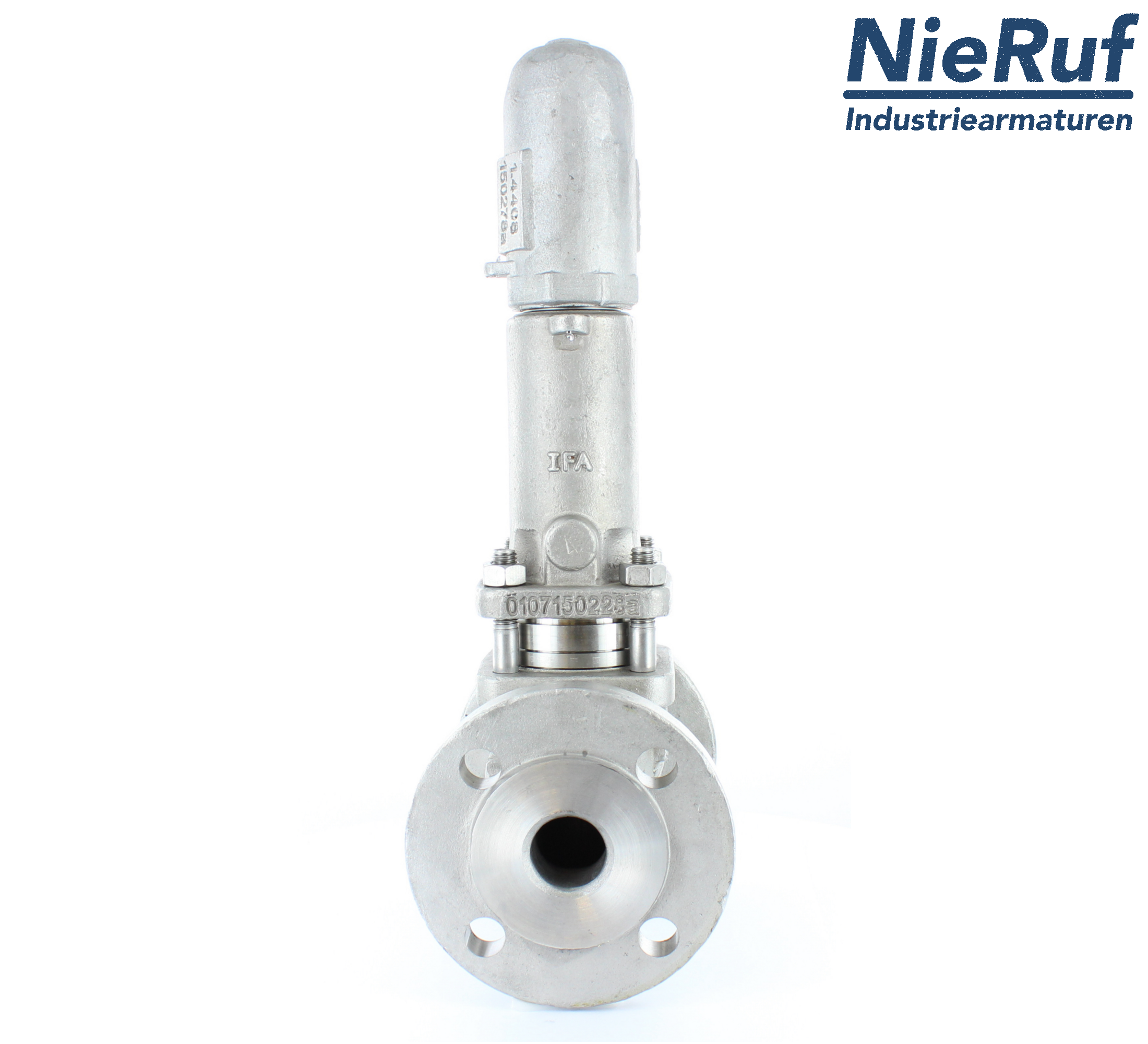

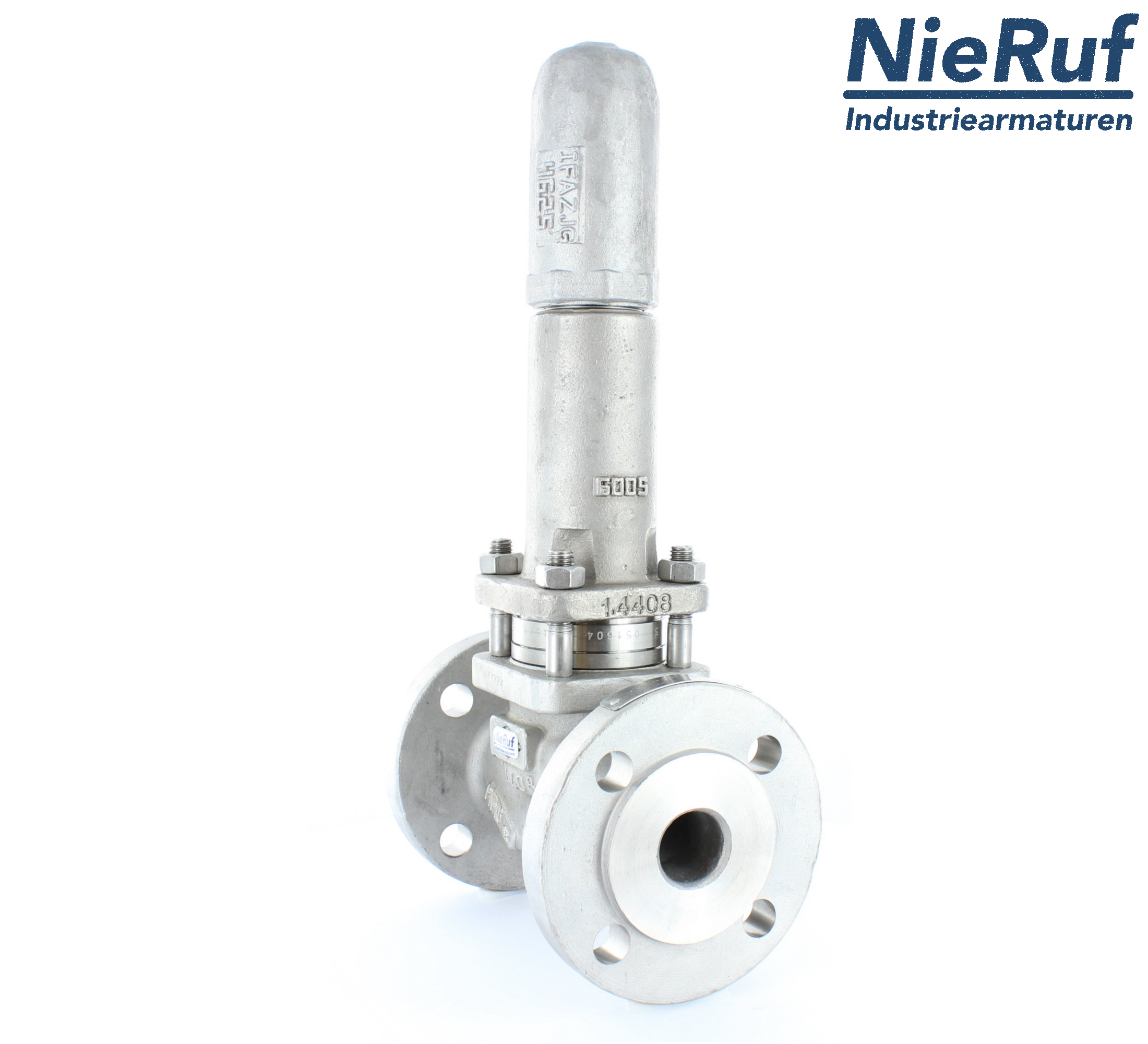

piston overflow valve DN 65 UV13 cast iron 1.0619+N 2,0 - 5,0 bar

UV13030309
quantity (pcs.):
2,099.10€ * 2,497.93€ incl. VAT
*Price plus VAT and shipping costs

Delivery time: 1 - 2 Weeks

datasheet 3D model manual
All the information quoted in these resistance tables is based on industrial experience and the data of our material and compound manufacturers. NieRuf GmbH makes no guarantee, however, as to the correctness and completeness of this informations.

If materials are rated as ''limited suitability'', the time of impact has to be considered. At a long period of impact these materials can be heavily attacked or even destroyed. There- fore these parts are rated as wear parts and are not included in the standard warranty conditions.
Questions about the article?
Our colleague Meiko Holzinger will be happy to help:
Tel: +497143/9666-904
E-Mail: holzinger@nieruf.de
technical details
piston overflow valve DN 65 UV13 cast iron 1.0619+N 2,0 - 5,0 bar
piston overflow valve DN 65 type UV13 made of cast iron 1.0619+N pressure range 2,0 - 5,0 bar seal metall for liquid and gaseous media
diameter: DN 65
connection: flange connection DIN 1092-1 PN16
seal: metall
media: liquid and gaseous media
temperature: -10°C to +450°C
range of adjustment: 2,0 - 5,0 bar
design: straight through, spring loaded
material: cast iron 1.0619+N
plug unit: 1.4201+QT
approval: TA - Air TÜV-Test-No. 922-9241371
installation position: upright, bonnet showing upwards
product feature: Spring operated Overflow valve with proportional operating characteristics.
piston overflow valve DN 65 UV13 cast iron 1.0619+N 2,0 - 5,0 bar

Quickly and easily transfer the specification of our valves into your tender text or specification.
Just copy the text box below and paste it into your tender.

piston overflow valve DN 65 UV13 cast iron 1.0619+N 2,0 - 5,0 bar
