UV13040407

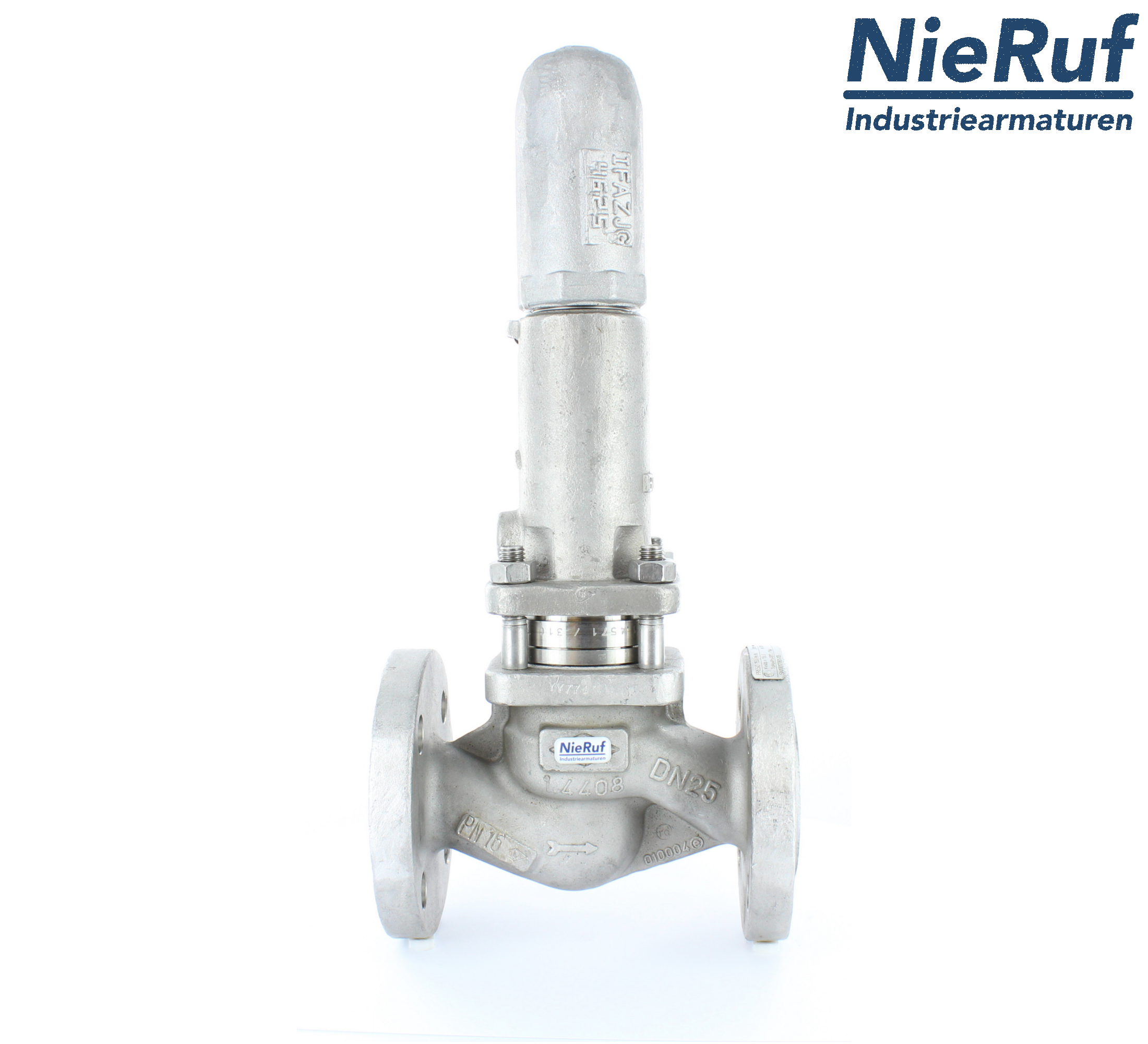

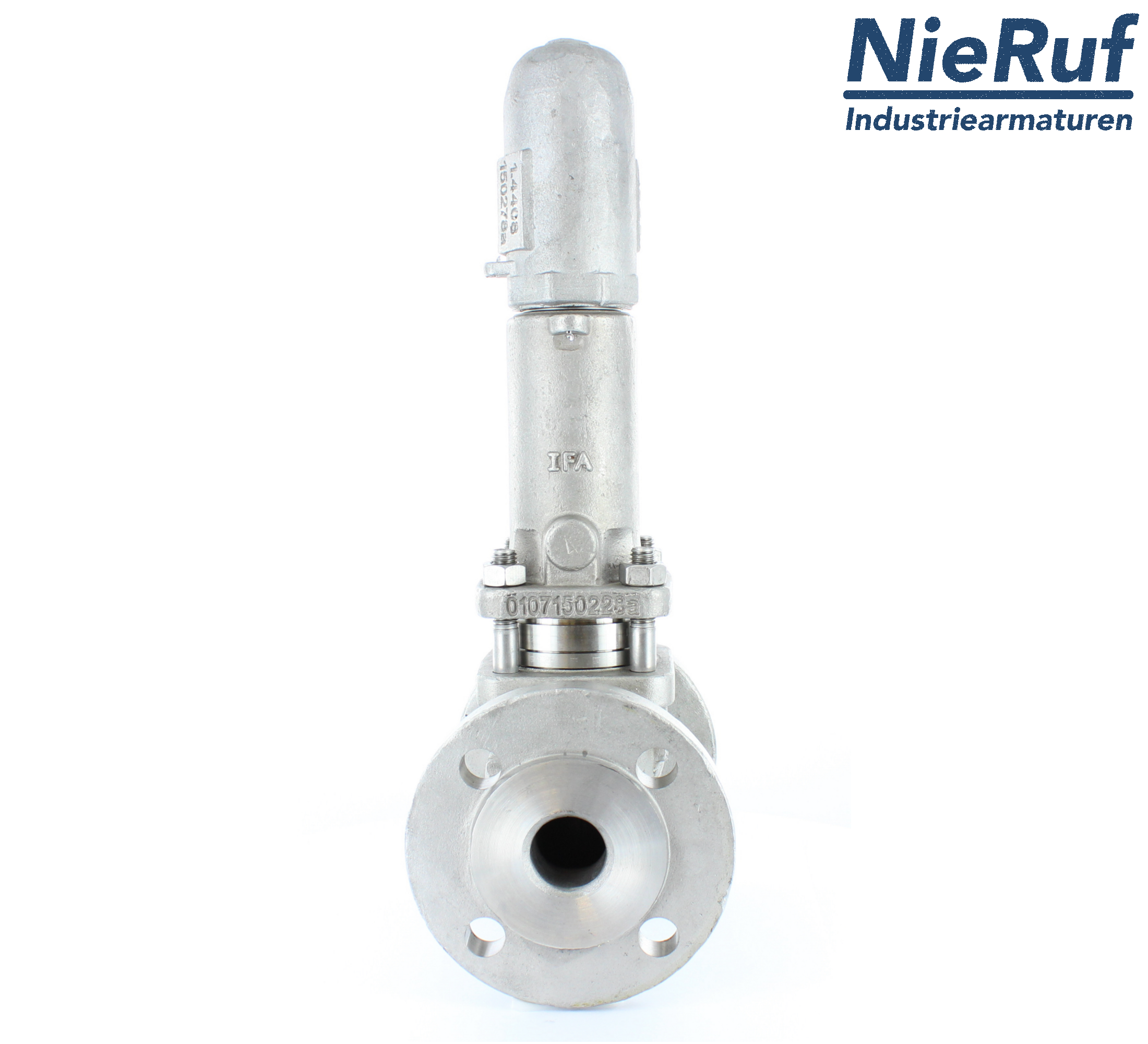

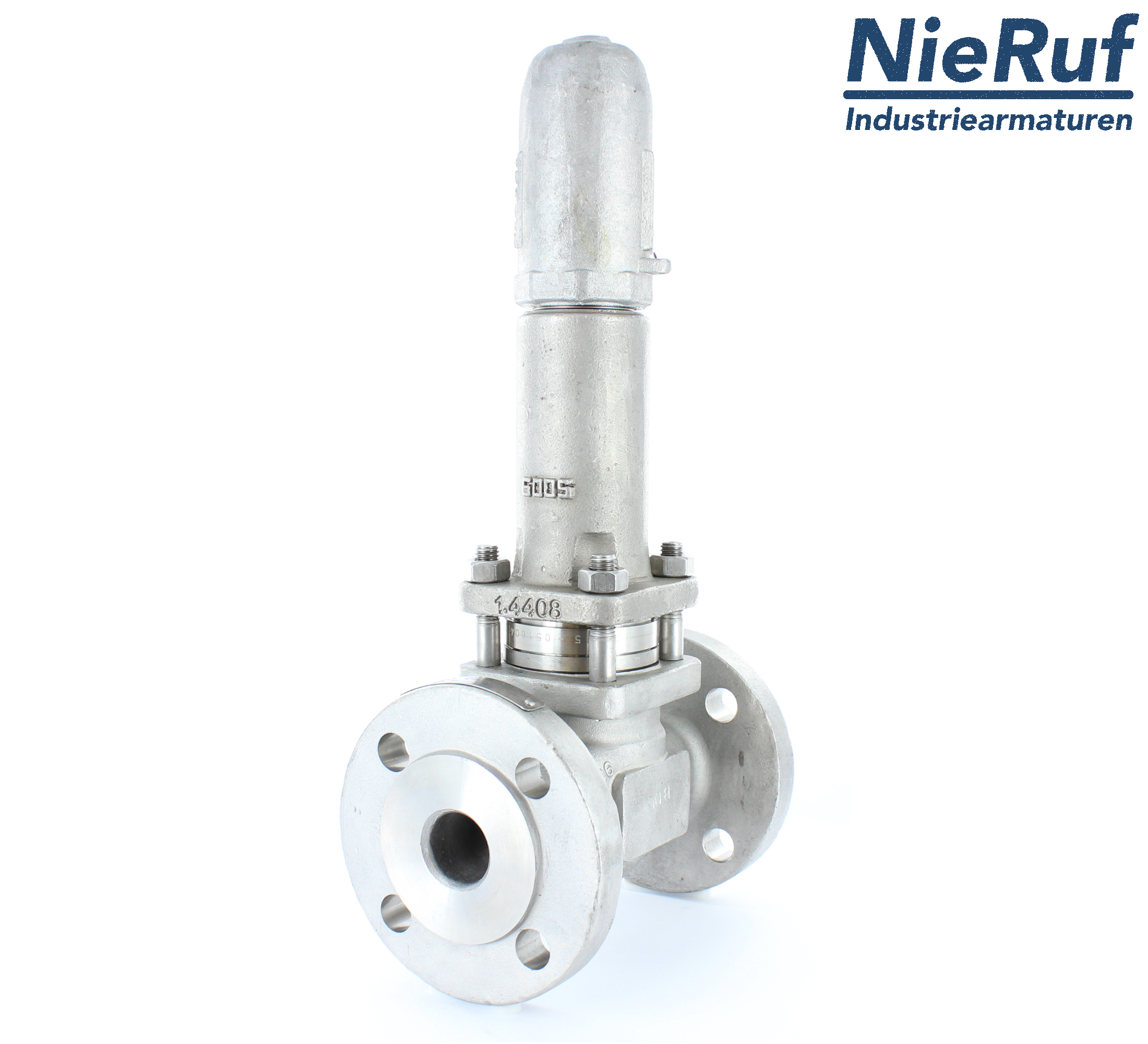

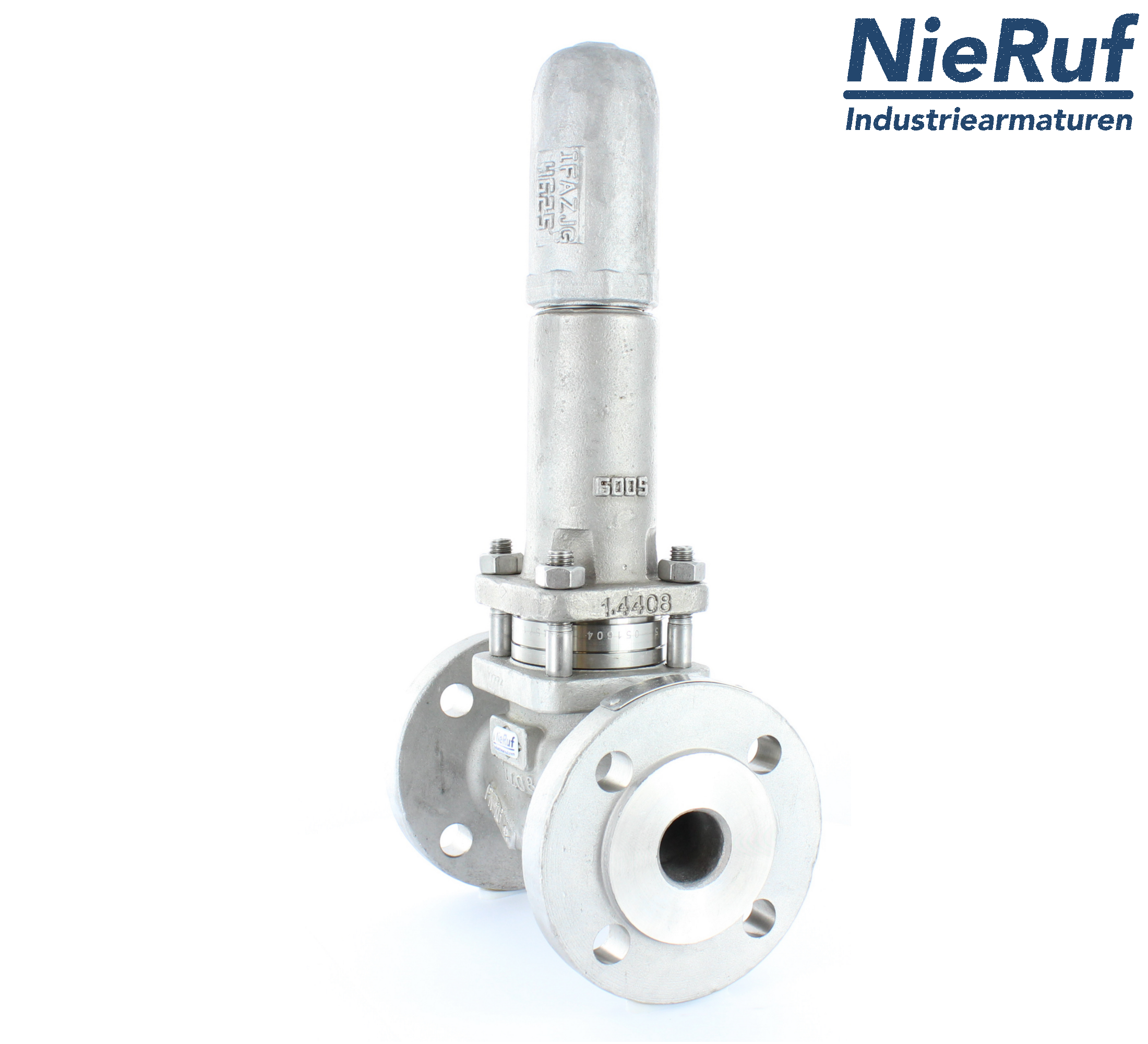

piston overflow valve DN 40 UV13 stainless steel AISI 316L 4,0 - 10,0 bar

€3,165.20*

€3,766.59 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 1 - 2 weeks

Equipment

MM05100801

pressure gauge 0 - 16,0 bar G 1/4" axial 50 mm stainless steel MM05

€87.30*

€103.89 VAT included.

FL01000107

Welding neck flange DN40 PN10/16/25/40 EN1092-1 11 B1 1.4541

€32.20*

€38.32 VAT included.

FD01000107

flange seal DN40 PN10/16/25/40 49x92x2 Klingersil C 4400

€2.70*

€3.21 VAT included.

VS01000107

joint set flange/flange DN40 - 1 1/2" Inch for flange PN10/16/25/40 stainless steel

€6.80*

€8.09 VAT included.

Resistance check

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

Certified

Downloads

3D model

Datasheet

piston overflow valve DN 40 UV13 stainless steel AISI 316L 4,0 - 10,0 bar

piston overflow valve DN 40 type UV13 made of stainless steel AISI 316L pressure range 4,0 - 10,0 bar seal metall for liquid and gaseous media

product	piston overflow valve
type	UV13
manufacturer	NieRuf
diameter	DN 40
connection	flange connection DIN 1092-1 PN16
seal	metall
media	liquid and gaseous media
temperature	-10°C to +400°C
range of adjustment	4,0 - 10,0 bar
design	straight through, spring loaded
material	stainless steel AISI 316L
plug unit	stainless steel 1.4408
approval	TA - Air TÜV-Test-No. 922-9241371
installation position	upright, bonnet showing upwards
product feature	Spring operated Overflow valve with proportional operating characteristics.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

piston overflow valve DN 40 UV13 stainless steel AISI 316L 4,0 - 10,0 bar

Article no. : UV13040407
product: piston overflow valve
type: UV13
manufacturer: NieRuf
diameter: DN 40
connection: flange connection DIN 1092-1 PN16
seal: metall
media: liquid and gaseous media
temperature: -10°C to +400°C
range of adjustment: 4,0 - 10,0 bar
design: straight through, spring loaded
material: stainless steel AISI 316L
plug unit: stainless steel 1.4408
approval: TA - Air TÜV-Test-No. 922-9241371
installation position: upright, bonnet showing upwards
product feature: Spring operated Overflow valve with proportional operating characteristics.
