UV13010406
piston overflow valve DN 32 UV13 stainless steel AISI 316L 0,5 - 1,5 bar
- Lead time
- 1 - 2 weeks
Equipment
pressure gauge 0 - 4,0 bar G 1/4" axial 50 mm stainless steel MM05
€103.89 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€8.09 VAT included.
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
€33.44 VAT included.
flange seal DN32 PN10/16/25/40 43x82x2 Klingersil C 4400
€5.24 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

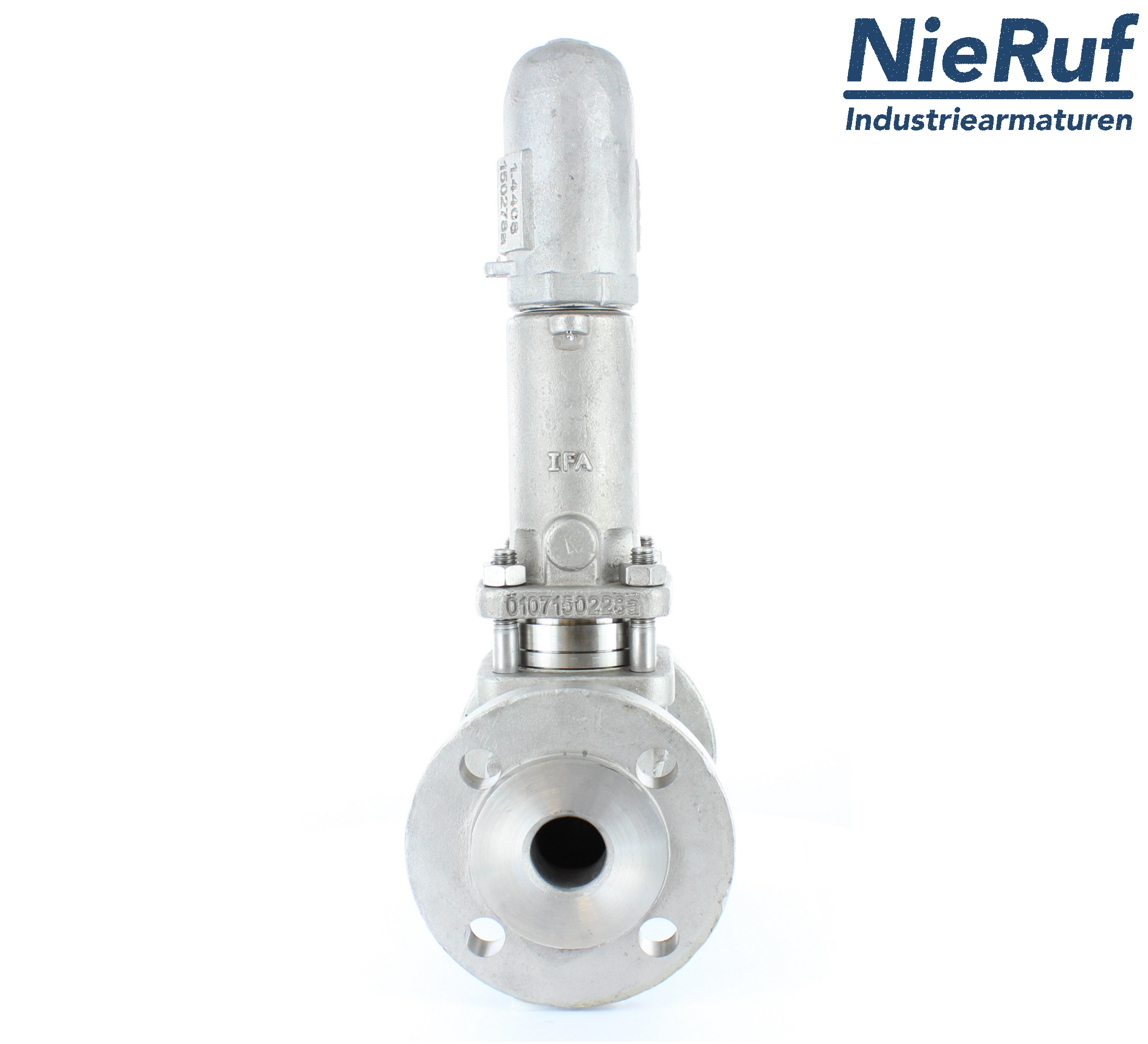

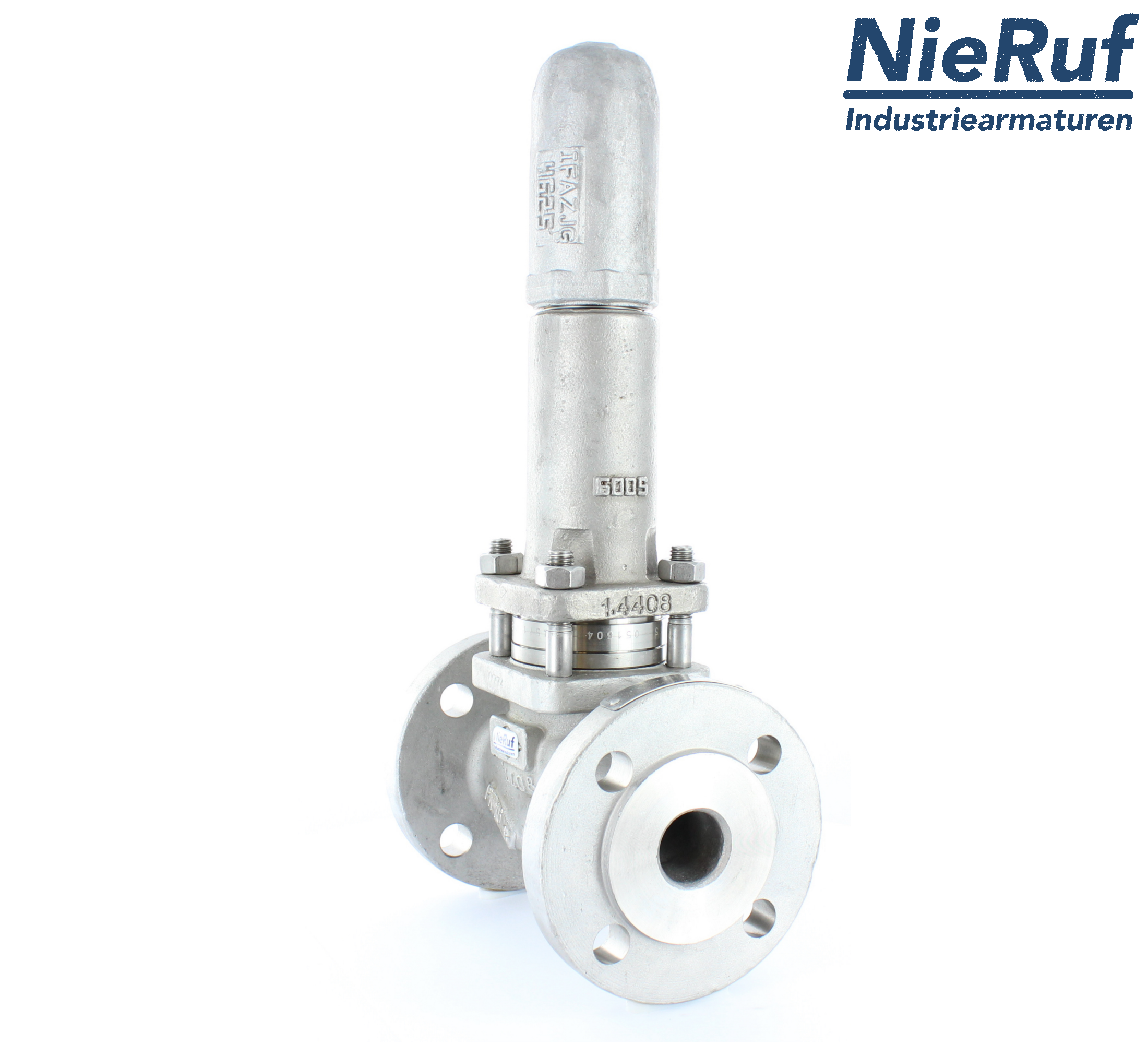

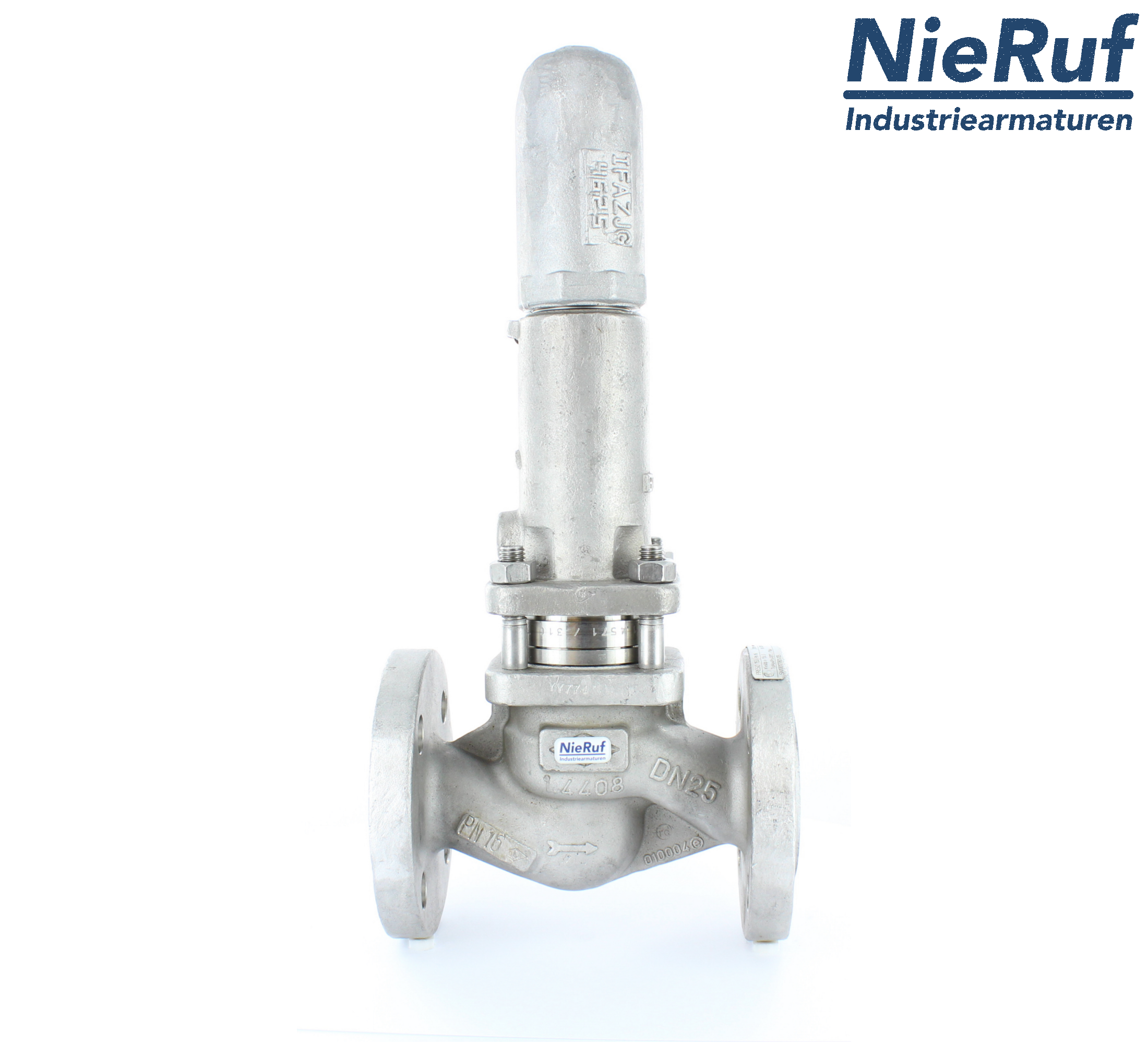

piston overflow valve DN 32 UV13 stainless steel AISI 316L 0,5 - 1,5 bar
piston overflow valve DN 32 type UV13 made of stainless steel AISI 316L pressure range 0,5 - 1,5 bar seal metall for liquid and gaseous media
| product | piston overflow valve |
|---|---|
| type | UV13 |
| manufacturer | NieRuf |
| diameter | DN 32 |
| connection | flange connection DIN 1092-1 PN16 |
| seal | metall |
| media | liquid and gaseous media |
| temperature | -10°C to +400°C |
| range of adjustment | 0,5 - 1,5 bar |
| design | straight through, spring loaded |
| material | stainless steel AISI 316L |
| plug unit | stainless steel 1.4408 |
| approval | TA - Air TÜV-Test-No. 922-9241371 |
| installation position | upright, bonnet showing upwards |
| product feature | Spring operated Overflow valve with proportional operating characteristics. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
piston overflow valve DN 32 UV13 stainless steel AISI 316L 0,5 - 1,5 bar
Article no.
: UV13010406
product:
piston overflow valve
type:
UV13
manufacturer:
NieRuf
diameter:
DN 32
connection:
flange connection DIN 1092-1 PN16
seal:
metall
media:
liquid and gaseous media
temperature:
-10°C to +400°C
range of adjustment:
0,5 - 1,5 bar
design:
straight through, spring loaded
material:
stainless steel AISI 316L
plug unit:
stainless steel 1.4408
approval:
TA - Air TÜV-Test-No. 922-9241371
installation position:
upright, bonnet showing upwards
product feature:
Spring operated Overflow valve with proportional operating characteristics.
