UV15050007

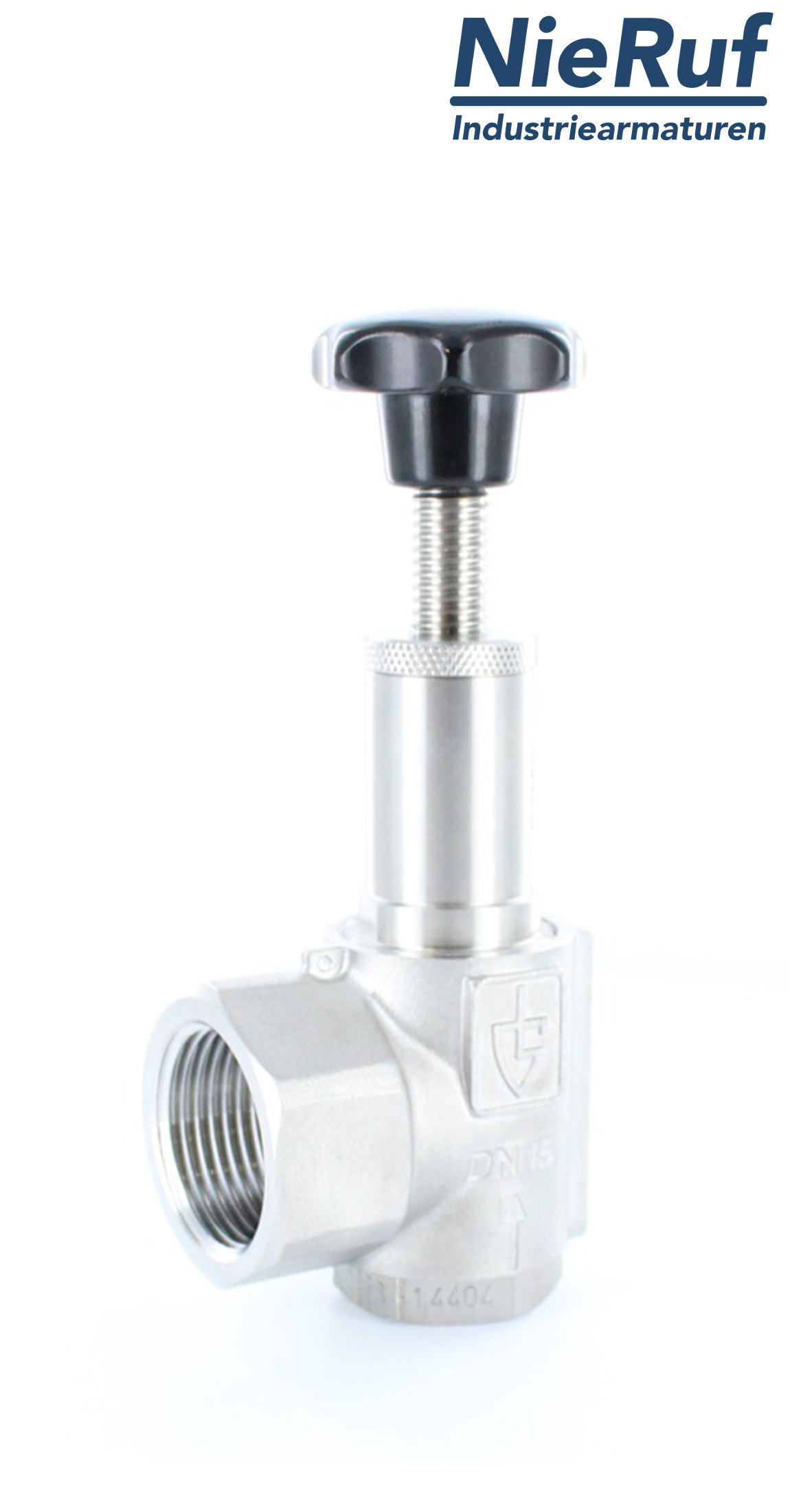

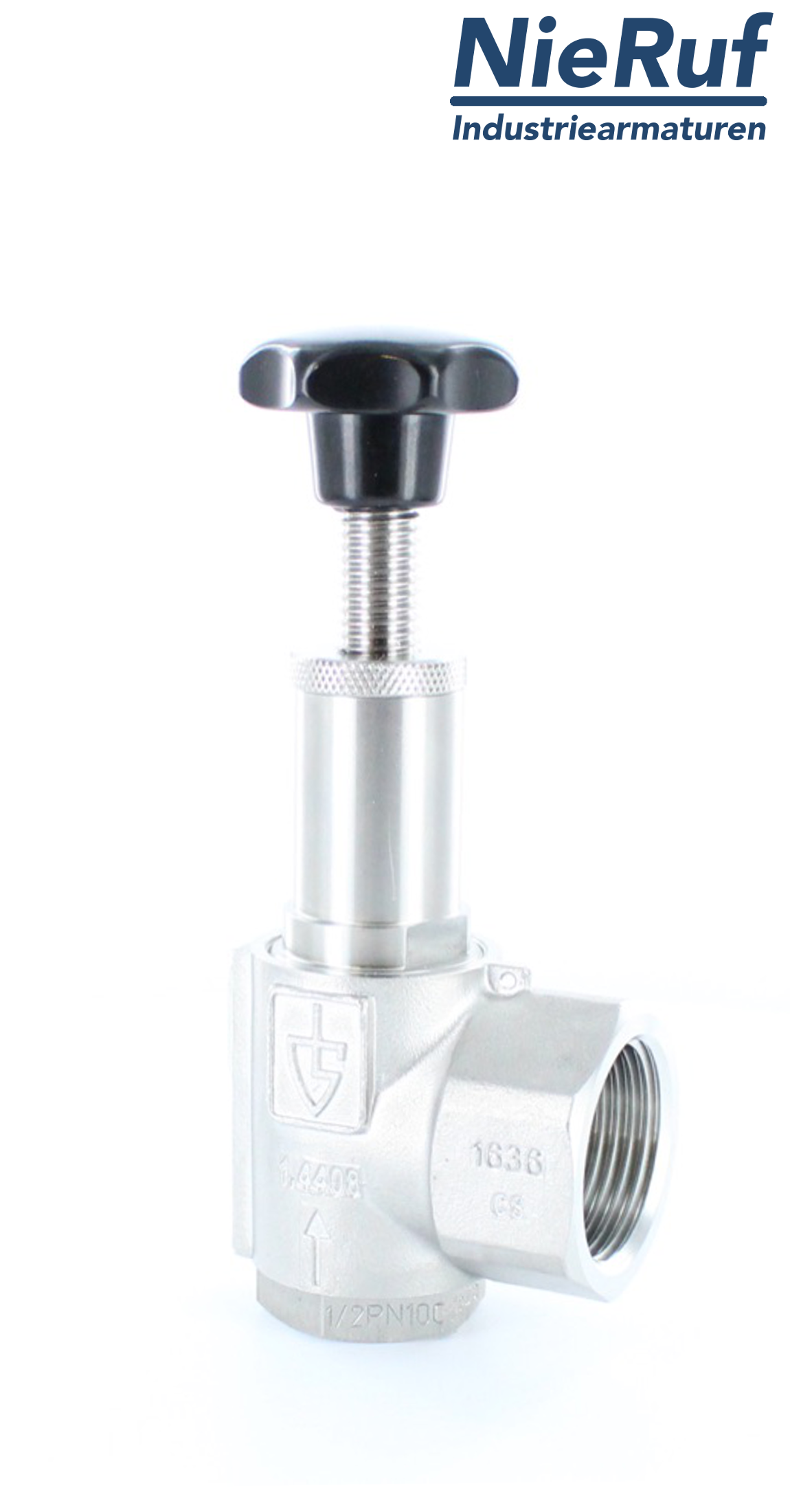

angle-type overflow valve 1 1/2" inch fm UV15 stainless steel 5,6 - 11,0 bar
- Lead time
- 3 - 5 working days
Equipment
tee 1 1/2" inch stainless steel 316 90° angle FM
€18.80 VAT included.
hexagon nipple 1 1/2" inch male stainless steel 316
€9.04 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you
angle-type overflow valve 1 1/2" inch fm UV15 stainless steel 5,6 - 11,0 bar
angle-type overflow valve 1 1/2" inch fm type UV15 stainless steel 5,6 - 11,0 bar seal PTFE for liquid and gaseous media counter pressure compensated up to 4 bar
| product | angle-type overflow valve |
|---|---|
| type | UV15 |
| manufacturer | NieRuf |
| diameter | 1 1/2" inch fm |
| connection | female thread BSP-P |
| leakage | 2" inch fm |
| seal | PTFE |
| media | liquid and gaseous media |
| temperature | -60°C to +225°C |
| range of adjustment | 5,6 - 11,0 bar |
| design | with an bellow, for counter pressure up to 4 bar |
| material | stainless steel 1.4408 / AISI 316L |
| installation position | preferably vertical |
| SIL - safety integrity level | SIL 3 |
| product feature | Counter-pressure compensated up to 4 bar. Adjusted by the customer in the corresponding spring range using the hand wheel. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
angle-type overflow valve 1 1/2" inch fm UV15 stainless steel 5,6 - 11,0 bar
Article no.
: UV15050007
product:
angle-type overflow valve
type:
UV15
manufacturer:
NieRuf
diameter:
1 1/2" inch fm
connection:
female thread BSP-P
leakage:
2" inch fm
seal:
PTFE
media:
liquid and gaseous media
temperature:
-60°C to +225°C
range of adjustment:
5,6 - 11,0 bar
design:
with an bellow, for counter pressure up to 4 bar
material:
stainless steel 1.4408 / AISI 316L
installation position:
preferably vertical
SIL - safety integrity level:
SIL 3
product feature:
Counter-pressure compensated up to 4 bar. Adjusted by the customer in the corresponding spring range using the hand wheel.
