DM23030308
low-pressure reducing valve DN50 DM23 flange ANSI 150 stainless steel FKM 150 - 500 mbar
- Lead time
- 2 - 3 weeks
Equipment
digital pressure sensor G 1/4" B DS03 stainless steel 4-wire: 2xPNP FPM 0,0 - 0,60 bar
€665.09 VAT included.
Questions about the article?
Our employee Richie Rost
will be happy to help you

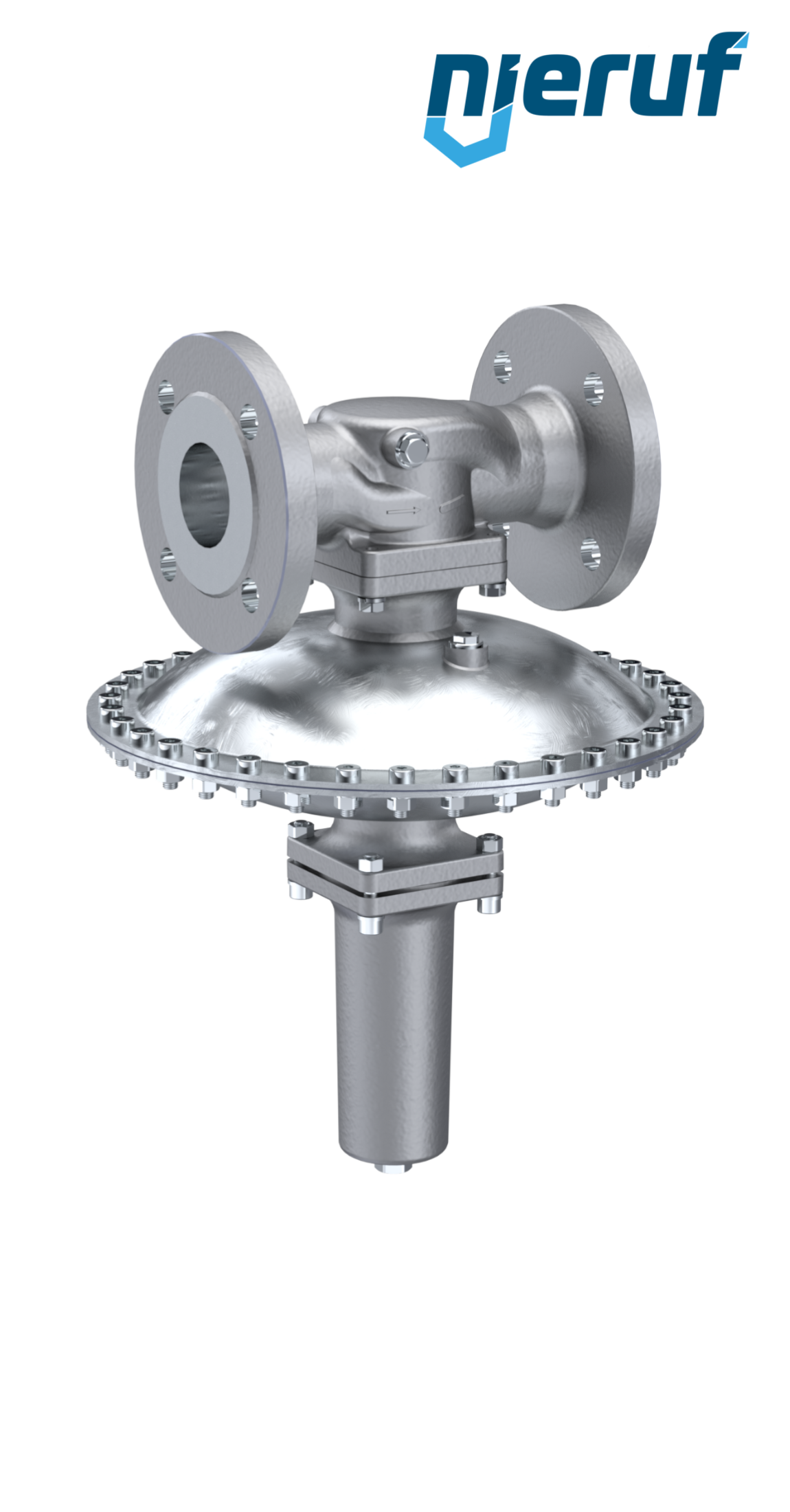

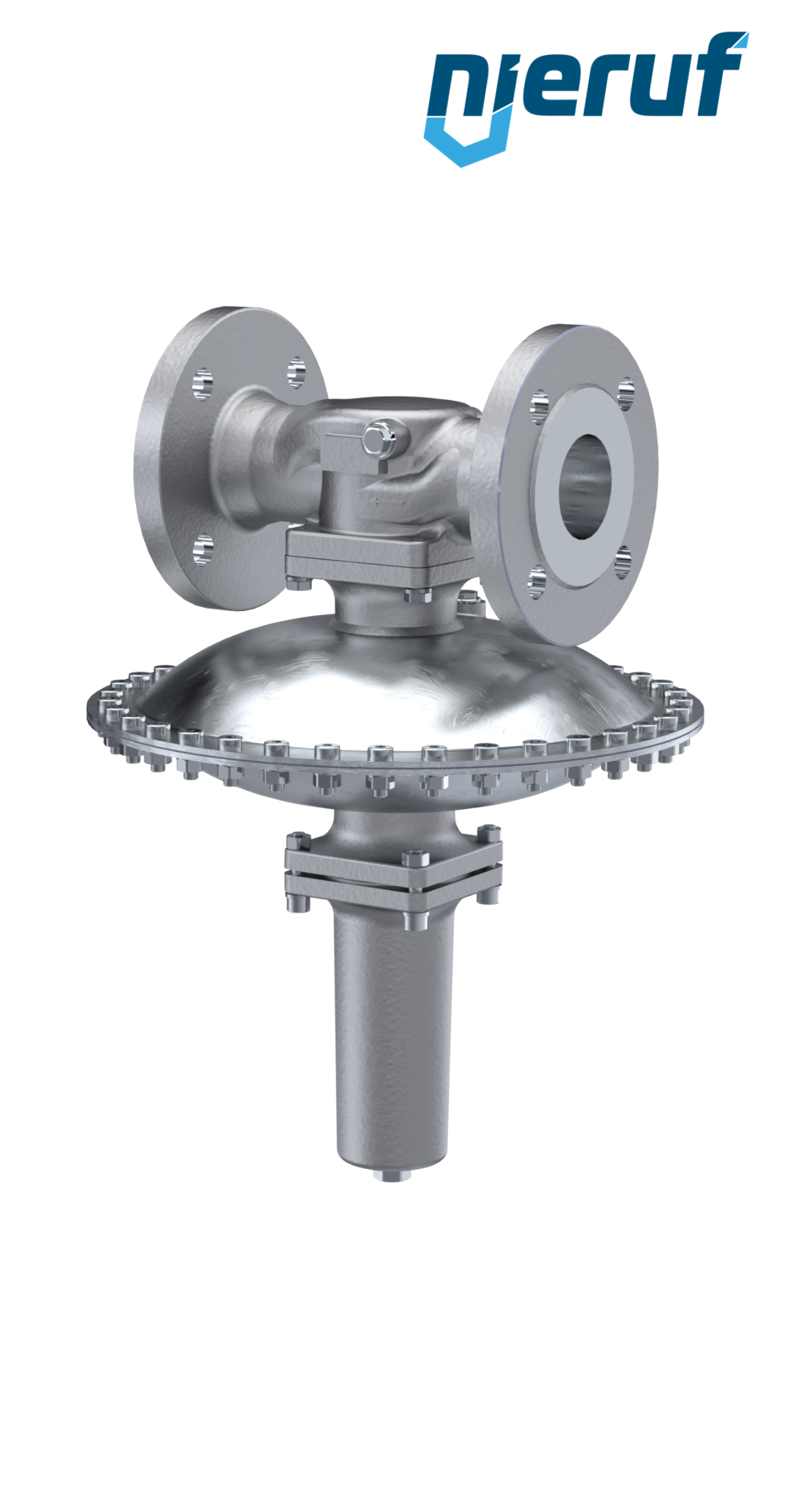

low-pressure reducing valve DN50 DM23 flange ANSI 150 stainless steel FKM 150 - 500 mbar
low-pressure reducing valve DN50 made of stainless steel with flange ANSI 150 for liquid and neutral gaseous media and FKM seal, set pressure 150 - 500 mbar
| product | low-pressure reducing valve |
|---|---|
| type | DM23 |
| manufacturer | NieRuf |
| diameter | DN50 |
| connection | flange ANSI 150 |
| material | stainless steel |
| seal | FPM / FKM |
| media | liquid and neutral gaseous media |
| temperature | -10°C up to +180°C |
| range of adjustment | 150 - 500 mbar |
| max. inlet pressure | 0,5 - 10 bar |
| design | straightway form |
| installation position | horizontal, bonnet pointing downwards |
| product feature | This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel and double-ended G 1/4" manometer fitting |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
low-pressure reducing valve DN50 DM23 flange ANSI 150 stainless steel FKM 150 - 500 mbar
Article no.
: DM23030308
product:
low-pressure reducing valve
type:
DM23
manufacturer:
NieRuf
diameter:
DN50
connection:
flange ANSI 150
material:
stainless steel
seal:
FPM / FKM
media:
liquid and neutral gaseous media
temperature:
-10°C up to +180°C
range of adjustment:
150 - 500 mbar
max. inlet pressure:
0,5 - 10 bar
design:
straightway form
installation position:
horizontal, bonnet pointing downwards
product feature:
This high quality pressure reducing valve is made in Germany. A pressure reducing valve with stainless steel and double-ended G 1/4" manometer fitting
Equipment
digital pressure sensor G 1/4" B DS03 stainless steel 4-wire: 2xPNP FPM 0,0 - 0,60 bar
Lead time: 2 - 3 weeks
