DM24010308

low-pressure reducing valve DN50 DM24 flange ANSI 150 stainless steel EPDM 30 - 500 mbar

€4,452.00*

€5,297.88 VAT included.

*Prices excl. VAT plus shipping costs

Lead time: 2 - 3 weeks

Equipment

DS03021001

digital pressure sensor G 1/4" B 4-wire: 2xPNP EPDM 0,0 - 0,60 bar

€558.90*

€665.09 VAT included.

Certificates

ZEUFDA

Manufacturer's Declaration for FDA Compliance

€30.00*

€35.70 VAT included.

Resistance check

×

Our employee <strong>Richie Rost</strong><br>will be happy to help you

Questions about the article?

Our employee Richie Rost
will be happy to help you

Tel: +49714396669-18

E-Mail: rost@nieruf.com

NIERUF-SERVICE

24 months warranty

Certified

Downloads

3D model

Datasheet

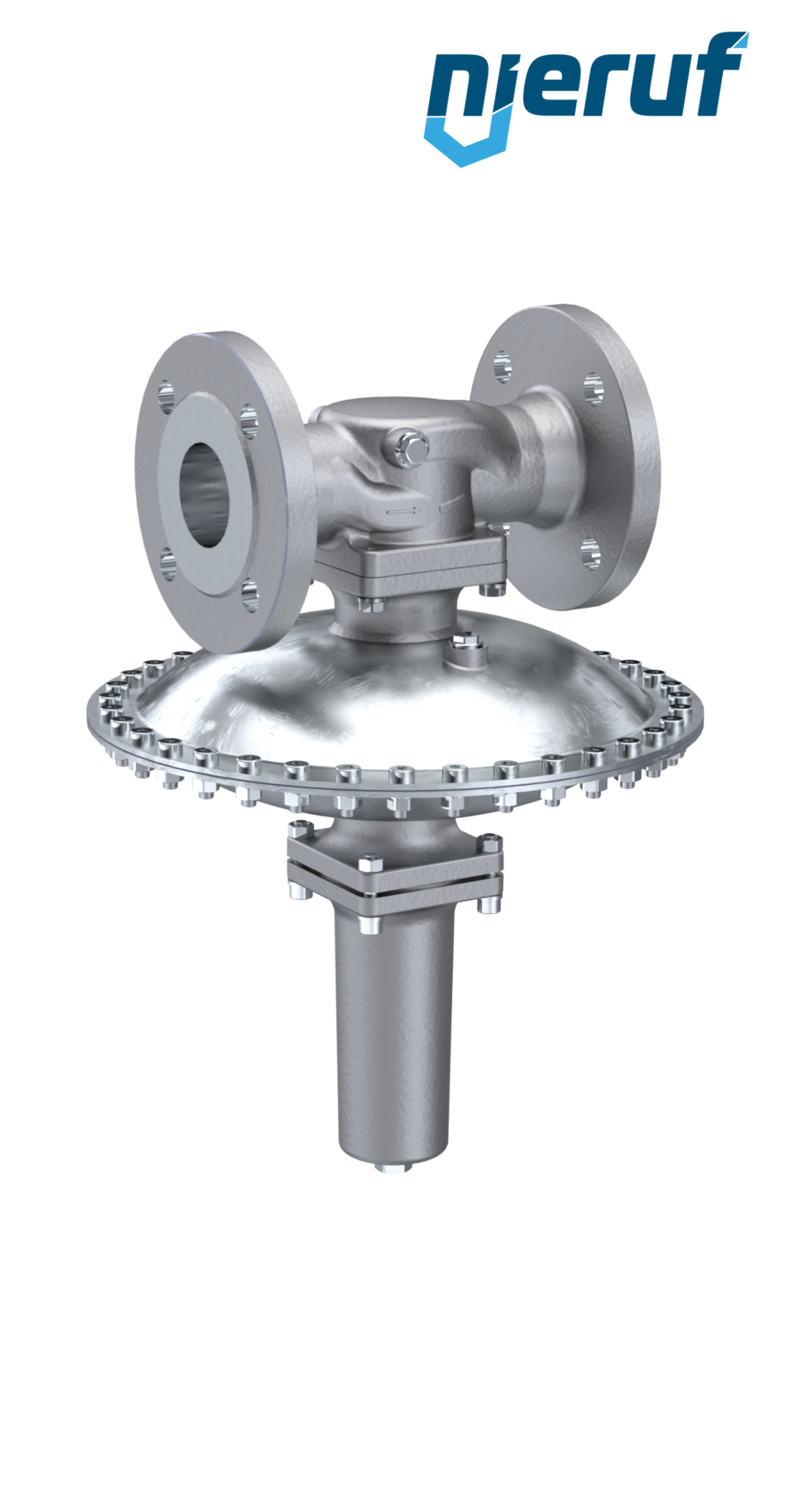

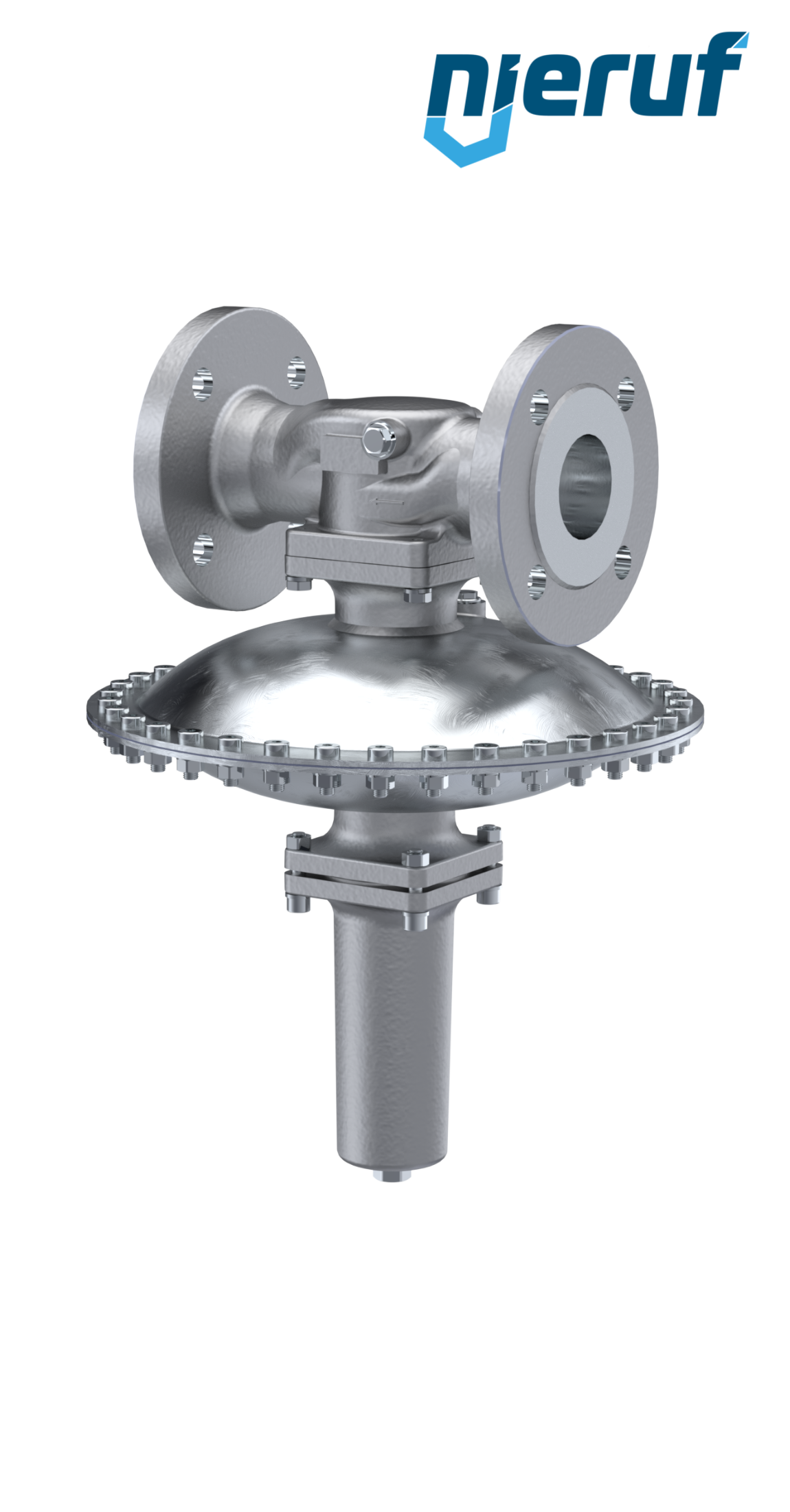

low-pressure reducing valve DN50 DM24 flange ANSI 150 stainless steel EPDM 30 - 500 mbar

low-pressure reducing valve DN50 made of stainless steel with flange ANSI 150 for liquid and neutral gaseous media and EPDM seal, set pressure 30 - 500 mbar

product	low-pressure reducing valve
type	DM24
manufacturer	NieRuf
diameter	DN50
connection	flange ANSI 150
material	stainless steel
seal	EPDM
media	liquid and neutral gaseous media
temperature	-30°C up to +120°C
range of adjustment	30 - 500 mbar
max. inlet pressure	0,5 - 10 bar
design	straightway form
installation position	horizontal, bonnet pointing downwards
product feature	This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

low-pressure reducing valve DN50 DM24 flange ANSI 150 stainless steel EPDM 30 - 500 mbar

Article no. : DM24010308
product: low-pressure reducing valve
type: DM24
manufacturer: NieRuf
diameter: DN50
connection: flange ANSI 150
material: stainless steel
seal: EPDM
media: liquid and neutral gaseous media
temperature: -30°C up to +120°C
range of adjustment: 30 - 500 mbar
max. inlet pressure: 0,5 - 10 bar
design: straightway form
installation position: horizontal, bonnet pointing downwards
product feature: This version meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.
